Ever felt like deploying an application directly onto the public internet is like shouting your secrets into a crowded stadium? 📢 You have servers, databases, maybe some sensitive user data... just putting them "out there" feels risky and uncontrolled. You need your own space, walls, security guards – a private, controlled environment even while leveraging the power and scale of a massive public cloud like AWS.

That's precisely where Amazon Virtual Private Cloud (VPC) comes in. It's not just another acronym; it's the bedrock of secure and organized networking on AWS. Forget the stadium; think of building your own secure office building within the bustling metropolis of the AWS global infrastructure.

(Why It Matters: Relevance and importance)

Why Should You Care About VPC?

In today's cloud-native world, understanding VPC isn't optional—it's fundamental. Here's why:

  • Security: Isolate your resources from the public internet and other AWS customers. You control who gets in and out.
  • Control: Define your own IP address range, create subnets, configure route tables, and manage network gateways. It's your network.
  • Scalability: Design complex network topologies that can grow with your application needs.
  • Hybrid Cloud: Seamlessly connect your VPC to your on-premises data center using VPN or Direct Connect.
  • Compliance: Meet regulatory requirements that mandate network isolation and control.

Mastering VPC unlocks the ability to build robust, secure, and scalable applications on AWS. Ignoring it is like building a house without designing the floor plan or installing locks on the doors.

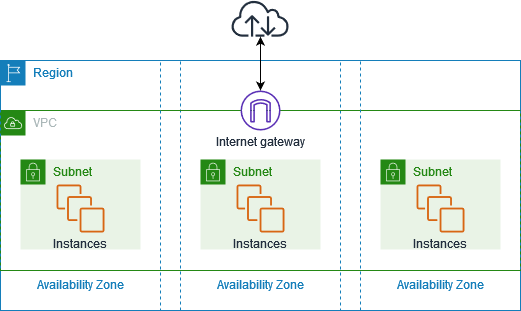

AWS VPC
(The Concept in Simple Terms: The Core Analogy)

VPC: Your Private Office Building in the AWS City

Imagine AWS is a massive, sprawling city with incredible infrastructure – power, water, roads (the underlying AWS physical network). An Amazon VPC is like leasing land within that city and building your own private, secure office building on it.

  • Your Building (The VPC): This is your logically isolated section of the AWS cloud. You define its boundaries and internal structure. Nobody else can just wander into your building without permission.
  • The Building's Address Range (CIDR Block): When you build your office, you get a specific address range for all the rooms and floors (e.g., 10.0.0.0/16). This is the private IP address space for your VPC. Every resource inside your VPC will get an address from this range.
  • Floors or Departments (Subnets): You divide your building into different floors or departments, each serving a specific purpose. These are your Subnets. Each subnet lives within a specific Availability Zone (think of AZs as different, physically separate data centers within the AWS city for redundancy) and gets a portion of your building's total address range (e.g., 10.0.1.0/24 for the Marketing floor, 10.0.2.0/24 for Engineering).
  • Public vs. Private Floors (Public vs. Private Subnets):
    • Public Subnets: These are like the floors with reception desks and windows facing the main street (the Internet). Resources here (like web servers) can be directly accessed from the outside world and can directly access the internet.
    • Private Subnets: These are the internal, secure floors with no direct access from the street. Resources here (like databases or backend services) cannot be reached directly from the internet and typically need help to reach out.
  • The Main Entrance/Exit (Internet Gateway - IGW): This is the secure, monitored main door connecting your building directly to the city's main roads (the Internet). You attach an IGW to your VPC to allow resources in public subnets to communicate with the internet.
  • The Internal Directory & Hallway Signs (Route Tables): How does someone know how to get from the Engineering floor to the Marketing floor, or out the main entrance? Route Tables act like the building directory and directional signs within your VPC. Each subnet is associated with a route table that dictates where network traffic can go. A route to the IGW (0.0.0.0/0 -> igw-xxxxxxxx) means "send internet-bound traffic out the main door."
  • The Secure Mailroom/Receptionist (NAT Gateway/Instance): How do employees on a private floor send mail out (access the internet for updates, patches) without having a public-facing window? They use a NAT (Network Address Translation) Gateway. Think of it as a secure mailroom service located on a public floor. Private resources send their outbound internet traffic to the NAT Gateway, which then forwards it to the internet using its own public IP address. Replies come back to the NAT Gateway, which directs them to the correct private resource. This allows outbound access without allowing inbound connections initiated from the internet.
  • Room-Level Security Guards (Security Groups - SGs): These act like security guards stationed at the door of each individual office or server room (EC2 instance, RDS database, etc.). They are stateful, meaning if they let traffic in, they automatically let the corresponding traffic out. You define rules like "Allow incoming web traffic (port 80/443) to this specific web server." They operate at the instance level.
  • Floor/Hallway Security Checkpoints (Network Access Control Lists - NACLs): These are like security checkpoints at the entrance/exit of each floor or department (Subnet). They check traffic flowing in and out of the subnet. They are stateless, meaning you must explicitly define rules for both inbound and outbound traffic. If you allow inbound traffic on port 80, you must also allow outbound traffic on the corresponding ephemeral ports for the response. They act as a broader, less granular firewall layer than Security Groups.

This "Office Building" analogy helps visualize the core components and their purpose: isolation, segmentation, controlled access, and routing within your private cloud space.

(Deeper Dive: Technical explanations)

Getting Technical: The VPC Building Blocks

Let's put the analogies aside for a moment and look at the key technical components:

  • VPC: A virtual network dedicated to your AWS account. Logically isolated. You define its IP address range using CIDR (Classless Inter-Domain Routing) notation (e.g., 10.0.0.0/16, 172.16.0.0/12, 192.168.0.0/16 are common private ranges).
  • Subnet: A range of IP addresses within your VPC. You divide your VPC's CIDR block into smaller subnets. Each subnet must reside entirely within one Availability Zone (AZ).
    • Public Subnet: A subnet whose associated route table has a route to an Internet Gateway (IGW). Instances in a public subnet can optionally receive a public IP address or Elastic IP address.
    • Private Subnet: A subnet whose associated route table does not have a direct route to the IGW. Instances here only have private IP addresses.
  • Internet Gateway (IGW): A horizontally scaled, redundant, and highly available VPC component that allows communication between instances in your VPC and the internet. It's the entry/exit point for public traffic.
  • Route Table: Contains a set of rules, called routes, that determine where network traffic from your subnet or gateway is directed.
    • Every VPC has a main route table by default.
    • You can create custom route tables and associate them with specific subnets.
    • Routes specify a destination CIDR block and a target (e.g., IGW, NAT Gateway, VPC Peering Connection, Virtual Private Gateway).
  • NAT Gateway: An AWS managed service that enables instances in a private subnet to connect to the internet or other AWS services, but prevents the internet from initiating a connection with those instances. Requires an Elastic IP address and must be placed in a public subnet. (You could also use a self-managed NAT Instance on an EC2, but NAT Gateways are generally preferred for availability and bandwidth).
  • Security Group (SG): Acts as a virtual firewall for your instances to control inbound and outbound traffic. Operates at the instance level. SGs are stateful. Default SG denies all inbound traffic and allows all outbound traffic.
  • Network Access Control List (NACL): An optional layer of security for your VPC that acts as a firewall for controlling traffic in and out of one or more subnets. Operates at the subnet level. NACLs are stateless. Default NACL allows all inbound and outbound traffic.

(Practical Example or Use Case: Common web app architecture)

Putting It Together: A Typical Web Application Setup

Let's see how a developer team might use VPC to host a standard three-tier web application:

  1. Create the VPC: Define a CIDR block, say 10.0.0.0/16.
  2. Create Subnets across Availability Zones: For high availability, create public and private subnets in at least two AZs (e.g., us-east-1a and us-east-1b).
    • Public Subnet 1A: 10.0.1.0/24
    • Private Subnet 1A: 10.0.2.0/24
    • Public Subnet 1B: 10.0.3.0/24
    • Private Subnet 1B: 10.0.4.0/24
  3. Create & Attach Internet Gateway: Create an IGW and attach it to the VPC.
  4. Configure Route Tables:
    • Public Route Table: Create a custom route table. Add a route 0.0.0.0/0 targeting the IGW. Associate this table with the public subnets (10.0.1.0/24, 10.0.3.0/24).
    • Private Route Table: Create another custom route table. Do not add a route to the IGW directly. Associate this table with the private subnets (10.0.2.0/24, 10.0.4.0/24).
  5. Deploy Resources:
    • Web Servers (EC2): Launch into the public subnets. Assign them public IPs (or put them behind an Elastic Load Balancer in the public subnets).
    • Application Servers (EC2): Launch into the private subnets.
    • Database (RDS): Launch into the private subnets.
  6. Set up NAT Gateway (Optional but common): If the application servers or database need to download updates or access external APIs, create a NAT Gateway in one of the public subnets. Add a route 0.0.0.0/0 targeting the NAT Gateway in the private route table.
  7. Configure Security Groups:
    • Web Server SG: Allow inbound traffic on port 80/443 from 0.0.0.0/0 (or from the ELB's SG). Allow outbound traffic as needed. Allow inbound traffic from the App Server SG on necessary ports.
    • App Server SG: Allow inbound traffic only from the Web Server SG on specific application ports. Allow outbound traffic to the Database SG on the database port. If using NAT Gateway, allow outbound to 0.0.0.0/0.
    • Database SG: Allow inbound traffic only from the App Server SG on the database port (e.g., 3306 for MySQL).

This setup ensures that only the web servers are exposed publicly, while the application logic and sensitive data reside in isolated private subnets, enhancing security.

(Simple Shell Command Example)

You can list your existing VPCs using the AWS CLI:

aws ec2 describe-vpcs --query "Vpcs[*].[VpcId, CidrBlock, IsDefault]" --output table

This command will show you the VPC ID, its CIDR block, and whether it's the default VPC in your region.

(Common Mistakes or Misunderstandings)

Watch Out! Common VPC Pitfalls

Even seasoned pros can stumble. Here are common mistakes to avoid:

  • Misconfiguring Route Tables: The #1 cause of "Why can't my instance reach the internet?". Ensure public subnets route 0.0.0.0/0 to the IGW, and private subnets needing outbound access route 0.0.0.0/0 to a NAT Gateway/Instance.
  • Security Groups Too Permissive: Opening ports (like SSH/RDP) to 0.0.0.0/0 is risky. Lock down sources to specific IPs, ranges, or other Security Groups whenever possible (Principle of Least Privilege).
  • NACL Complexity: NACLs are powerful but stateless. Forgetting to add corresponding outbound rules for allowed inbound traffic (and vice-versa) can block legitimate connections. Often, well-configured Security Groups are sufficient. Start with SGs, use NACLs for broader subnet-level blocks if needed.
  • Overlapping CIDR Blocks: Planning your VPC and subnet CIDR ranges is crucial, especially if you ever plan to peer VPCs or connect to on-premises networks. Overlapping ranges cause routing conflicts. Choose non-overlapping private IP ranges (10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16) carefully.
  • Forgetting NAT for Private Subnets: If instances in private subnets need to download OS updates, install packages, or call external APIs, they need a NAT Gateway or NAT Instance and the corresponding route table entry.

(Pro Tips & Hidden Features)

Level Up Your VPC Game: Pro Tips

Ready to go beyond the basics?

  • VPC Flow Logs: Enable Flow Logs to capture information about the IP traffic going to and from network interfaces in your VPC. Invaluable for troubleshooting connectivity issues, security analysis, and monitoring. Send logs to CloudWatch Logs or S3.
  • VPC Endpoints: Connect privately from your VPC to supported AWS services (like S3, DynamoDB, Secrets Manager) without requiring an IGW, NAT Gateway, VPN, or Direct Connect. Keeps traffic within the AWS network, enhancing security and potentially reducing data transfer costs. There are Gateway Endpoints (S3, DynamoDB) and Interface Endpoints (most other services, uses Elastic Network Interfaces).
  • Reachability Analyzer: A static configuration analysis tool that helps you troubleshoot network connectivity between two resources in your VPC. It visualizes the path and highlights potential blocking components (like Security Groups, NACLs, Route Tables).
  • Plan Your CIDRs Carefully: Think about future growth. Don't make your VPC CIDR too small. Use a tool like ipcalc or online subnet calculators to plan your subnet sizes efficiently. Reserve space for future subnets or potential network integrations.
  • Infrastructure as Code (IaC): Define and manage your VPC resources using tools like AWS CloudFormation, Terraform, or AWS CDK. This ensures consistency, repeatability, and version control for your network infrastructure. Avoid manual "click-ops" for production environments.
  • Use Tags: Tag your VPC resources (VPC, Subnets, Route Tables, IGW, NAT Gateways, SGs, NACLs) consistently. This is crucial for cost allocation, automation, and organization, especially in complex environments.

(Final Thoughts + Call to Action)

Your Foundation in the Cloud

Amazon VPC is more than just networking; it's the secure foundation upon which you build reliable and scalable applications in the AWS cloud. Understanding its components and how they interact – visualized through analogies like our "Office Building" – empowers you to design networks that meet your specific security and operational needs.

While the default VPC is great for getting started quickly, taking the time to design and implement a custom VPC tailored to your application architecture is a crucial step towards production readiness and best practices.

What's Your Take?

  • Have you wrestled with VPC configurations before?
  • What analogies have helped you understand cloud networking?
  • Are there any specific VPC scenarios you'd like to see covered next?

Dive in! Spin up a custom VPC in your AWS account (the free tier covers a lot!), experiment with subnets and route tables, and see these concepts in action.

Share your thoughts and experiences in the comments below! Let's learn together. 👇
