Binary Tree All Operations as pseudocode

Tree Structure

Each node x has these attributes:

• x.key: key stored in the node
• x.p: pointer to the parent node
• x.left: pointer to the left child
• x.right: pointer to the right child

A tree T has:

• T.root: pointer to the root node

Algorithms

1. Inorder Tree Walk

Input: x (pointer to a node in the binary search tree)
Output: None (prints keys in order)

1. If x ≠ null
2.   Inorder-tree-walk(x.left)
3.   Print x.key
4.   Inorder-tree-walk(x.right)

2. Tree Search (Recursive)

Input: x (pointer to subtree root), k (key to search)
Output: Pointer to node with key k (or null if not found)

1. If x == null or k == x.key
2.   Return x
3. If k < x.key
4.   Return tree-search(x.left, k)
5. Else
6.   Return tree-search(x.right, k)

3. Iterative Tree Search

Input: x (pointer to subtree root), k (key to search)
Output: Pointer to node with key k (or null if not found)

1. While x ≠ null and k ≠ x.key
2.   If k < x.key
3.     x = x.left
4.   Else
5.     x = x.right
6. Return x

4. Tree Minimum

Input: x (pointer to non-null node)
Output: Pointer to node with minimum key in the subtree

1. While x.left ≠ null
2.   x = x.left
3. Return x

5. Tree Maximum

Input: x (pointer to non-null node)
Output: Pointer to node with maximum key in the subtree

1. While x.right ≠ null
2.   x = x.right
3. Return x

6. Tree Insert

Input: t (binary search tree), z (node to insert)
Output: None (modifies tree by inserting z)

1. y = null
2. x = t.root
3. While x ≠ null
4.   y = x
5.   If z.key < x.key
6.     x = x.left
7.   Else
8.     x = x.right
9. z.p = y
10. If y == null
11.   t.root = z
12. Elseif z.key < y.key
13.   y.left = z
14. Else
15.   y.right = z

7. Transplant (Helper for Delete)

Input: t (binary search tree), u (subtree to replace), v (replacing subtree)
Output: None (modifies tree)

1. If u.p == null
2.   t.root = v
3. Elseif u == u.p.left
4.   u.p.left = v
5. Else
6.   u.p.right = v
7. If v ≠ null
8.   v.p = u.p

8. Tree Delete

Input: t (binary search tree), z (node to delete)
Output: None (modifies tree)

1. If z.left == null
2.   Transplant(t, z, z.right)
3. Elseif z.right == null
4.   Transplant(t, z, z.left)
5. Else
6.   y = tree-minimum(z.right)
7.   If y.p ≠ z
8.     Transplant(t, y, y.right)
9.     y.right = z.right
10.    y.right.p = y
11.    Transplant(t, z, y)
12.    y.left = z.left
13.    y.left.p = y

Additional Tree Operations

Size

Input: T (binary tree)
Output: Number of nodes in the tree

1. If T.root == Null
2.   Return 0
3. count = 0
4. sizeHelper(T.root, count)
5. Return count

Other Basic Operations

• isEmpty(): Returns true if tree is empty
• root(): Returns the root node
• parent(v): Returns parent of node v
• children(v): Returns list of children of node v
• leftChild(v): Returns left child of node v
• rightChild(v): Returns right child of node v
• sibling(v): Returns sibling of node v

Traversal Algorithms

Preorder Traversal

Input: v (node)
Output: None

1. If v == Null
2.   Return
3. Visit v
4. If isInternal(v)
5.   preorder(v.left)
6.   preorder(v.right)

Postorder Traversal

Input: v (node)
Output: None

1. If v == Null
2.   Return
3. If isInternal(v)
4.   postorder(v.left)
5.   postorder(v.right)
6. Visit v

Inorder Traversal

Input: v (node)
Output: None

1. If v == Null
2.   Return
3. If v.left ≠ Null
4.   inorder(v.left)
5. Visit v
6. If v.right ≠ Null
7.   inorder(v.right)

Euler Tour Traversal

Input: v (node)
Output: None

1. If v == null
2.   Return
3. visitBeforeSubtrees(v)
4. If isInternal(v)
5.   If v.left ≠ Null
6.     eulerTour(v.left)
7.   visitBetweenSubtrees(v)
8.   If v.right ≠ Null
9.     eulerTour(v.right)
10. visitAfterSubtrees(v)

Time Complexity Summary

Note: h = height of the tree, n = number of nodes

Euler Tour Example

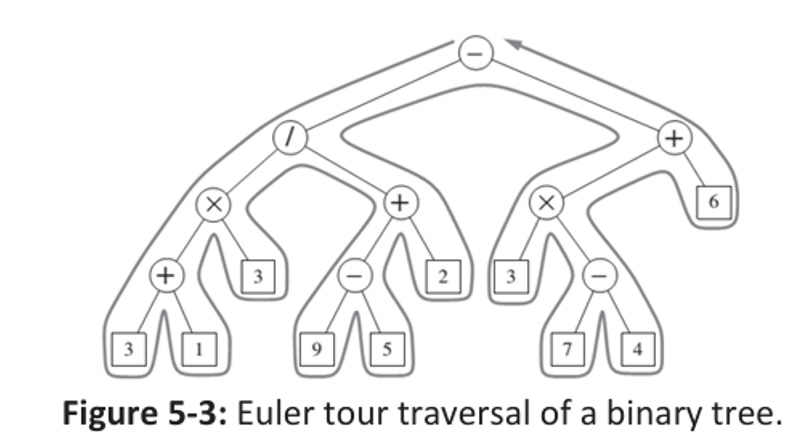

The Euler Tour captures all tree traversal information in a single walk:

• Each node is visited exactly 3 times
• Combines preorder, inorder, and postorder traversals

Example Tree Expression

The Euler Tour can help evaluate complex tree expressions:

((3+1)×(9−5))−(3×(7−4)+6)

This demonstrates how Euler Tour can be used to systematically process and evaluate tree-based mathematical expressions.

Binary Search Tree Operations Complexity Table

Euler Tour Example with Larger Tree

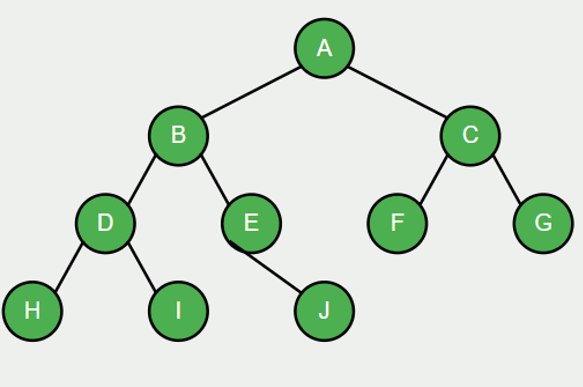

Euler Tour traversal sequence for a tree with 3 layers:

1. A (first visit)
2. B (first visit)
3. D (first visit)
4. H (first visit)
5. H (second visit) - no children
6. H (third visit)
7. D (second visit)
8. I (first visit)
9. I (second visit) - no children
10. I (third visit)
11. D (third visit)
12. B (second visit)
13. E (first visit)
14. J (first visit)
15. J (second visit) - no children
16. J (third visit)
17. E (second visit) - E has no right child
18. E (third visit)
19. B (third visit)
20. A (second visit)
21. C (first visit)
22. F (first visit)
23. F (second visit) - no children
24. F (third visit)
25. C (second visit)
26. G (first visit)
27. G (second visit) - no children
28. G (third visit)
29. C (third visit)
30. A (third visit)

Note: Each node is visited exactly 3 times, creating a complete "tour" around the tree that captures all the information from preorder, inorder, and postorder traversals in a single walk.

Mathematical Expression Using Euler Tour Algorithm

Q: What is the mathematical expression for this tree when using the Euler Tour algorithm?

Solution:

1. Start with the left subtree of the root (-):

   • Left subtree of ×: (3 + 1)
   • Right subtree of ×: (9 - 5)
   • Combine: (3 + 1) × (9 - 5)

2. Move to the right subtree of the root (-):

   • Left subtree of +: 3 × (7 - 4)
   • Right subtree of +: 6
   • Combine: 3 × (7 - 4) + 6

3. Combine the results from the left and right subtrees of the root:

   • Left: (3 + 1) × (9 - 5)
   • Right: 3 × (7 - 4) + 6
   • Combine: ((3 + 1) × (9 - 5)) - (3 × (7 - 4) + 6)

Final Answer:
The mathematical expression represented by the tree is:

((3+1)×(9−5))−(3×(7−4)+6) => ((4)×(4))−(3×(3)+6) = 16 − (3×3 + 6) = 16 − (9 + 6) = 16 − 15 = 1
