Building an AI-Powered Flowchart Cleanup Tool with Streamlit in Snowflake

import os
import io
import streamlit as st
import graphviz
from snowflake.snowpark.context import get_active_session
from snowflake.cortex import Complete as CompleteText
from PIL import Image

# Application settings
st.set_page_config(
    layout="wide",
    initial_sidebar_state="expanded"
)

# -------------------------------------
# Get Snowflake session
# -------------------------------------
session = get_active_session()

# -------------------------------------
# Constants and settings
# -------------------------------------
# Supported image file extensions
SUPPORTED_IMAGE_EXTENSIONS = ['.jpg', '.jpeg', '.png', '.webp', '.gif', '.bmp']
# Stage name (without @)
DEFAULT_STAGE_NAME = "IMAGE_FLOW_STAGE"
# Default maximum image size for resizing (pixels)
MAX_IMAGE_SIZE = 1024
# Maximum image file size (MB)
MAX_FILE_SIZE_MB = 10.0

# -------------------------------------
# Stage existence check and creation
# -------------------------------------
def ensure_stage_exists(stage_name_no_at: str):
    """
    Creates the stage if it doesn't exist. Does nothing if it already exists.
    Enables directory table and encryption.
    """
    try:
        # Check if stage exists
        session.sql(f"DESC STAGE {stage_name_no_at}").collect()
    except:
        # Create stage if it doesn't exist
        try:
            session.sql(f"""
                CREATE STAGE {stage_name_no_at}
                DIRECTORY = ( ENABLE = true )
                ENCRYPTION = ( TYPE = 'SNOWFLAKE_SSE' )
            """).collect()
            st.sidebar.success(f"Stage @{stage_name_no_at} has been created.")
        except Exception as e:
            st.sidebar.error(f"Failed to create stage: {str(e)}")
            st.stop()

# -------------------------------------
# Get list of files in stage
# -------------------------------------
def get_stage_files(stage_name: str):
    """
    Get list of files in the specified stage
    """
    try:
        # Add @ prefix if missing
        stage_name_with_at = stage_name
        if not stage_name.startswith('@'):
            stage_name_with_at = f"@{stage_name}"

        stage_files = session.sql(f"LIST {stage_name_with_at}").collect()
        if stage_files:
            file_names = [
                row['name'].split('/', 1)[1] if '/' in row['name'] else row['name']
                for row in stage_files
            ]
            return file_names
        else:
            return []
    except Exception as e:
        st.error(f"Failed to get file list from stage: {str(e)}")
        return []

# -------------------------------------
# Image resizing
# -------------------------------------
def resize_image_if_needed(img_data: bytes, filename: str, max_size: int = MAX_IMAGE_SIZE) -> tuple:
    """
    Load image data and resize if needed

    Parameters:
    - img_data: Binary image data
    - filename: Original filename
    - max_size: Maximum size (in pixels)

    Returns:
    - resize_needed: Whether resizing was needed
    - resized_data: Resized image data or original data
    - resized_filename: Resized image filename or original filename
    - dimensions: Image dimensions (width, height) after processing
    """
    try:
        # Open image with PIL
        img = Image.open(io.BytesIO(img_data))
        width, height = img.size

        # Check if resizing is needed
        if width > max_size or height > max_size:
            # Resizing needed
            resize_ratio = min(max_size / width, max_size / height)
            new_width = int(width * resize_ratio)
            new_height = int(height * resize_ratio)

            # Resize using high-quality algorithm
            resized_img = img.resize((new_width, new_height), Image.LANCZOS)

            # Convert resized image to byte stream
            buffered = io.BytesIO()
            # Keep original format
            file_ext = os.path.splitext(filename)[1].lower()
            if file_ext in ['.jpg', '.jpeg']:
                resized_img.save(buffered, format="JPEG", quality=95)
            elif file_ext == '.png':
                resized_img.save(buffered, format="PNG")
            elif file_ext == '.webp':
                resized_img.save(buffered, format="WEBP")
            elif file_ext == '.gif':
                resized_img.save(buffered, format="GIF")
            elif file_ext == '.bmp':
                resized_img.save(buffered, format="BMP")
            else:
                # Default to PNG
                resized_img.save(buffered, format="PNG")

            # Change filename to indicate resizing
            name, ext = os.path.splitext(filename)
            resized_filename = f"{name}_resized{ext}"

            return True, buffered.getvalue(), resized_filename, (new_width, new_height)
        else:
            # Resizing not needed
            return False, img_data, filename, (width, height)
    except Exception as e:
        # Return original data if error occurs
        st.warning(f"Error during image resizing: {str(e)}. Continuing with original size.")
        return False, img_data, filename, (0, 0)

# -------------------------------------
# Verify file on stage
# -------------------------------------
def verify_image_file(stage_name: str, file_name: str):
    """
    Verify that the specified file exists on stage and is a valid image format
    """
    try:
        # Add @ prefix if missing
        stage_name_with_at = stage_name
        if not stage_name.startswith('@'):
            stage_name_with_at = f"@{stage_name}"

        # Check if file exists
        file_check = session.sql(f"LIST {stage_name_with_at}/{file_name}").collect()
        if not file_check:
            return False, "File does not exist on stage"

        # Check file extension
        file_extension = os.path.splitext(file_name)[1].lower()
        if file_extension not in SUPPORTED_IMAGE_EXTENSIONS:
            return False, f"Unsupported file format: {file_extension}"

        # Check file size
        file_size_bytes = file_check[0]['size']
        file_size_mb = file_size_bytes / (1024 * 1024)

        if file_size_mb > MAX_FILE_SIZE_MB:
            return False, f"File size too large ({file_size_mb:.2f}MB). Must be less than {MAX_FILE_SIZE_MB}MB."

        return True, "Validation successful"
    except Exception as e:
        return False, f"Error during file validation: {str(e)}"

# -------------------------------------
# AI Analysis Functions
# -------------------------------------
def analyze_image_with_ai(stage_name: str, file_name: str, model_name: str, prompt: str):
    """
    Analyze image file on stage using AI
    """
    query = "Query not yet executed" # Default value for exception handling

    try:
        # Validate file
        is_valid, validation_message = verify_image_file(stage_name, file_name)
        if not is_valid:
            return validation_message

        # Escape special characters
        sql_safe_prompt = prompt.replace("'", "''")

        # Ensure stage name has @ prefix
        if not stage_name.startswith('@'):
            stage_name_with_at = f"@{stage_name}"
        else:
            stage_name_with_at = stage_name

        # SQL syntax following Snowflake documentation
        query = f"SELECT SNOWFLAKE.CORTEX.COMPLETE('{model_name}', '{sql_safe_prompt}', TO_FILE('{stage_name_with_at}', '{file_name}'))"

        # Execute query
        result = session.sql(query).collect()

        # Return result
        if result and len(result) > 0:
            return result[0][0]
        else:
            return "No results from AI analysis."
    except Exception as e:
        # Get detailed error message
        error_str = str(e)
        return f"Error during AI analysis: {error_str}\nQuery: {query}"

# -------------------------------------

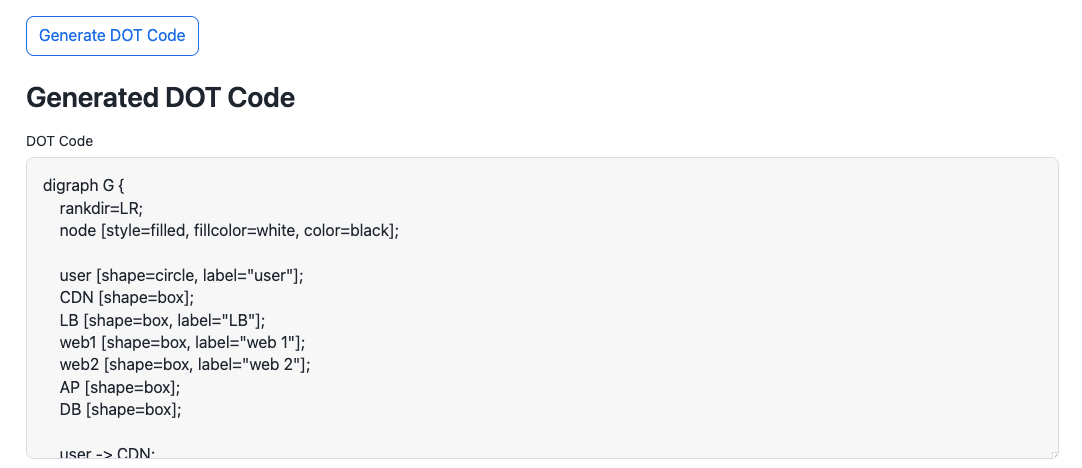

# DOT code generation prompt
# -------------------------------------
def generate_dot_code_prompt():
    """
    Create prompt for AI to generate DOT code
    """
    return """
    Generate a Graphviz DOT code representation of the provided flowchart or diagram, following these rules:
    1. Analyze the image and faithfully represent its structure in the DOT code.
    2. Choose appropriate shapes and colors for nodes and edges that match the diagram.
    3. Add labels to nodes and edges wherever possible.
    4. Use readable colors where the original doesn't specify any.
    5. Ensure the generated DOT code is renderable by Graphviz.
    6. Enclose the code in "digraph G {" and "}" tags.
    7. Return ONLY the DOT code without any additional explanation.
    """

# -------------------------------------
# Format DOT code
# -------------------------------------
def format_dot_code(dot_code: str):
    """
    Format the DOT code generated by AI
    """
    # Remove code block markers if present
    dot_code = dot_code.strip()
    if dot_code.startswith("```

dot"):
        dot_code = dot_code[6:]
    elif dot_code.startswith("

```"):
        dot_code = dot_code[3:]

    if dot_code.endswith("```

"):
        dot_code = dot_code[:-3]

    return dot_code.strip()

# -------------------------------------
# Initialize session state
# -------------------------------------
if 'dot_code' not in st.session_state:
    st.session_state['dot_code'] = ""
if 'ai_output' not in st.session_state:
    st.session_state['ai_output'] = ""
if 'analyzed_image' not in st.session_state:
    st.session_state['analyzed_image'] = None
if 'original_image' not in st.session_state:
    st.session_state['original_image'] = None
if 'image_dimensions' not in st.session_state:
    st.session_state['image_dimensions'] = None
if 'active_tab' not in st.session_state:
    st.session_state['active_tab'] = "upload"

# -------------------------------------

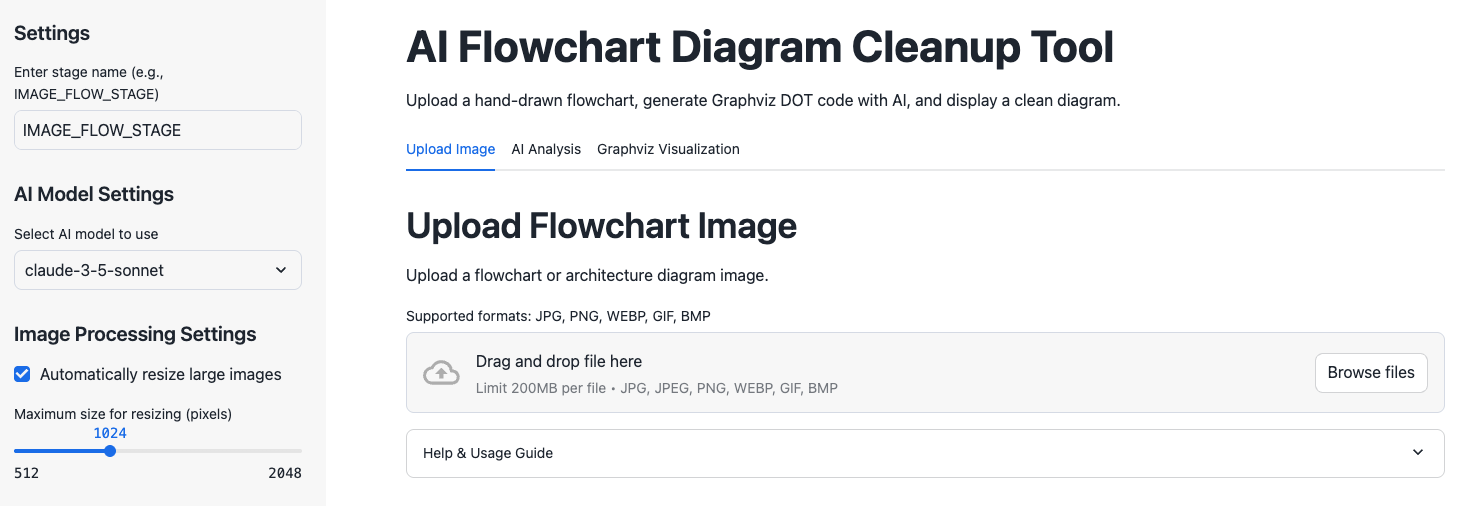

# Main application
# -------------------------------------
def main():
    st.title("AI Flowchart Diagram Cleanup Tool")
    st.markdown("Upload a hand-drawn flowchart, generate Graphviz DOT code with AI, and display a clean diagram.")

    # Sidebar settings
    st.sidebar.header("Settings")

    # Stage settings
    stage_name = st.sidebar.text_input(
        "Enter stage name (e.g., IMAGE_FLOW_STAGE)",
        DEFAULT_STAGE_NAME
    )

    # Create stage if it doesn't exist
    stage_name_no_at = stage_name.lstrip('@')
    ensure_stage_exists(stage_name_no_at)

    # AI model selection
    st.sidebar.header("AI Model Settings")
    model_name = st.sidebar.selectbox(
        "Select AI model to use",
        [
            "claude-3-5-sonnet",
            "pixtral-large"
        ],
        index=0
    )

    # Image resizing settings
    st.sidebar.header("Image Processing Settings")
    resize_enabled = st.sidebar.checkbox("Automatically resize large images", value=True)
    resize_max_size = st.sidebar.slider("Maximum size for resizing (pixels)", 512, 2048, MAX_IMAGE_SIZE)

    # Create tabs
    tab_upload, tab_analyze, tab_visualize = st.tabs([
        "Upload Image",
        "AI Analysis",
        "Graphviz Visualization"
    ])

    # Tab 1: Image Upload
    with tab_upload:
        st.header("Upload Flowchart Image")
        st.write("Upload a flowchart or architecture diagram image.")

        uploaded_file = st.file_uploader(
            "Supported formats: JPG, PNG, WEBP, GIF, BMP",
            type=['jpg', 'jpeg', 'png', 'webp', 'gif', 'bmp']
        )

        if uploaded_file:
            # Check file extension
            file_extension = os.path.splitext(uploaded_file.name)[1].lower()
            if file_extension in SUPPORTED_IMAGE_EXTENSIONS:
                try:
                    # Read file as binary
                    file_data = uploaded_file.getvalue()

                    # Resize if needed
                    if resize_enabled:
                        resized, resized_data, resized_filename, img_dimensions = resize_image_if_needed(
                            file_data, uploaded_file.name, resize_max_size
                        )
                    else:
                        resized = False
                        resized_data = file_data
                        resized_filename = uploaded_file.name
                        # Get size info
                        img = Image.open(io.BytesIO(file_data))
                        img_dimensions = img.size

                    # Upload to stage
                    stage_name_with_at = f"@{stage_name_no_at}"

                    # Upload original and resized file if needed
                    if resized:
                        # Upload original file
                        session.file.put_stream(
                            io.BytesIO(file_data),
                            f"{stage_name_with_at}/{uploaded_file.name}",
                            auto_compress=False,
                            overwrite=True
                        )

                        # Upload resized file
                        session.file.put_stream(
                            io.BytesIO(resized_data),
                            f"{stage_name_with_at}/{resized_filename}",
                            auto_compress=False,
                            overwrite=True
                        )

                        st.success(f"File '{uploaded_file.name}' uploaded and resized to '{resized_filename}' for AI analysis!")
                        st.session_state['analyzed_image'] = resized_filename
                        st.session_state['original_image'] = uploaded_file.name
                    else:
                        # Upload only original file if no resizing needed
                        session.file.put_stream(
                            io.BytesIO(file_data),
                            f"{stage_name_with_at}/{uploaded_file.name}",
                            auto_compress=False,
                            overwrite=True
                        )

                        st.success(f"File '{uploaded_file.name}' uploaded successfully!")
                        st.session_state['analyzed_image'] = uploaded_file.name
                        st.session_state['original_image'] = uploaded_file.name

                    # Save image dimensions
                    st.session_state['image_dimensions'] = img_dimensions

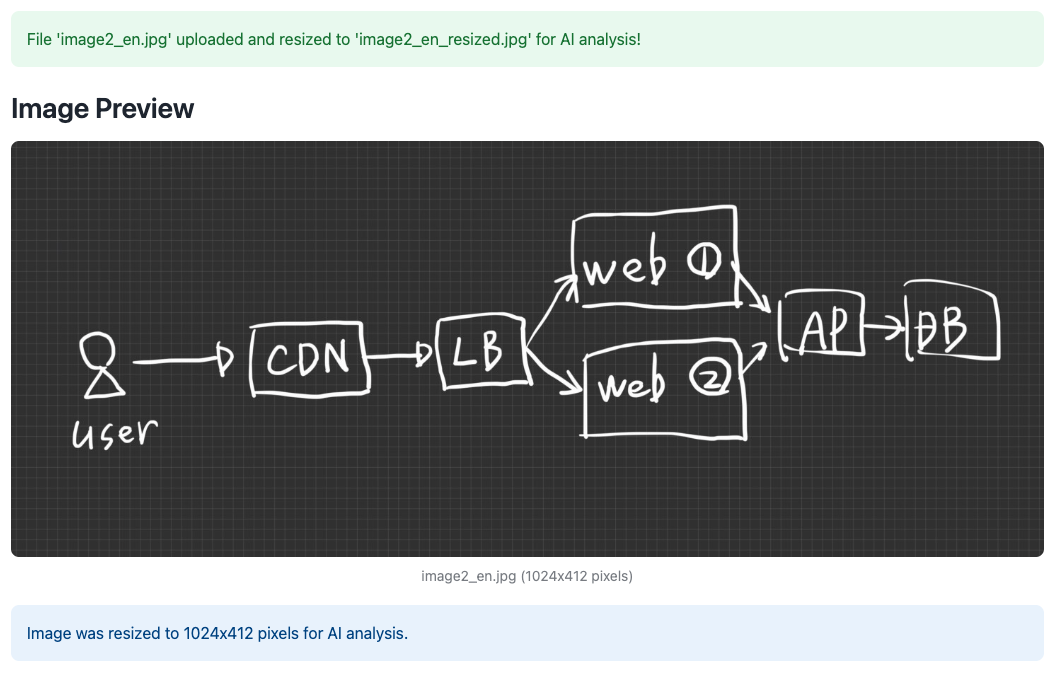

                    # Image preview
                    st.subheader("Image Preview")
                    st.image(uploaded_file, caption=f"{uploaded_file.name} ({img_dimensions[0]}x{img_dimensions[1]} pixels)")

                    if resized:
                        st.info(f"Image was resized to {img_dimensions[0]}x{img_dimensions[1]} pixels for AI analysis.")

                except Exception as e:
                    st.error(f"Error during file upload: {str(e)}")
            else:
                st.error("Unsupported file format.")

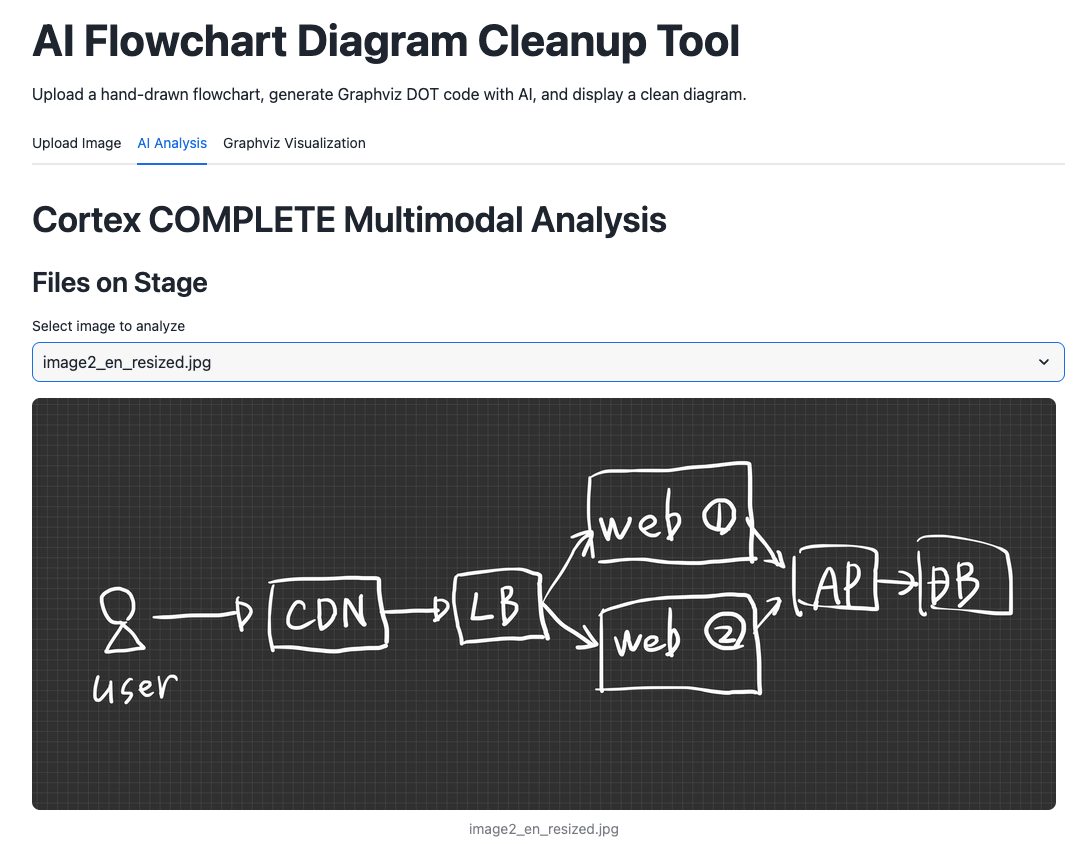

    # Tab 2: AI Analysis
    with tab_analyze:
        st.header("Cortex COMPLETE Multimodal Analysis")

        # List of files on stage
        st.subheader("Files on Stage")
        files = get_stage_files(stage_name_no_at)

        if files:
            selected_file = st.selectbox("Select image to analyze", files)

            if selected_file:
                # Save selected file to session
                st.session_state['analyzed_image'] = selected_file

                # Check if it's a resized file
                if "_resized" in selected_file:
                    # Guess original filename
                    original_name = selected_file.replace("_resized", "")
                    if original_name in files:
                        st.session_state['original_image'] = original_name
                    else:
                        st.session_state['original_image'] = selected_file
                else:
                    st.session_state['original_image'] = selected_file

                # Ensure stage name has @ prefix
                if not stage_name.startswith('@'):
                    stage_name_with_at = f"@{stage_name}"
                else:
                    stage_name_with_at = stage_name

                # Image preview
                try:
                    # Generate presigned URL to display the file
                    url_result = session.sql(f"""
                        SELECT GET_PRESIGNED_URL(
                            '{stage_name_with_at}',
                            '{selected_file}',
                            3600
                        )
                    """).collect()

                    signed_url = url_result[0][0]
                    st.image(signed_url, caption=selected_file)
                except Exception as e:
                    st.error(f"Error retrieving image: {str(e)}")

                # DOT code generation button
                if st.button("Generate DOT Code"):
                    with st.spinner(f"AI is analyzing image '{selected_file}'..."):
                        prompt = generate_dot_code_prompt()

                        ai_output = analyze_image_with_ai(
                            stage_name,
                            selected_file,
                            model_name,
                            prompt
                        )

                        # Save results to session
                        st.session_state['ai_output'] = ai_output
                        st.session_state['dot_code'] = format_dot_code(ai_output)

                        # Display DOT code
                        st.subheader("Generated DOT Code")
                        st.text_area("DOT Code", st.session_state['dot_code'], height=300)
        else:
            st.info("No image files found on stage. Please upload an image in the 'Upload Image' tab.")

    # Tab 3: Graphviz Visualization
    with tab_visualize:

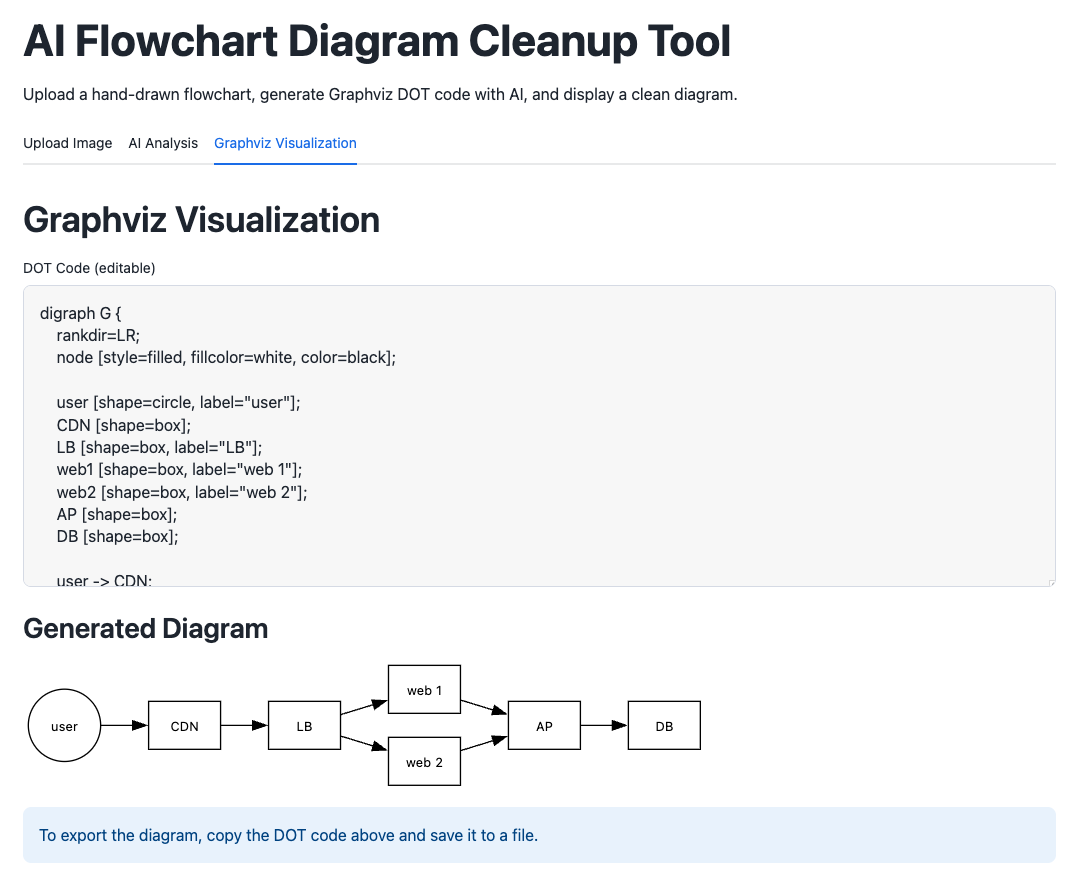

        st.header("Graphviz Visualization")

        if st.session_state['dot_code']:
            # Editable DOT code
            dot_code = st.text_area("DOT Code (editable)", st.session_state['dot_code'], height=300)
            st.session_state['dot_code'] = dot_code

            try:
                # Render DOT code with Graphviz
                graph = graphviz.Source(dot_code)

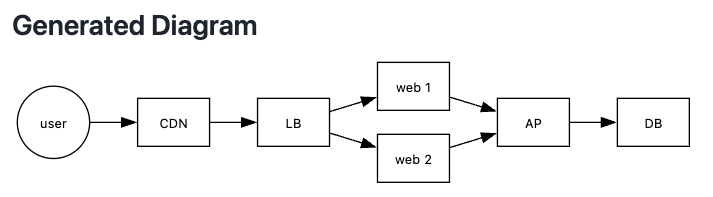

                st.subheader("Generated Diagram")
                st.graphviz_chart(graph)

                # Export instructions
                st.info("To export the diagram, copy the DOT code above and save it to a file.")

            except Exception as e:
                st.error(f"Error parsing DOT code: {str(e)}")
        else:
            st.info("No DOT code generated yet. Go to the 'AI Analysis' tab to generate DOT code.")

    # Help information
    with st.expander("Help & Usage Guide"):
        st.markdown("""
        ### How to Use

        1. In the **Upload Image** tab, upload a flowchart or architecture diagram image.
        2. In the **AI Analysis** tab, select the image from the stage and generate DOT code.
        3. In the **Graphviz Visualization** tab, view and edit the generated diagram.

        ### Image Resizing

        Large images are automatically resized for efficient AI processing.
        You can enable/disable resizing and adjust the maximum size in the sidebar settings.

        ### Supported File Formats

        - JPG/JPEG
        - PNG
        - WEBP
        - GIF
        - BMP (Pixtral Large model only)

        ### About AI Models

        - **Claude 3.5 Sonnet**: Anthropic's multimodal model with advanced visual processing and language understanding
        - **Pixtral Large**: Mistral AI's model optimized for visual reasoning tasks

        ### About Graphviz

        Graphviz is a tool for visualizing graph structures. It uses the DOT language to represent various diagrams.
        The generated DOT code is editable and can be manually modified as needed.
        """)

# Run the application
if __name__ == "__main__":
    main()

python
# High-quality resizing using LANCZOS algorithm
resized_img = img.resize((new_width, new_height), Image.LANCZOS)

python
# -------------------------------------
# DOT code generation prompt
# -------------------------------------
def generate_dot_code_prompt():
    """
    Create prompt for AI to generate DOT code
    """
    return """
    Generate a Graphviz DOT code representation of the provided flowchart or diagram, following these rules:
    1. Analyze the image and faithfully represent its structure in the DOT code.
    2. Choose appropriate shapes and colors for nodes and edges that match the diagram.
    3. Add labels to nodes and edges wherever possible.
    4. Use readable colors where the original doesn't specify any.
    5. Ensure the generated DOT code is renderable by Graphviz.
    6. Enclose the code in "digraph G {" and "}" tags.
    7. Return ONLY the DOT code without any additional explanation.
    """
