*Memos:

Compose() can apply one or more transformations to an image as shown below:

*Memos:

  • The 1st argument for initialization is transforms(Required-Type:tuple/list(transform)): *Memos:
    • The transforms are applied from the 1st index in order.
    • It must be at least one transformation.
  • The 1st argument is img(Required-Type:PIL Image or tensor). *Don't use img=.
  • v2 is recommended to use according to V1 or V2? Which one should I use?.
from torchvision.datasets import OxfordIIITPet
from torchvision.transforms.v2 import Compose
from torchvision.transforms.v2 import RandomInvert
from torchvision.transforms.v2 import RandomVerticalFlip
from torchvision.transforms.v2 import CenterCrop
from torchvision.transforms.v2 import Pad

c = Compose(transforms=[RandomInvert(p=1), RandomVerticalFlip(p=1),
                        CenterCrop(size=200), Pad(padding=20)])
c
# Compose(RandomInvert(p=1)
#         RandomVerticalFlip(p=1)
#         CenterCrop(size=(200, 200))
#         Pad(padding=20, fill=0, padding_mode=constant))

c.transforms
# [RandomInvert(p=1),
#  RandomVerticalFlip(p=1),
#  CenterCrop(size=(200, 200)),
#  Pad(padding=20, fill=0, padding_mode=constant)]

origin_data = OxfordIIITPet(
    root="data",
    transform=None
)

# `ri` is RandomInvert() and `rv` is RandomVerticalFlip().
# `cc` is CenterCrop() and `pad` is Pad().
ri_rv_cc_pad_data = OxfordIIITPet(
    root="data",
    transform=Compose(transforms=[RandomInvert(p=1),
                                  RandomVerticalFlip(p=1),
                                  CenterCrop(size=200),
                                  Pad(padding=20)])
)

ri_rv_pad_cc_data = OxfordIIITPet(
    root="data",
    transform=Compose(transforms=[RandomInvert(p=1),
                                  RandomVerticalFlip(p=1),
                                  Pad(padding=20),
                                  CenterCrop(size=200)])
)

import matplotlib.pyplot as plt

def show_images1(data, main_title=None):
    plt.figure(figsize=[10, 5])
    plt.suptitle(t=main_title, y=0.8, fontsize=14)
    for i, (im, _) in zip(range(1, 6), data):
        plt.subplot(1, 5, i)
        plt.imshow(X=im)
        plt.xticks(ticks=[])
        plt.yticks(ticks=[])
    plt.tight_layout()
    plt.show()

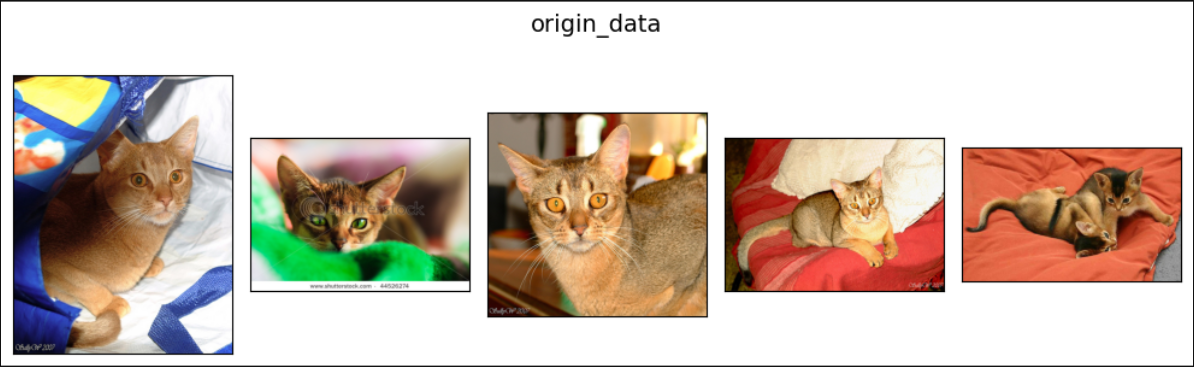

show_images1(data=origin_data, main_title="origin_data")
print()

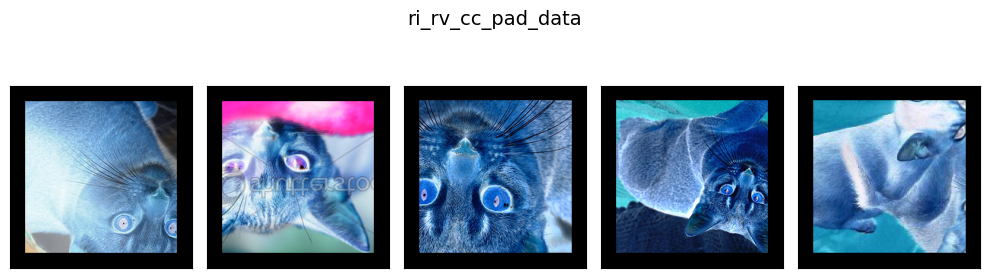

show_images1(data=ri_rv_cc_pad_data, main_title="ri_rv_cc_pad_data")

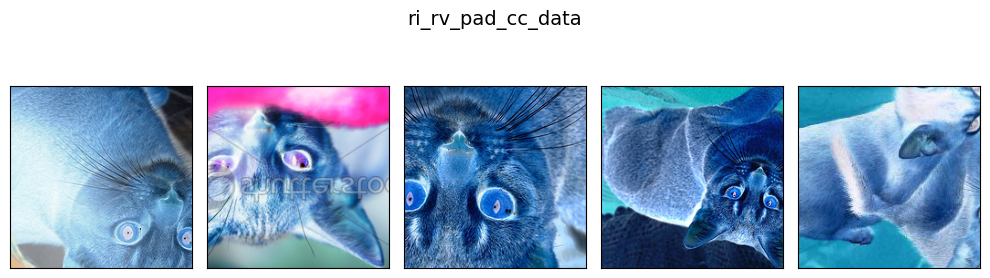

show_images1(data=ri_rv_pad_cc_data, main_title="ri_rv_pad_cc_data")

# ↓ ↓ ↓ ↓ ↓ ↓ The code below is identical to the code above. ↓ ↓ ↓ ↓ ↓ ↓
def show_images2(data, main_title=None, t=None):
    plt.figure(figsize=[10, 5])
    plt.suptitle(t=main_title, y=0.8, fontsize=14)
    if main_title != "origin_data":
        for i, (im, _) in zip(range(1, 6), data):
            plt.subplot(1, 5, i)
            c = Compose(transforms=t)
            plt.imshow(X=c(im))
            plt.xticks(ticks=[])
            plt.yticks(ticks=[])
    else:
        for i, (im, _) in zip(range(1, 6), data):
            plt.subplot(1, 5, i)
            plt.imshow(X=im)
            plt.xticks(ticks=[])
            plt.yticks(ticks=[])
    plt.tight_layout()
    plt.show()

show_images2(data=origin_data, main_title="origin_data")
print()
show_images2(data=origin_data, main_title="ri_rv_cc_pad_data",
             t=[RandomInvert(p=1), RandomVerticalFlip(p=1),
                CenterCrop(size=200), Pad(padding=20)])
show_images2(data=origin_data, main_title="ri_rv_pad_cc_data",
             t=[RandomInvert(p=1), RandomVerticalFlip(p=1),
                Pad(padding=20), CenterCrop(size=200)])

Image description

Image description

Image description
