Context

To enhance security, RDS instances are typically placed in a private subnet within a VPC, making them inaccessible from outside the VPC.

In dev/test environment, this can pose a challenge when you need to connect to the database from your local machine to test your application.

About this solution

This solution provides a way to set up a proxy that forwards traffic from your client to the private RDS instance using an EC2 proxy instance.

  • You will setup an EC2 instance, at public subnet that it can receive request from developer.
  • The EC2 instance will forward traffic to RDS instance at private subnet

Architecture Overview

Setup

1. Create EC2 Instance

Create an EC2 instance with following setting:

  • AMI: Amazon Linux 2 Kernel 5.10
  • Instance type: t2.micro
  • Key pair: process without a key pair
  • Network
    • VPC: choose the VPC that same with VPC you are using with RDS instance
    • Subnet: choose public subnet
    • Security Group: allow all inbound traffic

Then click Launch instance to create proxy server.

2. Collect RDS instance information

To forward traffic to RDS instance, you need to know:

  • DB Endpoint: example.XXXXXXXXXXXX.ap-southeast-1.rds.amazonaws.com
  • DB Port: 3306 or 5432,...

3. Config Firewall

  • For proxy server security group:

    • Inbound: allow Anywhere-Ipv4 (MYSQL/Aurora, PostgreSQL,... depend on your database engine) on port (3306, 5432,... depend on your database port)
    • Outbound: security group of RDS instance.

  • For security group of database instance:

    • Inbound: add additional rule to allow traffic from security group of proxy server. Don't remove any existing rule.
    • Outbound: add additional rule to allow traffic to security group of proxy server. Don't remove any existing rule.

4. Setup Proxy

SSH to the EC2 instance and run following commands:

yum install haproxy -y

Replace content of /etc/haproxy/haproxy.cfg with following values:

global
    log /dev/log local0
    log /dev/log local1 notice
    chroot /var/lib/haproxy
    stats socket /var/run/haproxy.sock mode 660 level admin
    user haproxy
    group haproxy
    daemon

defaults
    log     global
    option  dontlognull
    option  httplog
    timeout connect 5000ms
    timeout client  50000ms
    timeout server  50000ms

frontend mysql_front
    bind *:
    mode tcp
    default_backend mysql_back

backend mysql_back
    mode tcp
    server db_server : check
  • : RDS Endpoint
  • : Database port

5. Test Connection

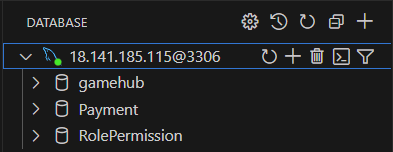

Now you can connect to RDS instance in private subnet by replace the RDS Endpoint with Public IP of EC2 proxy server.

Image description

6. Cleanup Resources

  • Delete EC2 proxy server if you no longer need it to reduce cost.

Disclaimer

This solution is prefer using for dev/test environment. For production workload, be careful when manage firewall to ensure secure connection.
