Hey everyone! So, you've spun up an EC2 instance, maybe played with S3 buckets, and things are starting to click. But then someone mentions "VPC," "subnets," "CIDR blocks," and suddenly it feels like you've hit a wall of complex jargon. You're not alone! Networking is foundational to everything you build in the cloud, yet it's often treated as this arcane knowledge.

Remember setting up your first home Wi-Fi? You plugged things in, maybe typed a password, and poof, internet! AWS networking is conceptually similar – defining your own private space, deciding who gets in and out, and how different parts talk to each other – just on a much grander, more flexible scale. Getting this right is crucial for security, performance, and cost-efficiency.

Why It Matters: Beyond Just Connecting Things

Understanding AWS networking isn't just about making EC2 instances talk to each other. It's about:

  • Security: Building secure perimeters, isolating sensitive resources (like databases) from the public internet.
  • Scalability: Designing networks that can grow with your application without major overhauls.
  • Performance: Optimizing data transfer paths for lower latency.
  • Hybrid Cloud: Securely connecting your AWS environment back to your on-premises data centers.
  • Compliance: Meeting specific regulatory requirements for network segmentation and isolation.

In short, mastering AWS networking fundamentals unlocks the true potential and security posture of the cloud.

The Concept in Simple Terms: Your Private Island in the Cloud (The VPC Analogy)

Imagine AWS is a vast ocean, full of resources. A Virtual Private Cloud (VPC) is like your own private island within that ocean. You get to define its boundaries and control everything that happens inside.

  • VPC: Your private, logically isolated section of the AWS Cloud. It's your plot of land in the vast AWS universe. Think of it as fencing off your island.
  • CIDR Block (Classless Inter-Domain Routing): This is the addressing system for your island (e.g., 10.0.0.0/16). It defines the total range of private IP addresses available within your VPC. The /16 tells you how big your island is (in terms of addresses) – /16 gives you ~65,536 addresses, while a /24 gives you 256. Think of it like the range of street numbers assigned to your island.
  • Subnets: Now, you need to organize your island. You create subnets, which are like different neighborhoods or zones within your island (VPC). Each subnet lives entirely within one Availability Zone (think of AZs as distinct data centers within a region, physically separated for fault tolerance).
    • Public Subnets: These are neighborhoods with a direct road leading off the island to the public internet. Resources here (like web servers) can potentially be reached from the outside world and can reach the internet directly.
    • Private Subnets: These neighborhoods are inland. Resources here (like databases or backend application servers) cannot be directly reached from the internet and cannot reach it directly without help. This is great for security!
  • Route Tables: Every neighborhood (subnet) needs road signs telling network traffic where to go. That's what Route Tables do. Each subnet is associated with a route table.
    • A route table for a public subnet might have a rule saying: "To reach the internet (0.0.0.0/0), go via the Internet Gateway."
    • A route table for a private subnet might only have a rule for local traffic within the VPC, or a rule pointing to a special gateway (like a NAT Gateway) for outbound internet access.
  • Internet Gateway (IGW): This is the main bridge or airport connecting your island (VPC) to the vast ocean of the public internet. You attach it to your VPC, and then update the route tables of your public subnets to point internet-bound traffic towards it.
  • NAT Gateway (Network Address Translation): Imagine your private neighborhood residents need to order something online (access the internet) but don't want to give out their private home address. A NAT Gateway acts like a secure P.O. Box service or a managed shipping/receiving center located in a public subnet. Private subnet instances send their outbound internet traffic to the NAT Gateway, which then forwards it to the internet using its own public IP address. Replies come back to the NAT Gateway, which then directs them to the correct private instance. This allows instances in private subnets to initiate outbound connections (e.g., for software updates) without being directly exposed.
  • Virtual Private Gateway (VGW) & VPN Connection: Need a secure, private ferry or tunnel back to your company's mainland headquarters (your on-premises network)? That's where the VGW comes in. You attach it to your VPC, and it serves as the anchor point on the AWS side for a secure VPN connection or a dedicated AWS Direct Connect circuit. This allows secure communication between your VPC and your corporate network.
  • Security Groups (SGs): Think of these as security guards standing at the door of each house (EC2 instance). They control what traffic is allowed in and out of an instance. They are stateful, meaning if you allow incoming traffic on a certain port, the corresponding outgoing reply traffic is automatically allowed, regardless of outbound rules. You define rules based on port, protocol, and source/destination IP addresses (or even other Security Groups!).
  • Network Access Control Lists (NACLs): These are like guards at the entrance of each neighborhood (subnet). They act as a firewall for controlling traffic in and out of one or more subnets. They are stateless, meaning you must explicitly define rules for both inbound and outbound traffic. If you allow inbound traffic on port 80, you must also explicitly allow the outbound reply traffic on ephemeral ports. NACLs are evaluated before Security Groups.

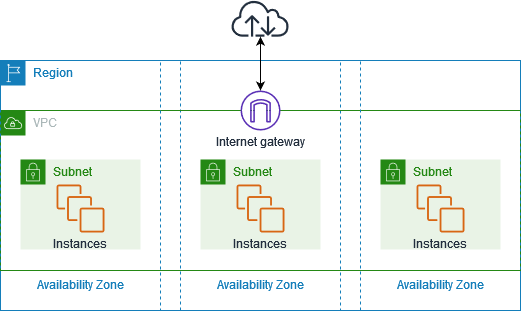

Networking

Deeper Dive: Putting the Pieces Together

Let's visualize the flow and key characteristics:

  1. Define the Boundary: You create a VPC, specifying its private IP address range using CIDR notation (e.g., 10.0.0.0/16). Best practice: Don't make it unnecessarily huge, but plan for growth.
  2. Carve out Zones: You create subnets within the VPC, assigning each a portion of the VPC's CIDR block (e.g., 10.0.1.0/24, 10.0.2.0/24). Remember, each subnet resides in a single Availability Zone.
  3. Public Access: Create an Internet Gateway (IGW) and attach it to the VPC.
  4. Designate Public Subnets: Create a route table, add a route 0.0.0.0/0 -> , and associate this route table with the subnets you want to be public. Instances launched here can receive public IPs.
  5. Designate Private Subnets: Create another route table. This typically only has the default 'local' route allowing communication within the VPC. Associate this with your private subnets. Instances here cannot have public IPs directly and cannot reach the internet by default.
  6. (Optional) Outbound Internet for Private: If private instances need to download updates, create a NAT Gateway in a public subnet (it needs internet access!). Update the route table for your private subnets to point internet-bound traffic (0.0.0.0/0) to the NAT Gateway.
  7. (Optional) On-Premises Connection: Create a Virtual Private Gateway (VGW), attach it to the VPC. Configure a VPN connection or Direct Connect linking the VGW to your corporate network. Update relevant route tables to direct traffic destined for your on-prem network CIDR range towards the VGW.
  8. Instance-Level Security: Apply Security Groups to your EC2 instances, databases (RDS), etc., defining specific ports and protocols allowed (e.g., allow TCP port 80/443 from 0.0.0.0/0 for a web server SG, allow TCP port 3306 only from the web server's SG for a database SG).
  9. (Optional) Subnet-Level Security: Apply NACLs to subnets for broader, stateless filtering. Often, the default NACL (which allows all traffic) is sufficient if Security Groups are well-configured, but NACLs provide an additional layer of defense.

Practical Example: Hosting a Web Application

Imagine deploying a standard three-tier web application:

  1. VPC Setup: Create a VPC (e.g., 10.10.0.0/16).
  2. Subnets: Create public subnets in at least two AZs (e.g., 10.10.1.0/24, 10.10.2.0/24) for high availability. Create private subnets in the same AZs (e.g., 10.10.101.0/24, 10.10.102.0/24).
  3. Gateways & Routing: Attach an IGW. Create a public route table pointing 0.0.0.0/0 to the IGW and associate it with the public subnets. Create a private route table (perhaps pointing 0.0.0.0/0 to a NAT Gateway if needed) and associate it with the private subnets.
  4. Load Balancer: Place an Application Load Balancer (ALB) in the public subnets. Its Security Group allows HTTP (80) and HTTPS (443) from the internet (0.0.0.0/0).
  5. Web Servers: Launch EC2 instances for your web servers in the public subnets (or private, if ALB handles all public interaction). Their Security Group allows traffic only from the ALB's Security Group on port 80/443.
  6. Application Servers: Launch EC2 instances for your application logic in the private subnets. Their Security Group allows traffic only from the Web Server's Security Group on the application's specific port (e.g., 8080).
  7. Database: Launch an RDS database instance in the private subnets. Its Security Group allows traffic only from the Application Server's Security Group on the database port (e.g., 3306 for MySQL).
  8. Outbound Needs: If app/web servers need to download OS patches, ensure the private route table directs 0.0.0.0/0 traffic to a NAT Gateway located in a public subnet.

VPC
This setup ensures only the load balancer is exposed directly, and each layer can only be accessed by the layer immediately preceding it – a fundamental security best practice.

Common Mistakes or Misunderstandings

  • CIDR Overlap: Designing VPCs or connecting to on-prem networks with overlapping IP address ranges. This breaks routing! Plan your CIDR blocks carefully across your entire infrastructure.
  • Putting Everything in Public Subnets: Especially databases! This is a major security risk. Use private subnets for anything that doesn't need direct internet access.
  • Misconfigured Route Tables: Forgetting to add a route to the IGW for public subnets, or pointing private subnet traffic incorrectly (e.g., to the IGW instead of a NAT Gateway). Result: instances can't reach the internet or required services.
  • Security Groups vs. NACLs: Confusing the two. Remember: SGs are stateful firewalls at the instance level. NACLs are stateless firewalls at the subnet level. Start with SGs; use NACLs for broader subnet isolation or explicit DENY rules (SGs only have ALLOW rules).
  • NAT Gateway Costs: NAT Gateways incur costs per hour and per GB processed. For heavy outbound traffic, consider alternatives like NAT Instances (more management overhead) or VPC Endpoints for accessing AWS services without going over the internet.

Pro Tips & Hidden Features

  • VPC Flow Logs: Enable VPC Flow Logs! They capture information about the IP traffic going to and from network interfaces in your VPC. Invaluable for troubleshooting connectivity issues, security analysis, and monitoring. Send logs to CloudWatch Logs or S3.
  • Reachability Analyzer: An AWS tool that helps you trace and analyze network paths between two resources in your VPC(s), identifying configuration issues that might block traffic.
  • VPC Endpoints: Access AWS services like S3, DynamoDB, or APIs privately from within your VPC without needing an IGW or NAT Gateway. There are Gateway Endpoints (for S3/DynamoDB, using route table entries) and Interface Endpoints (using Elastic Network Interfaces with private IPs, for many other services). These improve security and can reduce data transfer costs.
  • Tagging: Tag everything (VPCs, Subnets, Route Tables, Gateways). It's crucial for cost allocation, automation, and identifying resources quickly.

  • Infrastructure as Code (IaC): Define your network using tools like AWS CloudFormation, Terraform, or the AWS CDK. This ensures consistency, repeatability, and makes changes auditable and less error-prone.

    • Simple AWS CLI Example (Creating a VPC):

      aws ec2 create-vpc \
    --cidr-block 10.5.0.0/16 \
    --tag-specifications 'ResourceType=vpc,Tags=[{Key=Name,Value=MyDemoVPC}]'

  • IPv6: Consider enabling IPv6 alongside IPv4 in your VPC if your applications or compliance needs require it.

Final Thoughts + Call to Action

Whew! That was a lot, but hopefully, the island analogy and the breakdown helped clarify the core components of AWS networking. It might seem complex initially, but think of it as building with digital LEGO bricks – each component has a specific purpose, and they connect in logical ways.

The best way to solidify this knowledge? Get hands-on!

  1. Try it: Use the AWS Free Tier to create your own VPC, subnets (public and private), launch instances, and configure security groups. Try setting up a simple web server.
  2. Experiment: Break things! See what happens if you remove the IGW route. See if you can ping from a private instance to the internet without a NAT Gateway. Understanding why things fail is as important as knowing how they work.
  3. Read More: Dive into the official AWS Documentation for VPCs – it's the ultimate source of truth.

What are your biggest challenges with AWS networking? Did this explanation help? Share your experiences, questions, or tips in the comments below! Let's learn together.
