Introduction

This guide walks you through the step-by-step process of provisioning Azure resources using Terraform, deploying a virtual machine, retrieving its IP, connecting via SSH, and finally destroying the VM. We'll use VS Code to edit our Terraform scripts for a smooth development experience.

Prerequisites

Before we begin, ensure you have the following installed on your machine:

Installing and Configuring Terraform

First, verify that Terraform is installed by running:

terraform -v

If Terraform is not installed, download and install it from Terraform's official site.

Log in to Azure with:

az login

Set your default subscription (replace your-sub-id with your actual subscription ID):

az account set --subscription your-sub-id

Setting Up Your Terraform Project in VS Code

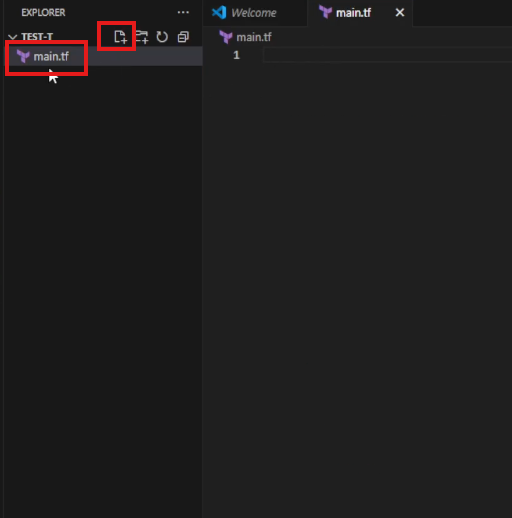

  1. Open VS Code
  2. Create a new folder (e.g., azure-terraform-vm)
  3. Open the folder in VS Code
  4. Create a new file named main.tf

VS code Image description

Writing the Terraform Configuration

Copy the following Terraform code into main.tf. Replace your-VM-name, your-Vnet-name, etc., with meaningful names of your choice. Don't forget to replace the username and password as well, that's what you will use to SSH into your VM

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "4.3.0"
    }
  }
}

provider "azurerm" {
  features {}
  subscription_id = "your-sub-id"
}

resource "azurerm_resource_group" "your-rg-name" {
  name     = "your-rg-name"
  location = "East US"
}

resource "azurerm_virtual_network" "your-Vnet-name" {
  name                = "your-Vnet-name"
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.your-rg-name.location
  resource_group_name = azurerm_resource_group.your-rg-name.name
}

resource "azurerm_subnet" "your-Subnet-name" {
  name                 = "your-Subnet-name"
  resource_group_name  = azurerm_resource_group.your-rg-name.name
  virtual_network_name = azurerm_virtual_network.your-Vnet-name.name
  address_prefixes     = ["10.0.1.0/24"]
}

resource "azurerm_public_ip" "your-ip-name" {
  name                = "your-ip-name"
  location            = azurerm_resource_group.your-rg-name.location
  resource_group_name = azurerm_resource_group.your-rg-name.name
  allocation_method   = "Static"
}

resource "azurerm_network_interface" "your-NIC-name" {
  name                = "your-NIC-name"
  location            = azurerm_resource_group.your-rg-name.location
  resource_group_name = azurerm_resource_group.your-rg-name.name

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.your-Subnet-name.id
    private_ip_address_allocation = "Static"
    private_ip_address            = "10.0.1.4"
    public_ip_address_id          = azurerm_public_ip.your-ip-name.id
  }
}

resource "azurerm_linux_virtual_machine" "your-VM-name" {
  name                  = "your-VM-name"
  location              = azurerm_resource_group.your-rg-name.location
  resource_group_name   = azurerm_resource_group.your-rg-name.name
  size                  = "Standard_B2ms"
  admin_username        = "your-admin-username"
  admin_password        = "YourSecurePassword!"
  network_interface_ids = [azurerm_network_interface.your-NIC-name.id]
  disable_password_authentication = false

  os_disk {
    name              = "your-OsDisk-name"
    caching           = "ReadWrite"
    storage_account_type = "Standard_LRS"
  }

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-jammy"
    sku       = "22_04-lts-gen2"
    version   = "latest"
  }
}

output "public_ip_address" {
  description = "The public IP address of the virtual machine"
  value       = azurerm_public_ip.your-ip-name.ip_address
}

Initializing and Applying the Terraform Configuration

Run the following commands in the terminal inside VS Code:

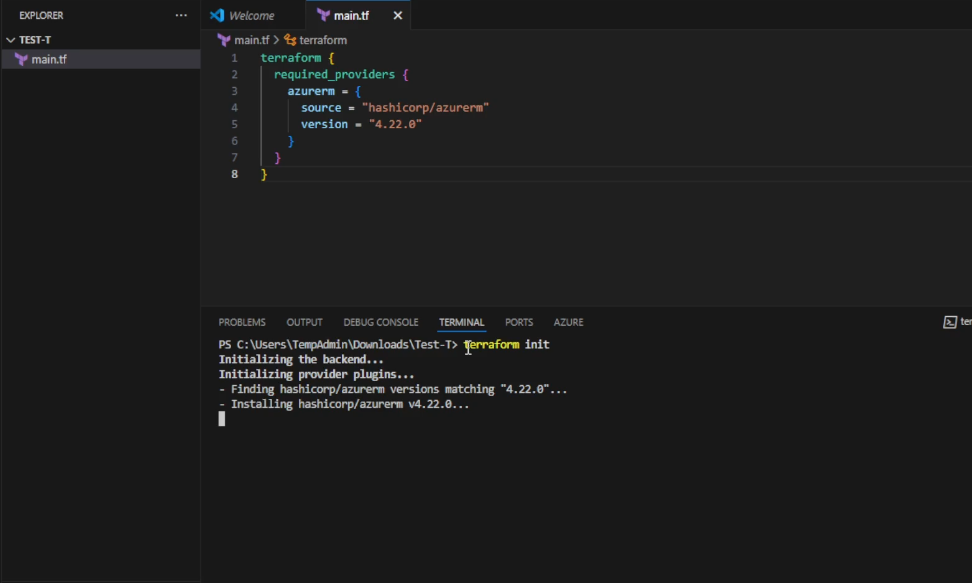

terraform init

terraform init Image description

terraform plan

Terraform plan Image description

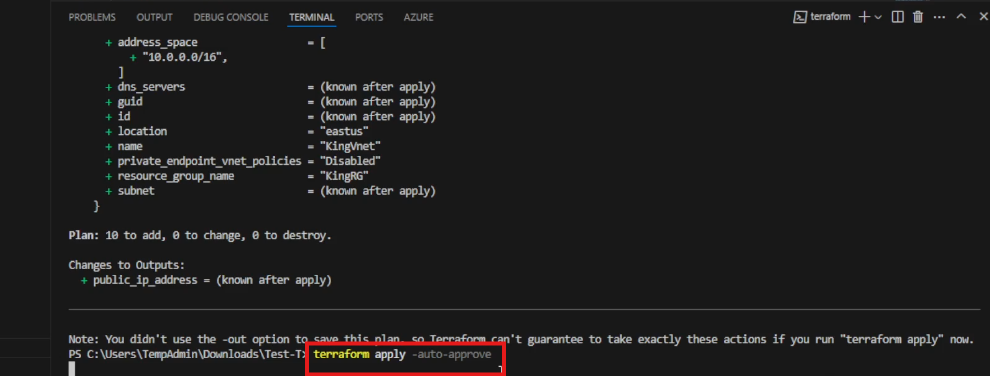

terraform apply -auto-approve

terraform approve Image description

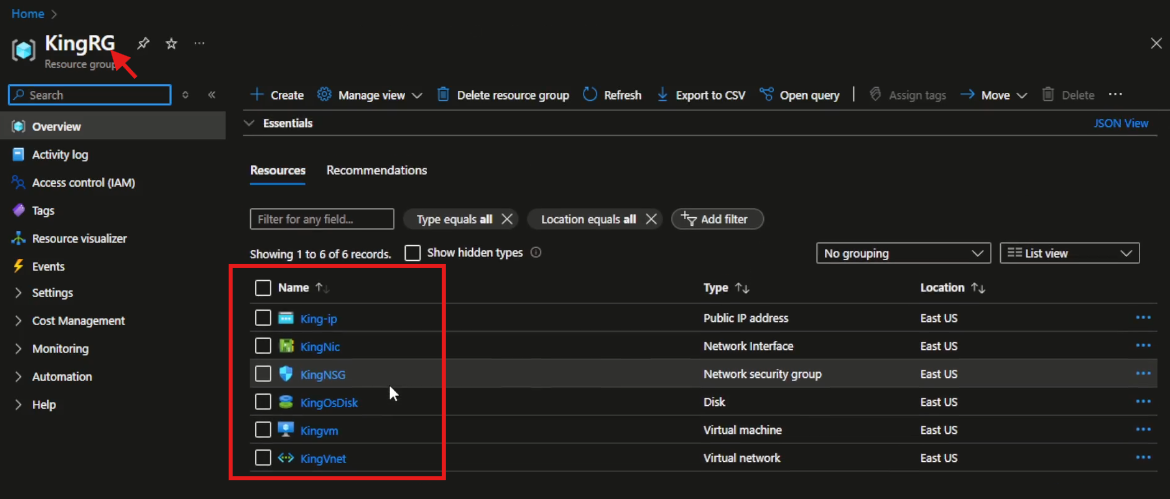

Terraform will create all the specified resources in Azure.

Azure console Image description

Retrieving the VM's Public IP and Connecting via SSH

Get the public IP:

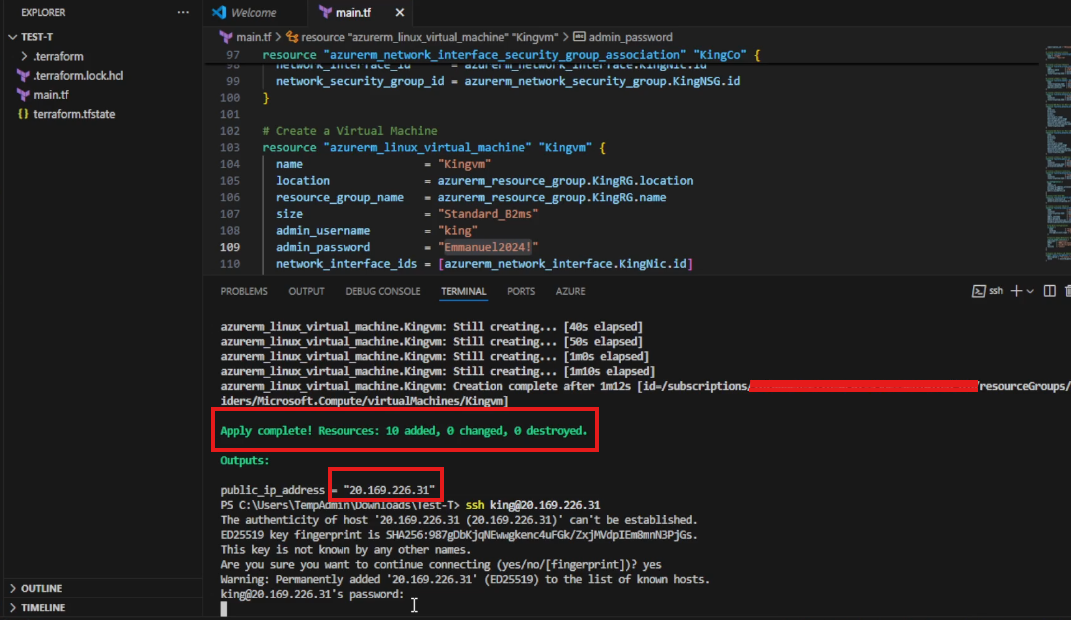

VM IP Image description

echo $(terraform output -raw public_ip_address)

Use SSH to connect to the VM:

ssh your-admin-username@your-vm-public-ip

Destroying the VM

Once you're done, destroy the VM to avoid unnecessary charges:

terraform destroy -auto-approve

Terraform destroy Image description

Conclusion

Congratulations! 🎉 You've successfully:

  • Provisioned Azure resources using Terraform
  • Deployed a Virtual Machine
  • Retrieved its IP and connected via SSH
  • Cleaned up resources by destroying the VM

This is just the beginning of your Terraform journey in Azure! 🚀 Stay tuned for more DevOps guides.
