Full-Stack Serverless Inventory Management System with AWS Lambda, API Gateway, DynamoDB, and React Frontend.

This project demonstrates how to build a clean and scalable full-stack inventory management system using pure AWS serverless components. With React on the frontend and Terraform on the backend, it’s cloud-native and production-ready.

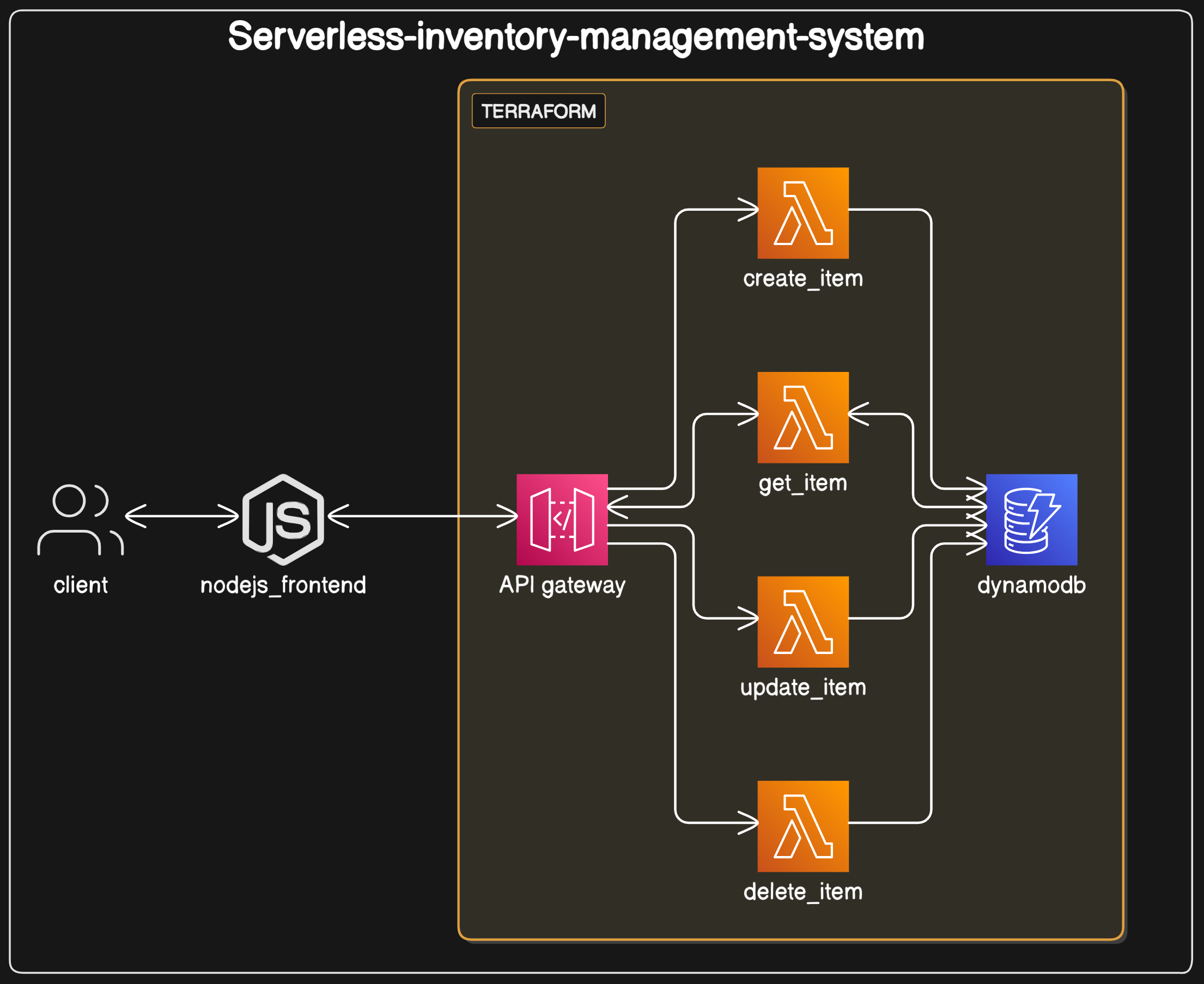

📁 Project Architecture

This project is a fully serverless full-stack inventory management system built using:

• AWS Lambda for serverless backend logic
• Amazon API Gateway for HTTP endpoints
• Amazon DynamoDB as the NoSQL database
• React.js for the frontend
• Terraform for infrastructure as code

🔧 Tech Stack

• Frontend: React.js (calls API Gateway endpoints)
• Backend: AWS Lambda (Python) + API Gateway
• Database: Amazon DynamoDB
• Infrastructure: Terraform
• API Testing: Postman

Frontend Implementation

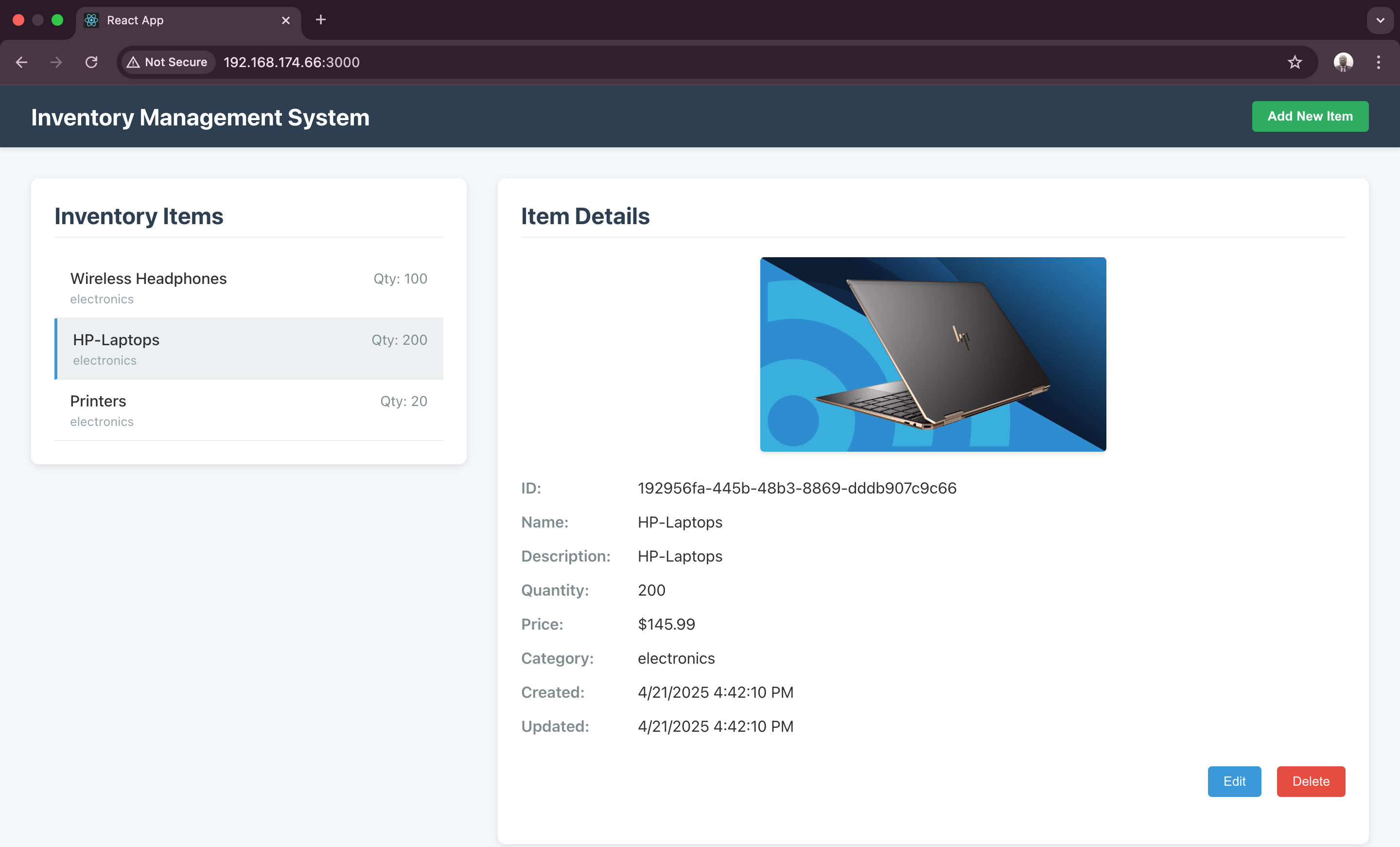

The React frontend provides an intuitive interface for inventory operations.The frontend communicates with backend services via API calls.

// src/App.jsx
import Header from './components/Header';
import InventoryList from './components/InventoryList';
import InventoryForm from './components/InventoryForm';
import InventoryDetails from './components/InventoryDetails';
import { fetchItems, fetchItem, createItem, updateItem, deleteItem } from './services/api';
import './App.css';

function App() {
  const [items, setItems] = useState([]);
  const [selectedItem, setSelectedItem] = useState(null);
  const [isLoading, setIsLoading] = useState(false);
  const [error, setError] = useState(null);
  const [isFormOpen, setIsFormOpen] = useState(false);
  const [isEditing, setIsEditing] = useState(false);

  // Fetch all inventory items on component mount
  useEffect(() => {
    fetchInventoryItems();
  }, []);

  const fetchInventoryItems = async () => {
    setIsLoading(true);
    setError(null);
    try {
      const data = await fetchItems();
      setItems(data.items || []);
    } catch (err) {
      setError('Failed to fetch inventory items. Please try again.');
      console.error(err);
    } finally {
      setIsLoading(false);
    }
  };

Backend Services

Lambda functions handle the core business logic of the application.

✅ CRUD Lambda Functions (Python)

create_item.py

import json
import boto3
import os
import uuid
from datetime import datetime
from decimal import Decimal

def lambda_handler(event, context):
    # Initialize DynamoDB
    dynamodb = boto3.resource('dynamodb')
    table = dynamodb.Table(os.environ.get('DYNAMODB_TABLE'))

    try:
        # Parse request body
        body = json.loads(event.get('body', '{}'), parse_float=Decimal)  # Convert floats to Decimal

        # Generate unique itemId and timestamps
        item_id = str(uuid.uuid4())
        timestamp = datetime.utcnow().isoformat()

        # Create item object
        item = {
            'itemId': item_id,
            'name': body.get('name'),
            'description': body.get('description'),
            'quantity': int(body.get('quantity', 0)),  # Ensure quantity is integer
            'price': Decimal(str(body.get('price', 0))),  # Convert price to Decimal
            'category': body.get('category'),
            'imageUrl': body.get('imageUrl'),
            'createdAt': timestamp,
            'updatedAt': timestamp
        }

Other functions follow a similar pattern for GET, PUT, and DELETE using event['pathParameters'] and event['body'].

API Gateway Routes
These routes define the RESTful endpoints for the Inventory Management System. Each route is connected to an AWS Lambda function:

DynamoDB Data Model
DynamoDB provides a flexible, high-performance database solution. Access patterns are optimized through careful index design to support common inventory operations.

{
  "itemId": "item-123",
  "name": "Wireless Headphones",
  "description": "WH-2023-BLK",
  "category": "electronics",
  "quantity": 157,
  "imageUrl": "supplier-456",
  "price": 45.99,
  "createdAt": "timestamp",
  "updatedAt": "timestamp"

Deploying the Backend with Terraform

Terraform enables infrastructure as code, making deployment consistent and repeatable. Here's a step-by-step guide to deploying the backend infrastructure:

1. Prerequisites
Before starting, ensure you have:

• AWS CLI installed and configured with appropriate permissions
• Terraform CLI installed
• Git installed for repository access

2. Clone the Repository
First, clone the project repository containing the Terraform configuration:

git clone https://github.com/OjoOluwagbenga700/serverless-inventory-management-system.git
cd backend/terraform

3. Initialize Terraform

Initialize the Terraform working directory:

terraform init

This command downloads the necessary provider plugins and sets up the backend configuration.

4. Review the Execution Plan
Generate and review the execution plan:

terraform plan

This shows you what resources will be created, modified, or destroyed.

5. Apply the Configuration
Apply the Terraform configuration to provision the infrastructure:

terraform apply --auto-approve

Terraform will create all the necessary AWS resources:

• DynamoDB tables
• IAM roles and policies
• Lambda functions
• API Gateway endpoints
• CloudWatch log groups

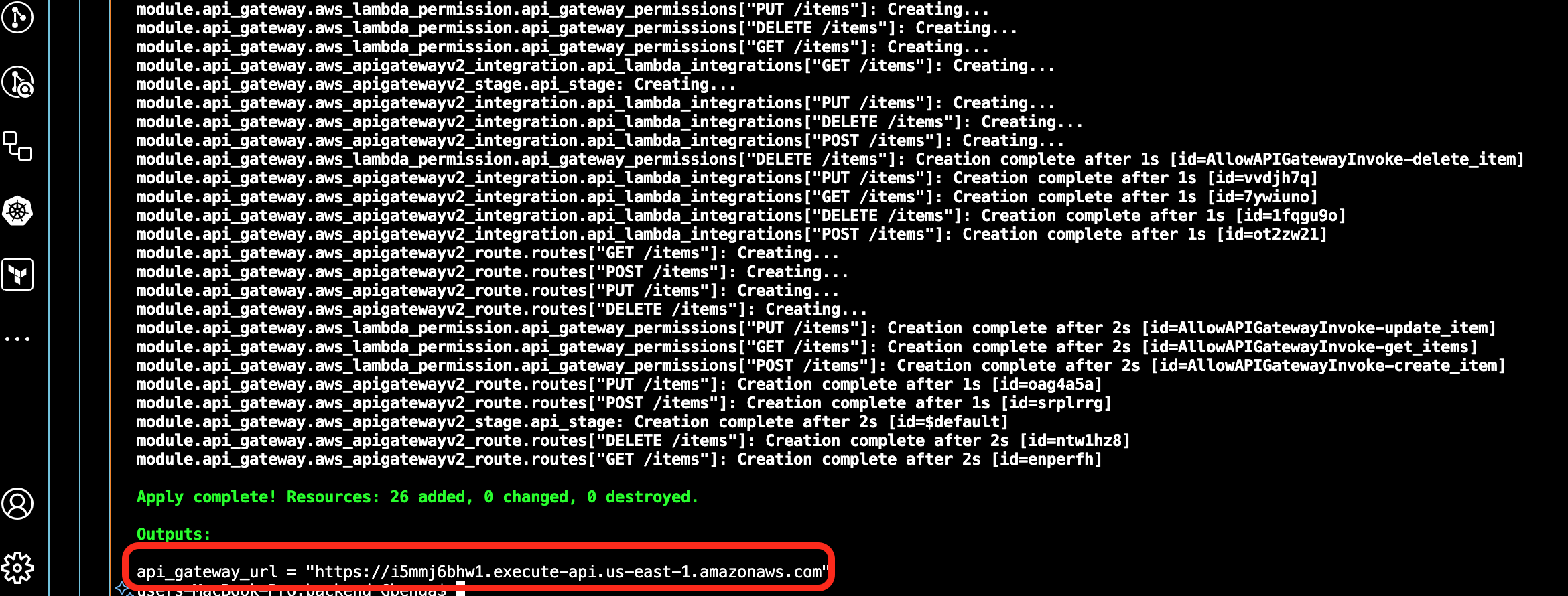

6. Verify Deployment
After successful application, Terraform will output the API Gateway endpoint URL

api_gateway_url = "https://i5mmj6bhw1.execute-api.us-east-1.amazonaws.com"

7. Update Frontend Configuration
Use the output values to update your frontend environment configuration.

// src/services/api.js
// API Gateway integration layer

const API_ENDPOINT = 'https://i5mmj6bhw1.execute-api.us-east-1.amazonaws.com';

// Fetch all inventory items
export async function fetchItems() {
  try {
    const response = await fetch(`${API_ENDPOINT}/items`);

    if (!response.ok) {
      const errorData = await response.json();
      throw new Error(errorData.message || `API error: ${response.status}`);
    }

    return await response.json();
  } catch (error) {
    console.error('Error fetching items:', error);
    throw error;
  }
}

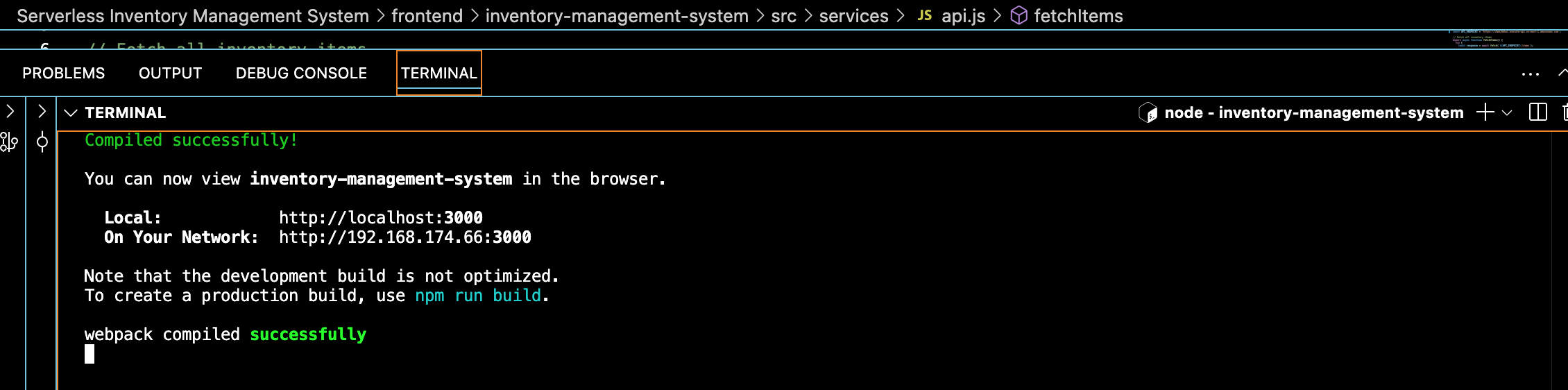

7. Run frontend Application

Navigate to the frontend directory

cd frontend/inventory-management-system

Run the following npm commands

npm install
npm start

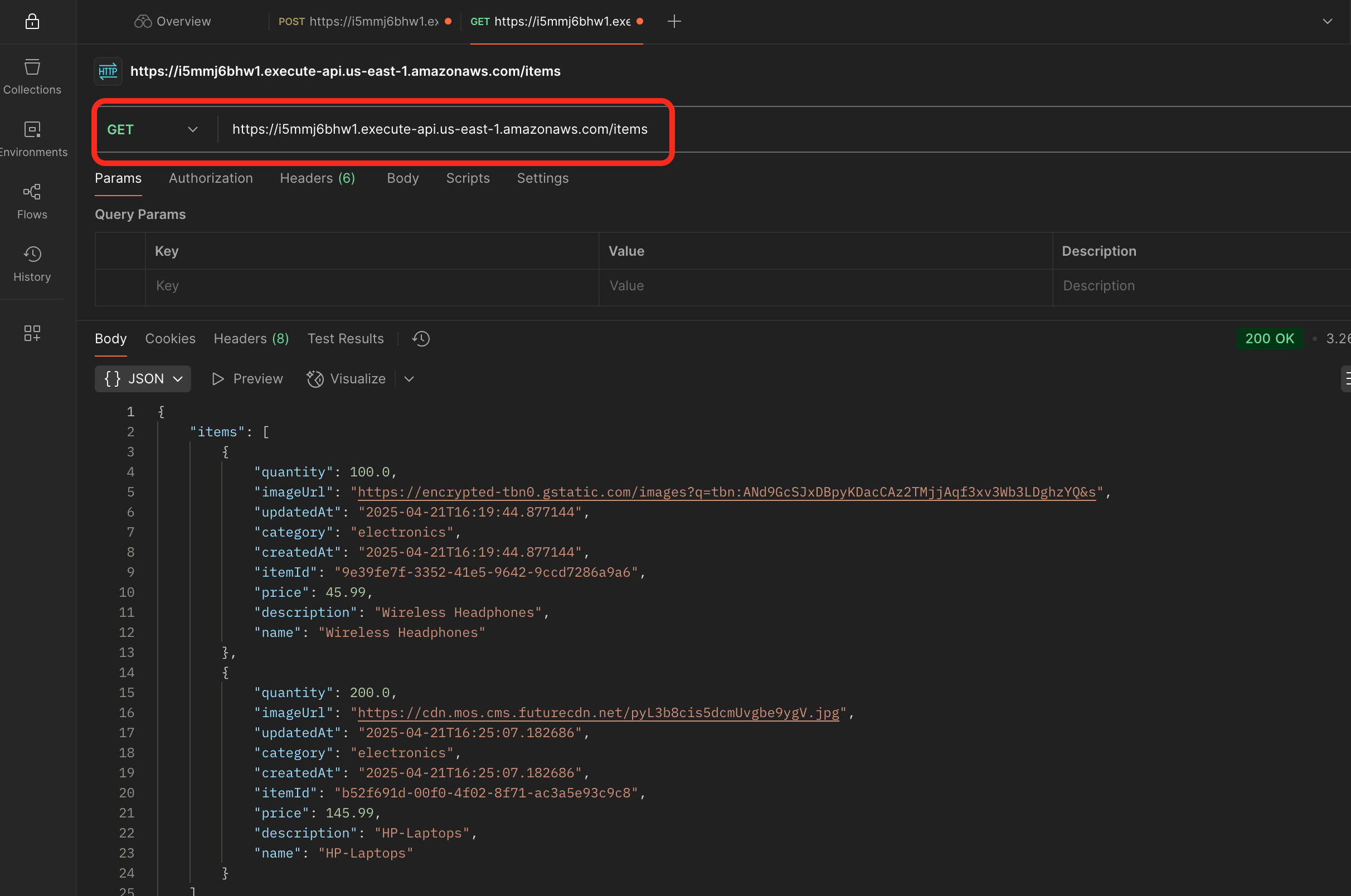

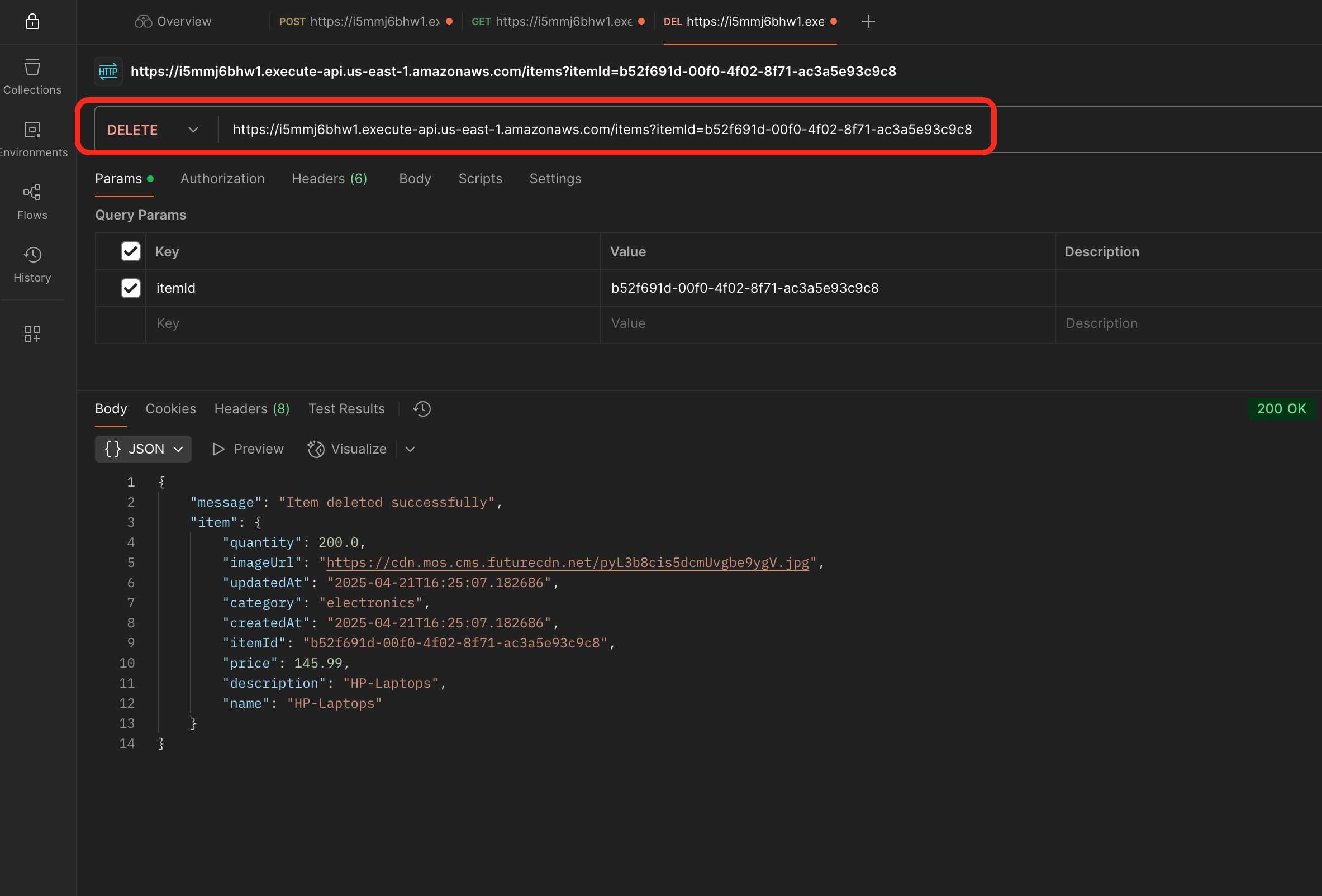

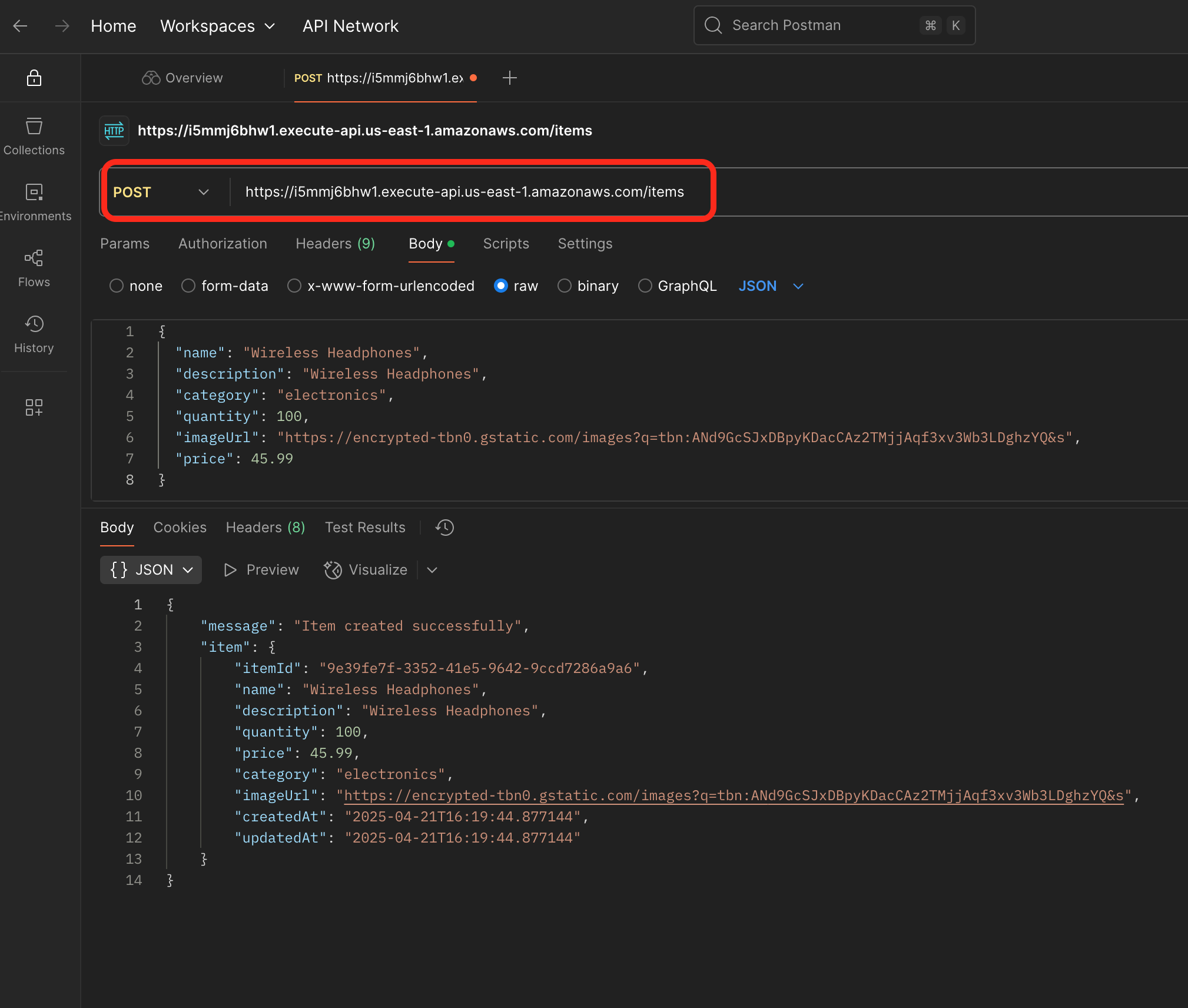

Testing CRUD Operations with Postman

You can test all CRUD operations by:

• Setting method and endpoint (e.g., POST /items)
• Sending appropriate JSON body
• Checking responses

Conclusion
By leveraging AWS serverless technologies, React, and Terraform, businesses can implement a powerful inventory management system that scales with their needs while minimizing operational overhead. This cloud-native approach provides the flexibility to adapt quickly to changing business requirements while maintaining robust security and performance.
Feel free to clone, fork, or build on top of it!
