In the modern era of space exploration, software is as critical as rocket fuel. The spacecraft of the future—especially for interplanetary missions to Mars—won’t just be metal and circuits; they’ll be powered by millions of lines of highly reliable code. Among the top languages trusted for these missions is C++.
Why? Because C++ offers the performance, precision, and control needed to build the mission-critical systems that must function without fail in the unforgiving vacuum of space.
But C++ isn’t perfect. It comes with its own set of challenges—such as undefined behavior, memory issues, and hardware sensitivity. This article explores how C++ can not only take us to Mars and back, but also how its challenges can be solved with modern techniques, tools, and best practices.

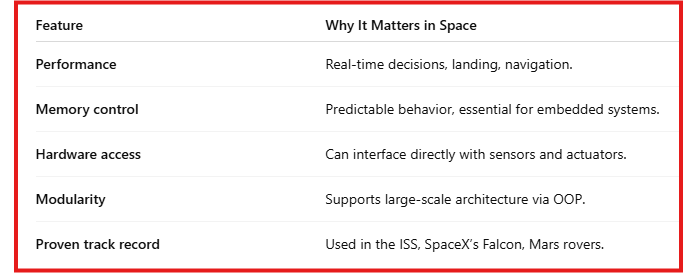

Why C++ Is Chosen for Space
Before diving into the problems and solutions, let’s understand why C++ is still a favorite among aerospace engineers:
Building a Mars Mission Software Stack in C++
A real Mars mission software system might include:
Navigation System
Autonomous AI Decision Engine
Communication System
Power Management
Thermal & Life Support
Diagnostics & Recovery
Each component must be fast, fault-tolerant, and radiation-aware.
Let’s now go module by module, write real C++ code, and examine the challenges and solutions for each.
1. Undefined Behavior Risks
The Problem:
C++ gives low-level control, but that means undefined behavior (UB) can occur if:
- Memory is accessed out of bounds
- Null pointers are dereferenced
- Integer overflows happen unchecked
In space, UB could mean mission failure.
The Solution: Use Static Analysis Tools + Safe Subsets of C++
Use tools like Clang-Tidy, CppCheck, or MISRA C++ guidelines
Avoid dangerous constructs (e.g., raw pointers, uninitialized vars)
Use modern C++11/14/17 features like constexpr, enum class, nullptr, etc.
Example:
// Safe use of enum class avoids accidental conversions
enum class ThrusterStatus { OFF, IDLE, FIRING };
void fireThruster(ThrusterStatus status) {
if (status == ThrusterStatus::FIRING) {
std::cout << "Thruster is firing\n";
}
}Static analysis would catch any misuse like comparing ThrusterStatus to an integer.
2. Pointer Bugs and Memory Leaks
The Problem:
C++ allows direct memory access. This can lead to:
- Memory leaks
- Dangling pointers
- Double deletes
Memory bugs are very hard to debug in space, where logs may be delayed or unavailable.
The Solution: Use Smart Pointers + RAII (Resource Acquisition Is Initialization)
- Replace new and delete with std::unique_ptr and std::shared_ptr
- Use std::vector instead of raw arrays
- Encapsulate resource handling in classes
Example:
#include
#include
class Sensor {
public:
Sensor() { std::cout << "Sensor initialized\n"; }
~Sensor() { std::cout << "Sensor destroyed\n"; }
};
void testSensor() {
std::unique_ptr sensor = std::make_unique();
// Auto-deletes when out of scope (RAII)
}This ensures automatic memory cleanup, preventing leaks.
3. Portability Across Embedded Architectures
The Problem:
C++ must run on various microcontrollers or real-time operating systems (RTOS) with:
- Limited RAM/CPU
- No standard library support
- Different instruction sets (ARM, RISC-V)
The Solution: Use Embedded C++ Subsets + Cross-Compilers
- Avoid exceptions, RTTI, dynamic memory (where unsupported)
- Use cross-platform frameworks (e.g., RTEMS, FreeRTOS with C++)
- Cross-compile using GCC/Clang with appropriate flags
Example (Embedded-safe loop):
// No STL used
void monitorBattery(float* readings, int count) {
float total = 0;
for (int i = 0; i < count; ++i)
total += readings[i];
float avg = total / count;
if (avg < 21.0f)
std::cout << "Battery level low\n";
}Also, use hardware abstraction layers (HALs) to isolate hardware-specific code.
4. Harsh Radiation Causing Bit Flips
The Problem:
- Radiation in space can flip bits in:
- Program memory (code)
- RAM (data)
- Registers (instruction execution)
This can crash or corrupt a system.
The Solution: Use ECC Memory + Software Fault Tolerance
- Use Error-Correcting Code (ECC) RAM (corrects 1-bit errors)
- Add software redundancy: checksums, watchdog timers, and self-diagnostics
- Implement triple modular redundancy (TMR) in critical modules
Example (Simple checksum validation):
bool validatePacket(const std::string& data, uint32_t checksum) {
uint32_t sum = 0;
for (char c : data) sum += c;
return (sum == checksum);
}This kind of redundancy catches silent data corruption.
Mars Mission Software (Integrated Code Sample)
#include
#include
#include
#include
#include
class Navigation {
double x, y, velocity;
public:
void update(double nx, double ny, double vel) {
x = nx; y = ny; velocity = vel;
std::cout << "Location: " << x << "," << y << " | Vel: " << velocity << "\n";
}
double timeToTarget(double targetX, double targetY) {
double dist = sqrt(pow(targetX - x, 2) + pow(targetY - y, 2));
return dist / velocity;
}
};
class Comm {
public:
void send(const std::string& msg) {
std::cout << "[Comm] Sending: " << msg << "\n";
}
bool receive() {
return rand() % 10 != 1; // Simulate signal loss
}
};
class LifeSupport {
double o2;
public:
LifeSupport(double level) : o2(level) {}
void check() {
if (o2 < 20) std::cerr << "WARNING: Oxygen low!\n";
else std::cout << "O2 OK\n";
}
};
int main() {
Navigation nav;
nav.update(0, 0, 100);
std::cout << "Time to Mars base: " << nav.timeToTarget(500, 500) << "s\n";
Comm comm;
comm.send("Telemetry nominal");
if (!comm.receive()) std::cerr << "Signal lost!\n";
LifeSupport ls(19.8);
ls.check();
}Conclusion
Despite its challenges, C++ remains one of the most powerful languages to take us to Mars and back—because it gives us:
- Performance for real-time reactions
- Control over hardware behavior
- Determinism and precision
- Strong community and legacy tools
By following modern practices, using safety features, and architecting carefully, we can overcome every challenge—turning C++ into the backbone of our journey across the solar system.
Final Thought:
“We used C to land on the Moon. We’ll use C++ to walk on Mars.”
