Notion isn’t just a note-taking app—it’s a real-time, collaborative database masquerading as a minimalist UI. But how does it handle 200+ billion blocks (database entries) without buckling under pressure?

Let’s peel back the layers.

Notion’s Data Model: A Database in Disguise

Every action in Notion—typing text, toggling a checkbox—creates a block, stored as a row in PostgreSQL. Here’s the schema of a block:

CREATE TABLE blocks (
  id UUID PRIMARY KEY,
  type VARCHAR(50),       -- 'paragraph', 'checkbox', etc.
  parent_id UUID,         -- Parent block (if nested)
  workspace_id UUID,      -- Critical for sharding
  properties JSONB        -- Flexible content storage
);

Fun Fact:

When you hit ↑ or ↓ in Notion, it’s not moving a cursor—it’s jumping between database rows. A "simple" page with 10 elements = 10+ database queries!

The Scaling Crisis: 20 Billion Blocks and Chaos

Why Postgres Almost Died

  • Single database: Pre-2021, all blocks lived in one PostgreSQL instance.
  • Indexes bloated: Querying a workspace’s blocks required scanning millions of rows.
  • Writes stalled: Concurrent edits from 100M users? Good luck.

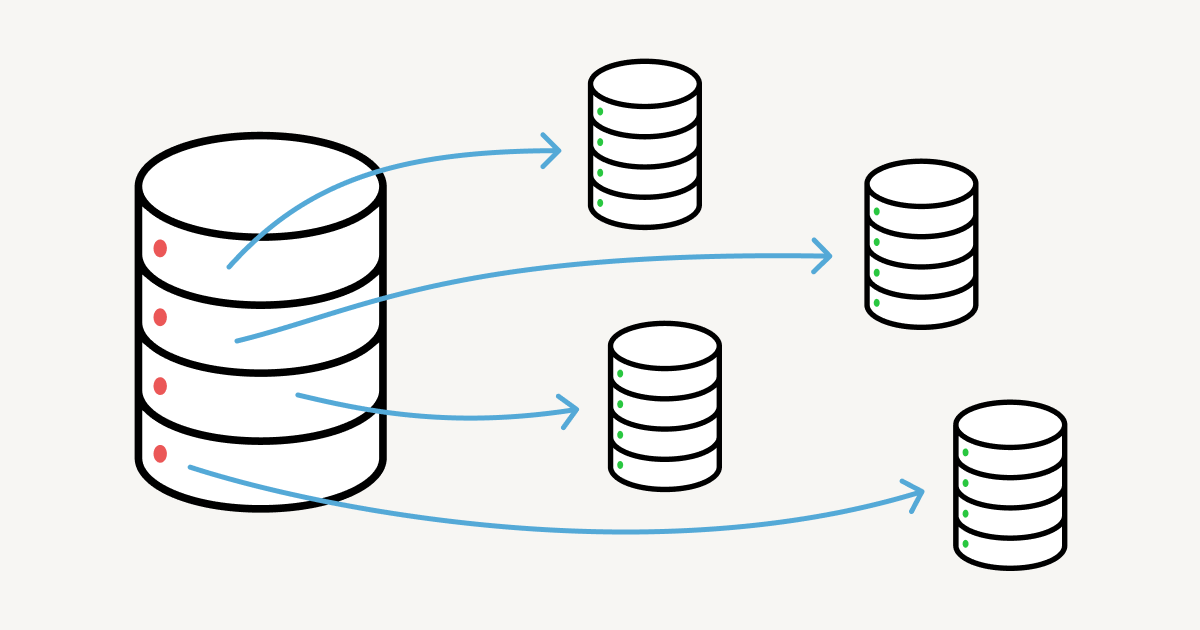

The Sharding Savior

Notion split data into 480 logical shards (32 machines × 15 shards each).
How?

sharding

  1. Shard Key: workspace_id (every block belongs to one workspace).
  2. Routing: Application code directs queries like:
shard = hash(workspace_id) % 480  # Simple but effective

Pro Tip:

Sharding isn’t free. Cross-shard queries (e.g., global search) require fan-out—sending requests to all shards. Notion avoids this with Elasticsearch for search.

Zero-Downtime Migration: The Double-Write Dance

Migrating 20B+ blocks live? Notion’s 3-step playbook:

  1. Double Writes:
def save_block(block):
     old_db.write(block)  # Legacy database
     new_sharded_db.write(block)  # New shard
  1. Audit Logs: A Kafka stream recorded all changes for reconciliation.
  2. The Big Cutover:
    • 5-minute downtime to flip the switch.
    • Dark reads compared old/new DB outputs silently.

Underrated Hack:

They used PostgreSQL’s logical replication to sync shards—no third-party tools needed.

Beyond Postgres: The Data Lake Pivot

Postgres is great for OLTP (transactions), but analytics? Not so much. Notion’s new pipeline:

graph LR
  A[Postgres Shards] -->|CDC| B[Apache Kafka]
  B --> C[Apache Spark]
  C --> D[Amazon S3 Data Lake]
  D --> E[Snowflake for Analytics]

Why?

  • Cost: Snowflake charges per query; S3 is dirt-cheap storage.
  • AI Ready: Unstructured data (e.g., page content) fuels Notion’s AI features.

Gotcha:

Snowflake hates updates. Notion’s update-heavy workload forced them to build custom tooling.

Open Source Gems in Notion’s Stack

  • Apache Kafka: Handles 4M+ messages/sec during peak loads.
  • pgbouncer: Connection pooling to avoid Postgres meltdowns.
  • Apache Hudi: Manages change-data-capture (CDC) for the data lake.

Lesson:

Notion’s engineers prefer boring tech—Postgres over MongoDB, Kafka over proprietary queues.

The Future: What’s Next for Notion’s Stack?

  1. Edge Caching: Reduce latency for global users.
  2. Columnar Storage: For faster analytics (e.g., Apache Parquet).
  3. Vector Databases: To power AI features (semantic search, etc.).

Why This Matters for You

Even if you’re not building the next Notion, these principles apply:

  • Sharding: Plan it early. Use a clear key (like workspace_id).
  • Data Lakes: Separate OLTP and analytics early.
  • Open Source: Avoid vendor lock-in; Kafka/Postgres will outlive any SaaS.
