This article covers 4 methods to embed arbitrary binary files (images, data, etc.) inside an executable.

From standard approaches (byte arrays) to low-level hacks like binary appending (copy /b), each method includes ready-to-use examples in Visual C++.

Use cases:

  • Single-file deployment (no external resources).
  • Hiding data inside .exe/.elf (no encryption).
  • Quick prototyping or educational purposes.

⚠️ Note:

  • Methods 1-3 are "clean" and portable.
  • Method 4 (copy /b) is a hack and may cause problems with checksums or antivirus.
  • All examples assume x86_64 context (adaptable for other architectures).

Method 1: Win32 Resource Files (.rc)

Best for: Native Windows executables where you want integrated resource handling

Step 1: Add resource files in Visual Studio

  1. Right-click project → Add → Resource...
  2. Choose "Import..." and select your binary file (e.g., data.bin)
  3. Set resource type as RCDATA and assign an ID (e.g., IDR_MY_DATA)

Visual Studio will automatically:

  • Generate/modify resource.h with your ID
  • Create/update the .rc file with:
IDR_MY_DATA RCDATA "file.bin"

Step 2: Access the resource from code

This will be the code to access the resources and use them in memory:

main.cpp

#include
#include "resource.h"  // Auto-generated by VS

void LoadEmbeddedData()
{
    HRSRC hRes = FindResource(nullptr, MAKEINTRESOURCE(IDR_MY_DATA), RT_RCDATA);
    DWORD dataSize = SizeofResource(nullptr, hRes);
    HGLOBAL hData = LoadResource(nullptr, hRes);
    const BYTE* pData = static_cast<const BYTE*>(LockResource(hData));

    if (pData)
    {
       // At this point, pData pointer contains the embedded data
       // You can do anything with the buffer and size
       // Example: processing or writing to disk
    }
}

Key Notes:

  • 🔧 No manual compilation – VS handles .rc → .res conversion during build
  • 🔒 Data is read-only in memory (safe from modification)
  • 📦 Supports any binary format (use RT_RCDATA for raw data)
  • ❌ Possible external changes - Resources can be replaced by external tools

Method 2: Manual Hex Offset on Source Code

Best for: Precise binary embedding without compiler dependencies

Required Tools

HxD Editor - A utility to export the binary file offset as a C/C++ source file

Step 1: Export binary to C++ offset array

  1. Open your binary file (.bin, .dat, etc.) in HxD Editor
  2. Go to File → Export → C and choose a path to save the source .cpp file
  3. Copy the source .cpp file into your project folder and include it

The source file should look like:

/* [FILENAME] ([DATE])
   StartOffset(h): 00000000, EndOffset(h): 000003FF, Length(h): 00000400 */

unsigned char rawData[1024] =
{
    0x7F, 0x45, 0x4C, 0x46, 0x02, 0x01, 0x01, 0x00, // ELF magic bytes
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x03, 0x00, 0x3E, 0x00, 0x01, 0x00, 0x00, 0x00,
    // ... (truncated for brevity) ...
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};

Step 2: Accessing the offset from the code

Now create a new H header file from Visual Studio and insert the following declarations:

embedded_data.h

#pragma once

extern unsigned char embedded_data[];
extern const size_t embedded_data_size;

After remember to move the size of the bytes array into a const variable and assign it to the size of the array, do not forget to include the header with the declarations

embedded_data.cpp

#pragma once
#include "embedded_data.h" // include the header

const size_t embedded_data_size = 1024; // this is the value of the array size offset below

unsigned char embedded_data[embedded_data_size] =
{
    0x7F, 0x45, 0x4C, 0x46, 0x02, 0x01, 0x01, 0x00, // ELF magic bytes
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x03, 0x00, 0x3E, 0x00, 0x01, 0x00, 0x00, 0x00,
    // ... (truncated for brevity) ...
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};

At this point from any part of our application code we include the header that declares our offset and declare a binary data buffer in your code to be able to use it in memory

main.cpp

#include "windows.h"
#include "embedded_data.h"

void LoadEmbeddedData()
{
  BYTE* embedded_data_buffer = new BYTE[embedded_data_size];
  const size_t embedded_data_buffer_size = embedded_data_size;

  memcpy(embedded_data_buffer, embedded_data, embedded_data_size);

  if (embedded_data_buffer)
  {
     // At this point, embedded_data_buffer pointer contains the embedded data
     // You can do anything with the buffer and size
     // Example: processing or writing to disk

     delete[] embedded_data_buffer; // deallocate the buffer
  }
}

Key Notes:

  • ✅ Manual binary precision – It allows direct embedding of binary data into source code, eliminating dependencies on automated tools.
  • 🔒 Data is read-only in memory (safe from modification)
  • 📦 Immutable data Embedded data is read-only, ensuring safety and integrity during execution.
  • ❌ Manual updates required - To change or update embedded data, you need to regenerate the offset and recompile the source code.
  • ❌ Avoid too large files - Embedding large files can increase the size of the source code, reduce readability, and cause compilation slowdowns or even errors.

Method 3: Objcopy Binary COFF Linking (.obj)

Best for: Windows executables (MSVC/MinGW) requiring direct binary embedding

Required Tools

bin2obj - Included portable MinGW ucrt64 with objcopy utility and a little program bin2obj to make the process easier

Step 1: Converting binary file to COFF file

1. Open a CMD window in the ucrt64 folder

Enter the command for a conversion to a 32-bit COFF:

objcopy -I binary -O pe-i386 -B i386 binary.bin binary.obj

Enter the command for a conversion to a 64-bit COFF:

objcopy -I binary -O pe-x86-64 -B i386:x86-64 binary.bin binary.obj

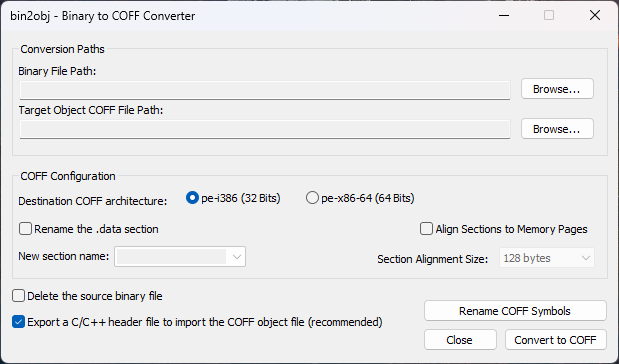

Alternatively you can use the small utility developed by me to automate the conversion process

Image description

Here you simply need to specify the path of the binary file to convert, the destination COFF file and click on "Convert to COFF" and you're done!

Leave the Export a C/C++ header file to import the COFF object file checkbox checked to have the include file for the COFF symbol declarations exported automatically.

The header file that will be generated will look like this:

binary_data.h

#pragma once
#include

// include this header in your application and link the COFF as additional dependencies

extern "C"
{
   extern const uint8_t binary_filename_start[];

   extern const uint8_t binary_filename_end[];

   const size_t binary_filename_size = binary_filename_end - binary_filename_start;
}

Place the header file into the project folder and the converted COFF file, otherwise if you have converted the COFF directly from the command line you will also have to write the header file that declares the COFF symbols

Remember to link the COFF from additional dependencies

2. Writing manually header file for COFF symbol declaration

⚠️This step can be skipped if bin2obj was used⚠️

  1. Open Visual Studio Developer Powershell command line
  2. Using the cd command, reach the folder where the converted COFF is located.
  3. Run the command dumpbin /symbols binary.obj to get the COFF symbols

The output will look like this:

Microsoft (R) COFF/PE Dumper Version 14.42.34433.0
Copyright (C) Microsoft Corporation.  All rights reserved.


Dump of file binary.obj

File Type: COFF OBJECT

COFF SYMBOL TABLE
000 00000000 SECT1  notype       External     | _binary_filename_start
001 000069DD SECT1  notype       External     | _binary_filename_end
002 000069DD ABS    notype       External     | _binary_filename_size

String Table Size = 0xD9 bytes

  Summary

        69DD .data

⚠️Always remember to remove the initial underscore in front of the symbol name.⚠️

  1. From Visual Studio create a new header file and write the declarations for the symbols

binary_data.h

#pragma once
#include

extern "C"
{
   extern const uint8_t binary_filename_start[];
   extern const uint8_t binary_filename_end[];

   const size_t binary_filename_size = binary_filename_end - binary_filename_start;
}
  1. Copy the COFF object file into your project folder and link it from additional dependencies

Step 2: Accessing the binary data from the code

Now you can go and declare a binary data buffer in your code to be able to use it in memory

main.cpp

#include "windows.h"
#include "binary_data.h"

void LoadEmbeddedData()
{
   BYTE* binary_filename_buffer = new BYTE[binary_filename_size];
   size_t binary_filename_buffer_size = binary_filename_size;

   memcpy(binary_filename_buffer, binary_filename_start, binary_filename_buffer_size)

   if (binary_filename_buffer)
   {
       // At this point, binary_filename_buffer pointer contains the embedded data
       // You can do anything with the buffer and size
       // Example: processing or writing to disk

       delete[] binary_filename_buffer; // deallocate the buffer
   }
}

⚠️Remember to compile your application in 32 bit / 64 bit depending on your COFF architecture⚠️

Key Notes:

  • ✅ Efficient binary embedding – Converts binary data into a COFF object, allowing direct linking in Windows executables (ideal for MSVC/MinGW).
  • 🔒 Data is read-only in memory (safe from modification)
  • 📦 Immutable data Embedded data is read-only, ensuring safety and integrity during execution.
  • ❌ Manual updates required - To change or update embedded data, you need to regenerate the COFF and recompile the source code.
  • ✅ Symbol consistency - If the binary file has the same name, the generated symbols (e.g. binary_filename_start) will be identical, allowing easy updates without changes to the source code.
  • ⚙️ Custom section alignment possible - You can specify additional options with objcopy to control the alignment of the section, which is useful for certain data types or alignment-sensitive binary structures.

Method 4: Binary concatenation of files into executable (copy /b)

Best for: Perfect for portable or self-extracting programs: no need to attach external files

This is a "dirty" method that allows you to append binary files (such as ZIP archives, images, DLLs, etc.) to an executable using the copy /b command. The resulting executable can be run as a normal program, but it also contains binary data that can be extracted and used during execution.

This method does not require any additional external tools, we will only need the copy command and the command prompt

Step 1: Helper functions declaration in code

First of all write in your application code a helper functions that gets the concatenated bytes to load them into memory in a buffer:

main.cpp

#include "windows.h"

// Copy and paste this helpers functions into your code

// This helper function is used to get the real size of the executable without the concatenated binary data.
DWORD GetRealExeSize(const TCHAR* exePath)
{
    HANDLE hFile = CreateFile(exePath, GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
    if (hFile == INVALID_HANDLE_VALUE)
        return 0;

    HANDLE hMapping = CreateFileMapping(hFile, NULL, PAGE_READONLY, 0, 0, NULL);
    if (!hMapping)
    {
        CloseHandle(hFile);
        return 0;
    }

    LPBYTE pBase = (LPBYTE)MapViewOfFile(hMapping, FILE_MAP_READ, 0, 0, 0);
    if (!pBase)
    {
        CloseHandle(hMapping);
        CloseHandle(hFile);
        return 0;
    }

    IMAGE_DOS_HEADER* pDosHeader = (IMAGE_DOS_HEADER*)pBase;
    if (pDosHeader->e_magic != IMAGE_DOS_SIGNATURE)
    {
        UnmapViewOfFile(pBase);
        CloseHandle(hMapping);
        CloseHandle(hFile);
        return 0;
    }

    IMAGE_NT_HEADERS* pNtHeaders = (IMAGE_NT_HEADERS*)(pBase + pDosHeader->e_lfanew);
    if (pNtHeaders->Signature != IMAGE_NT_SIGNATURE)
    {
        UnmapViewOfFile(pBase);
        CloseHandle(hMapping);
        CloseHandle(hFile);
        return 0;
    }

    DWORD maxEnd = 0;
    IMAGE_SECTION_HEADER* pSection = IMAGE_FIRST_SECTION(pNtHeaders);
    for (int i = 0; i < pNtHeaders->FileHeader.NumberOfSections; ++i)
    {
        DWORD sectionEnd = pSection[i].PointerToRawData + pSection[i].SizeOfRawData;
        if (sectionEnd > maxEnd)
            maxEnd = sectionEnd;
    }

    UnmapViewOfFile(pBase);
    CloseHandle(hMapping);
    CloseHandle(hFile);

    return maxEnd;
}

// This function allows you to get a buffer in memory of the concatenated binary data.
BYTE* LoadAppendedData(DWORD& outSize)
{
    TCHAR exePath[MAX_PATH] = { 0 };
    GetModuleFileName(NULL, exePath, MAX_PATH);

    DWORD32 exeSize = GetRealExeSize(exePath);

    HANDLE hFile = CreateFile(exePath, GENERIC_READ, FILE_SHARE_READ, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
    if (hFile == INVALID_HANDLE_VALUE)
        return nullptr;

    LARGE_INTEGER fileSize = {};
    if (!GetFileSizeEx(hFile, &fileSize))
    {
        CloseHandle(hFile);
        return nullptr;
    }

    if (fileSize.QuadPart <= exeSize)
    {
        CloseHandle(hFile);
        return nullptr;
    }

    DWORD appendedSize = (DWORD)(fileSize.QuadPart - exeSize);
    BYTE* data = new BYTE[appendedSize];

    SetFilePointer(hFile, exeSize, NULL, FILE_BEGIN);
    DWORD bytesRead = 0;
    ReadFile(hFile, data, appendedSize, &bytesRead, NULL);
    CloseHandle(hFile);

    if (bytesRead != appendedSize)
    {
        delete[] data;
        return nullptr;
    }

    outSize = appendedSize;
    return data; // Concatenated data loaded into memory
}

void LoadEmbeddedData()
{
   DWORD embedded_data_size = 0;
   BYTE* embedded_data = LoadAppendedData(embedded_data_size);

   if (embedded_data)
   {
     // At this point, embedded_data pointer contains the embedded data
     // You can do anything with the buffer and size
     // Example: processing or writing to disk

     delete[] embedded_data; // deallocate the buffer
   }
}

Once this is done, compile the application and reopen the command prompt in the build folder (Debug/Release)

Step 2: Binary data concatenation in executable

At this point we can execute the command to concatenate any binary data to the executable:

copy /b app.exe + mydata.bin final_app.exe

⚠️Avoid overwriting the original executable but create a copy with the concatenated data⚠️

Key Notes:

  • ✅ Easy loading of concatenated data – It uses the Windows API to read data added to an executable, allowing you to manipulate combined files without additional dependencies like MFC.
  • 📦 Immutable data – Embedded data is read-only, ensuring safety and integrity during execution.
  • ❌ Manual updates may be required – Every time you change the binary data you will need to re-run the copy /b command every time after compilation

Methods Summary

Both methods have their pros and cons, below is the summary table for everything

Method Best For Pros Cons Example Use Cases
Method 1: Win32 Resource Files (.rc) Native Windows executables where integrated resource handling is preferred ✅ No manual compilation – VS handles .rc → .res conversion
✅ Data is read-only (safe from modification)
✅ Supports any binary format 		❌ Possible external changes – Resources can be replaced by external tools Embedding configuration files, certificates, or game assets; Storing default data for single-file apps
Method 2: Manual Hex Offset on Source Code Precise binary embedding without compiler dependencies ✅ Manual binary precision – Directly embeds binary data into source code
✅ Data is read-only
✅ Immutable data
✅ No additional dependencies
✅ Custom section alignment possible 		❌ Manual updates required – Must regenerate offsets and recompile
❌ Avoid too large files – Large files reduce readability and cause compilation slowdowns		 Embedding small binary data (e.g., logos, icons, or small assets) for small projects
Method 3: Objcopy Binary COFF Linking (.obj) Windows executables (MSVC/MinGW) requiring direct binary embedding ✅ Efficient binary embedding – Converts binary into a COFF object for direct linking
✅ Symbol consistency – Same file name results in identical symbols
✅ Custom section alignment possible 		❌ Manual updates required – Regenerate the COFF and recompile for updates
❌ External tool dependency – Requires bin2obj utility or manual symbol creation		 Embedding large binary files in executables, such as libraries or other large assets
Method 4: Binary Concatenation with copy /b Self-extracting programs, or when no external files are allowed ✅ Easy loading of concatenated data – No dependencies like MFC
✅ Portable – Doesn’t need additional external libraries
✅ Fast to implement – Simple concatenation command		 ❌ Manual updates may be required – Every time you change the binary data you will need to re-run the copy /b command every time after compilation
❌ "Dirty" method – Can cause issues with checksums or antivirus detection		 Embedding data like ZIP files, DLLs, or other large data into executables for self-extraction

Conclusion

In this article, we've covered four distinct methods for embedding binary data into a Win32 executable, each offering its own strengths and trade-offs:

  • Method 1: Win32 Resource Files (.rc): Ideal for straightforward integration with Windows resource handling. Best for applications where the embedded data does not change often and is part of the resource management system.
  • Method 2: Manual Hex Offset on Source Code: Provides precise control over the embedded data but requires manual management of offsets. Best suited for small to medium binary data embedded directly within the source code.
  • Method 3: Objcopy Binary COFF Linking (.obj): A more sophisticated method for embedding large binary objects, ideal for developers using MSVC or MinGW who need to efficiently manage binary assets.
  • Method 4: Binary Concatenation with copy /b: A "dirty" but quick solution for appending data directly to an executable. This method is great for self-extracting applications but requires careful handling of offsets and file sizes.

Best Practices & Recommendations

  • Keep Your Executable Small: While embedding binary data can make your application self-contained, avoid adding too much data to prevent bloating the executable and affecting performance.
  • Use Proper Memory Management: Always ensure to free any allocated memory once you're done using the embedded data to prevent memory leaks.
  • Consider Security: If you're planning to hide sensitive data (e.g., encryption keys), be mindful that these methods are not inherently secure and can be easily extracted by someone with access to the executable. You may want to consider additional security measures, like encryption.
  • Avoid loading very large files entirely into memory: For large binaries (e.g. ZIP archives, videos, DLLs), consider block processing (streaming) or memory mapping (CreateFileMapping + MapViewOfFile) instead of allocating a huge buffer, this can reduce RAM usage and make everything more performant

Final Thoughts

Each of these methods is suitable for different scenarios, and the best choice depends on your specific needs: portability, ease of use, and how frequently the embedded data needs to be updated. For quick prototyping or simple use cases, copy /b might be the easiest choice, but for more robust applications, using Win32 resource files or manual hex offsets could be more effective.

Feel free to experiment with these methods and choose the one that fits best with your project goals!

Contributions & Questions

If you have any suggestions, improvements, or questions, feel free to contribute or reach out! I'm open to discussing different techniques and ways to enhance the methods presented here.

Happy coding and stay creative! 🎉
