Short description how to set named control value remotely from the same network.

  1. Add Block Controller
  2. Add new control
  3. Move control to Named Controls section

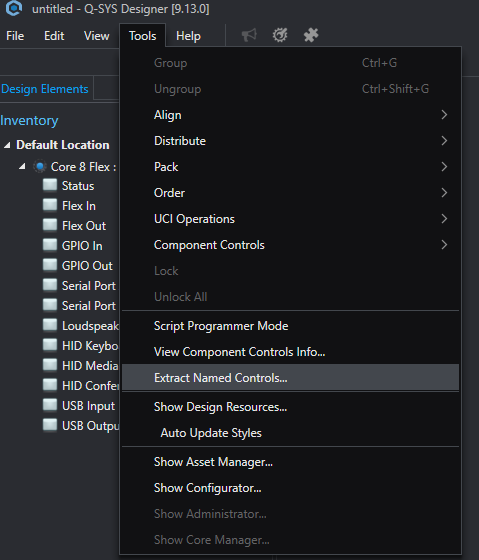

  4. Get NamedControl ID from .xml file (Tools -> Extract Named Controls)

Image description

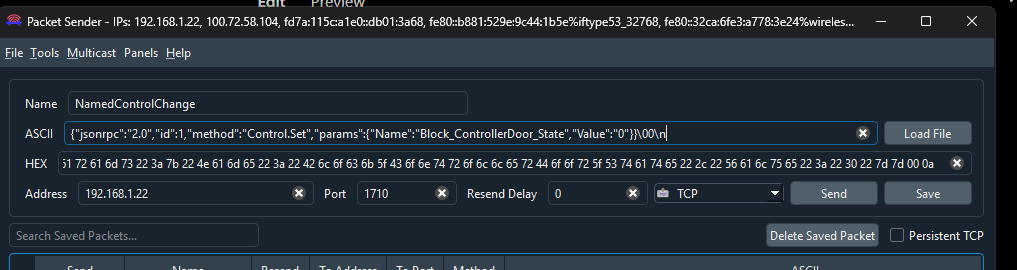

  1. Send JSON-RPC to 1710 port

Image description

{
"jsonrpc":"2.0",
"id":1,
"method":"Control.Set",
"params":{
"Name":"Block_ControllerDoor_State",
"Value":"0"
}
}

example success response:

{
"jsonrpc":"2.0",
"method":"EngineStatus",
"params":{
"Platform":"Emulator",
"State":"Active",
"DesignName":"DesignName",
"DesignCode":"DesignCode",
"IsRedundant":false,
"IsEmulator":true,
"Status":{
"Code":0,
"String":"OK - 2 OK"
}

}
}
