Intelligent Support Ticket Routing with Natural Language Processing (NLP)

conda create -n ticket-nlp python=3.10 -y
conda activate ticket-nlp

# Core packages
conda install pandas scikit-learn -y
conda install -c conda-forge matplotlib seaborn

# Install pip packages (for embedding + transformers)
pip install sentence-transformers
pip install tqdm
pip install nltk
pip install deep-translator tqdm
pip install xgboost

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import re
import nltk
from nltk.corpus import stopwords
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import classification_report, confusion_matrix
from sentence_transformers import SentenceTransformer
nltk.download('stopwords')

df = pd.read_csv("tickets.csv")
print(df.columns)

C:\Users\ndlov\anaconda3\envs\ticket-nlp\lib\site-packages\tqdm\auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm


Index(['subject', 'body', 'answer', 'type', 'queue', 'priority', 'language',
       'business_type', 'tag_1', 'tag_2', 'tag_3', 'tag_4', 'tag_5', 'tag_6',
       'tag_7', 'tag_8', 'tag_9'],
      dtype='object')


[nltk_data] Downloading package stopwords to
[nltk_data]     C:\Users\ndlov\AppData\Roaming\nltk_data...
[nltk_data]   Package stopwords is already up-to-date!

# Quick preview
df.head()

import re
import unicodedata
from sklearn.feature_extraction.text import ENGLISH_STOP_WORDS

# 1. Combine fields robustly
df['text'] = df[['subject', 'body', 'answer']].fillna('').agg(' '.join, axis=1)

# 2. Use sklearn's stopword list
stop_words = ENGLISH_STOP_WORDS

# 3. Compile regex once for performance
_whitespace_re = re.compile(r"\s+")
_non_alphanum_re = re.compile(r"[^a-z0-9\s]")

# 4. Define pro cleaner with accent normalization
def clean_text(text):
    text = str(text).lower().strip()
    text = unicodedata.normalize('NFKD', text).encode('ascii', 'ignore').decode('utf-8')
    text = _non_alphanum_re.sub("", text)
    text = _whitespace_re.sub(" ", text)
    tokens = [word for word in text.split() if word not in stop_words]
    return " ".join(tokens)

# 5. Apply cleaning function
df['clean_text'] = df['text'].apply(clean_text)

# 6. Preview result
df[['subject', 'clean_text']].head()

import pandas as pd
import re
import unicodedata
from sklearn.feature_extraction.text import ENGLISH_STOP_WORDS
from deep_translator import GoogleTranslator
from functools import lru_cache
from tqdm import tqdm

# Enable tqdm for pandas apply
tqdm.pandas()

# --- 1. Combine subject + body + answer into single text column ---
df['text'] = df[['subject', 'body', 'answer']].fillna('').agg(' '.join, axis=1)

# --- 2. Caching Google Translate for performance ---
@lru_cache(maxsize=10000)
def cached_translate(text, lang):
    if lang != 'en':
        try:
            return GoogleTranslator(source=lang, target='en').translate(text)
        except Exception:
            return text  # fallback to original
    return text

# --- 3. Translate non-English text with progress ---
df['text_en'] = df.progress_apply(lambda row: cached_translate(row['text'], row['language']), axis=1)

# --- 4. Use sklearn's English stopwords ---
stop_words = ENGLISH_STOP_WORDS

# --- 5. Compile regex patterns ---
_whitespace_re = re.compile(r"\s+")
_non_alphanum_re = re.compile(r"[^a-z0-9\s]")

# --- 6. Define professional text cleaner ---
def clean_text(text):
    text = str(text).lower().strip()
    text = unicodedata.normalize('NFKD', text).encode('ascii', 'ignore').decode('utf-8')  # remove accents
    text = _non_alphanum_re.sub("", text)  # remove punctuation
    text = _whitespace_re.sub(" ", text)  # normalize whitespace
    tokens = [word for word in text.split() if word not in stop_words]
    return " ".join(tokens)

# --- 7. Apply the cleaning function with progress ---
df['clean_text'] = df['text_en'].progress_apply(clean_text)

# --- 8. Preview sample results ---
sample = df[['language', 'subject', 'text_en', 'clean_text']].sample(5, random_state=42)
for i, row in sample.iterrows():
    print(f"Language: {row['language']}")
    print(f"Subject: {row['subject']}")
    print(f"Translated: {row['text_en'][:200]}...")
    print(f"Cleaned: {row['clean_text'][:200]}...\n")
    print("-" * 80)

100%|██████████| 4000/4000 [11:37<00:00,  5.74it/s]
100%|██████████| 4000/4000 [00:00<00:00, 4544.00it/s]

Language: pt
Subject: Assistência Necessária para Problemas Persistentes de Atolamento de Papel com Impressora Canon
Translated: Assistance required for persistent paper jam problems with canon printer with customer support,

I am writing to report persistent paper jam problems with my Canon Pixma MG3620 printer. The problem oc...
Cleaned: assistance required persistent paper jam problems canon printer customer support writing report persistent paper jam problems canon pixma mg3620 printer problem occurs light checkout documentation ass...

--------------------------------------------------------------------------------
Language: es
Subject: nan
Translated: Dear customer support equipment, I am writing to get your attention on the continuous problems we are experiencing with our AWS cloud implementation, which is managed through its AWS administration se...
Cleaned: dear customer support equipment writing attention continuous problems experiencing aws cloud implementation managed aws administration service interruptions happening growing frequency led significant...

--------------------------------------------------------------------------------
Language: en
Subject: Urgent: Jira Software 8.20 Malfunction Issue
Translated: Urgent: Jira Software 8.20 Malfunction Issue Dear Support Team,

I am writing to report a serious issue that we have been facing with Jira Software 8.20, specifically during our Scrum sprint managemen...
Cleaned: urgent jira software 820 malfunction issue dear support team writing report issue facing jira software 820 specifically scrum sprint management tasks team encountered persistent malfunctions significa...

--------------------------------------------------------------------------------
Language: es
Subject: Problema de creación de tickets en Jira Software 8.20
Translated: Ticket creation problem in jira software 8.20 estimated customer support,

I am experiencing problems with the process of creating tickets in Jira Software 8.20. Every time I try to send a new ticket,...
Cleaned: ticket creation problem jira software 820 estimated customer support experiencing problems process creating tickets jira software 820 time try send new ticket error message appears prevents completing...

--------------------------------------------------------------------------------
Language: fr
Subject: nan
Translated: Dear customer service,

I hope you find you healthy. I am writing to request an upgrading of our Google Workspace licenses for the sales team in order to improve their productivity and their collabora...
Cleaned: dear customer service hope healthy writing request upgrading google workspace licenses sales team order improve productivity collaboration capacities currently use standard business edition transition...

--------------------------------------------------------------------------------

from sklearn.preprocessing import LabelEncoder

# Encode y labels (queue_grouped)
le = LabelEncoder()
y_encoded = le.fit_transform(y)

# Train/test split
X_train, X_test, y_train, y_test = train_test_split(X, y_encoded, test_size=0.2, random_state=42)

# Train XGBoost
print("Training XGBoost...")
clf = XGBClassifier(
    n_estimators=300,
    max_depth=8,
    learning_rate=0.1,
    subsample=0.8,
    colsample_bytree=0.8,
    scale_pos_weight=1,
    use_label_encoder=False,
    eval_metric='mlogloss',
    n_jobs=-1,
    verbosity=1
)
clf.fit(X_train, y_train)

# Predict & decode
y_pred = clf.predict(X_test)
y_test_labels = le.inverse_transform(y_test)
y_pred_labels = le.inverse_transform(y_pred)

# Evaluate
print("\n Classification Report:")
print(classification_report(y_test_labels, y_pred_labels, zero_division=0))

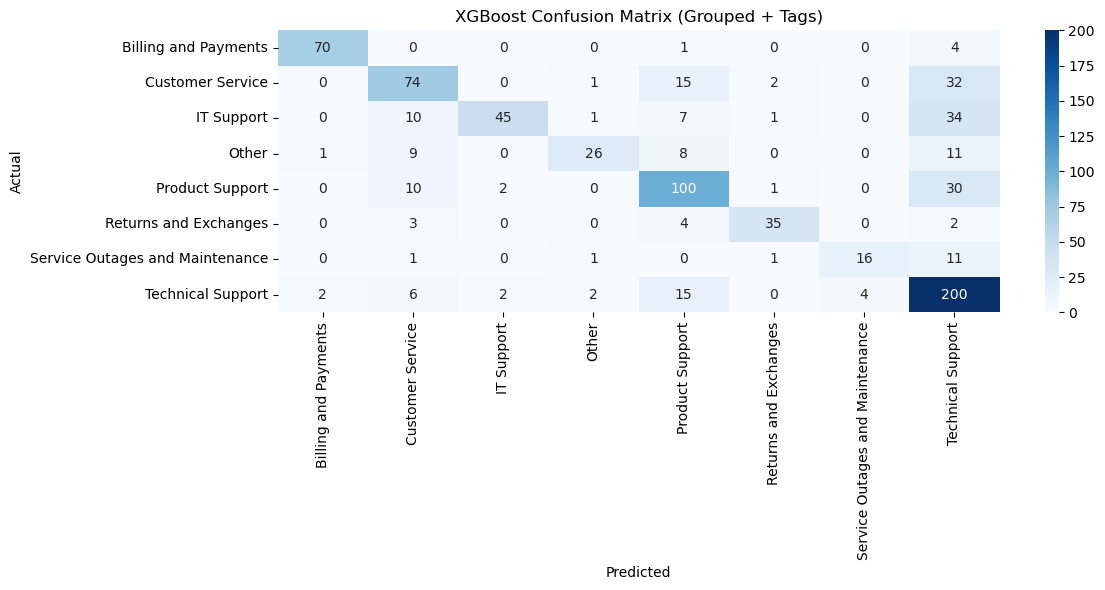

# Confusion Matrix
cm = confusion_matrix(y_test_labels, y_pred_labels, labels=le.classes_)
plt.figure(figsize=(12, 6))
sns.heatmap(cm, annot=True, fmt='d', cmap='Blues', xticklabels=le.classes_, yticklabels=le.classes_)
plt.xlabel("Predicted")
plt.ylabel("Actual")
plt.title("XGBoost Confusion Matrix (Grouped + Tags)")
plt.tight_layout()
plt.show()

Training XGBoost...


C:\Users\ndlov\anaconda3\envs\ticket-nlp\lib\site-packages\xgboost\training.py:183: UserWarning: [04:31:23] WARNING: C:\actions-runner\_work\xgboost\xgboost\src\learner.cc:738:
Parameters: { "scale_pos_weight", "use_label_encoder" } are not used.

  bst.update(dtrain, iteration=i, fobj=obj)



 Classification Report:
                                 precision    recall  f1-score   support

           Billing and Payments       0.96      0.93      0.95        75
               Customer Service       0.65      0.60      0.62       124
                     IT Support       0.92      0.46      0.61        98
                          Other       0.84      0.47      0.60        55
                Product Support       0.67      0.70      0.68       143
          Returns and Exchanges       0.88      0.80      0.83        44
Service Outages and Maintenance       0.80      0.53      0.64        30
              Technical Support       0.62      0.87      0.72       231

                       accuracy                           0.71       800
                      macro avg       0.79      0.67      0.71       800
                   weighted avg       0.74      0.71      0.70       800

def predict_ticket(subject, body, answer="", tags=None):
    """
    Predicts the support queue for a new ticket using the trained model.

    Args:
        subject (str): Ticket subject line
        body (str): Main body of the ticket
        answer (str): Optional reply or continuation of conversation
        tags (list of str): Optional list of tag strings (e.g. issue type, priority)

    Returns:
        str: Predicted support queue label
    """
    # Combine fields like in training
    base_text = f"{subject} {body} {answer}"
    tags_text = " ".join(tags) if tags else ""
    full_input = f"{base_text} {tags_text}"

    # Clean input (same steps as training)
    clean = clean_text(full_input)

    # Embed with the same model
    embedding = model.encode([clean])

    # Predict with trained model
    encoded_pred = clf.predict(embedding)[0]
    return le.inverse_transform([encoded_pred])[0]

predict_ticket(
    subject="Cannot access Jira after upgrading to 8.20",
    body="The Jira service throws a 503 error after our recent upgrade. This is blocking several engineering teams.",
    tags=["Technical Issue", "Urgent", "Atlassian"]
)
# Output: 'Technical Support'

'Technical Support'
