Modern systems like Slack, Netfix, or even Kubernetes handle real-time communication very efficiently. Their large and bulky backends are divided into microservices. Have you ever wondered how these services communicate among themselves? Chances are that gRPC is behind the magic.

In this blog, let us try to understand how can we implement a minimal Exam Service using gRPC in GoLang covering all types of RPCs: Unary, Server Streaming, Client Streaming, and Bidirectional Streaming.

If you already know what you are doing and just want the code, here is the repo.

Before that let us actually try to undestand some basic concepts and simplify the jargon.

Get ready for the complete gRPC guide.

RPC! What's That?

RPC or Remote Procedural Calls may sound like a fancy term but it's just calling functions. Yes! But on other machine.

Imagine you're the client and you want to ask a server: "Hey, what's the score for student ID 42?" RPC lets you do that as if you were calling a normal function, even though that function lives on a totally different system.

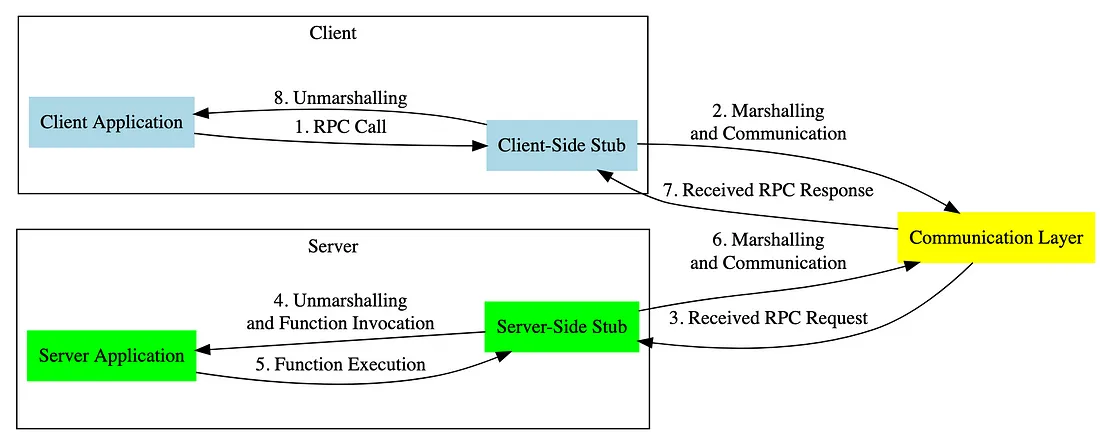

High Level Working of an RPC

Classic RPC systems came before gRPC, but they had a lot of baggage:

  • Inconsistent data formats: No standard serialization; some used XML, some custom formats — all bulky and slow.
  • Lack of streaming: Supporting real-time or long-lived communication was hard or impossible.
  • Limited language support: Often tied to specific ecosystems (like Java RMI or CORBA).
  • Poor tooling: Little to no auto-codegen — developers had to write boilerplate by hand.
  • Security was manual: No built-in encryption; you had to manage TLS yourself.
  • Hard to scale: No multiplexing, no connection reuse — performance didn’t hold up under modern loads.

In contrast, gRPC fixes these issues out of the box — faster, safer, and way easier to use.

gRPC - Google's RPC

gRPC is an open-source RPC framework developed by Google. It's designed to make inter-service communication:

  1. Fast (thanks to HTTP/2)
  2. Type-safe (via Protocol Buffers)
  3. Streaming-friendly (supports real-time communication)

Okay. What the hell is HTTP/2?

gRPC uses HTTP/2 under the hood. Compared to HTTP/1.1:

  • It supports multiplexing— multiple requests on one connection.
  • Enables bidirectional streaming — both client and server can talk at the same time.
  • Built-in header compression — faster data transfer.

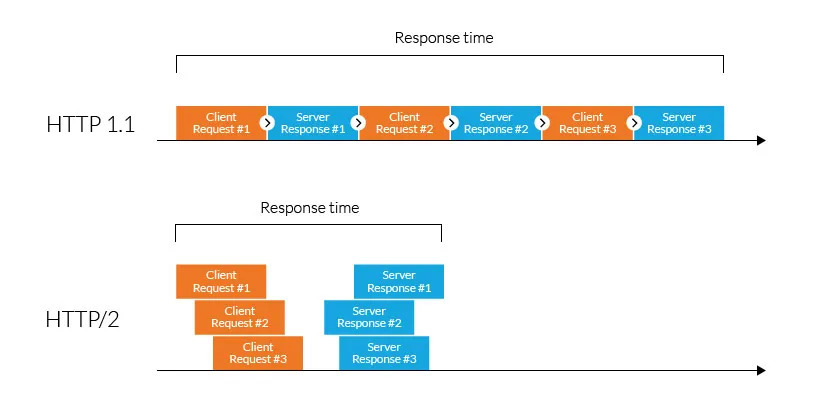

HTTP/1.1 vs HTTP/2

This is how gRPC achieves low-latency real-time communication.

gRPC vs REST

Feature REST gRPC
Data Format JSON / XML Protocol Buffers
Streaming Rare / manual Built-in
Transport HTTP 1.1 HTTP/2
Speed Verbose Compact & fast
Developer Experience Verbose, manual docs Auto-generated code

Types of RPC

gRPC supports four types of communication between the client and server. Let’s walk through each of them.

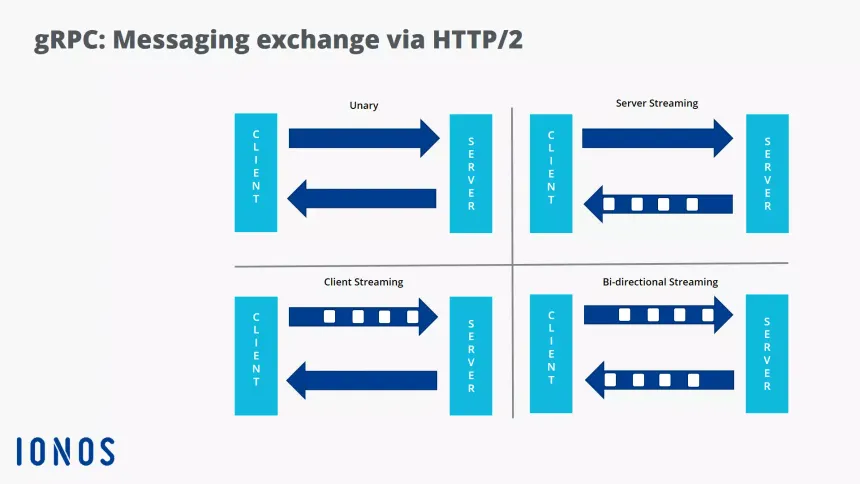

RPC Types

1. Unary RPC (Simple Request-Response)

Client sends one request → Server sends one response.

Think of it like a regular function call.

Example:

"Get me the marks of student with ID 42."

rpc GetMarks(StudentRequest) returns (MarksResponse);

This is the most common type — perfect for CRUD-style operations.

2. Server Streaming RPC

Client sends one request → Server sends a stream of responses.

The server keeps pushing multiple responses over time.

Example:

"Give me the list of all exam results for semester 6."

rpc StreamSemesterResults(SemesterRequest) returns (stream MarksResponse);

Useful when the server has a lot of data to send — you get results as they’re ready.

3. Client Streaming RPC

Client sends a stream of requests → Server sends one final response.

The client pushes a batch of data, and the server replies after processing it all.

Example:

"Here’s the attendance report of all students in bulk — store it."

rpc UploadAttendance(stream AttendanceEntry) returns (UploadStatus);

Great for sending logs, metrics, or bulk uploads.

4. Bidirectional Streaming RPC (Bidi)

Client and server stream data to each other concurrently.

Like a real-time chat where both can talk and listen at the same time.

Example:

"Start a live quiz session — the client sends answers, the server sends questions and scores in real time."

rpc LiveQuiz(stream QuizMessage) returns (stream QuizMessage);

This is where gRPC really shines. Real-time multiplayer games, collaborative tools, live dashboards — it’s all possible.

The Last Bit of Jargon - Protocol Buffers

Protocol Buffers or Protobuf is a language-neutral, platform-neutral mechanism for serializing structured data — developed by Google.

It is better than JSON

  • JSON is human-readable but bulky.
  • Protobuf is compact and faster to serialize/deserialize.
  • JSON needs to parse field names like "student_id" every time. Protobuf uses tags (like 1, 2) behind the scenes for faster lookup.

How it works?

  • You define your schema using a .proto file.
  • The Protobuf compiler (protoc) generates code for your language (e.g., Go, Python, Java).
  • That code provides you with methods to encode and decode messages efficiently.

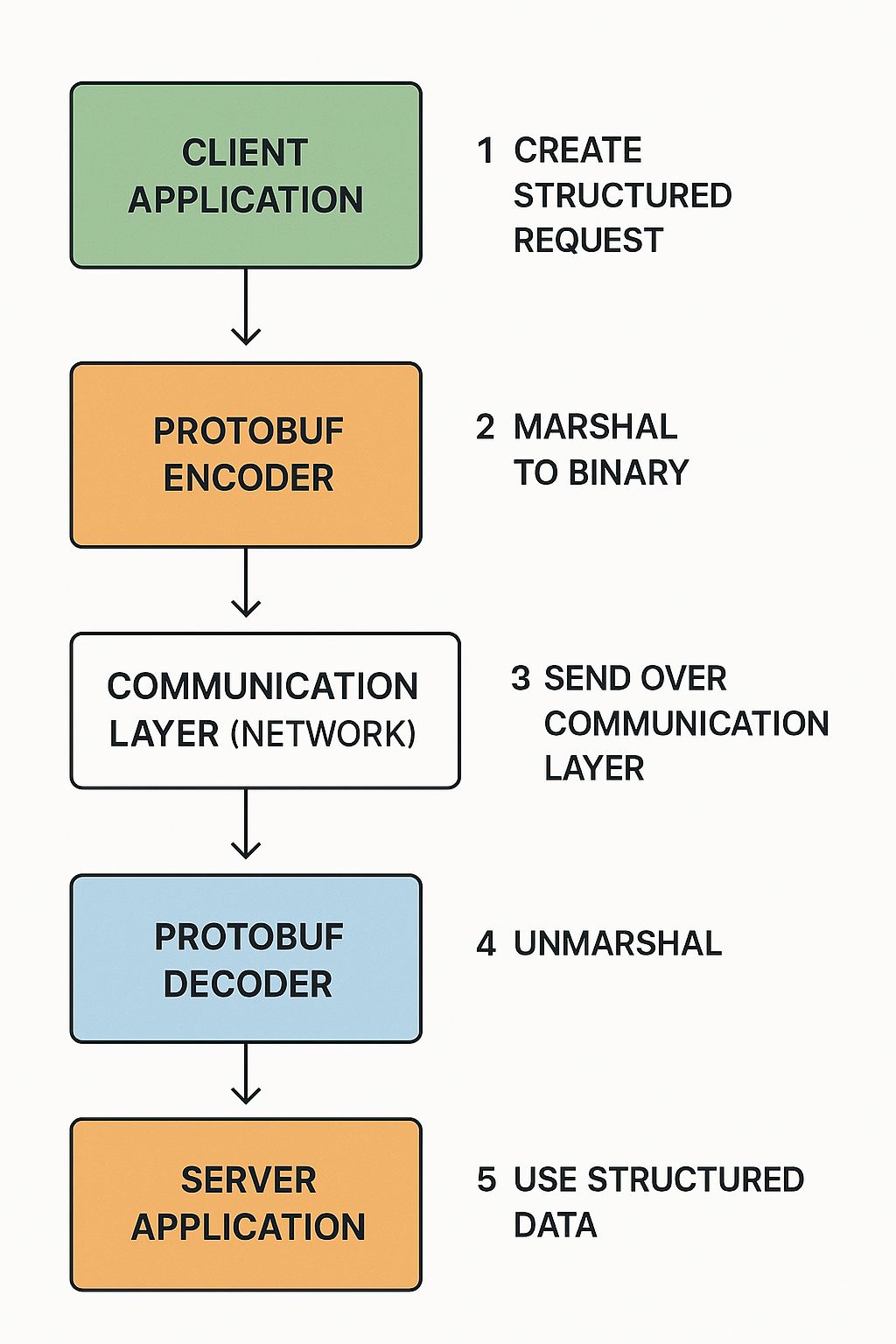

Working of ProtoBufs

Example :

syntax = "proto3";

message StudentRequest {
  string student_id = 1;
}

Let's Start Building

Bootstraping

First of all let us bootstrap the project in go.

mkdir grpc_exam
cd grpc_exam
go mod init github.com/pixperk/grpc_exam

We will install the necessary dependencies (Go plugins for protoc)

go install google.golang.org/protobuf/cmd/protoc-gen-go@latest
go install google.golang.org/grpc/cmd/protoc-gen-go-grpc@latest

If you do not have the protoc compiler installed, see the installion guide here.

Let's ready our folder structure

├── client/
│   ├── clients/
│   │   ├── unary.go
│   │   ├── server_stream.go
│   │   ├── client_stream.go
│   │   ├── bi_stream.go
│   └── main.go
├── proto/
│   ├── exam.proto
│   └── generated/exampb/
│       ├── exam.pb.go
│       └── exam_grpc.pb.go
├── server/
│   ├── main.go
│   └── servers/
│       ├── unary.go
│       ├── server_stream.go
│       ├── client_stream.go
│       ├── bi_stream.go
│       └── exam_service_server.go
├── utils/
│   └── logger.go
├── go.mod
├── go.sum
└── Makefile

Let's write our makefile so that we do not have to write long commands everytime and just run make

proto:
    protoc \
        --proto_path=proto \
        --go_out=proto \
        --go-grpc_out=proto \
        proto/*.proto
    @echo "Proto files generated in the 'proto' directory."

server:
    go run server/main.go

client_unary:
    go run client/main.go unary

client_server:
    go run client/main.go server

client_client:
    go run client/main.go client

client_bidi:
    go run client/main.go bidi

.PHONY: proto server client_unary client_server client_client client_bidi

The proto command is for generating go code from the proto file.

Building the unary RPC

In the exam.proto file, let us write our Exam Service.

syntax = "proto3";

package exam;

option go_package = "generated/exampb";

service ExamService {
  rpc GetExamResult(GetExamResultRequest) returns (GetExamResultResponse); //unary
}

message GetExamResultRequest {
  string student_id = 1;
  string exam_id = 2;
}

message GetExamResultResponse {
  string student_name = 1;
  string subject = 2;
  int32 marks_obtained = 3;
  int32 total_marks = 4;
  string grade = 5;
}

Now we run make proto to generate our go code.
Our code goes inside the proto/generated folder.

In the server/servers/exam_service_server.go define this

package servers

import "github.com/pixperk/grpc_exam/proto/generated/exampb"

type ExamServiceServer struct {
    exampb.UnimplementedExamServiceServer
    examData map[string]*exampb.GetExamResultResponse
}

func NewExamServiceServer() *ExamServiceServer {
    data := map[string]*exampb.GetExamResultResponse{
        "123_math101": {
            StudentName:   "John Doe",
            Subject:       "Math 101",
            MarksObtained: 95,
            TotalMarks:    100,
            Grade:         "A+",
        },
        "456_phy101": {
            StudentName:   "Jane Smith",
            Subject:       "Physics 101",
            MarksObtained: 88,
            TotalMarks:    100,
            Grade:         "A",
        },
    }

    return &ExamServiceServer{
        examData: data,
    }
}

Let's design the server and the client for this.
First let's code the main.go inside the server and the client. The main.go's inside the server and client will drive them respectively.

server/main.go :

package main

import (
    "net"

    "log/slog"

    "github.com/pixperk/grpc_exam/proto/generated/exampb"
    "github.com/pixperk/grpc_exam/server/servers"

    "github.com/pixperk/grpc_exam/utils"
    "google.golang.org/grpc"
)

func main() {
    utils.InitLogger(true)
    //Spin up a TCP Server
    lis, err := net.Listen("tcp", ":50051")
    if err != nil {
        slog.Error("failed to listen", "error", err)
    }

    //New gRPC server instance
    s := grpc.NewServer()

    //Register services
    exampb.RegisterExamServiceServer(s, servers.NewExamServiceServer())

 // Start serving gRPC requests
    if err := s.Serve(lis); err != nil {
        slog.Error("failed to serve", "error", err)
    }

}

client/main.go :

package main

import (
    "log/slog"
    "os"

    "github.com/pixperk/grpc_exam/client/clients"
    "github.com/pixperk/grpc_exam/proto/generated/exampb"
    "github.com/pixperk/grpc_exam/utils"
    "google.golang.org/grpc"
    "google.golang.org/grpc/credentials/insecure"
)

func main() {
    // Initialize logger (true = debug mode)
    utils.InitLogger(true)

    // Create a gRPC client connection to the server
    conn, err := grpc.Dial("localhost:50051", grpc.WithTransportCredentials(insecure.NewCredentials()))
    if err != nil {
        slog.Error("Failed to connect to server", "error", err)
        return
    }
    defer conn.Close()

    // Create a client for the ExamService
    client := exampb.NewExamServiceClient(conn)

    clients.Unary(client)

}

Now let's write the unary server and unary client

Unary Server (server/servers/unary.go) :

package servers

import (
    "context"
    "fmt"

    "github.com/pixperk/grpc_exam/proto/generated/exampb"
)

func (s *ExamServiceServer) GetExamResult(ctx context.Context, req *exampb.GetExamResultRequest) (*exampb.GetExamResultResponse, error) {
    key := fmt.Sprintf("%s_%s", req.StudentId, req.ExamId)
    if result, ok := s.examData[key]; ok {
        return result, nil
    } else {
        return nil, fmt.Errorf("exam result not found for student ID %s and exam ID %s", req.StudentId, req.ExamId)
    }
}

Pretty easy right?
Similarly Unary Client(client/clients/unary.go) :

package clients

import (
    "context"
    "fmt"
    "time"

    "github.com/pixperk/grpc_exam/proto/generated/exampb"
)

func Unary(client exampb.ExamServiceClient) {

    fmt.Println("Enter student ID and exam ID (e.g., 123 math101):")
    var studentID, examID string
    fmt.Scanf("%s %s", &studentID, &examID)

    ctx, cancel := context.WithTimeout(context.Background(), 5*time.Second)
    defer cancel()

    resp, err := client.GetExamResult(ctx, &exampb.GetExamResultRequest{StudentId: studentID, ExamId: examID})
    if err != nil {
        fmt.Printf("Error: %v\n", err)
        return
    }

    fmt.Printf("Student Name: %s\n", resp.StudentName)
    fmt.Printf("Subject: %s\n", resp.Subject)
    fmt.Printf("Marks Obtained: %d out of %d\n", resp.MarksObtained, resp.TotalMarks)
    fmt.Printf("Grade: %s\n", resp.Grade)
    fmt.Println("Unary RPC call completed successfully.")

}

This is just basic function calls and simple go programming.

You can see the results by running make server and make client in two separate terminals.

Server Streaming and Client streaming are easy given you can handle streams in Go. Let's jump to bidirectional streaming and skim through streaming as well.

Building the Bidirectional RPC

In the exam.proto file add

rpc LiveExamQuery(stream GetExamResultRequest) returns (stream GetExamResultResponse); //bidi streaming

In the servers/bi_stream.go :

package servers

import (
    "fmt"
    "io"

    "github.com/pixperk/grpc_exam/proto/generated/exampb"
)


func (s *ExamServiceServer) LiveExamQuery(stream exampb.ExamService_LiveExamQueryServer) error {
    for {
        // Receive a stream request from the client
        req, err := stream.Recv()
        if err != nil {
            // If the client closes the stream (EOF), stop the loop gracefully
            if err == io.EOF {
                return nil
            }
            // If another error occurred, return it
            return err
        }

        key := fmt.Sprintf("%s_%s", req.StudentId, req.ExamId)

        result, ok := s.examData[key]

        // If result is not found, send a default "Not Found" response
        if !ok {
            err := stream.Send(&exampb.GetExamResultResponse{
                StudentName:   "N/A",
                Subject:       req.ExamId,
                MarksObtained: 0,
                TotalMarks:    0,
                Grade:         "Not Found",
            })
            if err != nil {
                return err // Stop on send error
            }
            continue
        }

        // If result is found, send it back to the client over the stream
        if err := stream.Send(result); err != nil {
            return err // Stop on send error
        }
    }
}

This function:

  • Receives multiple exam queries from the client.
  • Immediately responds to each with a result (if found).
  • Continues until the client stops sending (EOF).

Go Channels

Let's understand a bit about channels before proceeding to bi-directional client.

Go channels are like pipes used to communicate between goroutines (lightweight threads). They help synchronize data exchange safely without using mutexes.

Create a channel:

done := make(chan struct{}) // unbuffered channel of empty struct

Send to a channel:

done <- struct{}{}

Receive from a channel:

<-done

Channels block until something is sent or received, making them perfect for goroutine coordination.

Read more here.

Now back to bi-dir client

package clients

import (
    "bufio"
    "context"
    "fmt"
    "io"
    "log"
    "os"
    "strings"

    "github.com/pixperk/grpc_exam/proto/generated/exampb"
)

func BiDirectional(client exampb.ExamServiceClient) {
    //body
}

Let's discuss in bits about what goes on here (the function body) :

stream, err := client.LiveExamQuery(context.Background())
done := make(chan struct{})
  • LiveExamQuery opens a bidirectional stream with the server.
  • done channel is created to signal when the receiver goroutine is finished.
go func() {
        for {
            res, err := stream.Recv() //receive stream from the server
            if err != nil {
                if err == io.EOF {
                    break
                }
                log.Fatalf("Error receiving response: %v", err)
                break
            }
            fmt.Printf("🎓 %s | %s: %d/%d (%s)\n",
                res.StudentName, res.Subject, res.MarksObtained, res.TotalMarks, res.Grade)

            fmt.Print("Enter student_id and exam_id (or 'exit'): ")
        }
        close(done)

    }()

    // Initial prompt
    fmt.Print("Enter student_id and exam_id (or 'exit'): ")
  • This goroutine listens for server responses and prints them.
  • It runs in the background while the main thread handles user input.
reader := bufio.NewReader(os.Stdin)
//Send data
    for {
        line, _ := reader.ReadString('\n')
        line = strings.TrimSpace(line)
        if line == "exit" {
            stream.CloseSend()
            break
        }
        parts := strings.Fields(line)
        if len(parts) != 2 {
            fmt.Println("⚠️  Usage:  ")
            continue
        }
        req := &exampb.GetExamResultRequest{
            StudentId: parts[0],
            ExamId:    parts[1],
        }
        if err := stream.Send(req); err != nil {
            log.Printf("send error: %v", err)
            break
        }
    }
  • Reads user input (student_id exam_id).
  • Sends each request to the server via the stream.
  • If exit is typed, the client closes the send stream.
<-done
fmt.Println("👋 Session ended.")
  • Waits for the receiver goroutine to finish using the done channel.
  • Ensures the program exits only after all communication is done.

Now we can test the bidirectional RPC using the make commands like above.

Wrapping Up

If you want to refer to any code or see the server or client streaming, this is the repo.

Building a gRPC-based system with both server-side and client-side streaming is a great way to explore high-performance communication between services. Throughout this project, we learned how to:

  1. Define robust proto files and generate language-specific code
  2. Implement server-side and client-side streaming using gRPC
  3. Handle bidirectional communication effectively
  4. Structure the project for maintainability and scalability

Whether you're a beginner exploring RPC concepts or someone looking to implement efficient microservices communication, I hope this project offers a helpful starting point.

Thanks for reading! Let me know if you have any questions down in the comments.
