Microservices Ki Kahaani Part 2: Messaging - When REST & gRPC Need a Break!

In our last episode (Microservices Ki Shaadi!), we saw how services can talk directly using REST (the reliable Raj) and gRPC (the speedy Simran). That's synchronous communication – like making a phone call 📞, you wait for the other person to pick up and reply.

But what if your service is too busy gossiping (processing requests) and can't answer right away? What if you just want to leave a message and carry on with your life, like sending a WhatsApp message 📱 instead of calling?

Welcome to the world of Asynchronous Messaging! This is how microservices can communicate without getting stuck waiting for each other, making your whole system more resilient and scalable – like having a reliable courier service handle deliveries instead of doing everything yourself.

How Messaging Works: The Asynchronous Chit-Chat ✉️

Imagine Service A needs Service B to do something. Instead of calling B directly and waiting, A just writes a message (like a digital chitthi) and drops it off. Service A then goes back to its own work (bhai, time nahi hai wait karne ka!).

Later, when Service B is free, it picks up the message, does the task, and maybe sends a reply message back if needed.

Caption: Service A sending a message and chilling, not waiting.

Usually, there's a middleman involved – a Message Broker (like Kafka, RabbitMQ). Think of it as a super-efficient post office 🏤 that takes messages from senders and delivers them to the right receivers. We'll talk more about these brokers later.

Message Channels: The Secret Tunnels of Communication 🚇

How do messages actually travel? A brilliant concept from the book Enterprise Integration Patterns describes Message Channels.

Think of a channel as a dedicated pipe or tunnel connecting senders and receivers.

1. Sender: Writes a message and puts it into the channel.
2. Receiver: Picks up the message from the channel.

Simple, right? The channel acts as the bridge.

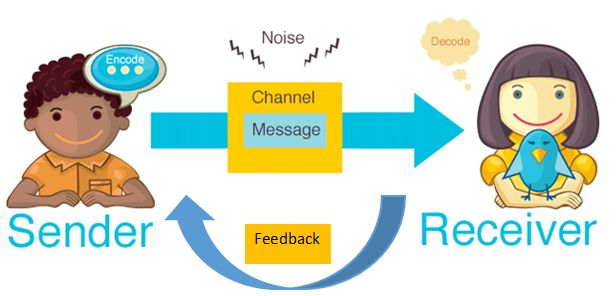

Caption: The basic Message Channel concept.

Anatomy of a Message: Kya Hai Andar? 🤔

Every message is like a little package with two parts:

1. Header (Metadata): Like the address and stamps on an envelope. Contains info about the message:
   • messageId: Unique ID (like a tracking number).
   • timestamp: When it was sent.
   • returnAddress: Where to send the reply (if any).
   • Other custom details.
2. Body (Payload): The actual content – the data itself! This can be text (JSON, XML) or binary (like Protocol Buffers we saw with gRPC).

Types of Messages: Different Flavours of Data 🍬

Not all messages are created equal:

1. Document Message: Just carries data. The receiver figures out what to do. Think of sending someone your Aadhar card copy – they decide how to use it. Often used for replies.
2. Command Message: Asks the receiver to do something specific. Like telling your friend, "Order pizza!" 🍕 Includes necessary details (address, toppings). Similar to a remote procedure call, but async.
3. Event Message: Announces that something happened. "Order Placed!" 🎉, "User Registered!". Common in Event-Driven Architectures. Multiple services might react to the same event.

In modern microservices, Commands and Events are super common. They help keep services independent (loosely coupled) and reactive.

Channels Deep Dive: The Plumbing System 🔧

Let's look closer at how services interact with channels:

• Sender Side:
  • Business Logic -> Sending Port (Hides complexity) -> Sender Adapter (Actually sends) -> Channel
• Receiver Side:
  • Channel -> Handler Adapter (Listens) -> Receiving Port (Triggers logic) -> Business Logic

Multiple senders can write to the same channel, and multiple receivers can listen! Flexibility max.

Channel Types: Point-to-Point vs. Publish/Subscribe 📢

There are two main ways channels deliver messages:

1. Point-to-Point (P2P) Channel:

   • What: Delivers each message to only one receiver, even if multiple are listening.
   • Analogy: A task queue where only one worker picks up each job. Like a single cashier counter at a bank 🏦.
   • Use Case: Perfect for Command messages. You want only one service to process the "Create Order" command.

2. Publish/Subscribe (Pub/Sub) Channel:

   • What: Broadcasts each message to all interested receivers (subscribers).
   • Analogy: A WhatsApp group announcement 📢. Everyone in the group gets the message.
   • Use Case: Ideal for Event messages. When an "Order Placed" event happens, Billing, Inventory, and Notifications services might all need to know and react.

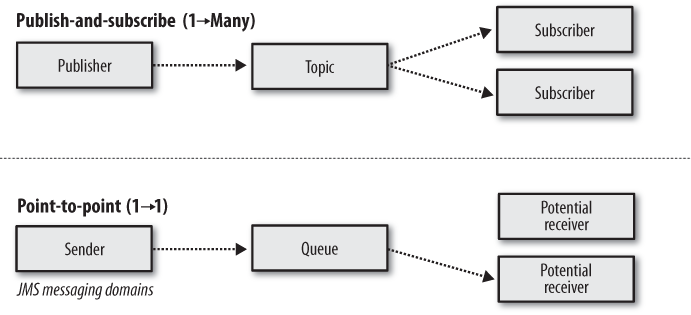

Caption: Point-to-Point (Task Queue) vs. Publish/Subscribe (Broadcast).

Messaging for Different Interactions (Even Replies!) 🔄

Messaging is super flexible and can handle all the interaction styles we discussed before (sync/async, one-to-one, one-to-many).

How does it handle Request/Reply asynchronously?

It's clever! The client doesn't block (wait).

1. Client Sends Command: Sends a command message to the service via a request channel (P2P). This message includes:
   • A unique messageId.
   • A returnAddress (the name of the client's reply channel).
   • The request data in the body.
2. Service Processes: Reads the message, does the work.
3. Service Sends Reply: Sends a separate reply message (Document type) back to the client's specified returnAddress channel. This reply includes:
   • A correlationId (which matches the original messageId from the request).
   • The response data in the body.
4. Client Matches Reply: Listens on its reply channel. Uses the correlationId to match the response to the original request it sent earlier. Pata chal gaya kaunsa jawab kis sawaal ka hai!

Caption: Asynchronous Request-Reply using two channels and Correlation ID.

This way, the client never waits, but still gets the response eventually. Beautifully decoupled! One-way notifications (no reply needed) are even simpler – just send and forget! Pub/Sub handles one-to-many notifications easily.

Brokerless vs. Broker-Based: Direct Dial or Post Office? ☎️ vs 🏤

How do messages physically get from A to B? Two main approaches:

1. Brokerless:

   • What: Services talk directly to each other (using libraries like ZeroMQ). No middleman.
   • Pros: Low latency (direct path), less infrastructure to manage (no broker setup).
   • Cons:
     • Services need to know each other's locations (requires Service Discovery).
     • If sender or receiver is down, message is lost! 😱 Poof!
     • Implementing reliability (retries, guaranteed delivery) is your headache. Complex!

2. Broker-Based:

   • What: Uses a dedicated Message Broker (RabbitMQ, Kafka, ActiveMQ, cloud services like AWS SQS/SNS, Google Pub/Sub, Azure Service Bus) as an intermediary.
   • Pros:
     • Loose Coupling: Sender just sends to the broker, doesn't care who receives it or where they are. No Service Discovery needed!
     • Reliability: Brokers handle retries, persistence (saving messages to disk), guaranteed delivery.
     • Availability/Buffering: Broker holds messages if the receiver is down or slow. Your app keeps working! (Like the post office holding mail if you're not home).
     • Scalability: Brokers are designed to handle high volumes.
   • Cons:
     • Potential bottleneck (though modern brokers scale well).
     • Broker itself needs to be managed (setup, monitoring, HA). Adds operational overhead.
     • Slightly higher latency than direct connection (usually negligible).

Caption: Brokerless (Direct Chaos) vs. Broker-Based (Organized Delivery).

The Verdict? For most real-world, scalable, and resilient systems, Broker-Based is the way to go. The benefits usually far outweigh the operational cost. It's the standard for enterprise applications.

Broker Implementations: Different Names, Same Game?

Different brokers implement channels slightly differently:

• JMS (e.g., ActiveMQ): Uses Queues (P2P) and Topics (Pub/Sub).
• RabbitMQ (AMQP): Uses Exchanges that route messages to Queues. Flexible routing!
• Kafka: Uses Topics (which can be consumed P2P-style with consumer groups or Pub/Sub style). Built for high throughput streaming.
• AWS SQS: Only Queues (P2P). Pair with AWS SNS (Pub/Sub) for broadcast.
• Google Pub/Sub, Azure Service Bus: Support both P2P and Pub/Sub via Subscriptions to topics.

While the names differ, most support both P2P and Pub/Sub communication styles.

Downsides? Haan Bhai, Kuch Toh Hai...

Messaging isn't perfect:

• Broker Bottleneck: The broker can become a bottleneck if not scaled properly (but they are designed to scale).
• Broker Failure: If your broker goes down (and isn't set up for High Availability - HA), communication stops! Running it reliably is crucial.
• Operational Overhead: It's another piece of infrastructure to manage.
• Complexity: Debugging distributed message flows can be trickier than direct calls.

But still, for building systems that need to be reliable and scale gracefully, the advantages are HUGE.

Conclusion & What's Next? 🤔

Asynchronous messaging is a powerful tool for building decoupled, resilient, and scalable microservices. It allows services to communicate without waiting, handle failures gracefully, and react to events independently. Using a message broker is typically the best approach for achieving this.

But wait, there's more! Handling messages isn't always simple. What happens if a message needs to be processed only once, but gets delivered twice? How do you keep messages in the right order? How do you handle transactions that involve multiple services and messages?

In the next part, we'll tackle these real-world challenges: duplicate messages, message ordering, idempotency, distributed tracing, and transactional messaging. Stay tuned for more microservice gyaan!

Found this useful? Learned something new? Let me know your thoughts or questions about asynchronous messaging in the comments! 👇
