In this blog, we’ll dive deep into how routing works — the mechanism that powers the journey of data packets across the internet. We'll also create a simple Static Router simulation using Go (Golang).

🌍 What is Routing?

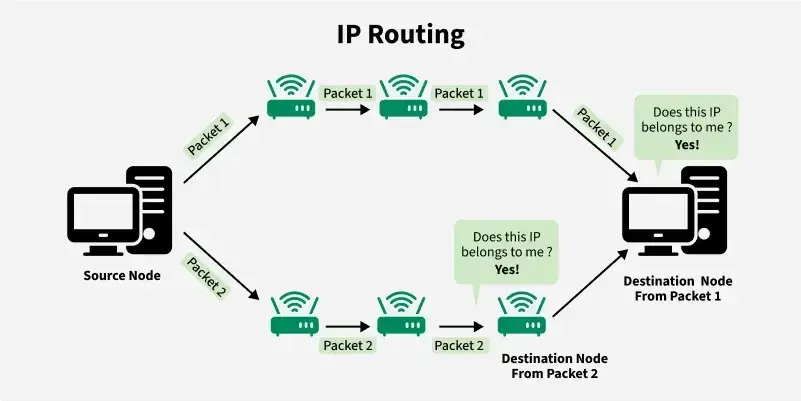

Routing is the process of determining the best path for data packets to travel from a source device to a destination device across interconnected networks.

📌 Operates at Layer 3 (Network Layer) of the OSI Model

📡 Protocol: IP (Internet Protocol)

🔌 Device: Router

🧠 Routing focuses on forwarding IP packets, not the actual physical movement of data.

🛣️ Types of Routing

1️⃣ Static Routing

• 🧑‍💻 Manually configured by network admins
• ✅ Best for small, stable networks
• 🔁 Doesn’t adapt to network changes

ip route add 10.0.0.0/24 via 192.168.1.1

2️⃣ Dynamic Routing

• 🤖 Routers communicate automatically using routing protocols.
• 🔁 Routes are updated based on network topology changes.

Protocols and Use Cases

🔁 Key Concepts in Routing

🌐 Static Routing in Go 🧑‍💻

Let’s simulate packet forwarding using static routes in Go!

package main

import (
    "fmt"
)

type Packet struct{
    Source string
    Destination string
    Data string
}

type RoutingTable map[string]string

func(p *Packet) String() string{
    return fmt.Sprintf("Packet: Source: %s, Destination: %s, Data: %s \n", p.Source, p.Destination, p.Data)
}

func (rt RoutingTable )GetnextHop(destination string) string{
    nextHop, exists:= rt[destination]
    if exists{
        return nextHop
    }
    return "No Route Found"
}


func ForwardPacket(p *Packet, routingTable RoutingTable){
    nextHop:= routingTable.GetnextHop(p.Destination)
    fmt.Printf("The NextHop is %s\n", nextHop)
    fmt.Println(p)
}


func main(){
    router1RoutingTable:= RoutingTable{
        "192.168.1.2" : "Router2",
    }

    router2RoutingTable:= RoutingTable{
        "192.168.1.2": "Final Destination",
    }

    packet:= &Packet{
        Source: "192.168.1.1",
        Destination: "192.168.1.2",
        Data: "Hello, This is a Packet",
    }

    fmt.Println("Router table 1")
    ForwardPacket(packet, router1RoutingTable)
    fmt.Println("Router table 2")
    ForwardPacket(packet, router2RoutingTable)
}

🚦 How Dynamic Routing Works

Unlike static routing, dynamic routing enables routers to:

• 📬 Exchange network info
• 🔁 Automatically update routing tables
• ⚡ Adapt to topology changes

🔑 Key Concepts

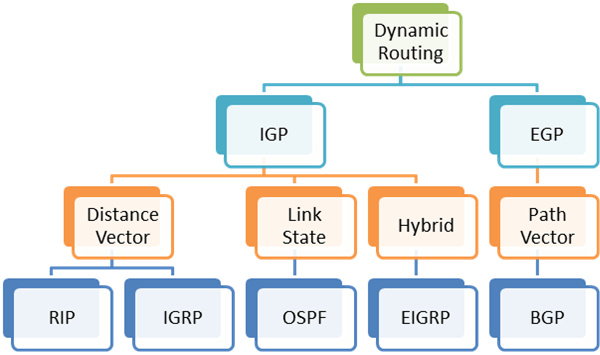

🧠 Types of Dynamic Routing Protocols

🟦 1. Distance Vector

• 📌 Shares entire routing table with neighbors
• 🔢 Decision: based on hop count
• ⚠️ Risk: Routing loops, slow convergence

✅ Examples:

• RIP – Simple, max 15 hops
• IGRP – Cisco, uses bandwidth & delay

🟩 2. Link State

• 📌 Each router builds full topology
• 📡 Shares info about directly connected links only
• ⚡ Fast convergence, great for large networks

✅ Examples:

• OSPF – Efficient, hierarchical
• IS-IS – Used by ISPs

🟨 3. Hybrid

• 📌 Mix of distance vector & link state
• 📈 Updates only on change
• ⚙️ Uses DUAL algorithm for fast, loop-free recovery

✅ Example:

• EIGRP (Cisco proprietary)

🟥 4. Path Vector

• 📌 Used between organizations (EGP)
• 🌍 Tracks the full AS path
• 🧠 Policy-based decision making

✅ Example:

• BGP – The Internet's main routing protocol

🧾 Conclusion

Routing is at the heart of networking, guiding how data flows across the globe 🌐.

Whether it's static (manually set routes) or dynamic (intelligent, adaptable protocols), routers ensure data finds its way efficiently. 🛰️

And with just a few lines of Go, we built a basic simulation of how a router decides the next hop for a packet. 🧑‍💻

If you enjoyed this post, give it a ❤️ or 🦄 and share your thoughts in the comments!

Happy networking! 🌐✨
