Running Docling as an API Server

# Using container images, e.g. with Podman
podman run -p 5001:5001 quay.io/docling-project/docling-serve
# or
docker run -p 5001:5001 quay.io/docling-project/docling-serve

Server started at http://0.0.0.0:5001

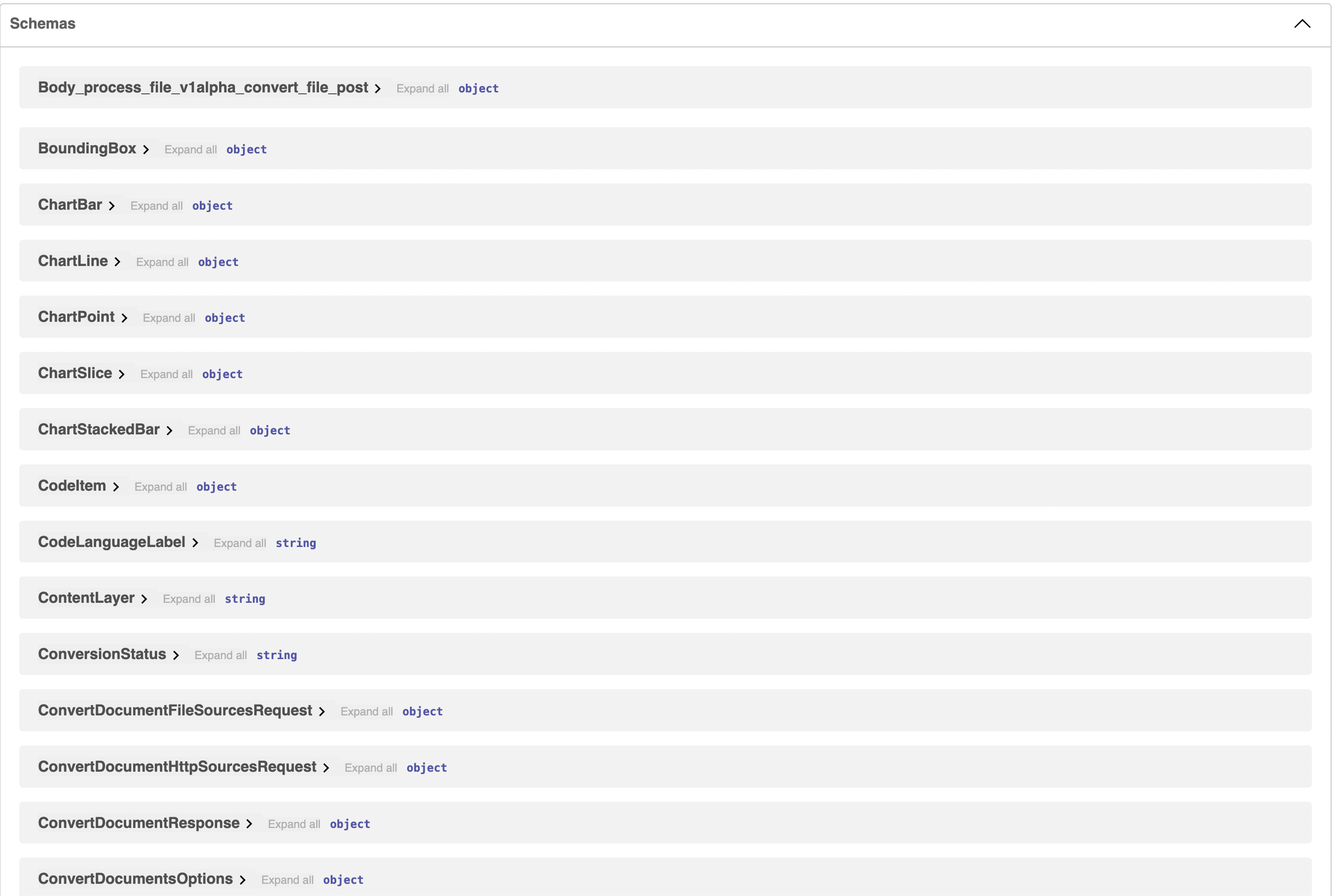

Documentation at http://0.0.0.0:5001/docs
UI at http://0.0.0.0:5001/ui

curl -X 'POST' \
  'http://localhost:5001/v1alpha/convert/source' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
    "http_sources": [{"url": "https://arxiv.org/pdf/2501.17887"}]
  }'

python3.12 -m venv myenv
source myenv/bin/activate

# Using the python package
pip install --upgrade pip
pip install "docling-serve"
docling-serve run

import httpx
import asyncio
import json
import os

async def convert_from_url(url_to_convert):
    """
    Asynchronously sends a URL to a local server for conversion.

    Args:
        url_to_convert (str): The URL of the resource to be converted.

    Returns:
        dict or None: The JSON response from the server if successful, None otherwise.
    """
    async with httpx.AsyncClient(timeout=60.0) as async_client:
        api_url = "http://localhost:5001/v1alpha/convert/source"
        headers = {
            'accept': 'application/json',
            'Content-Type': 'application/json'
        }
        data = {
            "http_sources": [{"url": url_to_convert}]
        }

        try:
            response = await async_client.post(api_url, headers=headers, json=data)
            response.raise_for_status()  # Raise an exception for bad status codes
            return response.json()
        except httpx.HTTPError as e:
            print(f"HTTP error occurred: {e}")
            return None
        except json.JSONDecodeError as e:
            print(f"Error decoding JSON response: {e}")
            print(f"Raw response: {response.text}")
            return None
        except Exception as e:
            print(f"An unexpected error occurred: {e}")
            return None

def write_to_file(file_path, data):
    """
    Writes the given data to a file.

    Args:
        file_path (str): The path to the file to write to.
        data (dict): The data to write (will be written as JSON).
    """
    try:
        with open(file_path, 'w') as f:
            json.dump(data, f, indent=4)  # Use indent for pretty printing
        print(f"Successfully wrote data to: {file_path}")
    except Exception as e:
        print(f"Error writing to file {file_path}: {e}")

async def main():
    """
    Main function to run the URL-based file conversion and write the output to a file.
    """
    target_url = "https://arxiv.org/pdf/2501.17887"
    output_file = "conversion_output.json"  # You can change the filename here

    result = await convert_from_url(target_url)

    if result:
        print("URL conversion successful!")
        write_to_file(output_file, result)
    else:
        print("URL conversion failed. No output to write.")

if __name__ == "__main__":
    asyncio.run(main())

{

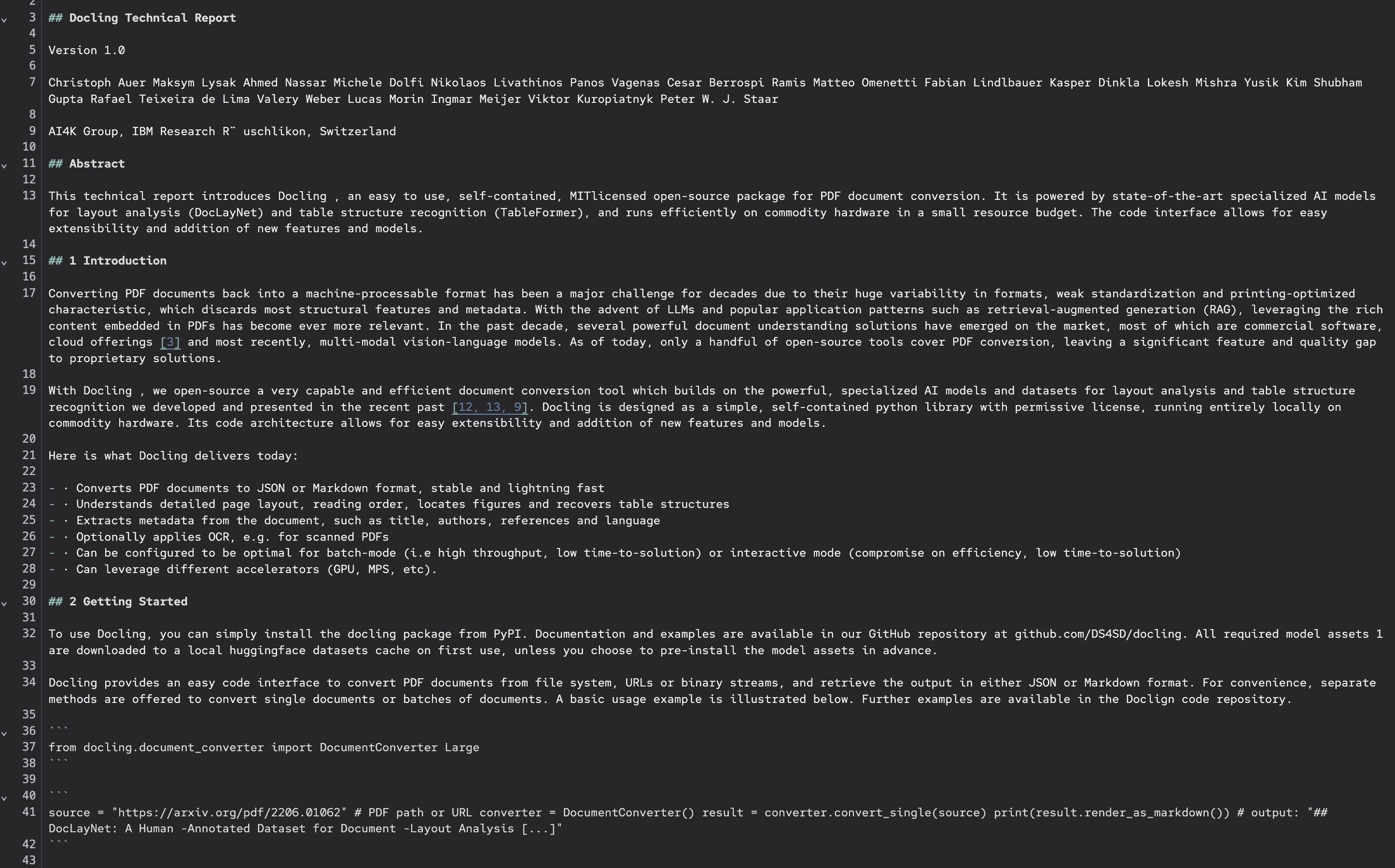

    "document": {
        "filename": "2501.17887v1.pdf",
        "md_content": "## Docling: An Efficient Open-Source Toolkit for AI-driven Document Conversion\n\nNikolaos Livathinos * , Christoph Auer * , Maksym Lysak, Ahmed Nassar, Michele Dolfi, Panagiotis Vagenas, Cesar Berrospi, Matteo Omenetti, Kasper Dinkla, Yusik Kim, Shubham Gupta, Rafael Teixeira de Lima, Valery Weber, Lucas Morin, Ingmar Meijer, Viktor Kuropiatnyk, Peter W. J. Staar\n\nIBM Research, R\u00a8 uschlikon, Switzerland\n\nPlease send correspondence to: deepsearch-core@zurich.ibm.com\n\n## Abstract\n\nWe introduce Docling , an easy-to-use, self-contained, MITlicensed, open-source toolkit for document conversion, that can parse several types of popular document formats into a unified, richly structured representation. It is powered by state-of-the-art specialized AI models for layout analysis (DocLayNet) and table structure recognition (TableFormer), and runs efficiently on commodity hardware in a small resource budget. Docling is released as a Python package and can be used as a Python API or as a CLI tool. Docling's modular architecture and efficient document representation make it easy to implement extensions, new features, models, and customizations. Docling has been already integrated in other popular open-source frameworks (e.g., LangChain, LlamaIndex, spaCy), making it a natural fit for the processing of documents and the development of high-end ...

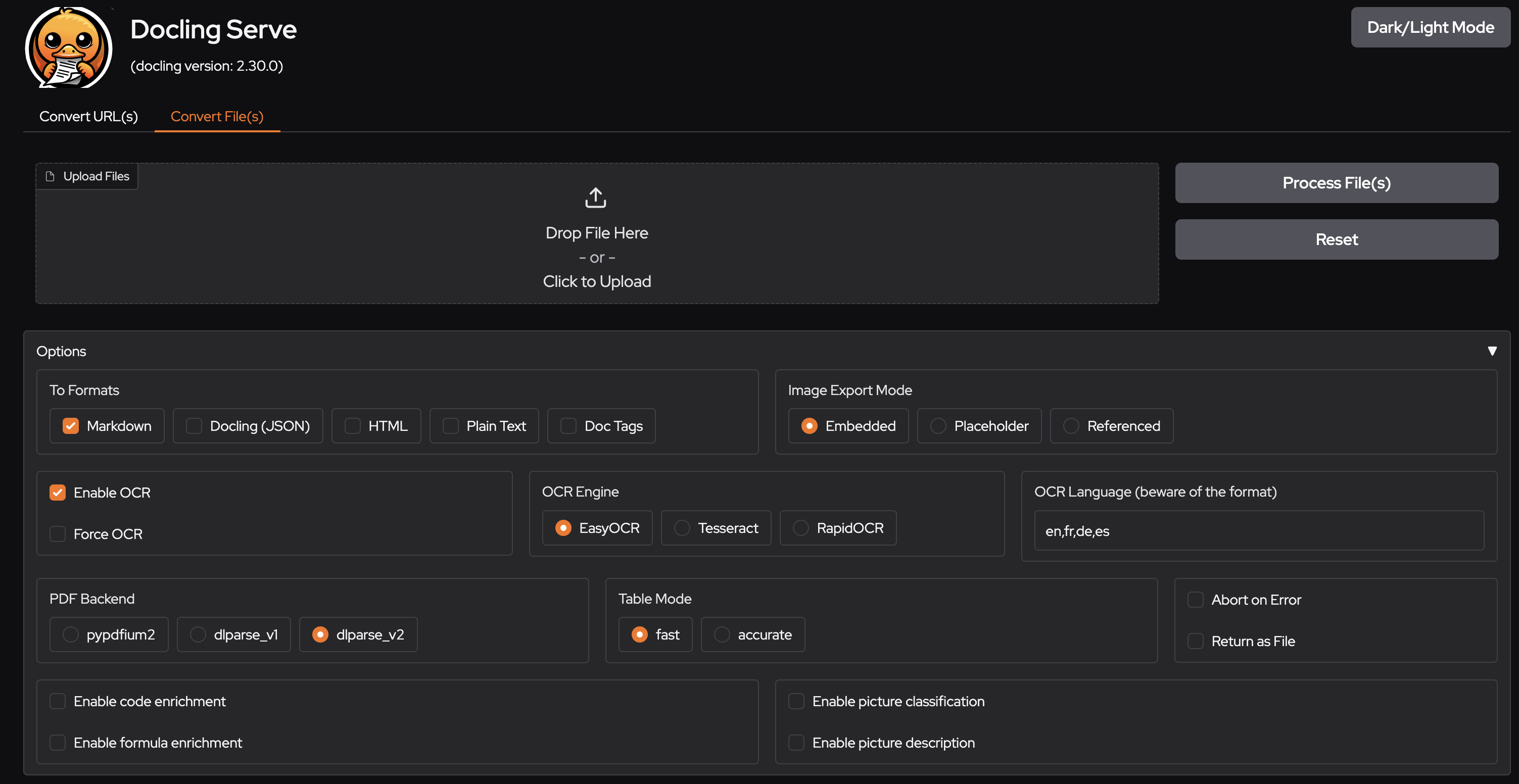

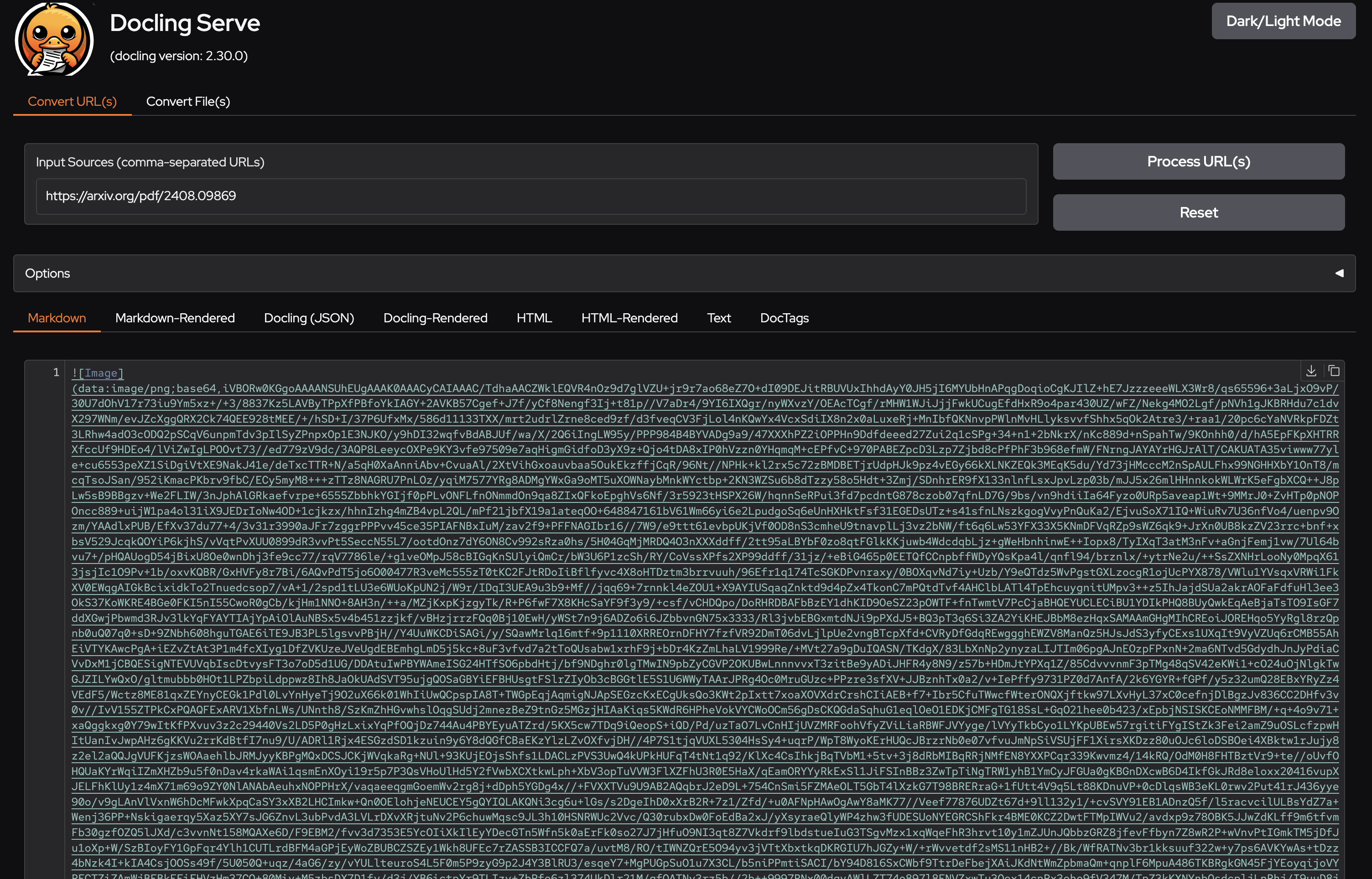

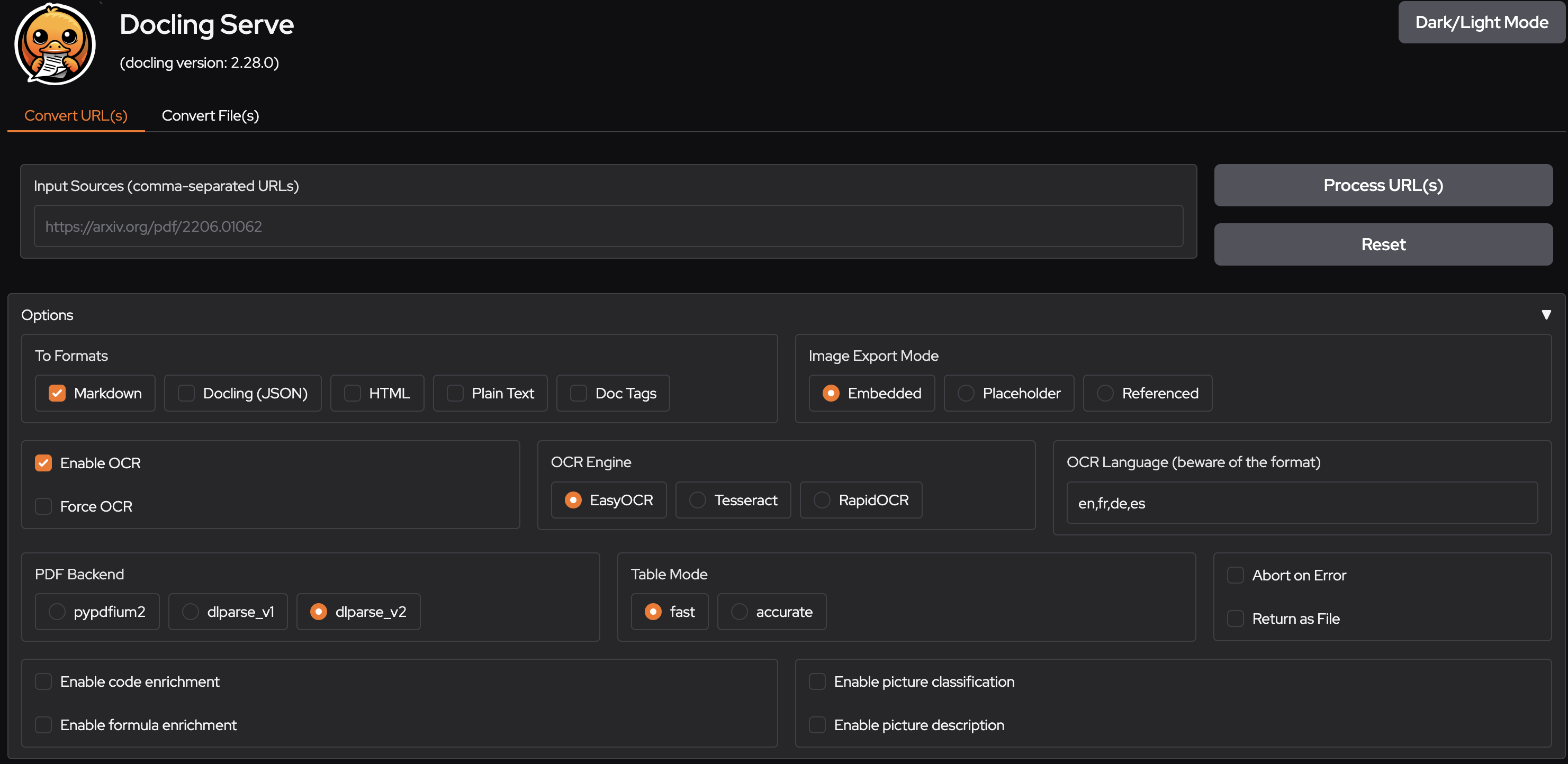

# for podman
podman run -p 5001:5001 -e DOCLING_SERVE_ENABLE_UI=true quay.io/docling-project/docling-serve
# for docker
docker run -p 5001:5001 -e DOCLING_SERVE_ENABLE_UI=true quay.io/docling-project/docling-serve

pip install "docling-serve[ui]"
docling-serve run --enable-ui

####

░▒▓    ~/Devs/doclingserve-test  docling-serve run --enable-ui                  ✔  took 21s   myenv   base   at 09:58:06  ▓▒░
Starting production server 🚀

Server started at http://0.0.0.0:5001
Documentation at http://0.0.0.0:5001/docs
UI at http://0.0.0.0:5001/ui

kubectl apply -f docs/deploy-examples/docling-serve-oauth.yaml

# Retrieve the endpoint on an OpenShift server
DOCLING_NAME=docling-serve
DOCLING_ROUTE="https://$(oc get routes ${DOCLING_NAME} --template={{.spec.host}})"

# Retrieve the authentication token
OCP_AUTH_TOKEN=$(oc whoami --show-token)

# Make a test query
curl -X 'POST' \
  "${DOCLING_ROUTE}/v1alpha/convert/source/async" \
  -H "Authorization: Bearer ${OCP_AUTH_TOKEN}" \
  -H "accept: application/json" \
  -H "Content-Type: application/json" \
  -d '{
    "http_sources": [{"url": "https://arxiv.org/pdf/2501.17887"}]
  }'

# docling-serve-oauth.yaml
# This example deployment configures Docling Serve with a OAuth-Proxy sidecar and TLS termination

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: docling-serve
  labels:
    app: docling-serve
  annotations:
    serviceaccounts.openshift.io/oauth-redirectreference.primary: '{"kind":"OAuthRedirectReference","apiVersion":"v1","reference":{"kind":"Route","name":"docling-serve"}}'
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: docling-serve-oauth
  labels:
    app: docling-serve
    component: docling-serve-api
rules:
  - verbs:
      - create
    apiGroups:
      - authorization.k8s.io
    resources:
      - subjectaccessreviews
  - verbs:
      - create
    apiGroups:
      - authentication.k8s.io
    resources:
      - tokenreviews
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: docling-serve-oauth
  labels:
    app: docling-serve
    component: docling-serve-api
subjects:
  - kind: ServiceAccount
    name: docling-serve
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: docling-serve-oauth
---
apiVersion: route.openshift.io/v1
kind: Route
metadata:
  name: docling-serve
  labels:
    app: docling-serve
    component: docling-serve-api
spec:
  to:
    kind: Service
    name: docling-serve
  port:
    targetPort: oauth
  tls:
    termination: Reencrypt
---
apiVersion: v1
kind: Service
metadata:
  name: docling-serve
  labels:
    app: docling-serve
    component: docling-serve-api
  annotations:
    service.alpha.openshift.io/serving-cert-secret-name: docling-serve-tls
spec:
  ports:
  - name: oauth
    port: 8443
    targetPort: oauth
  - name: http
    port: 5001
    targetPort: http
  selector:
    app: docling-serve
    component: docling-serve-api
---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: docling-serve
  labels:
    app: docling-serve
    component: docling-serve-api
spec:
  replicas: 1
  selector:
    matchLabels:
      app: docling-serve
      component: docling-serve-api
  template:
    metadata:
      labels:
        app: docling-serve
        component: docling-serve-api
    spec:
      restartPolicy: Always
      serviceAccountName: docling-serve
      containers:
        - name: api
          resources:
            limits:
              cpu: 500m
              memory: 2Gi
            requests:
              cpu: 250m
              memory: 1Gi
          readinessProbe:
            httpGet:
              path: /health
              port: http
              scheme: HTTPS
            initialDelaySeconds: 10
            timeoutSeconds: 2
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          livenessProbe:
            httpGet:
              path: /health
              port: http
              scheme: HTTPS
            initialDelaySeconds: 3
            timeoutSeconds: 2
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          env:
            - name: DOCLING_SERVE_ENABLE_UI
              value: 'true'
            - name: UVICORN_SSL_CERTFILE
              value: '/etc/tls/private/tls.crt'
            - name: UVICORN_SSL_KEYFILE
              value: '/etc/tls/private/tls.key'
          ports:
            - name: http
              containerPort: 5001
              protocol: TCP
          volumeMounts:
            - name: proxy-tls
              mountPath: /etc/tls/private
          imagePullPolicy: Always
          image: 'ghcr.io/docling-project/docling-serve'
        - name: oauth-proxy
          resources:
            limits:
              cpu: 100m
              memory: 256Mi
            requests:
              cpu: 100m
              memory: 256Mi
          readinessProbe:
            httpGet:
              path: /oauth/healthz
              port: oauth
              scheme: HTTPS
            initialDelaySeconds: 5
            timeoutSeconds: 1
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          livenessProbe:
            httpGet:
              path: /oauth/healthz
              port: oauth
              scheme: HTTPS
            initialDelaySeconds: 30
            timeoutSeconds: 1
            periodSeconds: 5
            successThreshold: 1
            failureThreshold: 3
          ports:
            - name: oauth
              containerPort: 8443
              protocol: TCP
          imagePullPolicy: IfNotPresent
          volumeMounts:
            - name: proxy-tls
              mountPath: /etc/tls/private
          env:
            - name: NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          image: 'registry.redhat.io/openshift4/ose-oauth-proxy:v4.13'
          args:
            - '--https-address=:8443'
            - '--provider=openshift'
            - '--openshift-service-account=docling-serve'
            - '--upstream=https://docling-serve.$(NAMESPACE).svc.cluster.local:5001'
            - '--upstream-ca=/var/run/secrets/kubernetes.io/serviceaccount/service-ca.crt'
            - '--tls-cert=/etc/tls/private/tls.crt'
            - '--tls-key=/etc/tls/private/tls.key'
            - '--cookie-secret=SECRET'
            - '--openshift-delegate-urls={"/": {"group":"route.openshift.io","resource":"routes","verb":"get","name":"docling-serve","namespace":"$(NAMESPACE)"}}'
            - '--openshift-sar={"namespace":"$(NAMESPACE)","resource":"routes","resourceName":"docling-serve","verb":"get","resourceAPIGroup":"route.openshift.io"}'
            - '--skip-auth-regex=''(^/health|^/docs)'''
      volumes:
        - name: proxy-tls
          secret:
            secretName: docling-serve-tls
            defaultMode: 420
