S3: Presigned URL upload with tags

variable "bucket_name" {
  type        = string
  description = "Name of the S3 bucket"
}

resource "aws_s3_bucket" "images" {
  bucket        = var.bucket_name
  force_destroy = true
}

resource "aws_s3_bucket_public_access_block" "images" {
  bucket              = aws_s3_bucket.images.id
  block_public_policy = false
}

resource "aws_s3_bucket_policy" "bucket-policy" {
  depends_on = [aws_s3_bucket_public_access_block.images]
  bucket     = aws_s3_bucket.images.id
  policy     = <<-EOF
  {
    "Version": "2012-10-17",
    "Statement": [ {
        "Effect": "Allow",
        "Principal": "*",
        "Action": "s3:GetObject",
        "Resource": "${aws_s3_bucket.images.arn}/*"
      } ]
  }
  EOF
}

resource "aws_s3_bucket_cors_configuration" "allow-all-origins" {
  bucket = aws_s3_bucket.images.id
  cors_rule {
    allowed_headers = ["*"]
    allowed_methods = ["GET"]
    allowed_origins = ["*"]
    max_age_seconds = 600
  }
}

variable "table_name" {
  type        = string
  description = "Name of the DynamoDB table"
}

resource "aws_dynamodb_table" "items" {
  name         = var.table_name
  billing_mode = "PAY_PER_REQUEST"
  hash_key     = "uid"

  attribute {
    name = "uid"
    type = "S"
  }

  ttl {
    attribute_name = "expireAt"
    enabled        = true
  }
}

data "aws_iam_policy_document" "LambdaAssumeRole" {
  statement {
    actions = ["sts:AssumeRole"]
    principals {
      type        = "Service"
      identifiers = ["lambda.amazonaws.com"]
    }
  }
}

resource "aws_iam_role" "LambdaPhotosRole" {
  name               = "LambdaPhotosRole"
  assume_role_policy = data.aws_iam_policy_document.LambdaAssumeRole.json
}

resource "aws_iam_role_policy_attachment" "LambdaBasicExecutionRole" {
  role       = aws_iam_role.LambdaPhotosRole.name
  policy_arn = "arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole"
}

data "aws_iam_policy_document" "LambdaPhotosPermissions" {
  statement {
    actions   = ["s3:ListBucket", "s3:GetBucketLocation"]
    resources = [aws_s3_bucket.images.arn]
  }
  statement {
    actions   = ["s3:GetObject", "s3:GetObject*", "s3:PutObject", "s3:PutObject*"]
    resources = ["${aws_s3_bucket.images.arn}/*"]
  }
  statement {
    actions   = ["dynamodb:GetItem", "dynamodb:PutItem", "dynamodb:DeleteItem"]
    resources = [aws_dynamodb_table.items.arn]
  }
}

resource "aws_iam_role_policy" "LambdaPhotosPermissions" {
  role   = aws_iam_role.LambdaPhotosRole.name
  policy = data.aws_iam_policy_document.LambdaPhotosPermissions.json
}

import boto3, os

s3 = boto3.client('s3')
bucket_name = os.environ['BUCKET_NAME']

HTML_TEMPLATE = """


     My photos bucket

        Upload photo
        "" method="post">
            "title">Title:
            "text" name="title">
            "submit" value="Next">

         {list_items}


"""



    Enter fullscreen mode



    Exit fullscreen mode





Next, I will create a function that will help me read Title tag from the S3 object. If no Title tag is specified, we just show the key. I know that this function seems complicated but it's just how the API works 😖. First we check if the object even exists and has any tags (TagSet). Then we filter the tags by a predicate: all the tags that have Key field equal to Title. If the filtered list has no elements, that means that Title tag was not set so we return the object key.

def get_object_title_tag(key):
    # Will return either the tag "Title" or the key name if no tag is found
    response = s3.get_object_tagging(Bucket=bucket_name, Key=key)
    if response and ('TagSet' in response):
        title_tag = list( filter(lambda t: t['Key'] == 'Title', response['TagSet']) )
        return title_tag[0]['Value'] if len(title_tag) > 0 else key
    return key



    Enter fullscreen mode



    Exit fullscreen mode





Now we can simply list all objects in the bucket. Each image will have a title in HTML tag and show a thumbnail of the image.

def get_list_items():
    response = s3.list_objects_v2(Bucket=bucket_name)
    if 'Contents' not in response:
        return "No photos yet"

    return "\n".join( [
        """"display: inline-block">
            {title}
            "{bucket_url}/{key}" style="max-width: 200px; max-height: 200px;">
        """
        .format(
            title      = get_object_title_tag(item['Key']),
            bucket_url = f"https://{bucket_name}.s3.amazonaws.com",
            key        = item['Key']
        )
        for item in response['Contents']
    ] )


def lambda_handler(event, context):
    return {
        'headers'    : { 'Content-Type': 'text/html' },
        'statusCode' : 200,
        'body'       : HTML_TEMPLATE.format(list_items=get_list_items())
    }



    Enter fullscreen mode



    Exit fullscreen mode





I saved this code in list.py in a new directory called lambdas. For simplicity we will pack full contents of this directory into a ZIP file and use it for all Lambda functions. We will just control which file to run using the entry point. In production, you should pack all Lambda's separately. Also for simplicity, I will use Terraform's for_each to create all the functions in one shot.

data "archive_file" "zip" {
  type        = "zip"
  source_dir  = "${path.module}/lambdas"
  output_path = "${path.module}/lambdas.zip"
}

data "aws_region" "current" {}

resource "aws_lambda_function" "lambda" {
  for_each = toset(["list", "tag", "upload"])

  function_name    = "photos-lambda-${each.key}"
  role             = aws_iam_role.LambdaPhotosRole.arn
  handler          = "${each.key}.lambda_handler"
  runtime          = "python3.12"
  filename         = data.archive_file.zip.output_path
  source_code_hash = data.archive_file.zip.output_base64sha256
  environment {
    variables = {
      BUCKET_NAME = aws_s3_bucket.images.bucket
    }
  }
}



    Enter fullscreen mode



    Exit fullscreen mode








  Connecting the function to API Gateway
You can technically run this Lambda from AWS Console or the command line but it will not generate nice HTML, rather some JSON with embedded HTML response. To make this an actual application, we will use API Gateway that will serve us the pages and accept new uploads.We start by defining the empty gateway resource. Then we need to create a method. For listing the photos, we can just use GET with / path. This method will require an AWS integration. Set authorized to NONE to allow yourself to open the page via the browser. Don't get confused by the POST method in the integration - this is the method you give to AWS and InvokeFunction is accessed with POST.

variable "api_name" {
  type        = string
  description = "Name of the API Gateway"
}

resource "aws_api_gateway_rest_api" "api" {
  name = var.api_name
}

resource "aws_api_gateway_method" "get" {
  rest_api_id   = aws_api_gateway_rest_api.api.id
  resource_id   = aws_api_gateway_rest_api.api.root_resource_id
  http_method   = "GET"     # Method you as the user call in the browser
  authorization = "NONE"
}

resource "aws_api_gateway_integration" "get-list" {
  rest_api_id = aws_api_gateway_rest_api.api.id
  resource_id = aws_api_gateway_rest_api.api.root_resource_id
  http_method = aws_api_gateway_method.get.http_method

  integration_http_method = "POST"  # Method to call on AWS side
  type                    = "AWS_PROXY"
  uri                     = aws_lambda_function.lambda["list"].invoke_arn
}



    Enter fullscreen mode



    Exit fullscreen mode





But this is not all! API Gateway requires you to create stages and deployments. This is mostly used for different versions of the API or environments. We will just have one called prod. Each stage should also be separately deployed.

resource "aws_api_gateway_stage" "prod" {
  rest_api_id = aws_api_gateway_rest_api.api.id
  stage_name  = "prod"
  deployment_id = aws_api_gateway_deployment.prod.id
}

resource "aws_api_gateway_deployment" "prod" {
  rest_api_id = aws_api_gateway_rest_api.api.id
  depends_on = [ aws_api_gateway_integration.get-list ]
  variables = {
    "deployed_version" = "1" # Change this to force deployment, otherwise you have to do it manually
  }
}

output "api-gateway" {
  value = "${aws_api_gateway_deployment.prod.invoke_url}prod/"
}



    Enter fullscreen mode



    Exit fullscreen mode





Another thing to remember is to allow API Gateway to call the Lambda function. I will define both permissions for list and future upload in one go.

resource "aws_lambda_permission" "api" {
  for_each      = toset(["list", "upload"])
  function_name = aws_lambda_function.lambda[each.key].function_name
  source_arn    = "${aws_api_gateway_rest_api.api.execution_arn}/*/*/*"
  principal     = "apigateway.amazonaws.com"
  action        = "lambda:InvokeFunction"
}



    Enter fullscreen mode



    Exit fullscreen mode





You can use api-gateway output to access the page. It should show for now no photos. You can upload some to the bucket manually and add Title tag to one of the objects to test the behavior.


  Lambda for uploads
Currently the form on the main page does not do anything. It leads to the same API Gateway URL as currently open but calls a POST method. Our gateway does not react yet to this method so we need to implement it. Also add dependency to the deployment for easier infrastructure updates.

resource "aws_api_gateway_method" "post" {
  rest_api_id   = aws_api_gateway_rest_api.api.id
  resource_id   = aws_api_gateway_rest_api.api.root_resource_id
  http_method   = "POST"
  authorization = "NONE"
}

resource "aws_api_gateway_integration" "post-upload" {
  rest_api_id = aws_api_gateway_rest_api.api.id
  resource_id = aws_api_gateway_rest_api.api.root_resource_id
  http_method = aws_api_gateway_method.post.http_method

  integration_http_method = "POST"
  type                    = "AWS_PROXY"
  uri                     = aws_lambda_function.lambda["upload"].invoke_arn
}

resource "aws_api_gateway_deployment" "prod" {
  ...
  depends_on = [
    aws_api_gateway_integration.get-list,
    aws_api_gateway_integration.post-upload
  ]
  ...
}



    Enter fullscreen mode



    Exit fullscreen mode





However, even with the code above, the method leads to a defined Lambda function that on the contrary leads to nowhere as we did not create upload.py file, so the function invoke will result in 500 error. Let's define this function now. First we need to import some needed libraries we will use. Then we can load all the needed environment variables - bucket name, DynamoDB table and URL to redirect after upload.

import boto3, uuid, os, re, time
from urllib.parse import parse_qs

BUCKET_NAME = os.environ['BUCKET_NAME']
TABLE_NAME = os.environ['TABLE_NAME']
REDIRECT = os.environ['REDIRECT']
s3 = boto3.client('s3')
dynamo = boto3.resource('dynamodb').Table(TABLE_NAME)



    Enter fullscreen mode



    Exit fullscreen mode





Now I will define some helper functions. First one will clean up the title that is submitted in the form so that we add only valid characters to the title (alphanumeric, hyphen and space). If the title is empty, we will set it to "Untitled".

def clean_title(title):
    t = re.sub(r'[^a-zA-Z0-9\-\s]', '', title)
    return t if t else "Untitled"



    Enter fullscreen mode



    Exit fullscreen mode





In the next function we will create a form with presigned URL and store all the details in DynamoDB. The object key will be just a newly generated UUID.First we need to parse the incoming form from the previous page with the title using parse_qs library function. Then we generate the presigned URL that that returns many fields. Firstly, there is the target URL to which the form has to be submitted. But it also needs us to pass some hidden fields that we construct in HTML. These fields are for example the key of the object, redirect fields that instruct S3 server to send us back to the main page and STS tokens and signature that are used to authorize the upload and all the other fields that we give. The Conditions field is required for every field but here we allow any value to be provided. After that we store the UUID and title in DynamoDB that will be later read by another Lambda function.

HTML_TEMPLATE="""
     Upload {title}

        Upload {title}
        "{url}" method="post" enctype="multipart/form-data">
            {hidden_inputs}
            "file">File:
            "file" id="file" name="file">
            "submit" name="submit" value="Upload">


"""

def create_upload_form(event):
    body = parse_qs(event['body'])
    title = clean_title(body['title'][0])
    uid = str(uuid.uuid4())
    print(f"Title: {title}, UUID: {uid}")

    upload_form_fields = s3.generate_presigned_post(
        BUCKET_NAME,
        uid,
        ExpiresIn=600,
        Fields={"redirect": REDIRECT, "success_action_redirect": REDIRECT},
        Conditions=[
            ["starts-with", "$success_action_redirect", ""],
            ["starts-with", "$redirect", ""]
        ]
    )

    dynamo.put_item( Item={ 'uid': uid, 'title': title, 'expireAt': int(time.time()) + 600 } )

    hidden_inputs = [
        f'"hidden" name="{key}" value="{value}">'
        for (key, value) in upload_form_fields['fields'].items()
    ]

    return HTML_TEMPLATE.format(
        title=title,
        url=upload_form_fields['url'],
        hidden_inputs="\n".join(hidden_inputs)
    )


def lambda_handler(event, context):
    return {
        'statusCode': 201,
        'headers': { 'Content-Type': 'text/html' },
        'body': create_upload_form(event)
    }



    Enter fullscreen mode



    Exit fullscreen mode





In the last step we need to update the environment variables of the Lambda functions. Go back to this place and add the TABLE_NAME and REDIRECT variables. The redirect one is constructed different than the output URL we have seen before because of dependency cycles in Terraform. However, the values provided make it equal.

data "aws_region" "current" {}

resource "aws_lambda_function" "lambda" {
  for_each = toset(["list", "tag", "upload"])
  ...
  environment {
    variables = {
      BUCKET_NAME = aws_s3_bucket.images.bucket
      TABLE_NAME  = aws_dynamodb_table.items.name
      REDIRECT = "https://${aws_api_gateway_rest_api.api.id}.execute-api.${data.aws_region.current.name}.amazonaws.com/prod"
    }
  }
}



    Enter fullscreen mode



    Exit fullscreen mode





Such function can be saved as lambdas/upload.py and applied to the infrastructure. We have already added permissions for API Gateway to call this function so the upload should work already. However, after upload, the title will stay empty, or rather we default to the object key which is a random UUID.


  Lambda for tagging and S3 notifications
It's time to create the last Lambda function that will update the tags on the object. It will be triggered by S3 notification after the image is uploaded. In file tag.py define such function:

import boto3, os

TABLE_NAME = os.environ['TABLE_NAME']
dynamo = boto3.resource('dynamodb').Table(TABLE_NAME)
s3 = boto3.client('s3')

def get_from_dynamo(key):
    response = dynamo.get_item( Key={'uid': key} )
    return response['Item']['title'] if 'Item' in response else "Untitled"

def update_tagging(record):
    key = record['s3']['object']['key']
    bucket = record['s3']['bucket']['name']
    title = get_from_dynamo(key)

    print(f"Updating tagging for {bucket}/{key} to {title}")
    s3.put_object_tagging( Bucket=bucket, Key=key, Tagging={ 'TagSet': [ { 'Key': 'Title', 'Value': title } ] } )
    dynamo.delete_item( Key={'uid': {'S': key}} )


def lambda_handler(event, context):
    print(event)
    for record in event['Records']:
        if 's3' in record:
            update_tagging(record)
        else:
            print(f"Unexpected record: {record}")
    return { 'statusCode': 200, 'body': 'OK' }



    Enter fullscreen mode



    Exit fullscreen mode





First we will get the bucket and object key in the event. Then we need to find in DynamoDB the entry for this object. If it doesn't exist, we default to "Untitled". After that we can set the tag on the object and delete the entry from DynamoDB.We also have to add permissions to the Lambda function to allow it to be triggered by S3 and then add the notification to the bucket.

resource "aws_lambda_permission" "s3" {
  statement_id  = "AllowExecutionFromS3"
  action        = "lambda:InvokeFunction"
  function_name = aws_lambda_function.lambda["tag"].function_name
  principal     = "s3.amazonaws.com"
  source_arn    = aws_s3_bucket.images.arn
}



    Enter fullscreen mode



    Exit fullscreen mode






resource "aws_s3_bucket_notification" "bucket_notification" {
  bucket = aws_s3_bucket.images.id
  lambda_function {
    lambda_function_arn = aws_lambda_function.lambda["tag"].arn
    events              = ["s3:ObjectCreated:*"]
  }
  depends_on = [ aws_lambda_permission.s3 ]
}



    Enter fullscreen mode



    Exit fullscreen mode

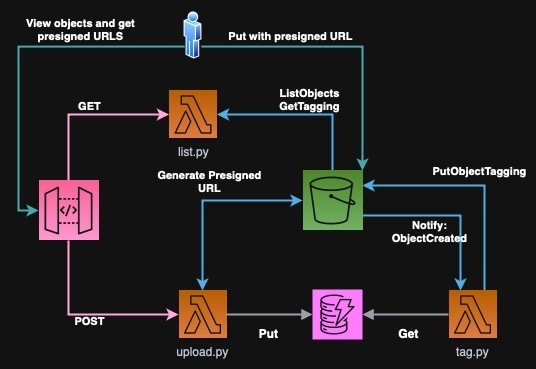

Now after you upload the image, it should show up on the page and the title can be a little delayed, as the notification is asynchronous. Refresh the page to see if the title was applied.
