Amazon Relational Database Service (RDS) allows you to easily set up, operate, and scale a relational database in the cloud. In this guide, we will walk you through setting up an Amazon RDS MySQL database instance.

1. Go to the RDS Console

2. Click “Create Database”

Once you’re in the RDS dashboard, click on the “Create database” button.

Create Database

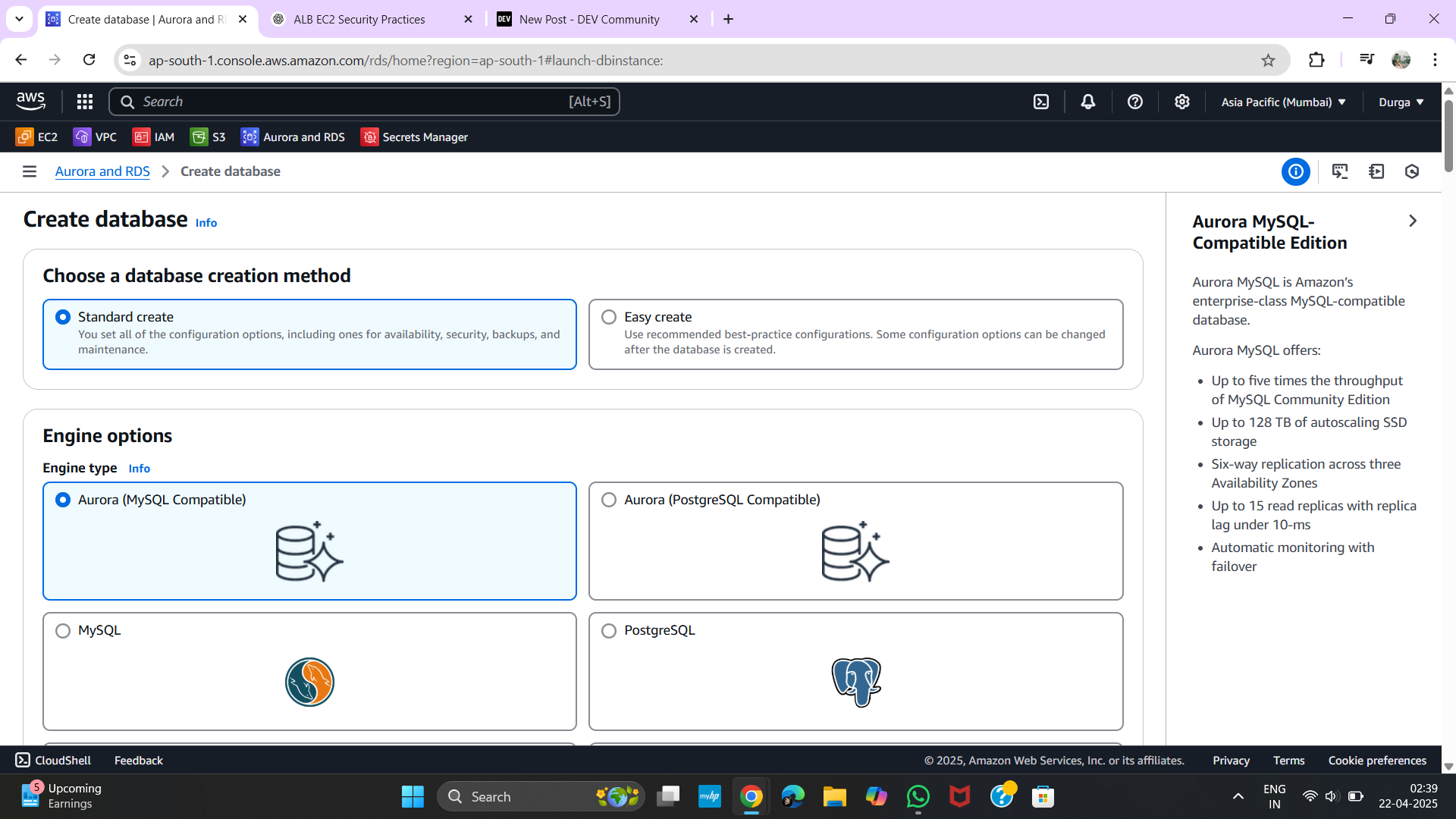

3. Choose Database Creation Method

In this step, you will choose how you want to create the database. Select “Standard Create” for full control over your configuration.

4. Choose Engine

You’ll now need to choose the database engine. For this guide, select MySQL. You can also choose from other engines such as PostgreSQL, MariaDB, or Oracle.

Choose Engine

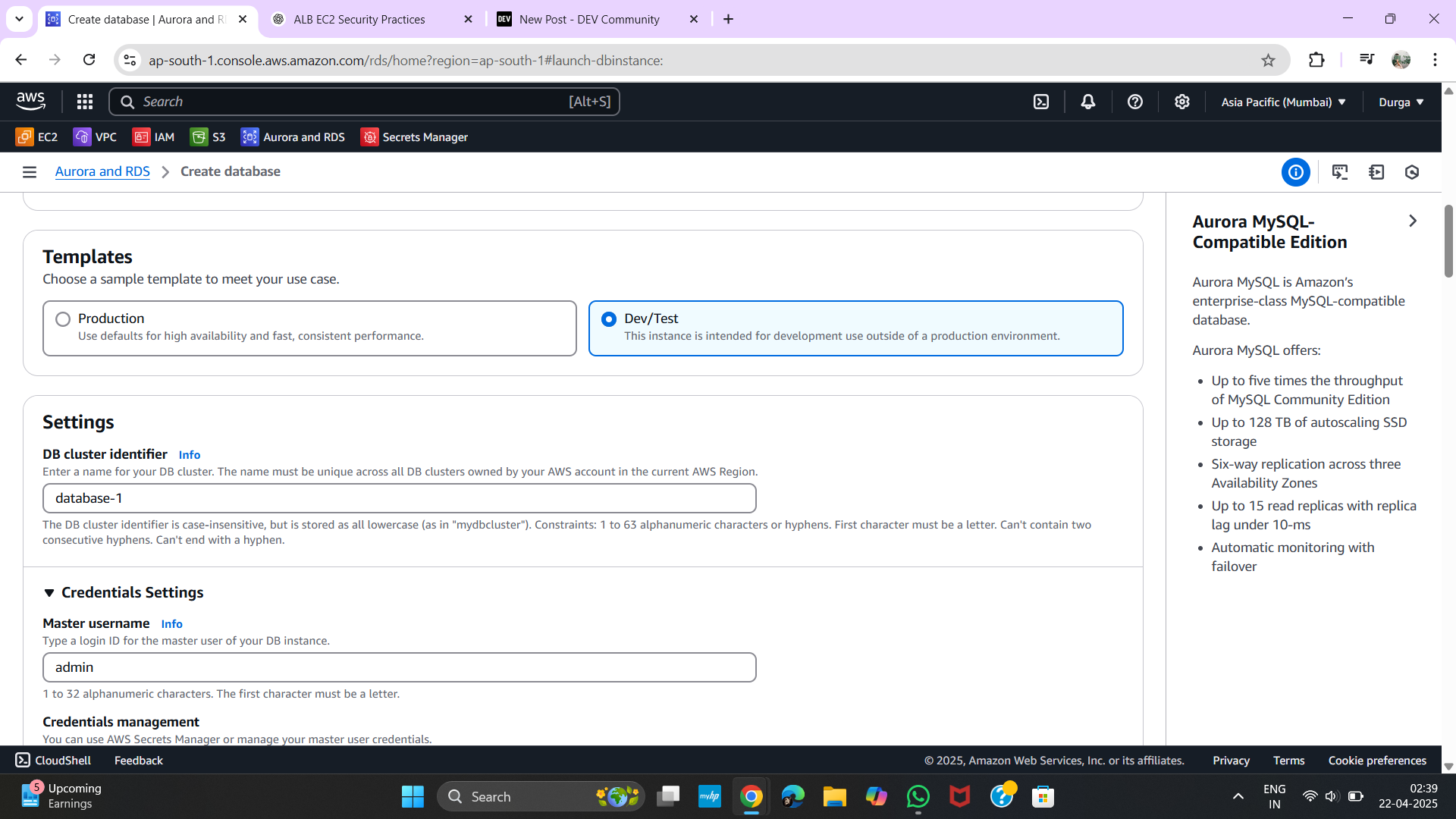

5. Specify DB Details

Enter the following information:

  • DB Instance Identifier: This is the name of your database instance (e.g., mydbinstance).
  • Master Username: The username for your admin account (e.g., admin).
  • Master Password: Set a password for your admin user.
  • Confirm Password: Re-enter the password to confirm.

If you don’t want to manually set a password, you can choose to auto-generate a password.

DB Details

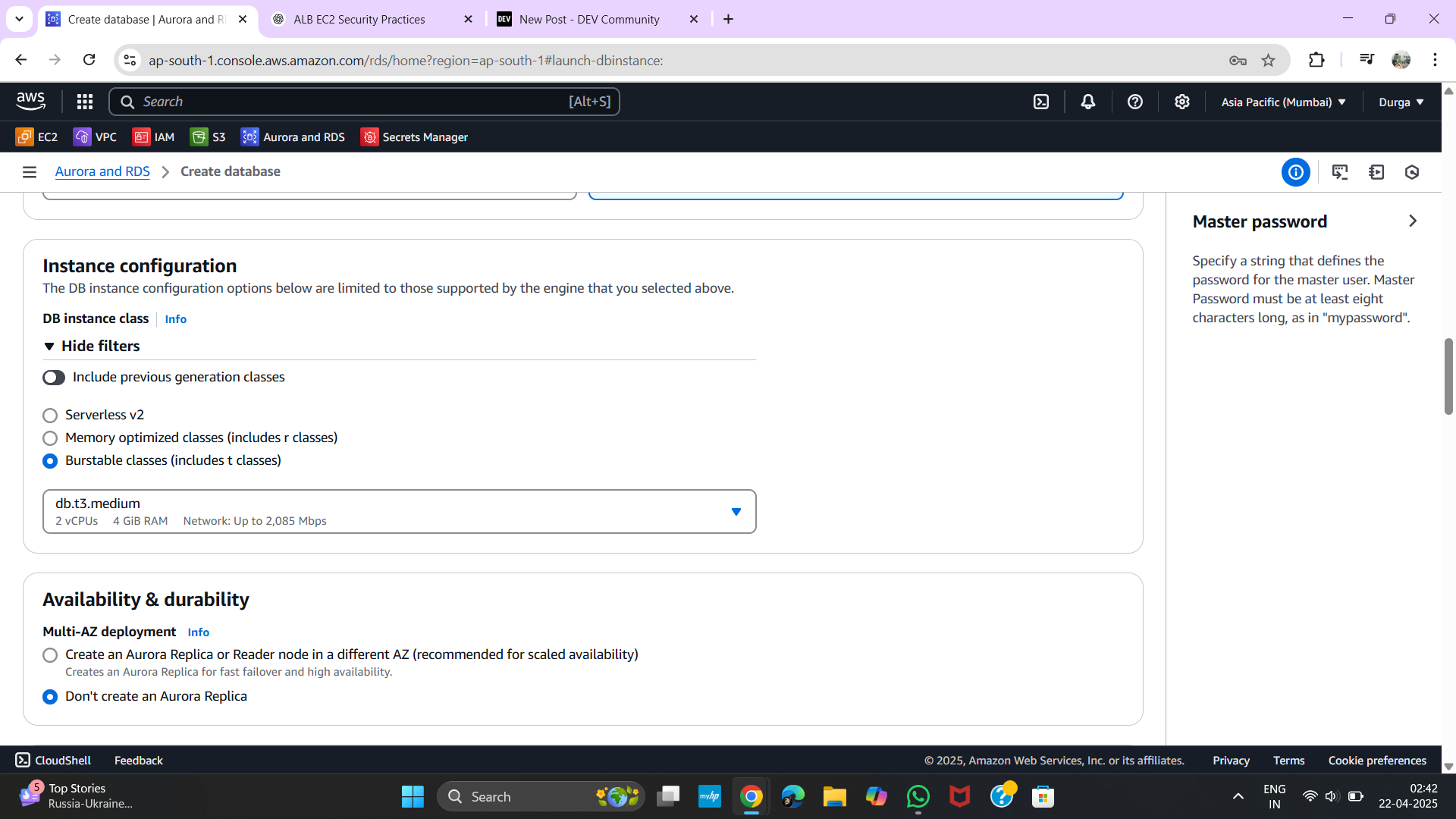

6. Choose DB Instance Size

In this section, you’ll choose the instance type that fits your needs. If you are using the AWS Free Tier, select the db.t3.micro class (1 vCPU, 1 GiB RAM).

For production environments or larger applications, you may want to select larger instance sizes.

DB Instance Size

7. Storage Settings

For most cases, the default storage settings will be sufficient. However, if you need more storage, you can modify the allocated storage or enable storage autoscaling to automatically adjust the storage based on your usage.

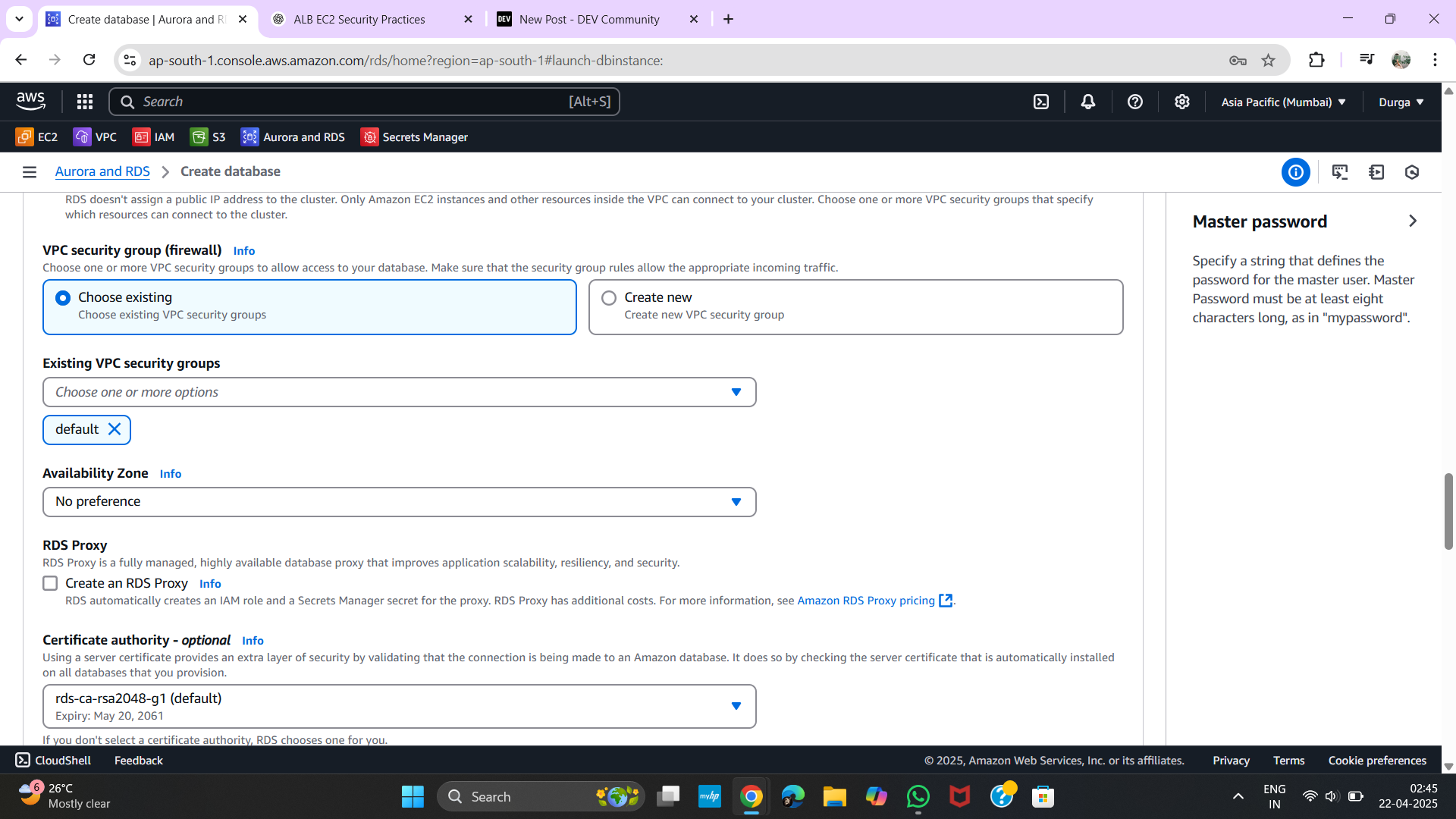

8. Connectivity

In this step, configure your network settings:

  • VPC: Choose the Virtual Private Cloud (VPC) where your database will reside.
  • Public Access: Set this to Yes if you want to access the database from outside the VPC (i.e., from your local machine or other networks).
  • VPC Security Group: Select an existing security group or create a new one to allow access to your RDS instance. Ensure port 3306 (for MySQL) is allowed.

Connectivity Settings

9. Database Authentication

The default authentication method is Password authentication. You can leave this as is or enable IAM database authentication for enhanced security.

Database Authentication

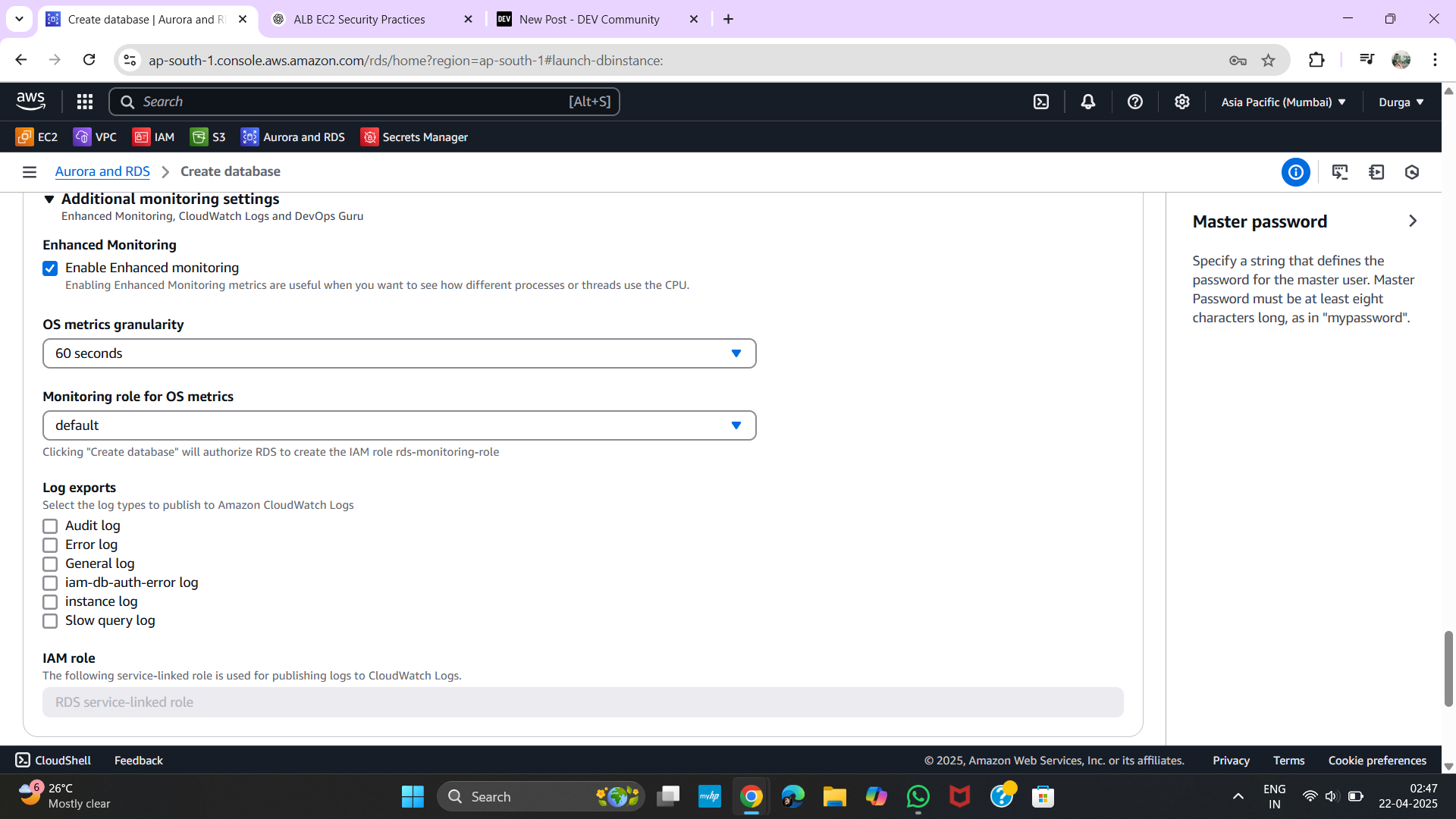

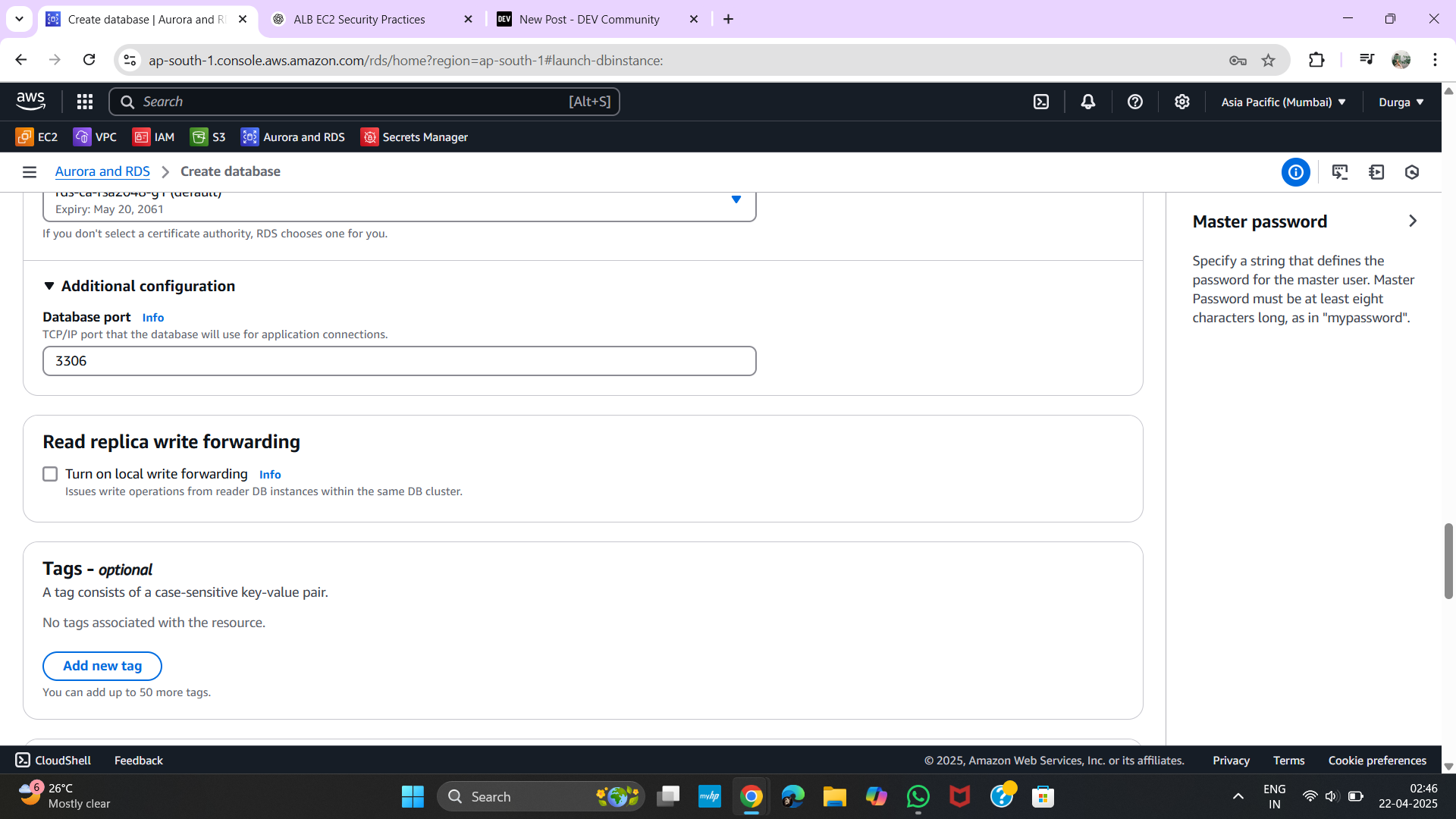

10. Additional Settings (Optional)

In this step, you can:

  • Set an initial DB name (this will create a database within your RDS instance).
  • Enable automatic backups, monitoring, and other features based on your requirements.

Additional Settings

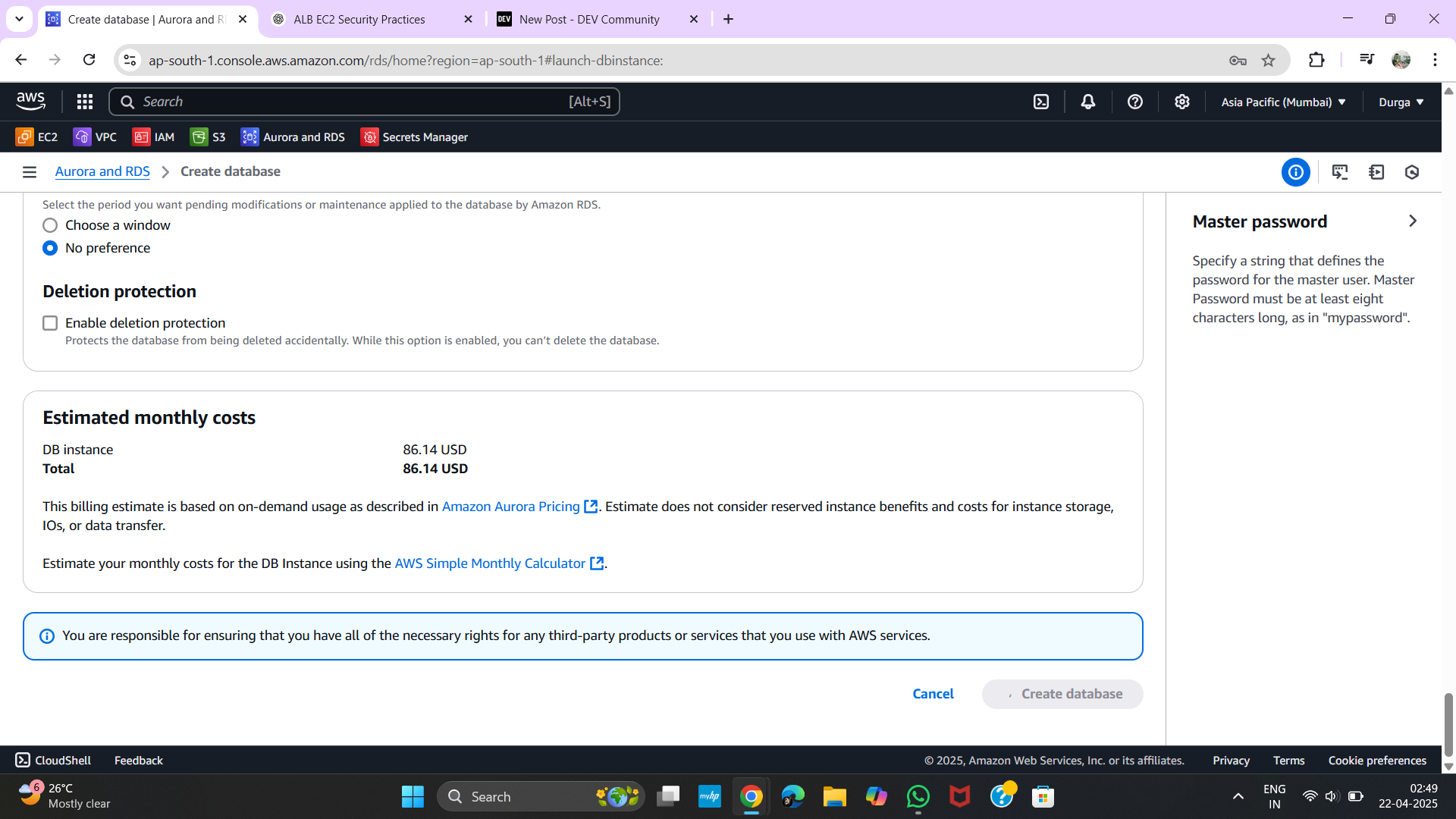

11. Click "Create Database" 🚀

Once you have configured all settings, click the “Create Database” button. AWS will begin provisioning your MySQL database instance.

Create Database

Accessing Your RDS Instance:

After the database is created, you can access it using MySQL Workbench, DBeaver, or the terminal.

  1. Go to RDS Dashboard: Navigate to the Databases section in the RDS console.
  2. Copy the Endpoint: Find your database instance and copy the endpoint URL (e.g., database-new-instance-1.cr0gosscc0ry.ap-south-1.rds.amazonaws.com).
  3. Connect via MySQL Client:
    • Use a MySQL client like MySQL Workbench or the terminal to connect to your database.

For terminal:

mysql -h database-new-instance-1.cr0gosscc0ry.ap-south-1.rds.amazonaws.com -u admin -p

You will be prompted to enter the password you set earlier.

Tips for Using Amazon RDS:

  • Monitoring: Enable CloudWatch logs and Performance Insights to keep track of your database’s health and performance.
  • Backups: Regularly back up your database to ensure data recovery in case of failure.
  • Security: Always use a strong password, and limit access to your RDS instance using security groups and IAM roles.

By following these steps, you should have a fully functional MySQL database running on Amazon RDS. Whether you're using it for development, testing, or production, RDS offers scalability, high availability, and security for your data management needs.
