Simple example of reverse .apk (removing Ads)

Okay, today I gonna do some simple reverse engineering on Android application. As an example I get an amazing application Apk Extractor Fastest & Suppor

Tools

• JADX - for discovering code in Java
• Apktool - for editing code in Smali
• Android SDK build tools - for compress and sign

Process

Get .apk file by Apk Extractor Fastest & Suppor itself.

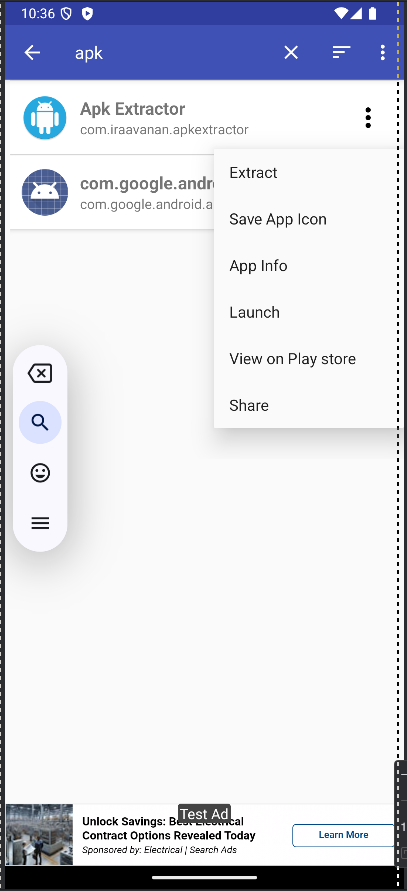

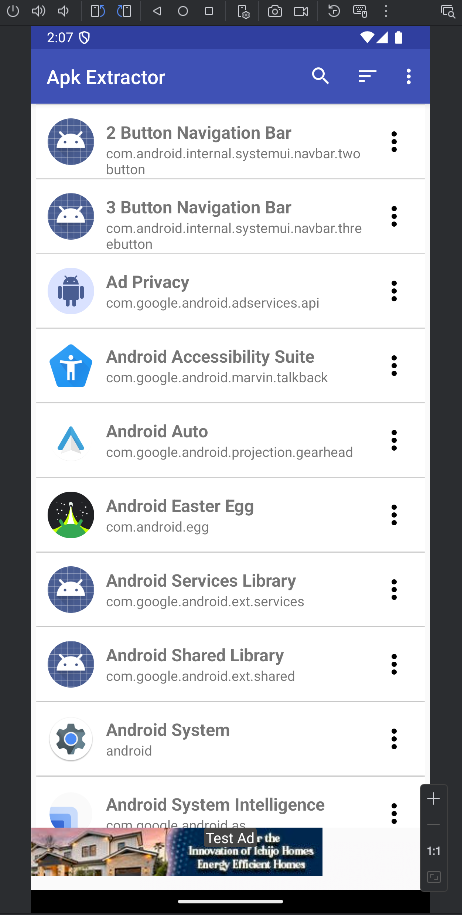

What we see? We see a terrible Ads in so wonderful application.

Discover Java code

• open our .apk by JADX

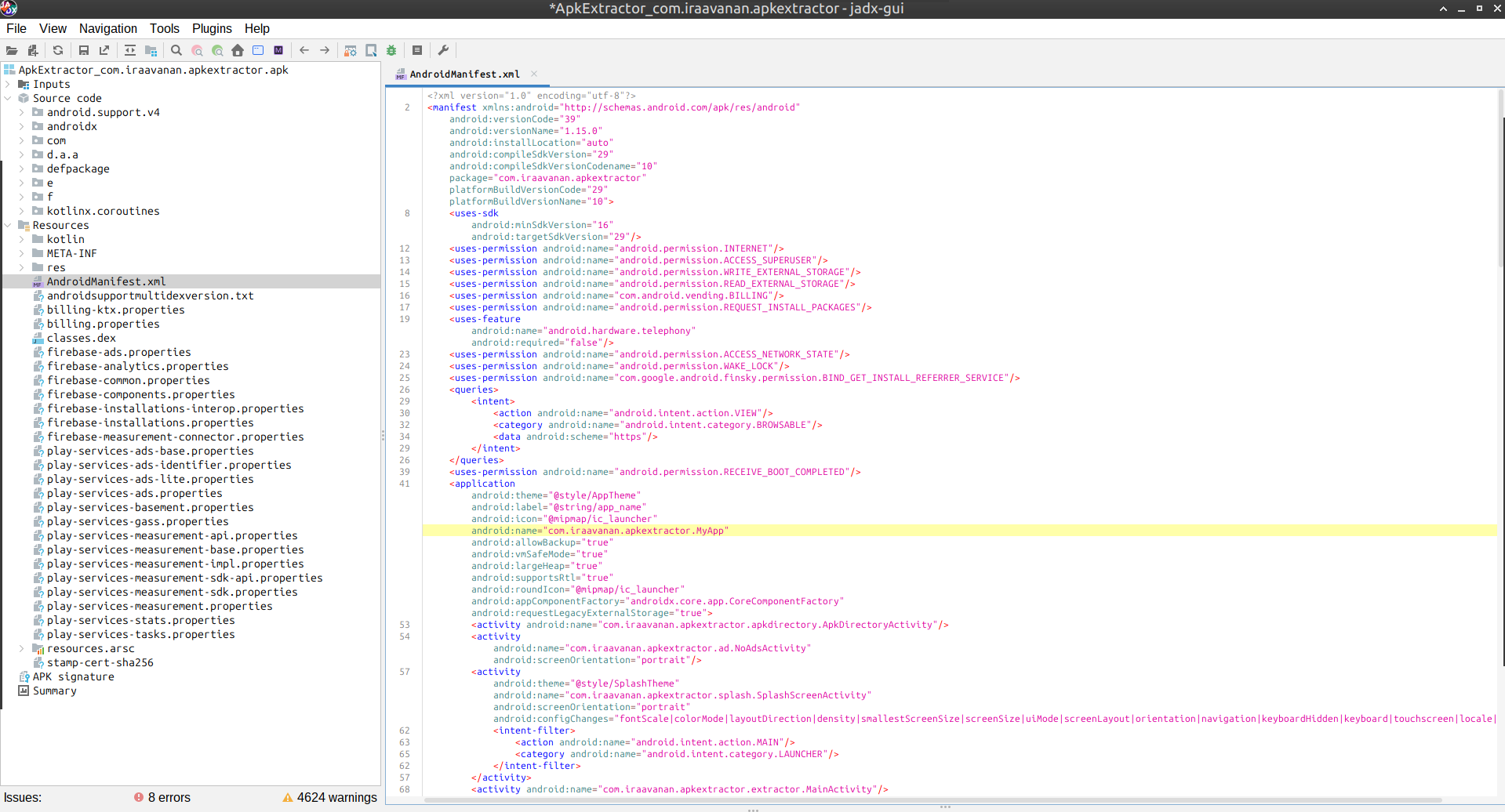

And we can see something like this:

• Fist of all we have to see AndroidManifest.xml. Oh, bro, thanks a lot!

android:name="com.iraavanan.apkextractor.ad.NoAdsActivity"
android:screenOrientation="portrait"/>

• Let's see NoAdsActivity, obviously.

The path in the JADX is

Source code/com.iraavanan.apkextractor.ad.NoAdsActivity.

protected void onCreate(Bundle bundle) {
    super.onCreate(bundle);
    setContentView(R.layout.activity_no_ads);
    ActionBar supportActionBar = getSupportActionBar();
    if (supportActionBar != null) {
        supportActionBar.setTitle(getString(R.string.premium));
    }
    ActionBar supportActionBar2 = getSupportActionBar();
    if (supportActionBar2 != null) {
        supportActionBar2.setDisplayHomeAsUpEnabled(true);
    }
    com.iraavanan.apkextractor.g.f fVar = com.iraavanan.apkextractor.g.f.a;
    if (fVar.b(this).getBoolean(getString(R.string.is_premium), false)) {
        J();
        return;
    }
// some code

OMG, bro, do you really keep a premium flag in SharedPreferences?!
When I saw it I thought to get another example, but it's OK. It's simple and visible.

Extract and change Smali code

• Execute apktool:

/opt/apktool/apktool d ApkExtractor_com.iraavanan.apkextractor.apk

So we've got a folder ApkExtractor_com.iraavanan.apkextractor with Smali code. You can open this folder as a project in Android Studio. Our activity in on the same path: smali/com.iraavanan.apkextractor.ad.NoAdsActivity.smali

• look for the condition in the onCreate() function

:cond_1
sget-object p1, Lcom/iraavanan/apkextractor/g/f;->a:Lcom/iraavanan/apkextractor/g/f;

invoke-virtual {p1, p0}, Lcom/iraavanan/apkextractor/g/f;->b(Landroid/content/Context;)Landroid/content/SharedPreferences;

move-result-object v0

const v1, 0x7f10004a

invoke-virtual {p0, v1}, Landroid/app/Activity;->getString(I)Ljava/lang/String;

move-result-object v1

const/4 v2, 0x0

invoke-interface {v0, v1, v2}, Landroid/content/SharedPreferences;->getBoolean(Ljava/lang/String;Z)Z

move-result v0

if-eqz v0, :cond_2

invoke-direct {p0}, Lcom/iraavanan/apkextractor/ad/NoAdsActivity;->J()V

goto/16 :goto_1

Looks not so nice :) Let's define what happens. Dalvik opcodes
sget-object p1 //etc - we are getting some object and put it into p1
invoke-virtual {p1, p0} //etc - execute some function on p1 object, p0 is the pointer to our activity... possibly :) It looks like we've got SharedPreferences
move-result-object v0 - put SharedPreferences into v0
const v1, 0x7f10004a - some const similar like ID of resource
invoke-virtual {p0, v1} //etc - activity of p0 getting string resource by v1 ID
move-result-object v1 - put that string into v1
const/4 v2, 0x0 - define the false constant
invoke-interface {v0, v1, v2} //etc - our key function what defines premium
move-result v0 - result of function into v0
if-eqz v0, :cond_2 - if our result is 0(false) the program go to :cond_2

Obviously, we have to change the result of function.

move-result v0

const/4 v0, 0x1

if-eqz v0, :cond_2

Pack to .apk

• build an .apk file

/opt/apktool/apktool b ApkExtractor_com.iraavanan.apkextractor -o apkextractor.apk

• compress .apk

zipalign -v -p 4 apkextractor.apk apkextractor_compressed.apk

• create key for signing by keytool

keytool -genkeypair -v -keystore release-key.keystore -alias apkextractor -keyalg RSA -keysize 2048

• sign

apksigner sign --ks release-key.keystore --ks-key-alias apkextractor --out apkextractor_signed.apk apkextractor_compressed.apk

Install and run

• remove the base app version

adb uninstall com.iraavanan.apkextractor

• install changed version

adb install apkextractor_signed.apk

• run

Hmm... something went wrong...

Okay, maybe I should go to premium option in the app.

Let's recreate activity by Back button or rotate screen.

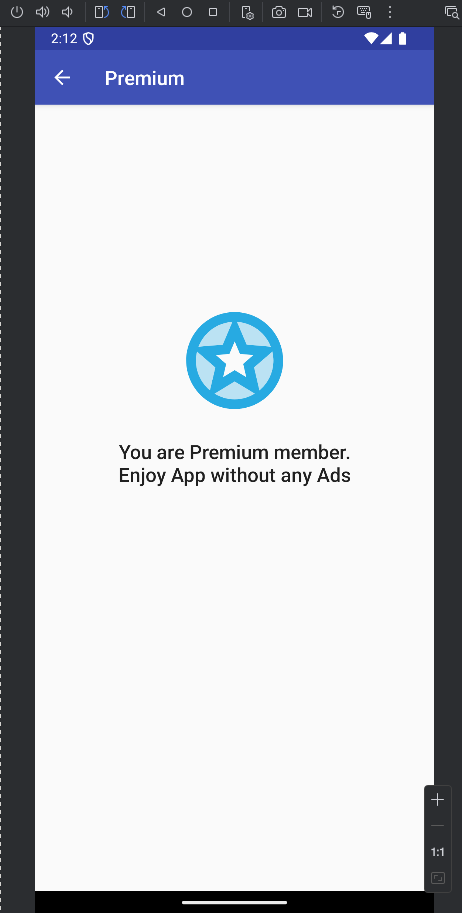

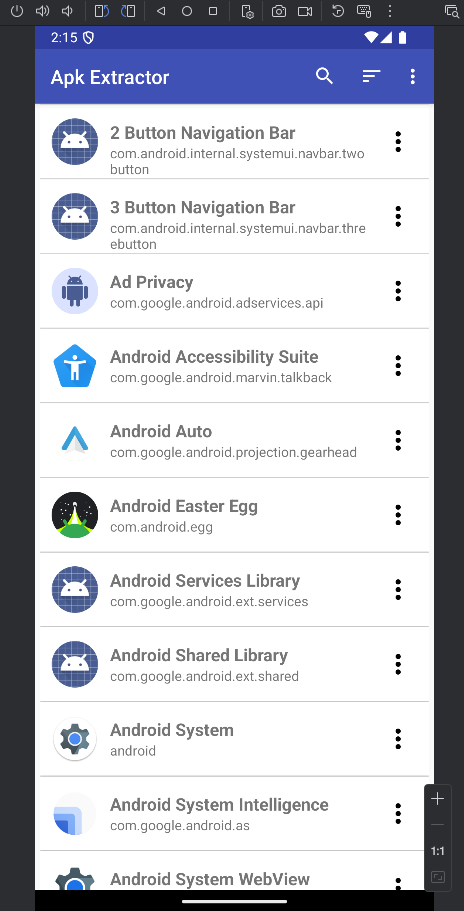

So... that's all, no Ads.

What do I wanna say at the end? Don't keep premium flags inside the app.
Thanks for your attention!
