Setup Stacked Topology High availability clusters using kubeadm

steps: to High availability clusters

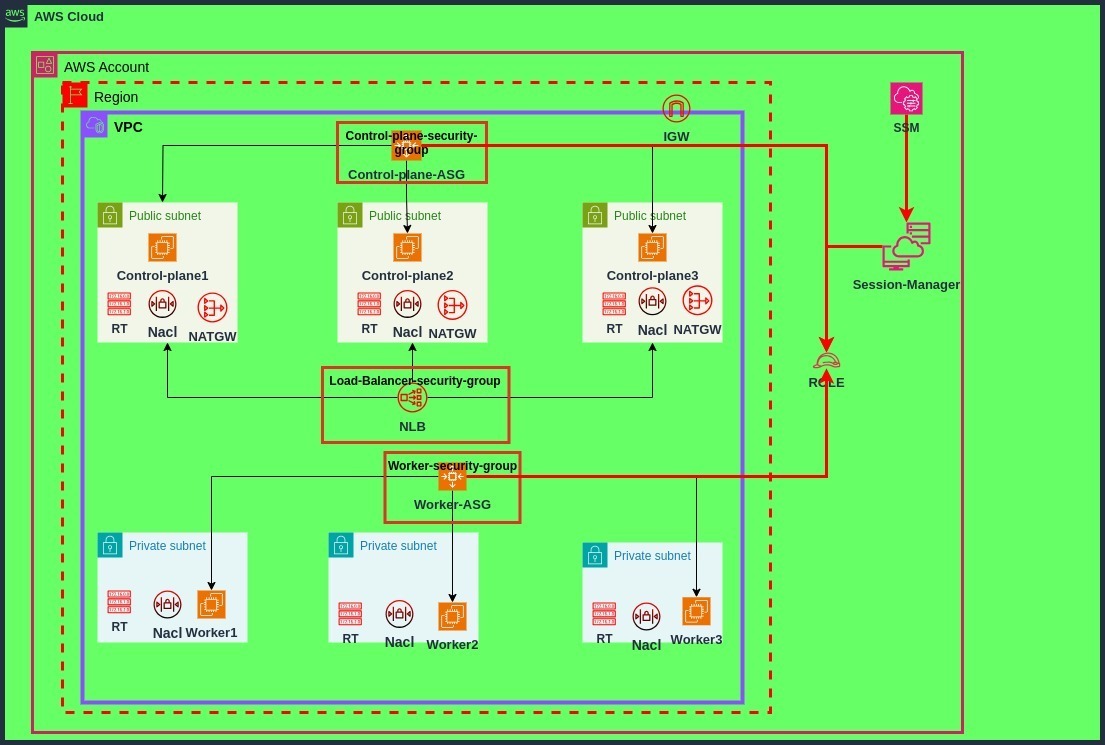

1. deploy infrastructure at aws for self hosted kubernetes cluster
2. vpc1=77.132.0.0/16 and integrate with internet gateway
3. 3 public subnet for each Azs cidrblock will be at range 77.132.100.0/24, 77.132.101.0/24,77.132.102.0/24
4. 3 private subnet for each Azs cidrblock will be at range 77.132.103.0/24 , 77.132.104.0/24 , 77.132.105.0/24 5 . associate routetable with public subnets
5. associate per routetable that have route to outside by Nat gateways with each private subnet
6. deploy network load balancer which have target registered with public subnets
7. deploy 3 security groups for load balancer , control plane nodes , worker nodes
8. use session manager for access the all nodes by adding a iam role and have permission .
9. deploy ec2 autoscaling for control plane and worker nodes

to deploy high availability clusters :

1. require to have 3 control plane nodes which give beneficial performance and role decision to whom be master
   2 . following formula of Quarom= N/2+1 which N=No.of control plane node
   ex 3/2+1 = 2 meaning the minimum to consider it Healthy at 2 control plane node are ready for role decision and preemption

2. to setup High availability control plane :

3. disable swap
   2, update kernel params

4. install container runtime ,containerd

5. install runc

6. install cni pluging

7. install kubeadm ,kubelet , kubectl

8. optional check version of kubeadm , kubelet,kubectl

9. initialize the control plane with kubeadm

sudo kubeadm --control-plane-endpoint “Load-Balancer-DNS:6443” --pod-network-cidr 192.168.0.0/16 --upload-certs optional[--node-name master1 ]

1. install calico cni pluging 3.29.3

2. when you join other control plane node , use

sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \
--discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 \
--control-plane --certificate-key 403d1068384eebe16c1a50fc25e81b24ac7ccef26423244af9e1966e80531f9b --node-name

Note: give name for node using --node-name

1. setup worker nodes
2. disable swap 2, update kernel params
3. install container runtime ,containerd
4. install runc
5. install cni pluging
6. install kubeadm ,kubelet , kubectl
7. optional check version of kubeadm , kubelet,kubectl
8. copy kubeconfig from controlplane node to worker node kubeconfig

sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \
--discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 --node-name

if forget or missing token output when kubeadm bootstraps finish

sudo kubeadm token --print-join-command

master.sh

` #!/bin/bash


`#disable swap
sudo swapoff -a
sudo sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

# update kernel params
cat < .bashrc &&  source .bashrc


master-ha1.sh


#!/bin/bash
# disable swap
sudo swapoff -a
sudo sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

# update kernel params
cat < .bashrc &&  source .bashrc

master-ha2.sh

#!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

cat < overlay
br_netfilter
EOF
sudo modprobe overlay
sudo modprobe br_netfilter
cat < net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
EOF
sudo sysctl --system

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo mkdir -p /usr/local/lib/systemd/system/
sudo mv containerd.service /usr/local/lib/systemd/system/
sudo mkdir -p /etc/containerd
sudo containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

sudo apt-get update -y
sudo apt-get install -y apt-transport-https ca-certificates curl gpg
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update -y
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm join mylb-030c3a1c6c4fae6a.elb.us-east-1.amazonaws.com:6443 --token 236pfl.0f9p8r06gcmfmj7p \
--discovery-token-ca-cert-hash sha256:992eb054da8690fbfc3ccbf2b0b30e5ce323c6b3444b3f11724dafa072e5f45a \
--control-plane --certificate-key 3fb4811956c257fd5407fb6aafd099077eb66a2da357683447b1b186d4dd890c --node-name master3

sudo kubeadm join mylb-b12f4818ac02ac54.elb.us-east-1.amazonaws.com:6443 --token wme2w0.ft4sn3x0tc2035bu \

--discovery-token-ca-cert-hash sha256:a4e516c840d20093ef2262c57b3afb171be07cf0ec0514de8198b91f46418b36 \

--control-plane --certificate-key 403d1068384eebe16c1a50fc25e81b24ac7ccef26423244af9e1966e80531f9b --node-name master3

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chown $(id -u):$(id -g) /var/run/containerd

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

for worker nodes

worker1.sh

!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

cat < overlay
br_netfilter
EOF
sudo modprobe overlay
sudo modprobe br_netfilter
cat < net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
EOF
sudo sysctl --system

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo mkdir -p /usr/local/lib/systemd/system/
sudo mv containerd.service /usr/local/lib/systemd/system/
sudo mkdir -p /etc/containerd
sudo containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

sudo apt-get update -y
sudo apt-get install -y apt-transport-https ca-certificates curl gpg
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update -y
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm token create --print-join-command

sudo kubeadm join mylb-7ede46b278348924.elb.us-east-1.amazonaws.com:6443 --token s1pzb2.e49unzo701usj6er \

--discovery-token-ca-cert-hash sha256:3d5d6836796b31f8d638feef97711973cbb62388cd549fb7676016e4d11d3689 --node-name worker1

sudo kubeadm join mylb-030c3a1c6c4fae6a.elb.us-east-1.amazonaws.com:6443 --token 236pfl.0f9p8r06gcmfmj7p \
--discovery-token-ca-cert-hash sha256:992eb054da8690fbfc3ccbf2b0b30e5ce323c6b3444b3f11724dafa072e5f45a --node-name worker1

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chown $(id -u):$(id -g) /run/containerd/containerd.sock

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

copy kubeconfig from control plane to worker nodes kubeconfig

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

worker2.sh

!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

cat < overlay
br_netfilter
EOF
sudo modprobe overlay
sudo modprobe br_netfilter
cat < net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
EOF
sudo sysctl --system

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo mkdir -p /usr/local/lib/systemd/system/
sudo mv containerd.service /usr/local/lib/systemd/system/
sudo mkdir -p /etc/containerd
sudo containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

sudo apt-get update -y
sudo apt-get install -y apt-transport-https ca-certificates curl gpg
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update -y
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm token create --print-join-command

sudo kubeadm join mylb-7ede46b278348924.elb.us-east-1.amazonaws.com:6443 --token s1pzb2.e49unzo701usj6er \

--discovery-token-ca-cert-hash sha256:3d5d6836796b31f8d638feef97711973cbb62388cd549fb7676016e4d11d3689 --node-name worker2

sudo kubeadm join mylb-7966c35b34cfe6a2.elb.us-east-1.amazonaws.com:6443 --token wedeoe.3dktwv0s0a1tfudi \
--discovery-token-ca-cert-hash sha256:1104fe6342e316036524c87a994e47035f091f6869a4f84292cecc8dd4f279bd --node-name worker2

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chwon $(id -u):$(id -g) /run/containerd/containerd.sock

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

worker3.sh

#!/bin/bash

disable swap

sudo swapoff -a
sudo sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

update kernel params

cat < overlay
br_netfilter
EOF
sudo modprobe overlay
sudo modprobe br_netfilter
cat < net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward = 1
EOF
sudo sysctl --system

install container runtime ,containerd

curl -LO https://github.com/containerd/containerd/releases/download/v2.0.4/containerd-2.0.4-linux-amd64.tar.gz

sudo tar Cxzvf /usr/local containerd-2.0.4-linux-amd64.tar.gz

curl -LO https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

sudo mkdir -p /usr/local/lib/systemd/system/
sudo mv containerd.service /usr/local/lib/systemd/system/
sudo mkdir -p /etc/containerd
sudo containerd config default | sudo tee /etc/containerd/config.toml
sudo sed -i 's/SystemdCgroup = false/SystemdCgroup = true/g' /etc/containerd/config.toml

sudo systemctl daemon-reload
sudo systemctl enable containerd --now

install runc

curl -LO https://github.com/opencontainers/runc/releases/download/v1.1.12/runc.amd64

sudo install -m 755 runc.amd64 /usr/local/sbin/runc

install cni

curl -LO "https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz"

sudo mkdir -p /opt/cni/bin

sudo tar Cxzvf /opt/cni/bin cni-plugins-linux-amd64-v1.6.2.tgz

install kubeadm, kubelet, kubectl

sudo apt-get update -y
sudo apt-get install -y apt-transport-https ca-certificates curl gpg
curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.32/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg
echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.32/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update -y
sudo apt-get install -y kubelet kubeadm kubectl
sudo apt-mark hold kubelet kubeadm kubectl

kubeadm version
kubelet --version
kubectl version --client

initial kubeadm for Ha cluster

sudo kubeadm token create --print-join-command

sudo kubeadm join mylb-7ede46b278348924.elb.us-east-1.amazonaws.com:6443 --token s1pzb2.e49unzo701usj6er \

--discovery-token-ca-cert-hash sha256:3d5d6836796b31f8d638feef97711973cbb62388cd549fb7676016e4d11d3689 --node-name worker2

sudo kubeadm join mylb-7966c35b34cfe6a2.elb.us-east-1.amazonaws.com:6443 --token wedeoe.3dktwv0s0a1tfudi \
--discovery-token-ca-cert-hash sha256:1104fe6342e316036524c87a994e47035f091f6869a4f84292cecc8dd4f279bd --node-name worker3

configure crictl to work with containerd

sudo crictl config runtime-endpoint: unix:///run/containerd/containerd.sock
sudo chwon $(id -u):$(id -g) /run/containerd/containerd.sock

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
sudo chown $(id -u):$(id -g) /etc/kubernetes/admin.conf

export KUBECONFIG=/etc/kubernetes/admin.conf

alias kubectl utility

alias k=kubectl > .bashrc && source .bashrc

Note: remember to copy kubeconfig from control plane to worker nodes kubeconfig

to deploy infrastructure using by pulumi python and using pulumi esc to store key/value

"""An AWS Python Pulumi program"""
import pulumi , pulumi_aws as aws , json
import pulumi

cfg1=pulumi.Config()

vpc1=aws.ec2.Vpc(
"vpc1",
aws.ec2.VpcArgs(
cidr_block=cfg1.require(key="block1"),
tags={
"Name" : "vpc1"
}
)
)

intgw1=aws.ec2.InternetGateway(
"intgw1",
aws.ec2.InternetGatewayArgs(
vpc_id=vpc1.id,
tags={
"Name" : "intgw1"
}
)
)

zones=["us-east-1a", "us-east-1b" , "us-east-1c"]
cidr1=cfg1.require(key="cidr1")
cidr2=cfg1.require(key="cidr2")
cidr3=cfg1.require(key="cidr3")
cidr4=cfg1.require(key="cidr4")
cidr5=cfg1.require(key="cidr5")
cidr6=cfg1.require(key="cidr6")
pubsubnets=[cidr1,cidr2,cidr3]
privsubnets=[cidr4,cidr5,cidr6]

pubnames=["pub1" , "pub2" , "pub3" ]
privnames=[ "priv1" , "priv2" , "priv3" ]

for allpub in range(len(pubnames)):
pubnames[allpub]=aws.ec2.Subnet(
pubnames[allpub],
aws.ec2.SubnetArgs(
vpc_id=vpc1.id,
cidr_block=pubsubnets[allpub],
availability_zone=zones[allpub],
map_public_ip_on_launch=True,
tags={
"Name" : pubnames[allpub]
}

)
)

table1=aws.ec2.RouteTable(
"table1",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
gateway_id=intgw1.id
)
],
tags={
"Name" : "table1"
}

)
)

pub_associate1=aws.ec2.RouteTableAssociation(
"pub_associate1",
aws.ec2.RouteTableAssociationArgs(
subnet_id=pubnames[0].id,
route_table_id=table1.id
)
)

pub_associate2=aws.ec2.RouteTableAssociation(
"pub_associate2",
aws.ec2.RouteTableAssociationArgs(
subnet_id=pubnames[1].id,
route_table_id=table1.id
)
)

pub_associate3=aws.ec2.RouteTableAssociation(
"pub_associate3",
aws.ec2.RouteTableAssociationArgs(
subnet_id=pubnames[2].id,
route_table_id=table1.id
)
)

for allpriv in range(len(privnames)):
privnames[allpriv]=aws.ec2.Subnet(
privnames[allpriv],
aws.ec2.SubnetArgs(
vpc_id=vpc1.id,
cidr_block=privsubnets[allpriv],
availability_zone=zones[allpriv],
tags={
"Name" : privnames[allpriv]
}

)
)

eips=[ "eip1" , "eip2" , "eip3" ]

for alleips in range(len(eips)):
eips[alleips]=aws.ec2.Eip(
eips[alleips],
aws.ec2.EipArgs(
domain="vpc",
tags={
"Name" : eips[alleips]
}
)
)

nats=[ "natgw1" , "natgw2" , "natgw3" ]

mynats= {

"nat1" : aws.ec2.NatGateway(
"nat1",
connectivity_type="public",
subnet_id=pubnames[allpub].id,
allocation_id=eips[0].allocation_id,
tags={
"Name" : "nat1"
}
),

"nat2" : aws.ec2.NatGateway(
"nat2",
connectivity_type="public",
subnet_id=pubnames[1].id,
allocation_id=eips[1].allocation_id,
tags={
"Name" : "nat2"
}
),

"nat3" : aws.ec2.NatGateway(
"nat3",
connectivity_type="public",
subnet_id=pubnames[2].id,
allocation_id=eips[2].allocation_id,
tags={
"Name" : "nat3"
}
),

}

priv2table2=aws.ec2.RouteTable(
"priv2table2",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
nat_gateway_id=mynats["nat1"]
)
],
tags={

"Name" : "priv2table2"
}
)
)

priv3table3=aws.ec2.RouteTable(
"priv3table3",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
nat_gateway_id=mynats["nat2"]
)
],
tags={

"Name" : "priv3table3"
}
)
)

priv4table4=aws.ec2.RouteTable(
"priv4table4",
aws.ec2.RouteTableArgs(
vpc_id=vpc1.id,
routes=[
aws.ec2.RouteTableRouteArgs(
cidr_block=cfg1.require(key="any_ipv4_traffic"),
nat_gateway_id=mynats["nat3"]
)
],
tags={

"Name" : "priv4table4"
}
)
)

privassociate1=aws.ec2.RouteTableAssociation(
"privassociate1",
aws.ec2.RouteTableAssociationArgs(
subnet_id=privnames[0].id,
route_table_id=priv2table2.id
)
)

privassociate2=aws.ec2.RouteTableAssociation(
"privassociate2",
aws.ec2.RouteTableAssociationArgs(
subnet_id=privnames[1].id,
route_table_id=priv3table3.id
)
)

privassociate3=aws.ec2.RouteTableAssociation(
"privassociate3",
aws.ec2.RouteTableAssociationArgs(
subnet_id=privnames[2].id,
route_table_id=priv4table4.id
)
)

nacl_ingress_trafic=[
aws.ec2.NetworkAclIngressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="myips"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=100
),
aws.ec2.NetworkAclIngressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="deny",
rule_no=101
),
aws.ec2.NetworkAclIngressArgs(
from_port=80,
to_port=80,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=200

),
aws.ec2.NetworkAclIngressArgs(
from_port=443,
to_port=443,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=300
),
aws.ec2.NetworkAclIngressArgs(
from_port=1024,
to_port=65535,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=400
),
aws.ec2.NetworkAclIngressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=500
)
]

nacl_egress_trafic=[
aws.ec2.NetworkAclEgressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="myips"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=100
),
aws.ec2.NetworkAclEgressArgs(
from_port=22,
to_port=22,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="deny",
rule_no=101
),
aws.ec2.NetworkAclEgressArgs(
from_port=80,
to_port=80,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=200

),
aws.ec2.NetworkAclEgressArgs(
from_port=443,
to_port=443,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=300
),

aws.ec2.NetworkAclEgressArgs(
from_port=1024,
to_port=65535,
protocol="tcp",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=400
),
aws.ec2.NetworkAclEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_block=cfg1.require(key="any_ipv4_traffic"),
icmp_code=0,
icmp_type=0,
action="allow",
rule_no=500
)
]

mynacls=aws.ec2.NetworkAcl(
"mynacls",
aws.ec2.NetworkAclArgs(
vpc_id=vpc1.id,
ingress=nacl_ingress_trafic,
egress=nacl_egress_trafic,
tags={
"Name": "mynacls"
}
)
)

nacl_associate1=aws.ec2.NetworkAclAssociation(
"nacl_associate1",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[0].id
),
)

nacl1=aws.ec2.NetworkAclAssociation(
"nacl1",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[0].id
)
)
nacl2=aws.ec2.NetworkAclAssociation(
"nacl2",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[1].id
)
),

nacl3=aws.ec2.NetworkAclAssociation(
"nacl3",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=pubnames[2].id
)
),

nacl4=aws.ec2.NetworkAclAssociation(
"nacl4",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=privnames[0].id
)
),

nacl5=aws.ec2.NetworkAclAssociation(
"nacl5",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=privnames[1].id
)
),
nacl6=aws.ec2.NetworkAclAssociation(
"nacl6",
aws.ec2.NetworkAclAssociationArgs(
network_acl_id=mynacls.id,
subnet_id=privnames[2].id
)
),

master_ingress_rule={
"rule2":aws.ec2.SecurityGroupIngressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[ cfg1.require(key="any_ipv4_traffic") ]
),
}

master_egress_rule={
"rule5": aws.ec2.SecurityGroupEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[ cfg1.require(key="any_ipv4_traffic") ]
)
}

mastersecurity=aws.ec2.SecurityGroup(
"mastersecurity",
aws.ec2.SecurityGroupArgs(
name="mastersecurity",
vpc_id=vpc1.id,
tags={
"Name" : "mastersecurity"
},
ingress=[
master_ingress_rule["rule2"],
],
egress=[master_egress_rule["rule5"]]
)
)

worker_ingress_rule={
"rule2": aws.ec2.SecurityGroupIngressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[cfg1.require(key="any_ipv4_traffic")]
),
}

worker_egress_rule={
"rule5": aws.ec2.SecurityGroupEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[ cfg1.require(key="any_ipv4_traffic") ]
)
}

workersecurity=aws.ec2.SecurityGroup(
"workersecurity",
aws.ec2.SecurityGroupArgs(
name="workersecurity",
vpc_id=vpc1.id,
tags={
"Name" : "workersecurity"
},
ingress=[
worker_ingress_rule["rule2"]
],
egress=[worker_egress_rule["rule5"]]
)
)

lbsecurity=aws.ec2.SecurityGroup(
"lbsecurity",
aws.ec2.SecurityGroupArgs(
name="lbsecurity",
vpc_id=vpc1.id,
tags={
"Name" : "lbsecurity"
},
ingress=[
aws.ec2.SecurityGroupIngressArgs(
from_port=6443,
to_port=6443,
protocol="tcp",
cidr_blocks=[cfg1.require(key="any_ipv4_traffic")] # for kube-apiserver
),
],
egress=[
aws.ec2.SecurityGroupEgressArgs(
from_port=0,
to_port=0,
protocol="-1",
cidr_blocks=[cfg1.require(key="any_ipv4_traffic")]
)
]
)
)

mylb=aws.lb.LoadBalancer(
"mylb",
aws.lb.LoadBalancerArgs(
name="mylb",
load_balancer_type="network",
idle_timeout=300,
ip_address_type="ipv4",
security_groups=[lbsecurity.id],
subnets=[
pubnames[0].id,
pubnames[1].id,
pubnames[2].id
],
tags={
"Name" : "mylb"
},
internal=False,
enable_cross_zone_load_balancing=True
)
)

mytargets2=aws.lb.TargetGroup(
"mytargets2",
aws.lb.TargetGroupArgs(
name="mytargets2",
port=6443,
protocol="TCP",
target_type="instance",
vpc_id=vpc1.id,
tags={
"Name" : "mytargets2"
},
health_check=aws.lb.TargetGroupHealthCheckArgs(
enabled=True,
interval=60,
port="traffic-port",
healthy_threshold=3,
unhealthy_threshold=3,
timeout=30,
matcher="200-599"
)
)
)

listener1=aws.lb.Listener(
"listener1",
aws.lb.ListenerArgs(
load_balancer_arn=mylb.arn,
port=6443,
protocol="TCP",
default_actions=[
aws.lb.ListenerDefaultActionArgs(
type="forward",
target_group_arn=mytargets2.arn
),
]
)
)

clusters_role=aws.iam.Role(
"clusters_role",
aws.iam.RoleArgs(
name="clustersroles",
assume_role_policy=json.dumps({
"Version" : "2012-10-17",
"Statement" : [{
"Effect" : "Allow",
"Action": "sts:AssumeRole",
"Principal": {
"Service" : "ec2.amazonaws.com"
}
}]

})
)
)

ssmattach1=aws.iam.RolePolicyAttachment(
"ssmattach1",
aws.iam.RolePolicyAttachmentArgs(
role=clusters_role.name,
policy_arn=aws.iam.ManagedPolicy.AMAZON_SSM_MANAGED_EC2_INSTANCE_DEFAULT_POLICY
)
)

myprofile=aws.iam.InstanceProfile(
"myprofile",
aws.iam.InstanceProfileArgs(
name="myprofile",
role=clusters_role.name,
tags={
"Name" : "myprofile"
}

)
)

mastertemps=aws.ec2.LaunchTemplate(
"mastertemps",
aws.ec2.LaunchTemplateArgs(
image_id=cfg1.require(key="ami"),
name="mastertemps",
instance_type=cfg1.require(key="instance-type"),
vpc_security_group_ids=[mastersecurity.id],
block_device_mappings=[
aws.ec2.LaunchTemplateBlockDeviceMappingArgs(
device_name="/dev/sdb",
ebs=aws.ec2.LaunchTemplateBlockDeviceMappingEbsArgs(
volume_size=8,
volume_type="gp3",
delete_on_termination=True,
encrypted="false"
)
)
],
tags={
"Name" : "mastertemps"
},
iam_instance_profile= aws.ec2.LaunchTemplateIamInstanceProfileArgs(
arn=myprofile.arn
)
)
)

controlplane=aws.autoscaling.Group(
"controlplane",
aws.autoscaling.GroupArgs(
name="controlplane",
vpc_zone_identifiers=[
pubnames[0].id,
pubnames[1].id,
pubnames[2].id
],
desired_capacity=3,
max_size=9,
min_size=1,
launch_template=aws.autoscaling.GroupLaunchTemplateArgs(
id=mastertemps.id,
version="$Latest"
),
default_cooldown=600,
tags=[
aws.autoscaling.GroupTagArgs(
key="Name",
value="controlplane",
propagate_at_launch=True
)
],
health_check_grace_period=600,
health_check_type="EC2",
)
)

lbattach=aws.autoscaling.Attachment(
"lbattach",
aws.autoscaling.AttachmentArgs(
autoscaling_group_name=controlplane.name ,
lb_target_group_arn=mytargets2.arn
)
)

workertemps=aws.ec2.LaunchTemplate(
"workertemps",
aws.ec2.LaunchTemplateArgs(
image_id=cfg1.require(key="ami"),
name="workertemps",
instance_type=cfg1.require(key="instance-type"),
vpc_security_group_ids=[mastersecurity.id],
block_device_mappings=[
aws.ec2.LaunchTemplateBlockDeviceMappingArgs(
device_name="/dev/sdr",
ebs=aws.ec2.LaunchTemplateBlockDeviceMappingEbsArgs(
volume_size=8,
volume_type="gp3",
delete_on_termination=True,
encrypted="false"
)
)
],
tags={
"Name" : "workertemps"
},
iam_instance_profile=aws.ec2.LaunchTemplateIamInstanceProfileArgs(
arn=myprofile.arn
)
)
)

worker=aws.autoscaling.Group(
"worker",
aws.autoscaling.GroupArgs(
name="worker",
vpc_zone_identifiers=[
privnames[0].id,
privnames[1].id,
privnames[2].id
],
desired_capacity=3,
max_size=9,
min_size=1,
launch_template=aws.autoscaling.GroupLaunchTemplateArgs(
id=workertemps.id,
version="$Latest"
),
default_cooldown=600,
tags=[
aws.autoscaling.GroupTagArgs(
key="Name",
value="worker",
propagate_at_launch=True
)
],
health_check_grace_period=600,
health_check_type="EC2",
)
)

myssmdoc=aws.ssm.Document(
"myssmdoc",
aws.ssm.DocumentArgs(
name="mydoc",
document_format="YAML",
document_type="Command",
version_name="1.1.0",
content="""schemaVersion: '1.2'
description: Check ip configuration of a Linux instance.
parameters: {}
runtimeConfig:
'aws:runShellScript':
properties:

• id: '0.aws:runShellScript' runCommand:
• sudo su
• sudo apt update -y && sudo apt upgrade -y
• sudo apt install -y net-tools
• sudo systemctl enable amazon-ssm-agent --now

"""
)
)

myssmassociates=aws.ssm.Association(
"myssmassociates",
aws.ssm.AssociationArgs(
name=myssmdoc.name,
association_name="myssmassociates",
targets=[
aws.ssm.AssociationTargetArgs(
key="InstanceIds",
values=["*"]
)
],
)
)

controlplanes=aws.ec2.get_instances(
instance_tags={
"Name": "controlplane"
},
instance_state_names=["running"],
)

workers=aws.ec2.get_instances(
instance_tags={
"Name": "worker"
},
instance_state_names=["running"],
)

get_controlplanepubips=controlplanes.public_ips
get_controlplaneprivips=controlplanes.private_ips
get_workerprivips=workers.private_ips
get_loadbalancer=mylb.dns_name
pulumi.export("get_controlplanepubips", get_controlplanepubips)
pulumi.export("get_controlplaneprivips", get_controlplaneprivips)
pulumi.export("get_workerprivips", get_workerprivips)
pulumi.export("get_loadbalancer", get_loadbalancer)

Note:

for control plane security group

allow   all  traffic   in  inbound and  outbound  rules

for worker secuiity group

allow  all  traffic   in  inbound   and outbound  rules

for network load balancer security group

allow tcp 6443 for apiserver  which  allow  registered  target control plane nodes

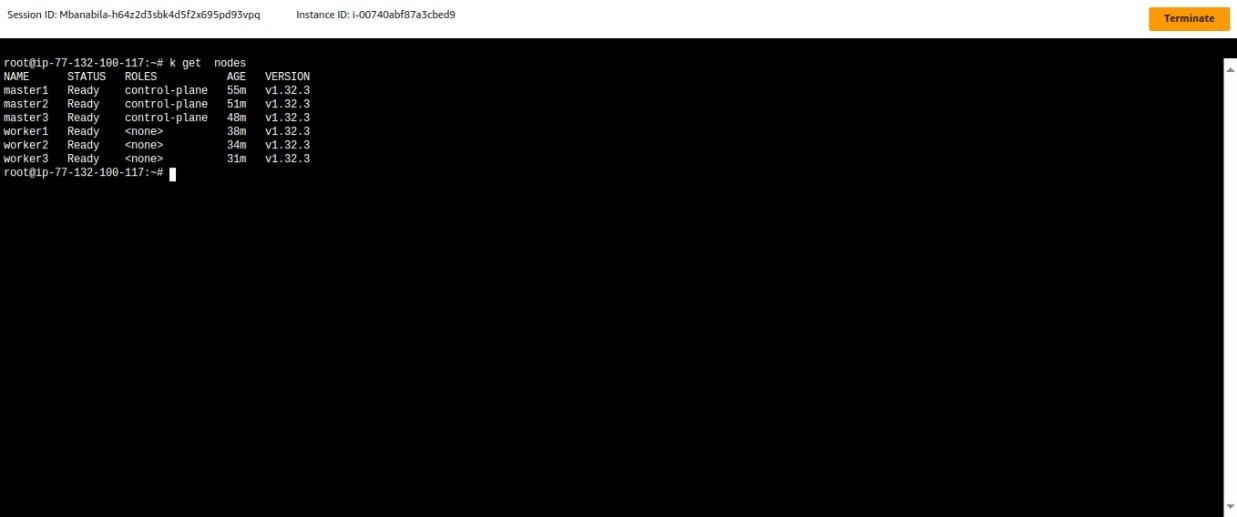

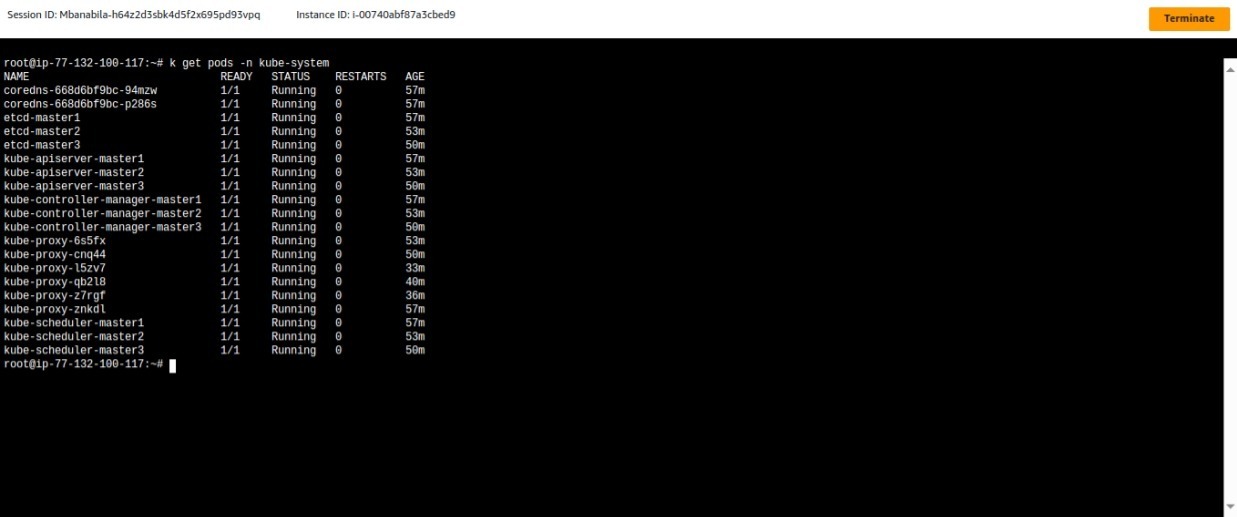

outcomes : from control plane and worker nodes

references:

https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/high-availability/

https://www.youtube.com/watch?v=FHXucrzqcZM&t=1944s
