When it comes to tuning and troubleshooting memory issues in Java, many people think only of the Java heap. However, the metaspace is also an important consideration. Metaspace memory is managed separately from the heap. Issues in this area can lead to performance problems and even system crashes, such as java.lang.outofmemoryerror: metaspace.

What is the metaspace? How do we troubleshoot and tune it? In this article, we’ll answer those questions.

What is the Metaspace?

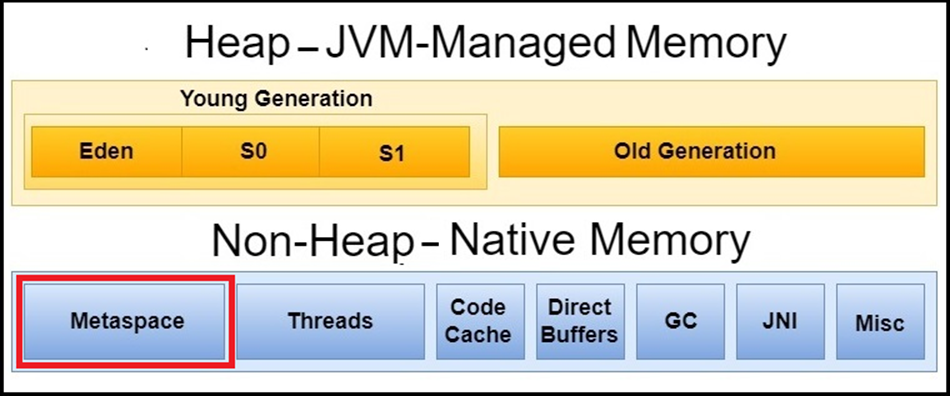

First let’s review the JVM memory model. The diagram below shows the various memory pools. Some of these are managed by the JVM, whereas others are stored in native memory managed by the operating system.

Image description
Fig: JVM Memory Model Showing the Metaspace

The metaspace is marked in red. It was introduced in Java 8 to replace the JVM-managed permanent generation (permgen) space. The metaspace is held in native memory allocated by the operating system as needed. It’s held as a collection of metaspace chunks, which are contiguous sections of memory.

The metaspace stores class definitions, including:

  • Name;

  • Byte code for each method;

  • Constants.

It may also hold other information, such as string pools.

Causes of the Error: java.lang.outofmemoryerror: metaspace

If the metaspace exceeds its size limit, the application will crash with the error: java.lang.outofmemoryerror: metaspace. This is likely to be caused by either too many classes being created, or, in rare cases, by using too many class loaders.

Why is an application likely to have too many classes? The reasons include:

  • Dynamic class loading, typically when using either Java Reflection or Groovy Scripting;

  • Extensive use of large 3rd-party libraries;

  • Memory leaks, which happen either because classes are not dereferenced when no longer in use, or because a method that creates classes is repeated without a valid termination condition.

Troubleshooting java.lang.outofmemoryerror: metaspace

There are many ways of troubleshooting and monitoring metaspace usage. This article, How to Inspect the Contents of the Java Metaspace Region, covers several tools that provide useful information.

From JDK 11 onwards, the following JDK command is a quick way to summarize metaspace usage:

jcmd  VM.metaspace

It gives details of class usage, non-class usage and totals.

For a worked example, including a sample program and a step-by-step guide to troubleshooting with the HeapHero tool, read: Java Out of Memory: Metaspace.

Tuning the Metaspace

When we experience the error: java.lang.outofmemoryerror: metaspace, the first step is to ensure there are no memory leaks. As shown in the article linked above, HeapHero is an excellent tool for identifying application errors that affect memory.

If the program is running as it should, the next step is to make the metaspace bigger.

The following JVM switches can be used to adjust the size:

  • -XX:MetaspaceSize=: Sets the initial size of the metaspace;

  • -XX:MaxMetaspaceSize: Sets the maximum size to which the metaspace is allowed to grow.

The metaspace is cleaned by the JVM’s garbage collector, but only during full GC events. When using dynamic classes, it may not be cleared quickly enough to avoid Out of Memory errors. We can tune the garbage collection by setting the maximum and minimum fill percentages at which GC is triggered:

  • -XX:MaxMetaspaceFreeRatio=

  • -XX:MinMetaspaceFreeRatio=

A good tool for analyzing the efficiency of the garbage collector is GCeasy.

Conclusion

Never leave the metaspace out of account when tuning and
troubleshooting Java applications. You could find yourself experiencing poor
performance in production, and application failures such as java.lang.outofmemoryerror:metaspace.

In summary, the metaspace is a pool held in native memory.
It’s primarily used for class definitions. You can tune its size and garbage
collection policy using JVM runtime switches.

HeapHero and GCeasy are great tools for troubleshooting
issues in the metaspace.
