The OSI model — short for Open Systems Interconnection — is one of the foundational concepts in computer networking. It might sound technical and overwhelming, but once you break it down with real-life examples, it’s surprisingly easy to understand.
In this post, we’ll explore all 7 layers of the OSI Model, dive into what each one actually does, see where it's used in everyday tech, and wrap it all up with a clean visual chart to tie everything together.
📦 What Is the OSI Model?
The OSI Model is a conceptual framework used to understand how data moves from one computer to another over a network. It splits the process into 7 layers, each with a specific role — from the app you’re using, all the way down to the cable that transmits data.
🔍 Real-Life Examples of the OSI Layers
Let’s break it down, layer by layer — with examples you’ve probably used today without even realizing it!
1️⃣ Application Layer (Layer 7)
- What it does: The layer closest to you — the user. It allows applications to communicate over a network.
- Real-World Examples:
- Opening Chrome and browsing to https://www.google.com (uses HTTP/HTTPS)
- Checking emails with Outlook (uses SMTP, IMAP, POP3)
Using WhatsApp Web
2️⃣ Presentation Layer (Layer 6)What it does: Formats and translates data for the application layer. It handles encryption, compression, and data conversion.
Real-World Examples:
Loading a secure website (TLS/SSL)
Watching YouTube (video/audio decoding like MP4, AAC)
Opening a .JPEG image
3️⃣ Session Layer (Layer 5)
- What it does: Manages sessions (connections) between two devices. It starts, maintains, and ends communication.
- Real-World Examples:
- Logging into a website — your login session is managed here
- Joining a Zoom meeting — session is kept alive throughout the call
- Remote Desktop Protocol (RDP)
4️⃣ Transport Layer (Layer 4)
- What it does: Ensures reliable (or fast) delivery of data — handles flow control, error handling, and segmentation.
- Real-World Examples:
- Downloading a file with guaranteed delivery (TCP)
- Making a voice call on WhatsApp with faster, less-reliable UDP
- Playing an online game — prefers speed over perfection (UDP)
5️⃣ Network Layer (Layer 3)
- What it does: Routes data from one computer to another using IP addresses.
- Real-World Examples:
- Sending an email across the internet
- Watching Netflix — packets routed using your public IP
- Using ping or traceroute (uses ICMP protocol)
6️⃣ Data Link Layer (Layer 2)
- What it does: Handles delivery of data between two devices on the same network using MAC addresses.
- Real-World Examples:
- Your laptop talking to your router via Wi-Fi
- MAC address filtering on your home Wi-Fi
- Ethernet communication within a local office
7️⃣ Physical Layer (Layer 1)
- What it does: The actual hardware and physical transmission of data — bits over cables, fiber, or radio waves.
- Real-World Examples:
- Ethernet cables or fiber optics
- Wi-Fi radio signals
- Network Interface Cards (NICs), switches, or signal loss due to broken wires

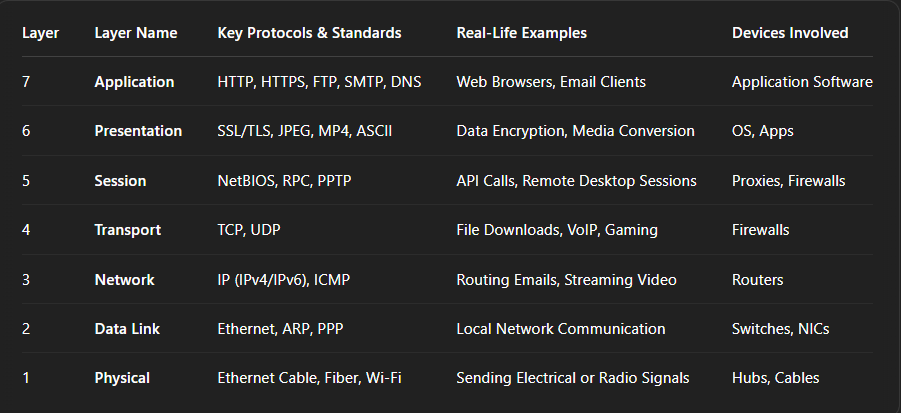

📊 OSI Model Cheat Sheet (Chart Style)
🧬 Full Process Example (WhatsApp Video Call):
Here’s how a WhatsApp video call uses the OSI layers:
Application – You press "Call" in WhatsApp
Presentation – Your voice is compressed & encrypted
Session – A call session is established between devices
Transport – Data is sent via UDP for speed
Network – Packets are routed using your IP
Data Link – Router sends the data using MAC addresses
Physical – Data travels over Wi-Fi/fiber to the internet
🚀 Final Thoughts
The OSI Model isn’t just for network engineers — it’s the backbone of how everything from video calls to web browsing works. The next time you stream a movie or send a message, just remember: there’s a lot happening behind the scenes in those 7 layers.
If this post helped clarify the OSI Model for you, feel free to share it or drop a comment! And if you want more deep dives like this (or cheat sheets), let me know 💬
