Visual Grounding from Docling!

curl -sfL https://raw.githubusercontent.com/milvus-io/milvus/master/scripts/standalone_embed.sh

mkdir volumes/milvus

bash ./standalone_embed.sh start

from pymilvus import connections

try:
    connections.connect(host="127.0.0.1", port="19530")
    print("Milvus connection successful!")
    connections.disconnect("default")
except Exception as e:
    print(f"Milvus connection failed: {e}")

python3.12 -m venv myenv
source myenv/bin/activate

import sys
print(sys.version)

pip install --upgrade pip
pip install langchain-docling langchain-core langchain-huggingface langchain_milvus langchain matplotlib python-dotenv
pip install hf_xet
pip install --upgrade langchain-huggingface

HF_TOKEN="YOUR-HUGGINGFACE-TOKEN"
TOKENIZERS_PARALLELISM=true

import os
from pathlib import Path
from tempfile import mkdtemp
from dotenv import load_dotenv
from langchain_core.prompts import PromptTemplate
from langchain_docling.loader import ExportType
from langchain_huggingface.embeddings import HuggingFaceEmbeddings
from langchain_milvus import Milvus
from langchain.chains import create_retrieval_chain
from langchain.chains.combine_documents import create_stuff_documents_chain
from langchain_huggingface import HuggingFaceEndpoint
import json
import matplotlib.pyplot as plt
from PIL import Image, ImageDraw
from docling.datamodel.base_models import InputFormat
from docling.datamodel.pipeline_options import PdfPipelineOptions
from docling.document_converter import DocumentConverter, PdfFormatOption
from langchain_docling import DoclingLoader
from docling.chunking import HybridChunker, DocMeta
from docling.datamodel.document import DoclingDocument

def _get_env_from_colab_or_os(key):
    try:
        from google.colab import userdata
        try:
            return userdata.get(key)
        except userdata.SecretNotFoundError:
            pass
    except ImportError:
        pass
    return os.getenv(key)

load_dotenv()

# --- Configuration ---
HF_TOKEN = _get_env_from_colab_or_os("HF_TOKEN")
#SOURCES = ["https://arxiv.org/pdf/2408.09869"] # from the original code
SOURCES = ["./input/2408.00986v1.pdf"]  # Docling Technical Report downloaded locally
EMBED_MODEL_ID = "sentence-transformers/all-MiniLM-L6-v2"
GEN_MODEL_ID = "mistralai/Mixtral-8x7B-Instruct-v0.1" # or whatever model available and of your choice
QUESTION = "Which are the main AI models in Docling?"
PROMPT = PromptTemplate.from_template(
    "Context information is below.\n---------------------\n{context}\n---------------------\nGiven the context information and not prior knowledge, answer the query.\nQuery: {input}\nAnswer:\n",
)
TOP_K = 3
MILVUS_URI = str(Path(mkdtemp()) / "docling.db")
DOC_STORE = {}
DOC_STORE_ROOT = Path(mkdtemp())

def clip_text(text, threshold=100):
    return f"{text[:threshold]}..." if len(text) > threshold else text

def main():
    global DOC_STORE

    # --- Document Converter Setup ---
    converter = DocumentConverter(
        format_options={
            InputFormat.PDF: PdfFormatOption(
                pipeline_options=PdfPipelineOptions(
                    generate_page_images=True,
                    images_scale=2.0,
                ),
            )
        }
    )

    # --- Document Loading and Saving to Doc Store ---
    for source in SOURCES:
        dl_doc = converter.convert(source=source).document
        file_path = Path(DOC_STORE_ROOT / f"{dl_doc.origin.binary_hash}.json")
        dl_doc.save_as_json(file_path)
        DOC_STORE[dl_doc.origin.binary_hash] = file_path

    # --- Document Loading and Chunking ---
    loader = DoclingLoader(
        file_path=SOURCES,
        converter=converter,
        export_type=ExportType.DOC_CHUNKS,
        chunker=HybridChunker(tokenizer=EMBED_MODEL_ID),
    )
    docs = loader.load()
    print("Documents loaded and chunked.")

    # --- Ingestion ---
    embedding = HuggingFaceEmbeddings(model_name=EMBED_MODEL_ID)
    vectorstore = Milvus.from_documents(
        documents=docs,
        embedding=embedding,
        collection_name="docling_demo",
        connection_args={"uri": MILVUS_URI},
        index_params={"index_type": "FLAT"},
        drop_old=True,
    )
    print("Documents embedded and stored in Milvus.")

    # --- RAG ---
    retriever = vectorstore.as_retriever(search_kwargs={"k": TOP_K})
    llm = HuggingFaceEndpoint(
        repo_id=GEN_MODEL_ID,
        huggingfacehub_api_token=HF_TOKEN,
        task="text-generation"
    )
    question_answer_chain = create_stuff_documents_chain(llm, PROMPT)
    rag_chain = create_retrieval_chain(retriever, question_answer_chain)
    resp_dict = rag_chain.invoke({"input": QUESTION})
    clipped_answer = clip_text(resp_dict["answer"], threshold=200)
    print(f"\nQuestion:\n{resp_dict['input']}\n\nAnswer:\n{clipped_answer}")

    # --- Visual Grounding ---
    print("\nVisual Grounding:")
    for i, doc in enumerate(resp_dict["context"][:]):
        image_by_page = {}
        print(f"Source {i+1}:")
        print(f"  text: {json.dumps(clip_text(doc.page_content, threshold=350))}")
        meta = DocMeta.model_validate(doc.metadata["dl_meta"])

        # loading the full DoclingDocument from the document store:
        dl_doc = DoclingDocument.load_from_json(DOC_STORE.get(meta.origin.binary_hash))

        for doc_item in meta.doc_items:
            if doc_item.prov:
                prov = doc_item.prov[0]  # here we only consider the first provenance item
                page_no = prov.page_no
                if img := image_by_page.get(page_no):
                    pass
                else:
                    page = dl_doc.pages[prov.page_no]
                    print(f"  page: {prov.page_no}")
                    img = page.image.pil_image
                    image_by_page[page_no] = img
                bbox = prov.bbox.to_top_left_origin(page_height=page.size.height)
                bbox = bbox.normalized(page.size)
                thickness = 2
                padding = thickness + 2
                bbox.l = round(bbox.l * img.width - padding)
                bbox.r = round(bbox.r * img.width + padding)
                bbox.t = round(bbox.t * img.height - padding)
                bbox.b = round(bbox.b * img.height + padding)
                draw = ImageDraw.Draw(img)
                draw.rectangle(
                    xy=bbox.as_tuple(),
                    outline="blue",
                    width=thickness,
                )
        for p in image_by_page:
            img = image_by_page[p]
            plt.figure(figsize=[15, 15])
            plt.imshow(img)
            plt.axis("off")
            plt.title(f"Page {p+1}")
            plt.show() # Consider plt.savefig(f"page_{p+1}.png") to save images instead of showing

if __name__ == "__main__":
    main()

Token indices sequence length is longer than the specified maximum sequence length for this model (528 > 512). Running this sequence through the model will result in indexing errors
Documents loaded and chunked.
Documents embedded and stored in Milvus.
Note: Environment variable`HF_TOKEN` is set and is the current active token independently from the token you've just configured.
/Users/alainairom/Devs/dataprepkit-work/docling-visualgrounding/myenv/lib/python3.12/site-packages/huggingface_hub/utils/_deprecation.py:131: FutureWarning: 'post' (from 'huggingface_hub.inference._client') is deprecated and will be removed from version '0.31.0'. Making direct POST requests to the inference server is not supported anymore. Please use task methods instead (e.g. `InferenceClient.chat_completion`). If your use case is not supported, please open an issue in https://github.com/huggingface/huggingface_hub.
  warnings.warn(warning_message, FutureWarning)

Question:
Which are the main AI models in Docling?

Answer:
The main AI models mentioned in the document are Bayesian networks (BNs) and neural networks.

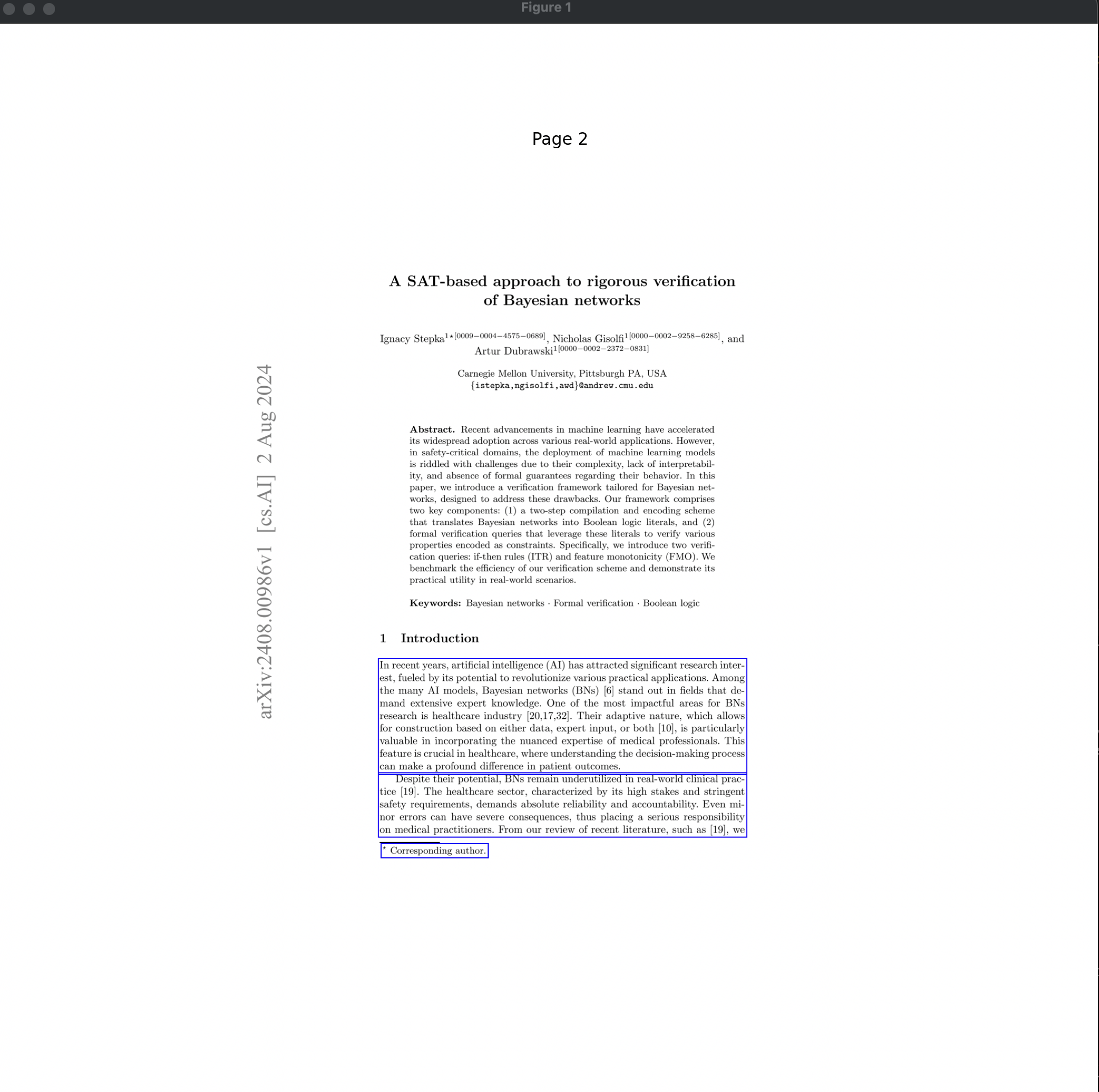

Visual Grounding:
Source 1:
  text: "1 Introduction\nIn recent years, artificial intelligence (AI) has attracted significant research interest, fueled by its potential to revolutionize various practical applications. Among the many AI models, Bayesian networks (BNs) [6] stand out in fields that demand extensive expert knowledge. One of the most impactful areas for BNs research is healt..."
  page: 1
  page: 2
...
