*Introduction *
The 3-Tier AWS Architecture is a robust framework designed to separate different aspects of applications into three distinct layers: Presentation, Application, and Data. Leveraging Amazon RDS (Relational Database Service) as its database layer, this architecture enhances scalability, security, and manageability, making it ideal for modern cloud-native applications.
*Purpose of the Architecture *
The primary purpose of the 3-Tier Architecture is to improve modularity, allowing each layer to operate independently while communicating through defined interfaces. This separation of concerns not only simplifies the development process but also facilitates easier maintenance and upgrades.
*Benefits of 3-Tier Architecture *
Implementing a 3-Tier Architecture offers numerous advantages, including:
Scalability: Each layer can be scaled independently based on demand, ensuring optimal performance.
Flexibility: Developers can choose different technologies or services for each layer, tailored to specific needs.
Improved Security: Sensitive data is safeguarded in the Data layer, minimizing exposure and enforcing tighter access controls.
High Availability: Amazon RDS allows for automated backups and multi-AZ (Availability Zone) deployments, enhancing reliability.
*Key Components of the Architecture *
The fundamental components of the 3-Tier AWS Architecture are as follows:
_Presentation Tier: The user interface and experience are managed here. This could include web browsers or mobile applications interacting with the application layer through APIs.
Application Tier: This layer contains the business logic. It processes requests from the Presentation tier and communicates with the Data tier. This logic can be hosted on AWS services like Elastic Beanstalk, EC2, or Lambda.
Data Tier: Amazon RDS plays a critical role in this tier, managing the structured data required for applications. RDS supports various database engines, enabling efficient data storage, retrieval, and manipulation.
_
By harnessing these components, organizations can efficiently build scalable and secure applications that cater to evolving customer demands while ensuring high performance and reliability.

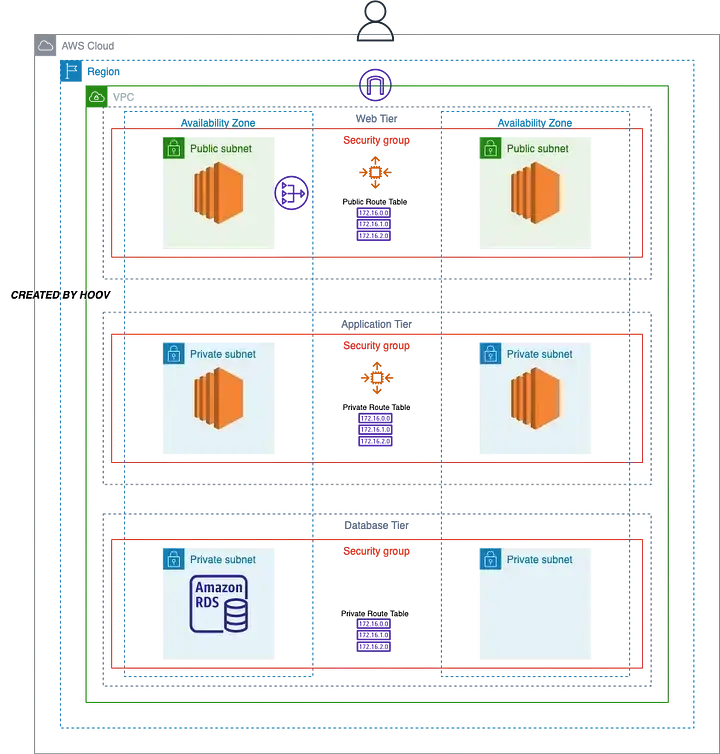

*Architecture Diagram *
To visualize the 3-Tier AWS Architecture, we present a high-level diagram illustrating the interconnection and functionality of each tier. The diagram is structured into three main layers:
*Key Components Explained *
Presentation Tier: This is the front-facing layer where users interact with the application. It includes web browsers, mobile apps, and other front-end frameworks communicating with the back-end via APIs.
Application Tier: Positioned at the centre, this layer encapsulates the business logic, facilitating request processing from the Presentation tier. It can utilize various AWS services, such as EC2 or AWS Lambda, to run the application code.
Data Tier: The backbone of storage in this architecture, represented by Amazon RDS, handles all database interactions. It manages structured data and ensures the efficiency, reliability, and security of data transactions.
This clear structural separation enables better scalability, security, and maintainability, ultimately leading to a more robust application environment.
Tier-wise Breakdown
In this section, we take an in-depth look at each tier of the architecture – the Presentation, Application, and Data tiers. We examine the components integral to each tier, detail their specific roles within the overall system, and elaborate upon the security measures and best practices that underpin their functionality. This comprehensive tier-wise breakdown will assist IT professionals, software architects, and DevOps engineers in designing, implementing, and securing a scalable and robust cloud solution using AWS.
Presentation Tier
The Presentation Tier, often referred to as the front-end, is the primary interface between users and the application. This tier is engineered to deliver an immersive and responsive experience to end-users. Below is a detailed breakdown of its components, roles, security measures, and best practices:
*Key Components and Roles: *
User Interfaces (UI):
Web browsers, mobile applications, or even desktop applications serve as the primary entry points for users. These interfaces are designed using technologies such as HTML, CSS, JavaScript, and modern frameworks like React, Angular, or Vue.js.
The UI components are responsible for rendering application data and accepting user input, ensuring intuitive navigation and interactive elements.
API Gateways:
This layer often utilizes API Gateways to manage interactions with the backend services. API Gateways act as a mediator, routing requests, enforcing rate limiting, and providing additional security layers.
They also help consolidate multiple backend services into a single endpoint, streamlining communication from the user’s perspective.
Security Measures:
SSL/TLS Encryption:
All communications between the client devices and the backend services are encrypted using SSL/TLS. This process ensures that data remains private and is not susceptible to interception.
Content Security Policy (CSP):
Implementing CSP headers helps mitigate risks associated with cross-site scripting (XSS) attacks and data injection by restricting the sources from which resources can be loaded.
User Authentication and Authorization:
Robust mechanisms are in place to confirm the identity of each user. Techniques include OAuth for single sign-on (SSO), JSON Web Tokens (JWT) for session management, and Multi-Factor Authentication (MFA) to safeguard accounts.
Best Practices for the Presentation Tier:
Responsive Design:
Ensure that applications are designed to be responsive across multiple devices. This can be achieved by using frameworks like Bootstrap or Tailwind CSS, which adapt to different screen sizes and orientations.
Performance Optimization:
Techniques such as lazy loading, bundling, and caching of static assets should be implemented to accelerate page load times. The optimization of images, minimization of CSS and JavaScript files, and the use of Content Delivery Networks (CDNs) to distribute content efficiently are key considerations.
Regular Security Audits:
Scheduled security auditing and vulnerability scanning help to maintain a secure environment. Browser-based vulnerabilities should be regularly assessed to ensure protection against emerging threats.
Application Tier
The Application Tier serves as the backbone of the system’s business logic. This middle layer processes requests received from the Presentation Tier and communicates with the Data Tier to retrieve or store information. It is vital to the system’s functionality because it encapsulates critical operations and core algorithms.
*Key Components and Roles: *
Business Logic and Microservices:
The Application Tier is composed of various business logic components and microservices. These services are responsible for executing application-specific operations, ranging from session management to complex transaction processing.
Microservices may be deployed using containers (e.g., Docker) on platforms such as Amazon Elastic Container Service (ECS) or Kubernetes managed through Amazon EKS. This architecture enables each service to be scaled independently based on demand and workload.
Serverless Functions:
AWS Lambda plays a crucial role in streamlining application operations. Serverless functions are employed for event-based tasks, which lower operational overhead and allow for high scalability without managing underlying servers.
Load Balancers:
Elastic Load Balancing (ELB) distributes incoming application traffic across multiple instances, ensuring fault tolerance and smooth user experiences. It also supports SSL termination, which helps in offloading cryptographic workload from individual application instances.
Security Measures:
Authentication Layers:
Application-tier services utilize centralized authentication systems such as AWS Cognito. This not only centralizes user management but also integrates seamlessly with the API Gateway for improved consistency.
Role-Based Access Control (RBAC):
Fine-grained access control is implemented for each service and microservice, ensuring that only authorized entities have permissions to perform specific actions within the application.
Network Security and API Security:
The application layer is protected by security groups and network ACLs within the Virtual Private Cloud (VPC). Regular audits, continuous integration of security patches, and Web Application Firewalls (WAF) further reduce vulnerabilities.
Best Practices for the Application Tier:
Service Decoupling:
Designing the application tier with loosely coupled microservices facilitates better maintainability, development velocity, and resiliency. This decoupling allows each service to be scaled and updated independently.
Monitoring and Logging:
Integrating tools like AWS CloudWatch and X-Ray provides crucial insights into application performance and potential bottlenecks. Implementing distributed tracing aids in identifying latency issues and debugging microservices.
Automated Infrastructure Management:
Utilizing Infrastructure as Code (IaC) tools, such as AWS CloudFormation or Terraform, ensures that the environment is reproducible, auditable, and consistent across changes. Automated deployments and continuous integration/continuous deployment (CI/CD) pipelines streamline updates and scalability.
Data Tier
The Data Tier remains the repository of structured data, where Amazon RDS is used extensively for managing relational databases. This tier is essential for ensuring data integrity, security, consistent performance, and high availability.
Key Components and Roles:
Amazon RDS Instances:
Amazon RDS supports multiple database engines, including MySQL, PostgreSQL, Oracle, and SQL Server. These instances serve as the primary databases, storing critical business data and transactional records.
RDS provides automated backups, patch management, and replication features, which are essential to maintain data availability and reliability.
Read Replicas and Multi-AZ Deployments:
Read replicas are used to offload read operations from the primary database. This distribution of workload improves performance and reduces response times.
Multi-AZ (Availability Zone) deployments ensure redundancy by replicating data synchronously to a standby instance in a different zone. This configuration dramatically improves system resilience and minimizes downtime during maintenance or failures.
Data Caching:
Caching strategies, such as Amazon ElastiCache, are employed to enhance performance. Data caching reduces database load by storing frequently accessed data within in-memory data stores like Redis or Memcached.
Security Measures:
Database Encryption:
At-rest encryption using AWS Key Management Service (KMS) and encryption in transit guarantees that data remains secure against unauthorized access and interception. Both instance-level encryption and Transparent Data Encryption (TDE) are industry-standard practices.
Access Management:
Strict database access policies are enforced using Identity and Access Management (IAM) roles. Limiting access to only trusted entities, along with routine audits and rotation of credentials, helps safeguard sensitive data.
Regular Auditing and Monitoring:
RDS integrates with CloudTrail and CloudWatch to constantly monitor database activities. This transparent auditing process not only ensures compliance with security standards but also facilitates early detection of any suspicious or irregular activities.
Best Practices for the Data Tier:
Data Integrity and Backup Strategies:
Implement robust backup schedules and automated snapshot strategies to ensure that data is periodically backed up. Regular testing of the restore process is necessary to validate that backups can be reliably recovered in emergencies.
Performance Tuning:
Proactively monitoring and optimizing query performance is critical. Utilizing indexing strategies, query optimization techniques, and regular database maintenance tasks ensures that the system can efficiently handle large volumes of data.
Compliance and Data Retention:
Data governance policies should be established to ensure compliance with data retention regulations such as GDPR or HIPAA. Automated archival or deletion processes help manage the lifecycle of data efficiently.
Integrating these tier-specific technical insights not only builds a robust system that accommodates the unique demands of modern applications but also establishes a secure, scalable, and highly available infrastructure in AWS. Each tier is carefully designed to operate independently yet harmoniously, ensuring that the strengths of one tier complement the others. Leveraging these best practices and security measures facilitates a smooth operation and paves the way for continuous innovation and iterative improvements within the ecosystem.
Best Practices
In implementing a 3-Tier AWS Architecture, it’s essential to adhere to a set of best practices across four key areas: High Availability, Security, Scalability, and Backup & Recovery. Each of these practices contributes significantly to the architecture's overall robustness and resilience.
High Availability
Multi-AZ Deployments: Utilizing Amazon RDS in Multi-AZ configurations provides synchronous data replication, significantly increasing availability. If one Availability Zone (AZ) goes down, the application can seamlessly switch to another AZ.
Load Balancing: Implementing Elastic Load Balancing (ELB) distributes incoming traffic across multiple instances, ensuring no single point of failure. This setup allows seamless scaling during peak loads and enhances fault tolerance.
Health Checks: Regular health checks ensure that all instances are operational. Automating instance replacement when failures are detected minimizes downtime.
Security
VPC Segmentation: Use a Virtual Private Cloud (VPC) to isolate resources. By employing subnets, security groups, and Network ACLs, sensitive components can reside in private subnets, minimizing exposure to the public internet.
IAM Policies: Fine-grained Identity and Access Management (IAM) policies should enforce the principle of least privilege for users and services. Regular audits of IAM roles and permissions are necessary to maintain security posture.
Encryption: Enforce encryption at rest (using AWS Key Management Service) and in transit (through TLS) for sensitive data. This protects against unauthorized data access and ensures compliance with regulatory requirements.
Scalability
Auto Scaling: Implement Auto Scaling groups to automatically adjust the number of EC2 instances based on current demand. Defining scaling policies helps accommodate varying loads, ensuring both performance and cost-efficiency.
Database Read Replicas: For the Data Tier, use Amazon RDS Read Replicas to offload read traffic from the primary database. This improves response times and enables greater application scalability.
Serverless Architectures: Leverage AWS Lambda for certain application functions, allowing scalability without requiring server management. This event-driven model can handle varying loads with automatic scaling without extra overhead.
Backup & Recovery
Automated Backups: Schedule automated snapshots of Amazon RDS databases to ensure regular backups. This practice helps maintain data integrity and facilitates easy recovery in case of failure.
Disaster Recovery Planning: Develop a comprehensive disaster recovery plan, defining RTO (Recovery Time Objective) and RPO (Recovery Point Objective) to meet business continuity requirements. Regularly test the recovery process to ensure effectiveness.
Offsite Storage: Utilize AWS S3 for additional backup storage. Offsite backups offer an added layer of safety against data loss and enhance recovery options.
Implementing these best practices in your AWS 3-Tier Architecture will enhance high availability, reinforce security, ensure effective scalability, and establish a solid backup and recovery plan, creating a more resilient and efficient operational environment.
Conclusion
The 3-Tier AWS Architecture, coupled with Amazon RDS, presents a comprehensive framework that significantly enhances the deployment and manageability of applications in the cloud. Key takeaways encompass:
Scalability: Each tier can independently scale based on user demands, optimizing resource usage and ensuring performance.
High Availability: By utilizing Multi-AZ deployments and automated backups, this architecture promotes consistent uptime and data integrity, thus enabling seamless operations during outages.
Security: By implementing robust access controls and encryption methods, sensitive data remains protected, fostering trust and compliance with industry regulations.
Managed Database Advantages: Amazon RDS simplifies database management through automation, allowing teams to focus on application logic rather than infrastructure maintenance.
Next Steps for Implementation
Assessment: Begin by assessing current application requirements to determine specific configurations for each tier.
Design: Create tailored architectural designs that leverage AWS services optimally, ensuring the chosen technologies suit application needs.
Deployment: Utilize Infrastructure as Code (IaC) to ensure consistent and repeatable deployment practices.
Testing: Implement thorough testing protocols to validate performance, security, and disaster recovery mechanisms.
By strategically following these steps, organizations can ensure a robust, scalable, and secure cloud-based solution tailored to evolving demands.
