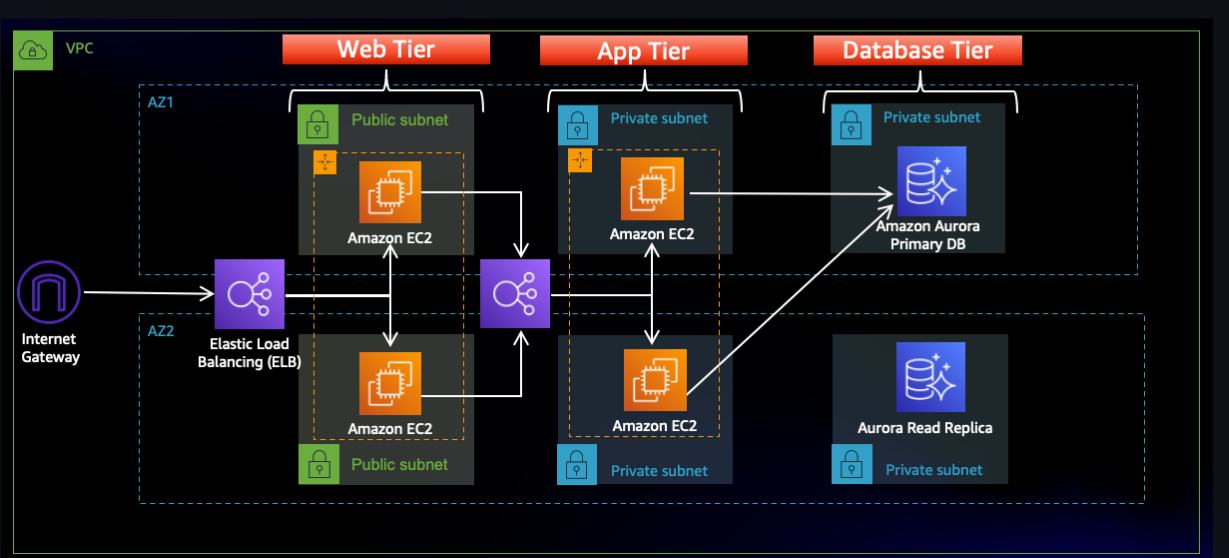

Three-tier architecture is a software design pattern that organizes an application into three separate layers or tiers. Each tier has a specific role, making the application easier to manage, scale, and develop.

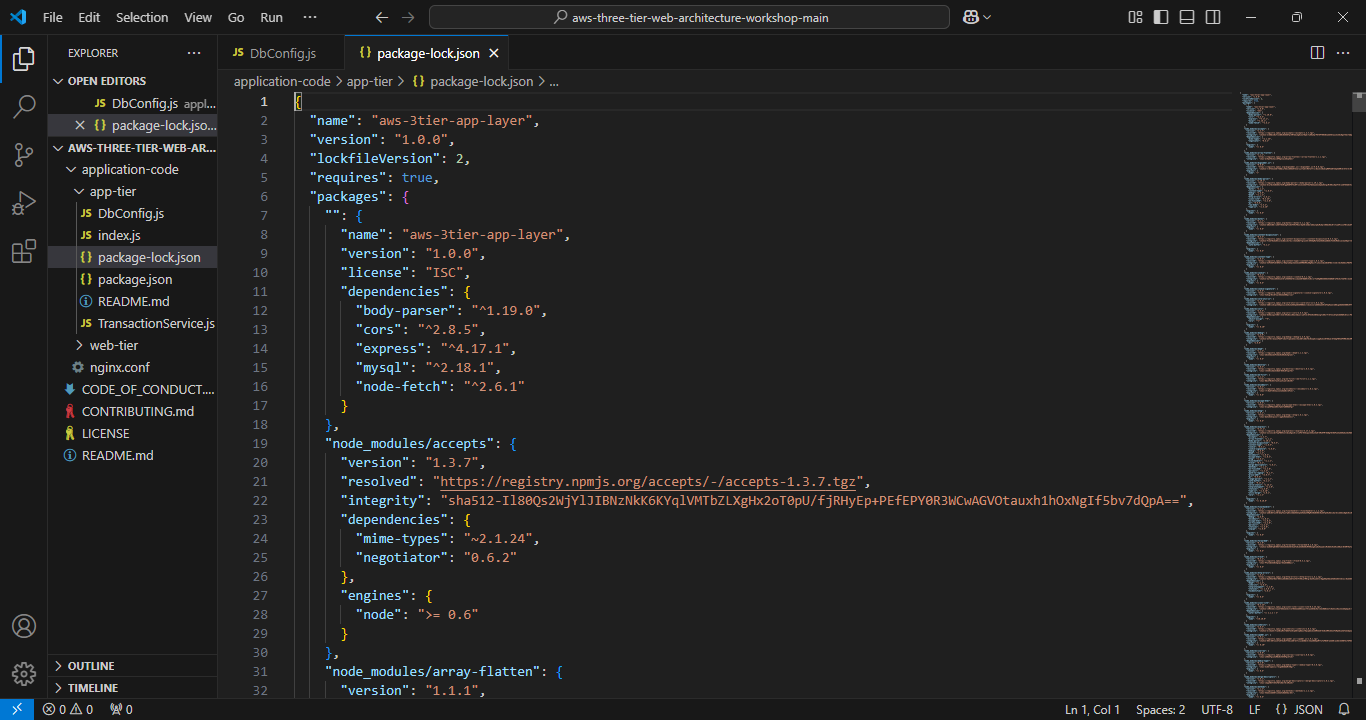

Extract code:

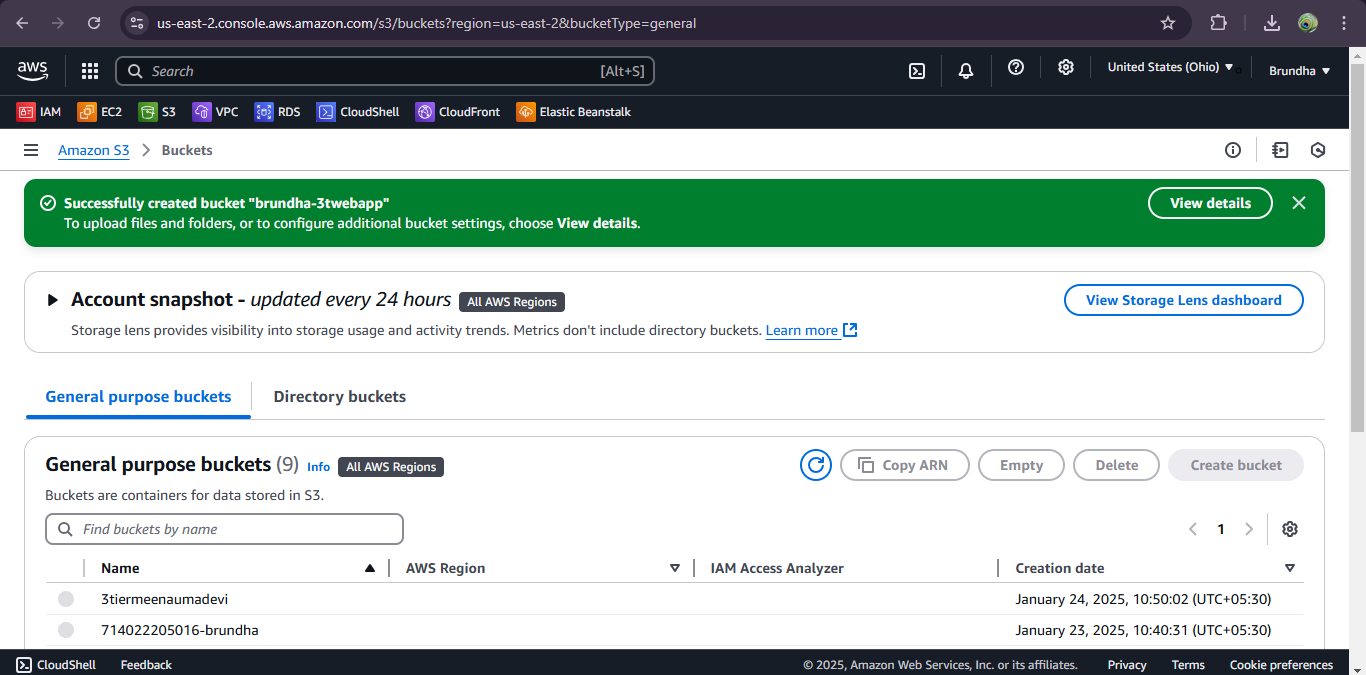

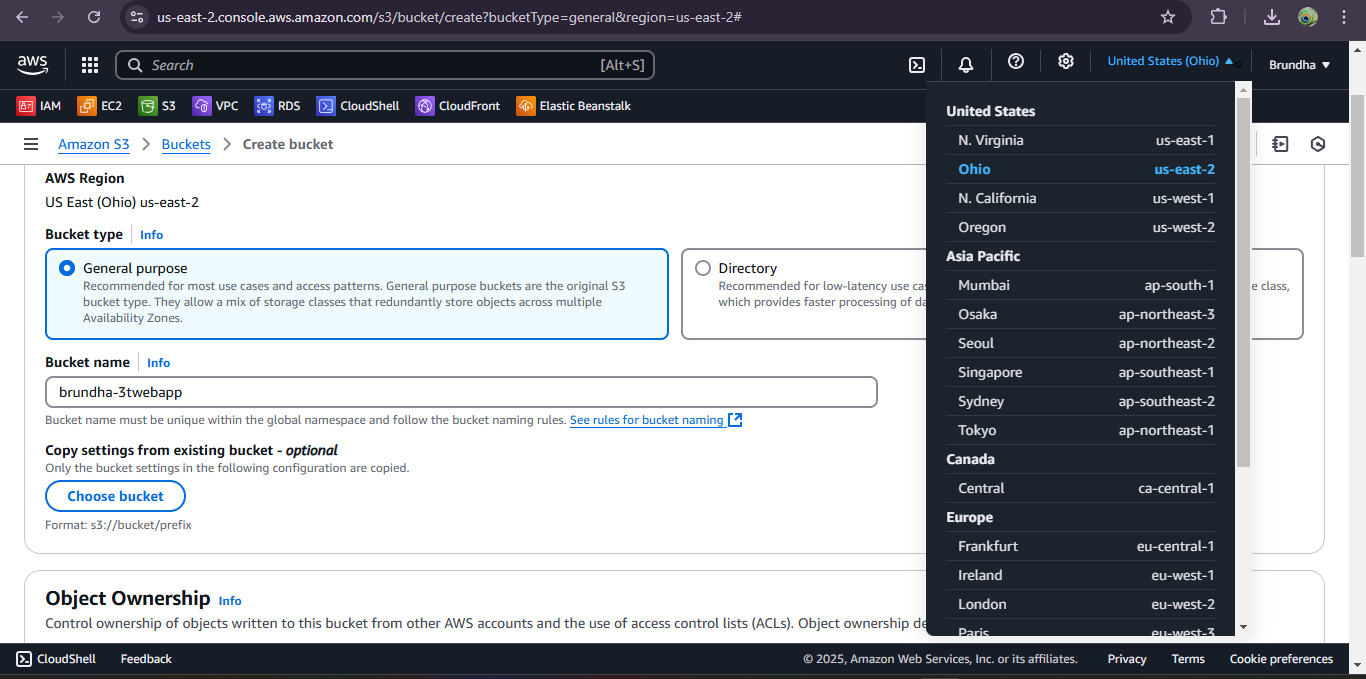

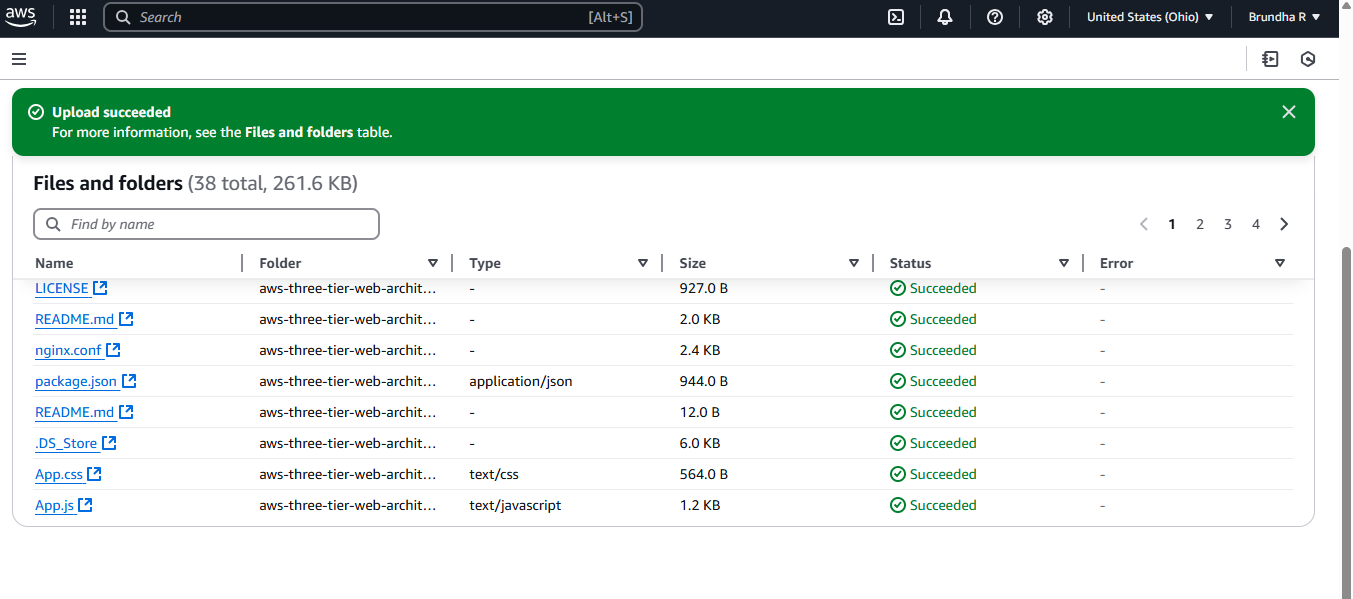

Create s3 bucket

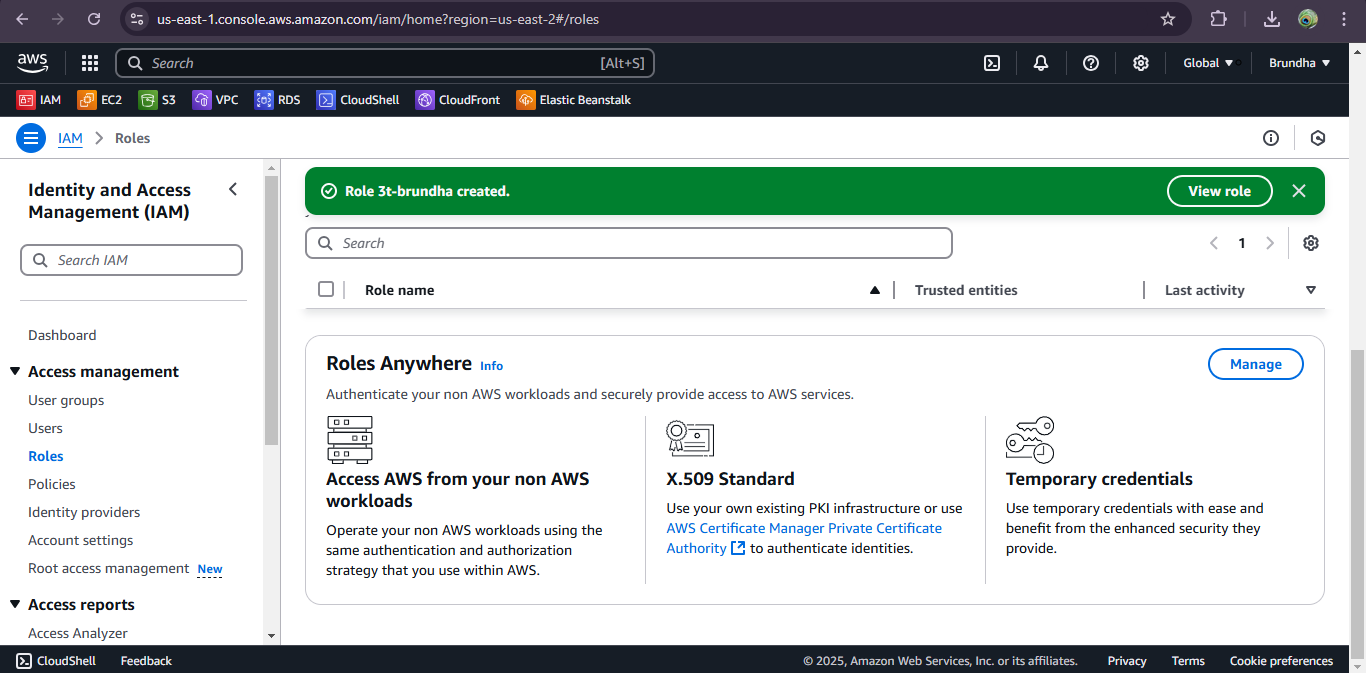

Create Role to integrate 2 services for Authentication
Steps to create three tier architecture
- VPC creation
- Subnet creation
- Network connectivity
- NAT Gateway
- Routing configuration
- Security Groups
Working:

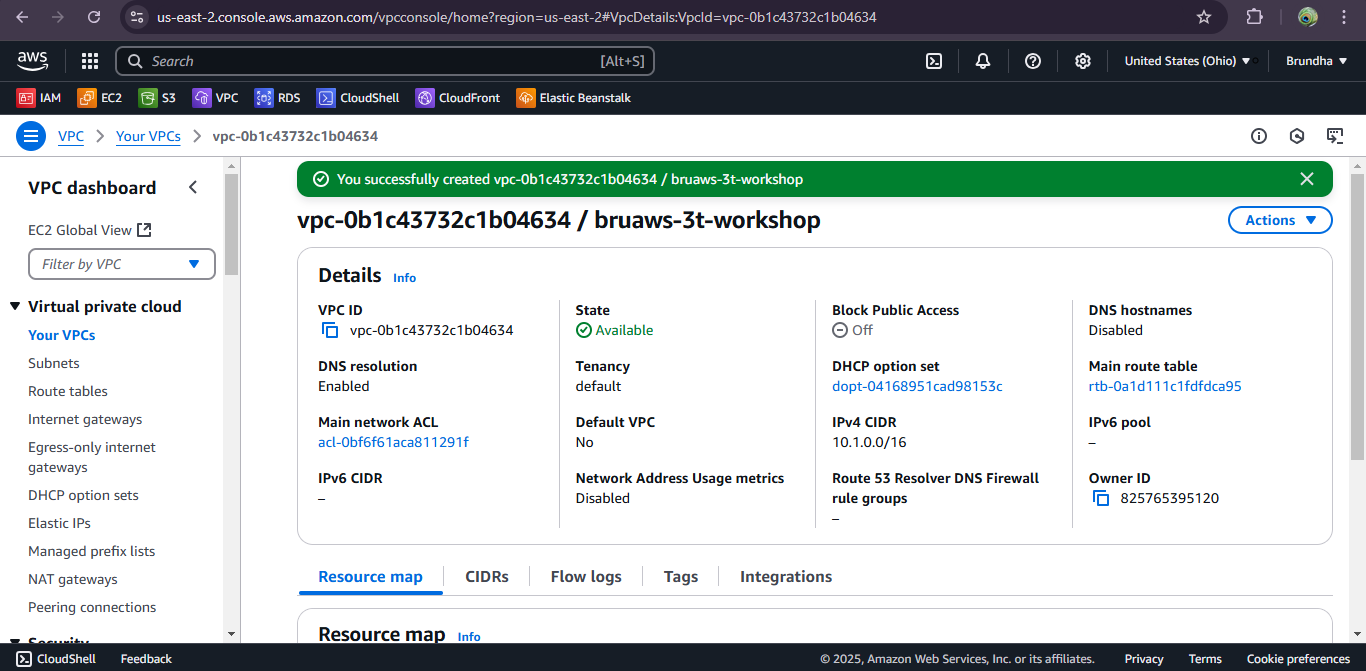

1.VPC Creation
- VPC only is selected, and fill out the VPC Settings with a Name tag and a CIDR range of your choice.

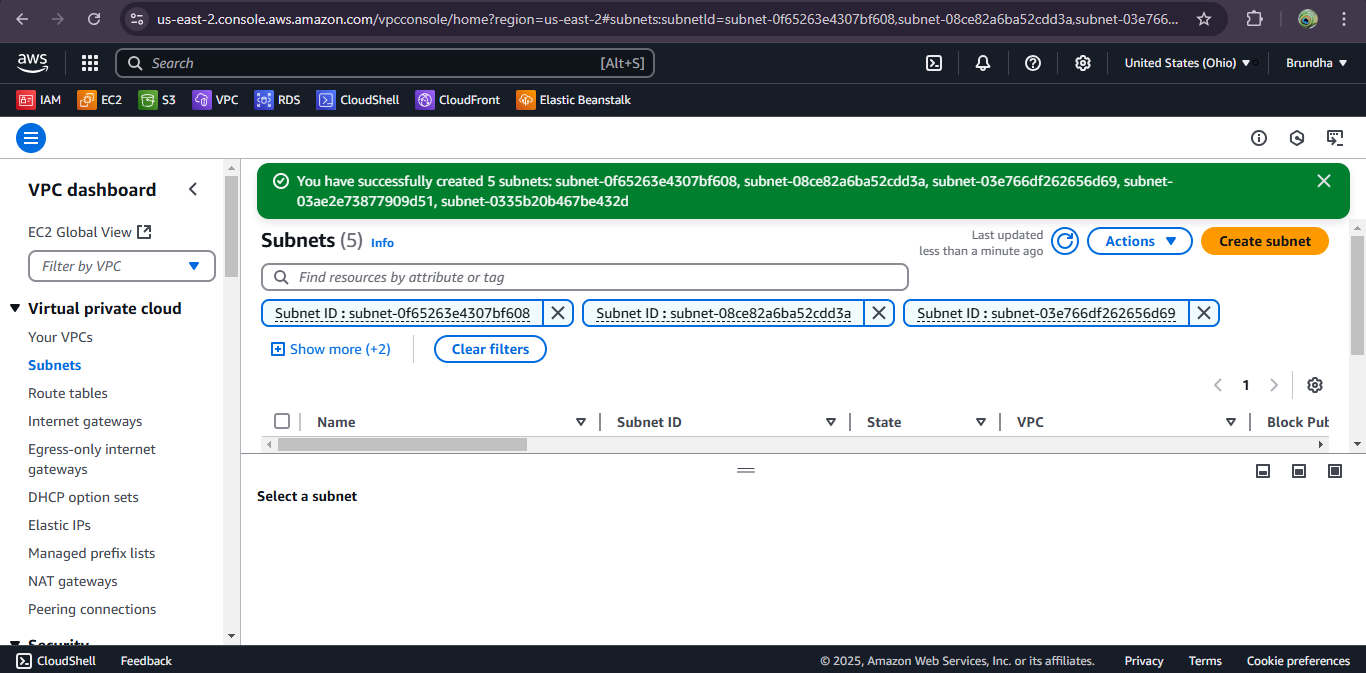

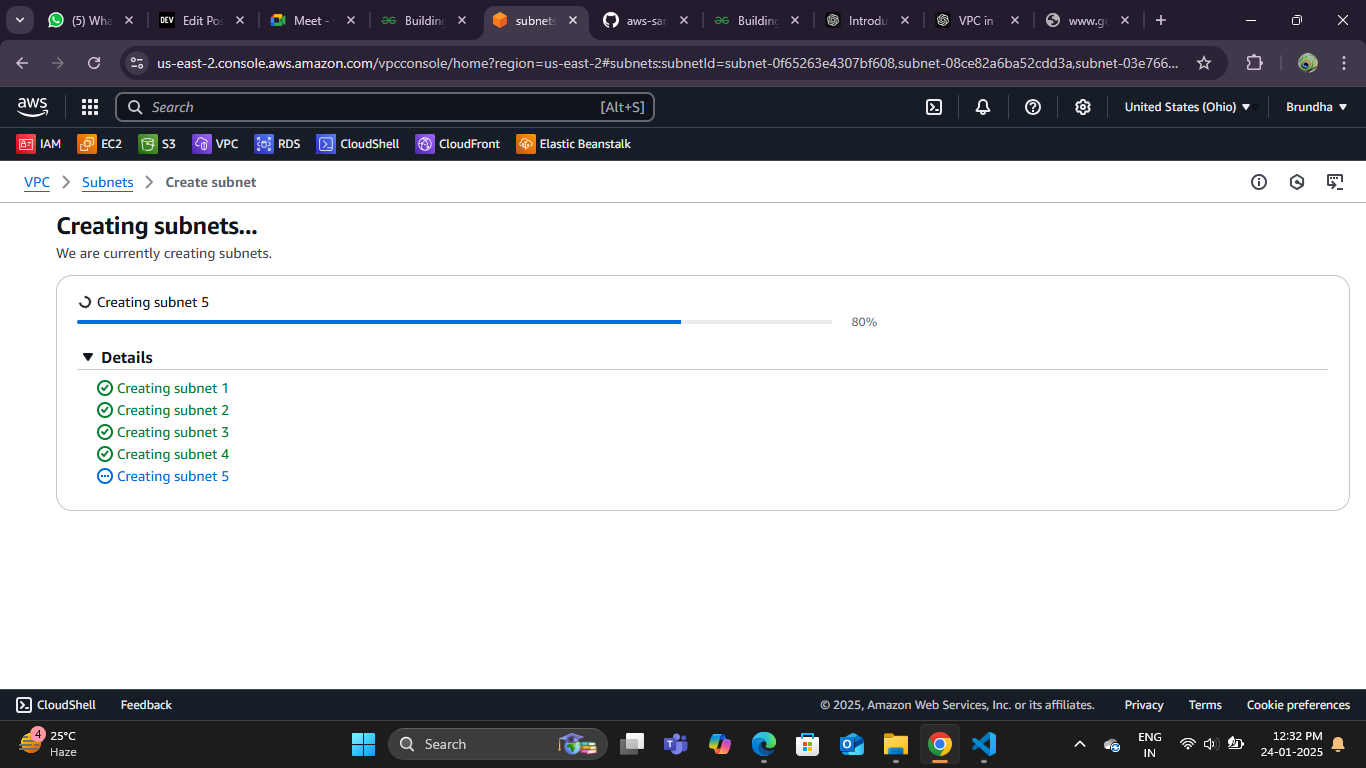

2.Subnet creation

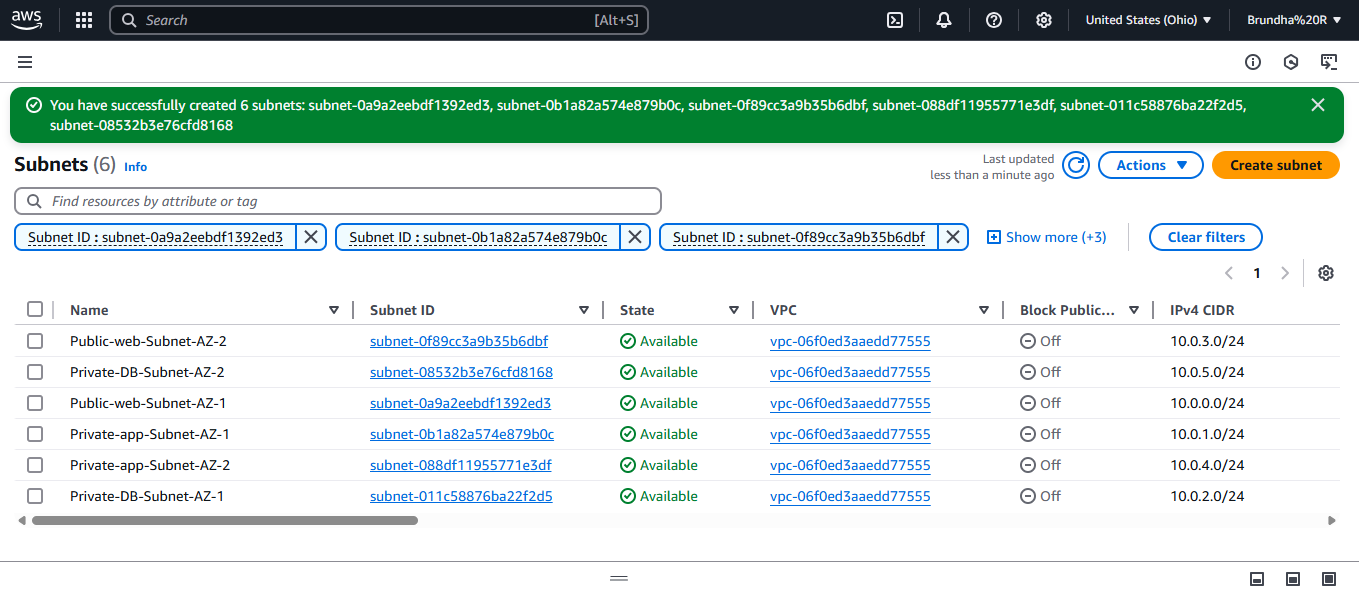

Need 6 subnets for two availability zones.
az1(zone 1)
- public subnet1
- private subnet1
- private database subnet
az2(zone 2)
- public subnet2
- private subnet2
- private database subnet

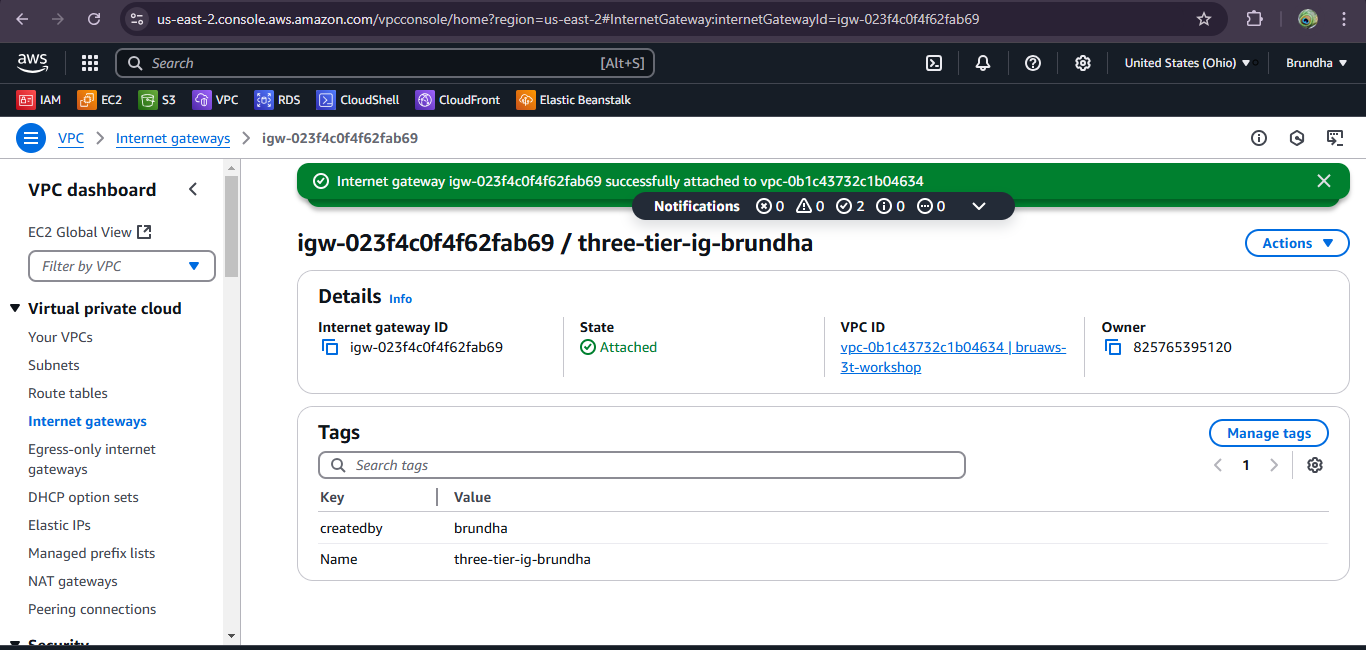

3.Internet Connectivity

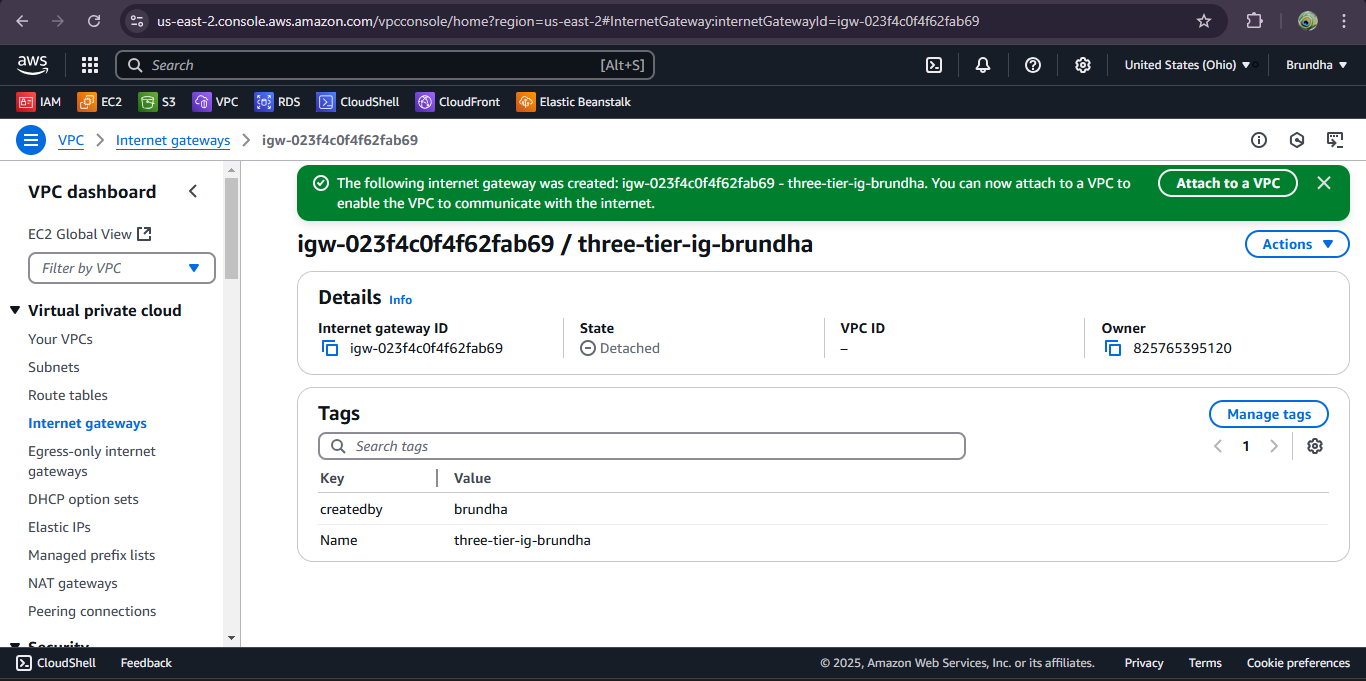

- Create Internet Gateway(IG)
- allocate Internet Gateway to VPC

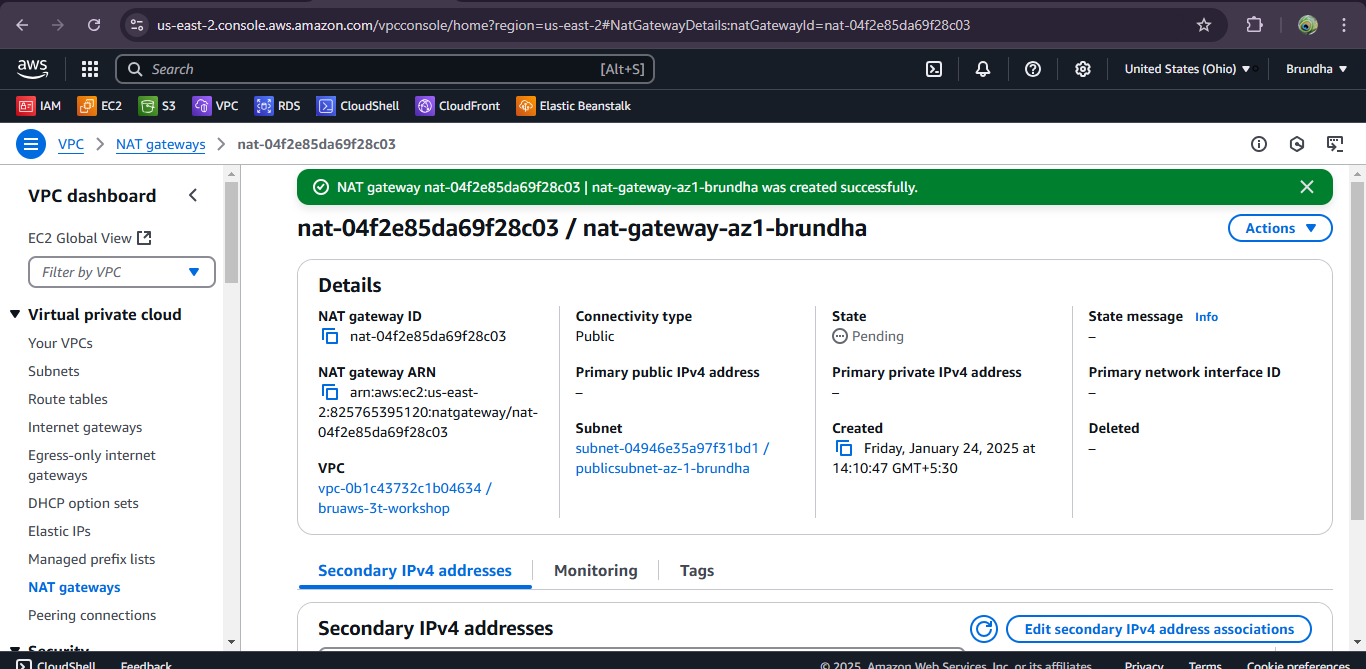

*4.Create NAT Gateway *
- NAT Gateway created to connect private subnet with internet.
- Create 2 NAT Gateways-The architecture has 2 zones.

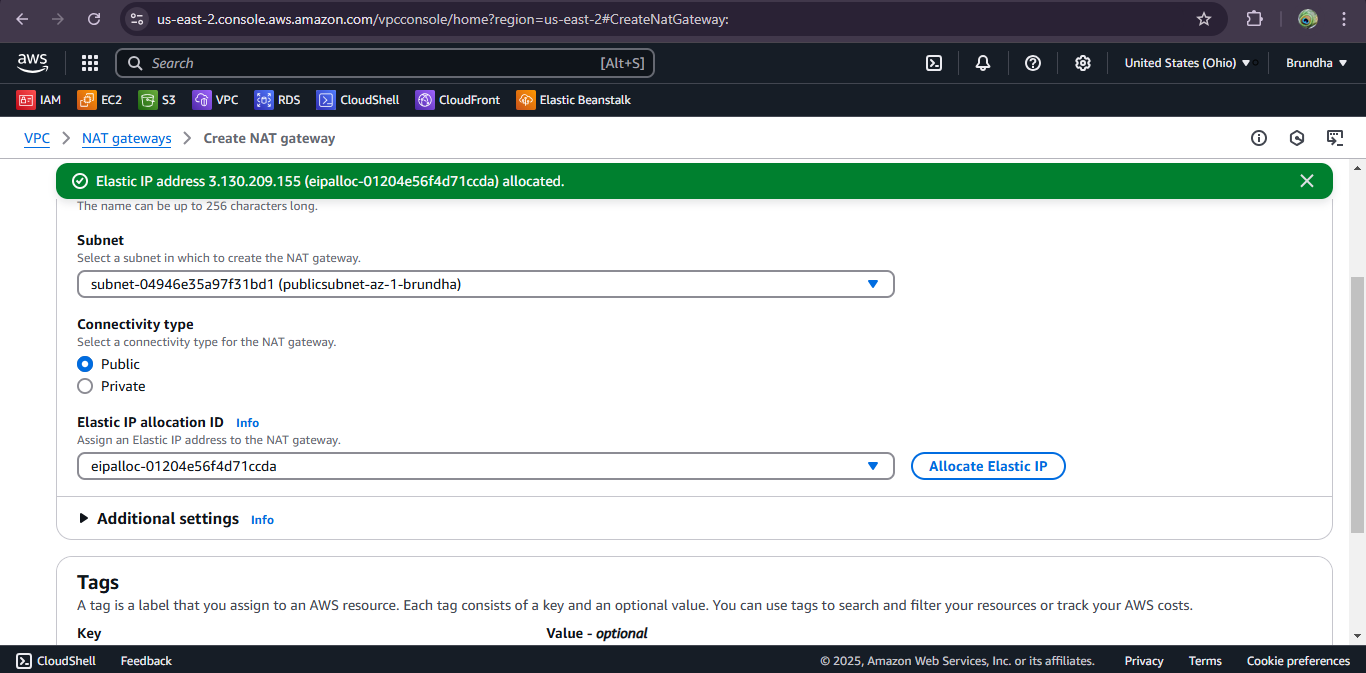

- Before creating NAT Gateway we need to allocate elastic IP in Elastic IPS.
- Follow the same steps for az2(zone 2)

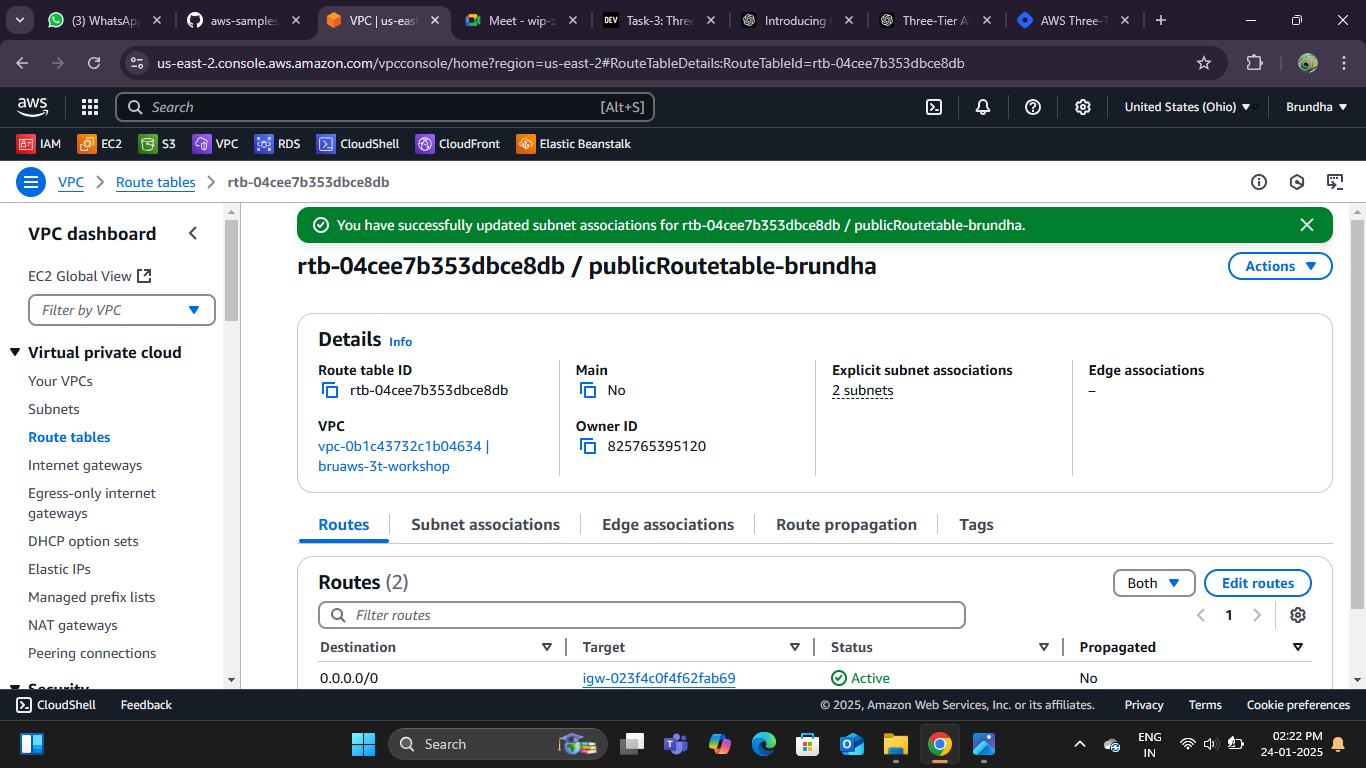

5.Routing configuration
- Improves communication, enforces security, and supports scalability by managing how data flows between layers efficiently.

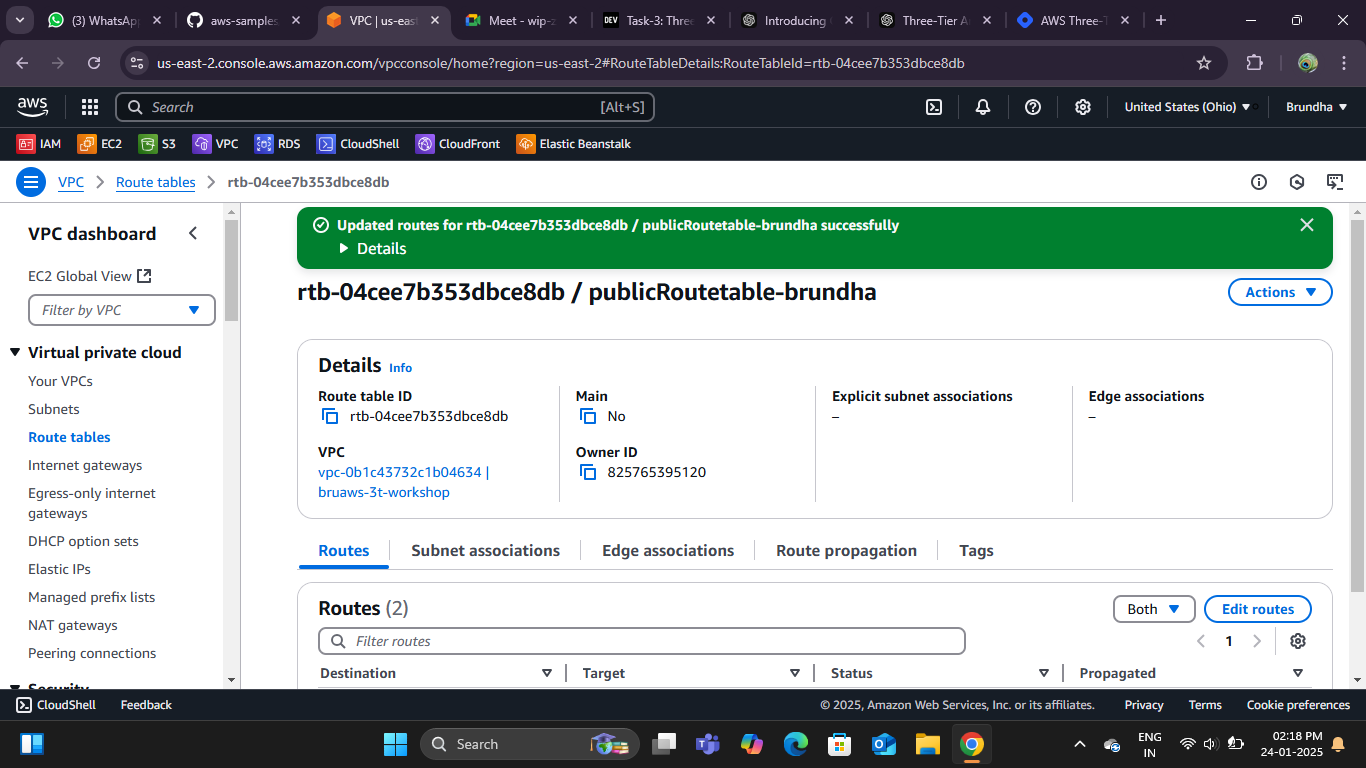

- Create route table for both public and private subnets
update subnet association for public and private subnets

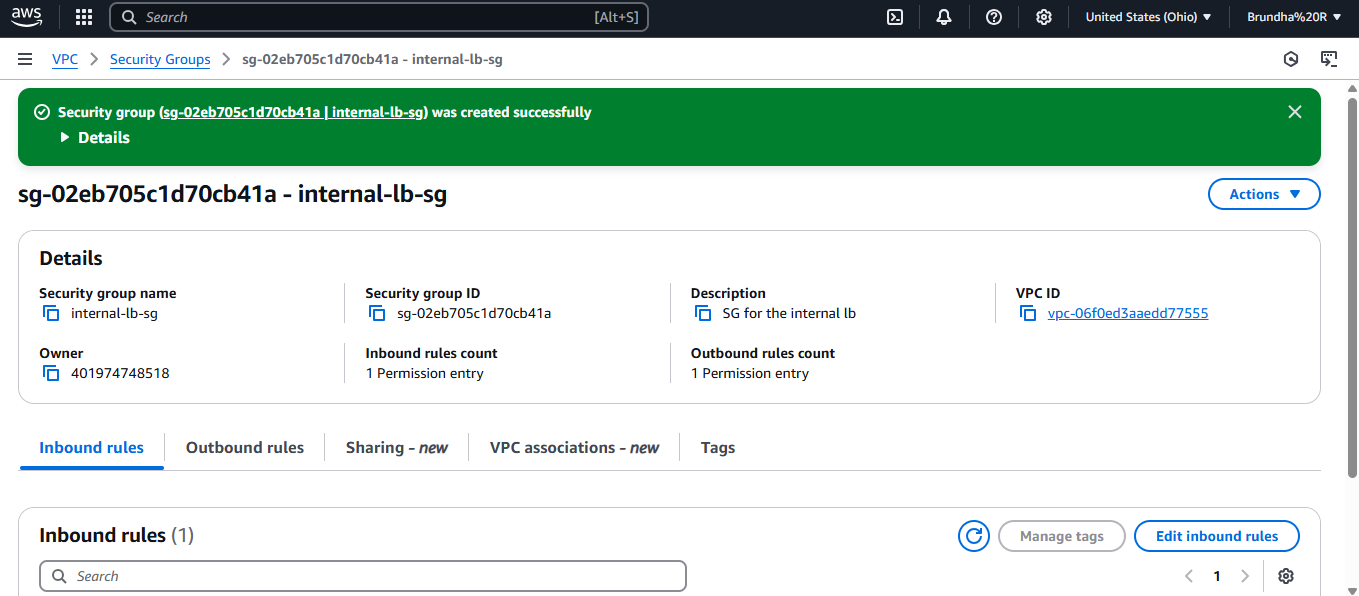

6.Security groups
- used to control traffic flow between the layers.
- need to create 5 security groups.
- public-internet facing load balancer
- public instances in the web tier
- load balancer
- private instances
- private database instances

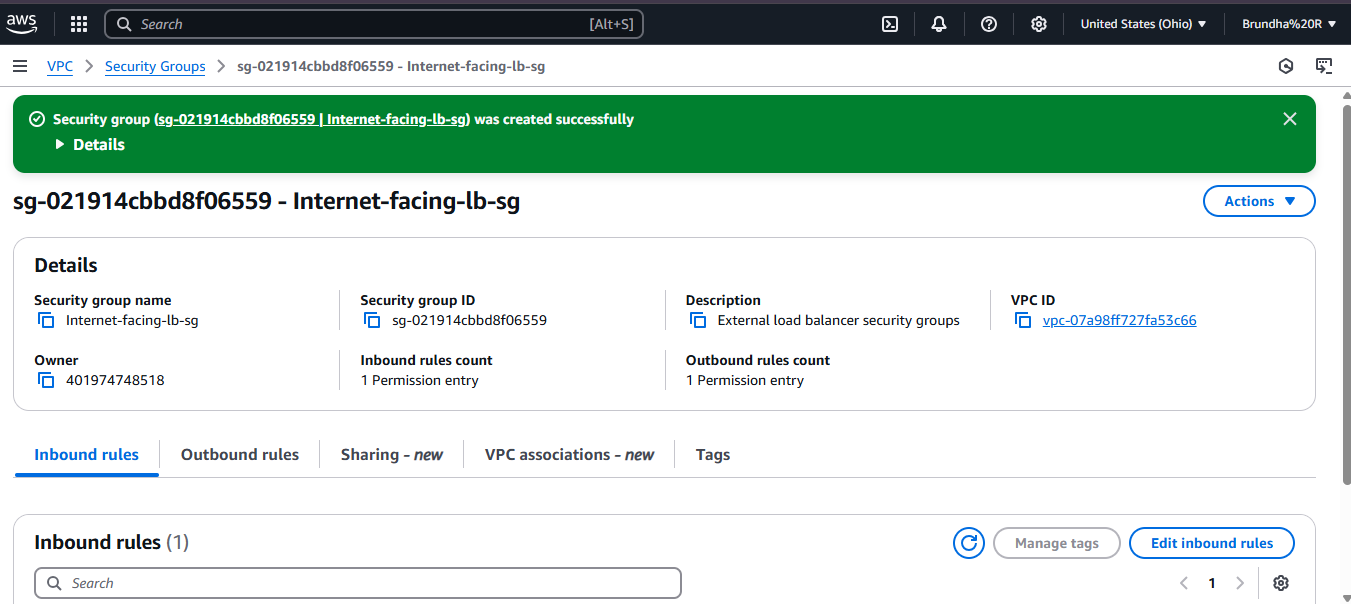

** internet facing load balancer**

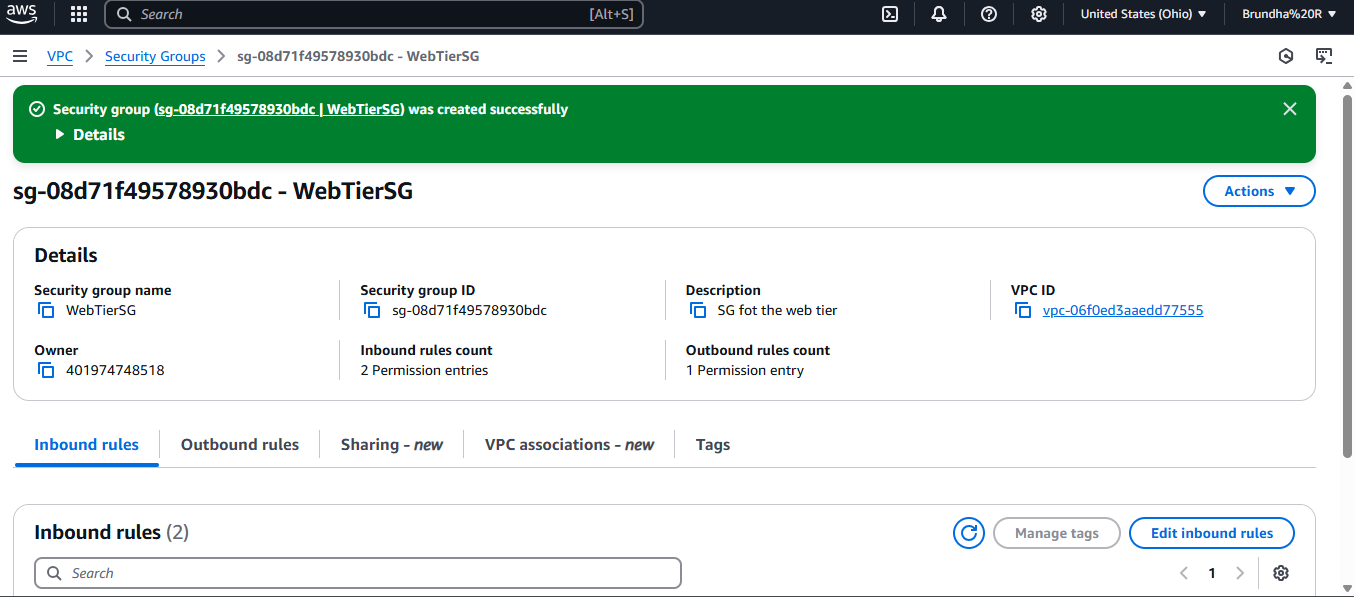

web tier
load balancer

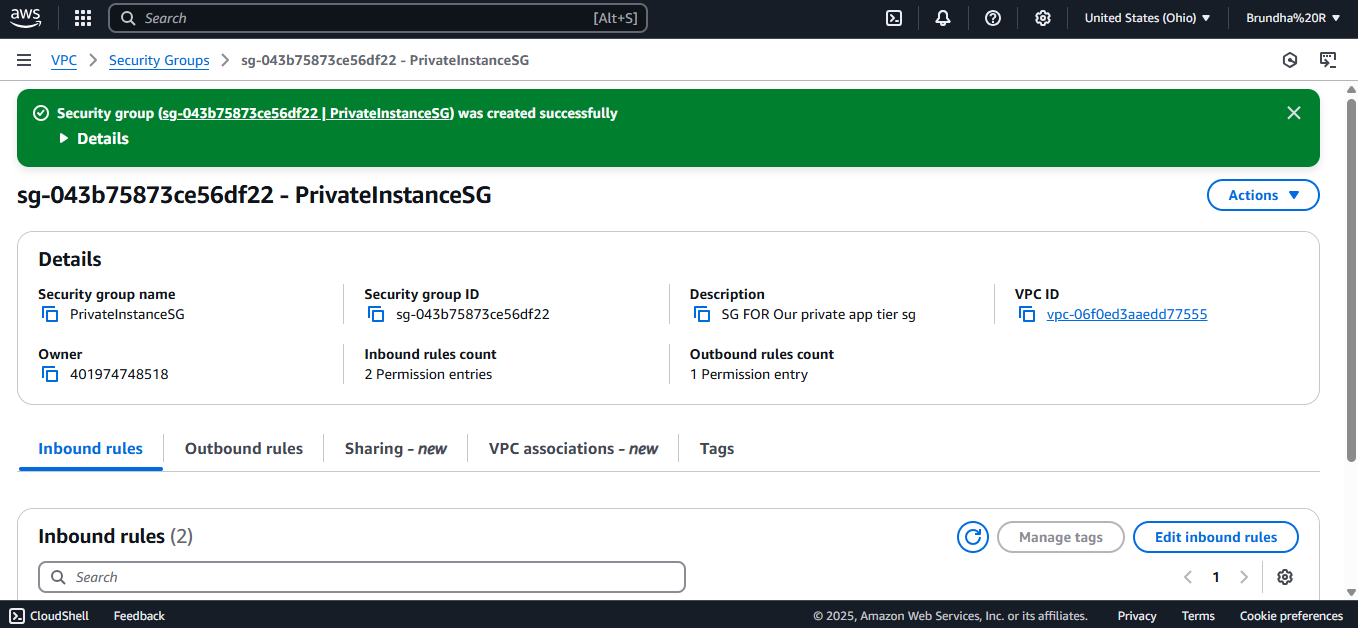

private instances

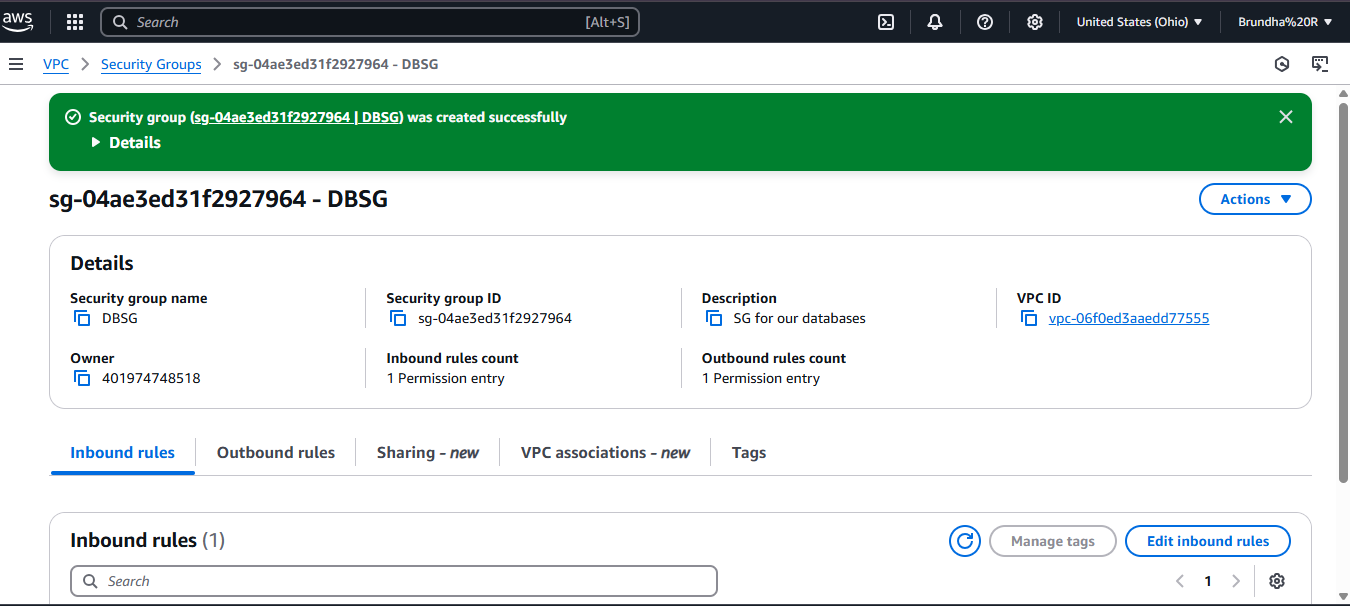

** private database instances**
Creating Subnet groups

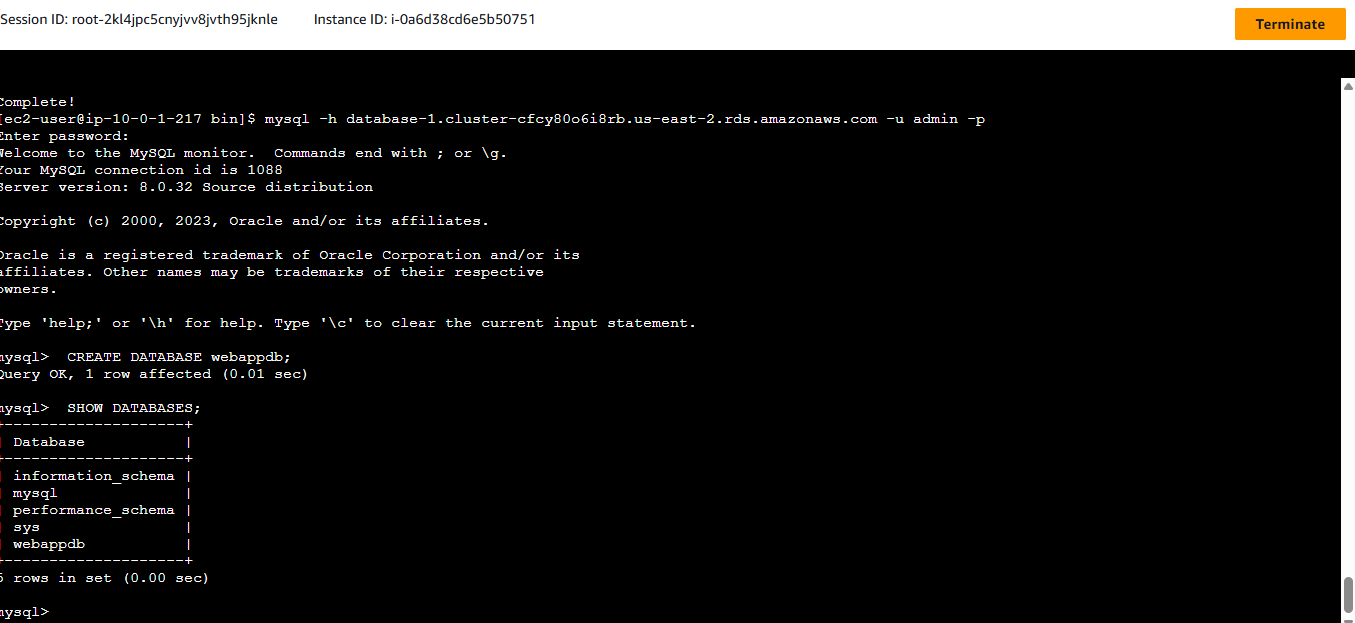

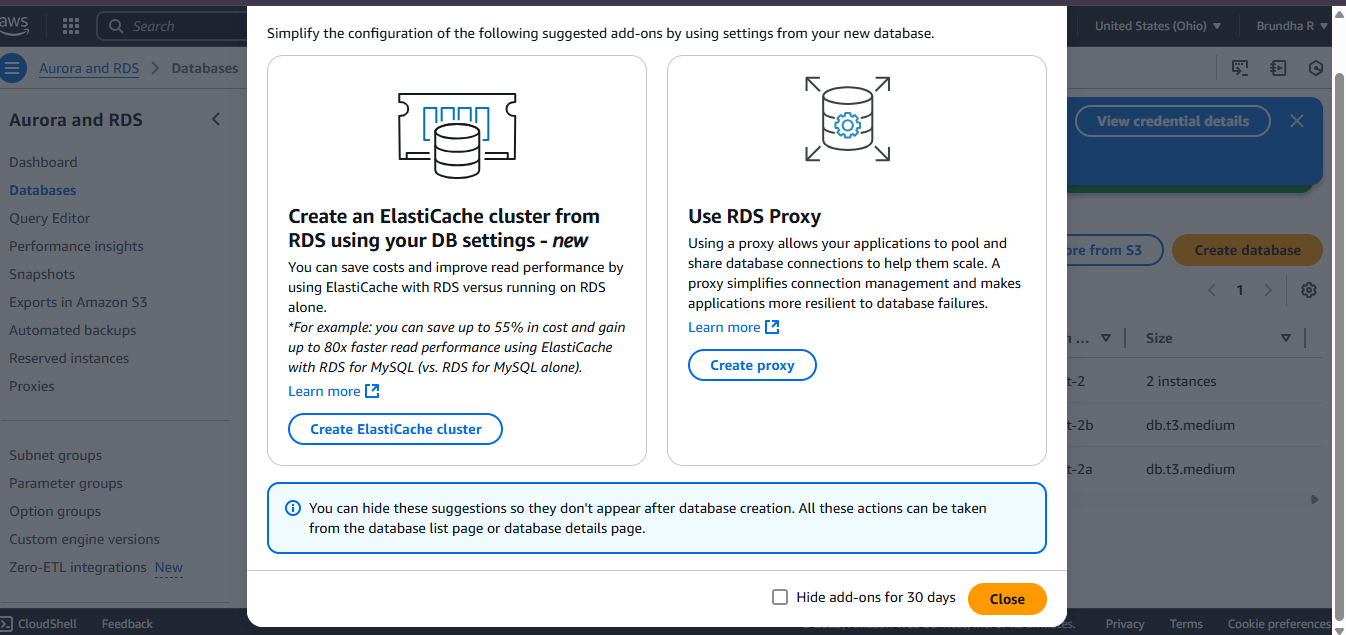

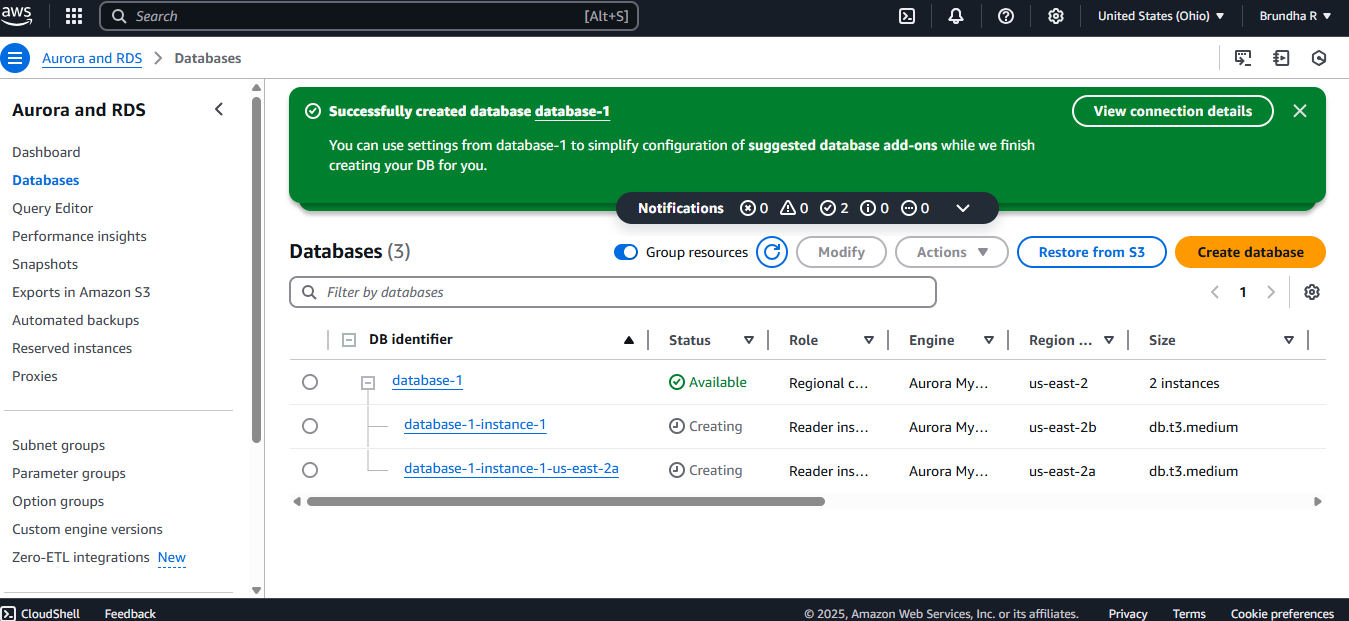

- Database created!!

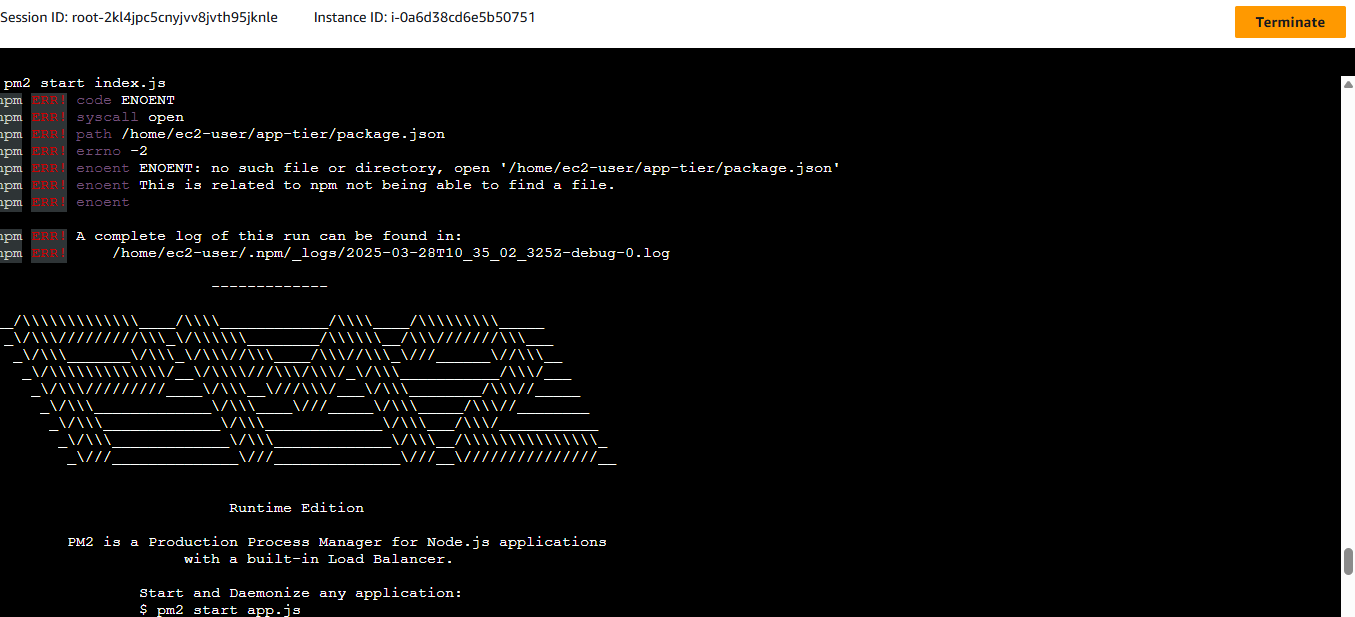

App Instance Deployment
