Kubernetes Workloads & Services — Explained with an Amusement Park Analogy

Hey folks 👋 — here’s a fun analogy-driven explainer on Kubernetes workloads and services. Hope it helps simplify things for you!

Ever felt overwhelmed trying to understand Kubernetes workloads and services? Let’s make it fun — imagine it’s an amusement park!

Goal of this article
Kubernetes can be overwhelming for beginners. But what if we took a step back and viewed it through a lens we all understand — an amusement park?

This article is structured to help readers first understand the technical Kubernetes concepts (workloads and services) and then bring them to life using an engaging analogy.

If you prefer visual explanations 🎥 Watch the full journey on YouTube

Don’t forget to like, share, and subscribe to stay updated on the next chapters!

And stay tuned for the next chapter: Managing Microservice Traffic Like a Pro with Istio.

Section 1: Kubernetes Workloads: What Actually Runs Your Code
At its core, a workload is anything you deploy on Kubernetes to do work. Let’s walk through the K8s Workload types:

Pods

• The smallest deployable unit in K8s
• One or more containers that share storage, network, and a spec.

apiVersion: v1
kind: Pod
metadata:
  name: hello-pod
spec:
  containers:
    - name: hello-container
      image: nginx

Above is code snippet for creation of a pod with a single container running NGINX. Nothing fancy here.

Sometimes a pod is standalone. Sometimes, there are copies of the same pod running across the K8s. Which brings us to…

ReplicaSets

• Ensure a specified number of Pod replicas are running at all times.
• Usually managed by Deployments directly.

apiVersion: apps/v1
kind: ReplicaSet
metadata:
  name: hello-replicaset
spec:
  replicas: 3
  selector:
    matchLabels:
      app: hello
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
        - name: hello-container
          image: nginx

Above is code snippet for creation of a ReplicaSet which ensures there are always 3 pods running the same app. If one fails, it’s recreated.

A ReplicaSet ensures that a specific number of pod replicas are always running. If one breaks, another is spun up immediately as they are managed by….

Deployments

• Used for stateless applications.
• They manage replicas of Pods and handle updates and rollbacks.

Imagine a smart system that not only monitors replicas but also updates them, rolls them out gradually, or rolls them back if anything fails. That’s a Deployment — your operations manager for all of our pods + ReplicaSets.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: hello
  template:
    metadata:
      labels:
        app: hello
    spec:
      containers:
        - name: hello-container
          image: nginx:1.21

Above is code snippet for creation of Deployments that takes care of managing app updates. Want to change the image version? Just update it here.

StatefulSets

• For stateful applications like databases.
• Each Pod gets a persistent identity and storage.

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: db-stateful
spec:
  serviceName: "db"
  replicas: 2
  selector:
    matchLabels:
      app: db
  template:
    metadata:
      labels:
        app: db
    spec:
      containers:
        - name: db
          image: mongo
          volumeMounts:
            - name: data
              mountPath: /data/db
  volumeClaimTemplates:
    - metadata:
        name: data
      spec:
        accessModes: ["ReadWriteOnce"]
        resources:
          requests:
            storage: 1Gi

Above is a code snippet for StatefulSet. Each StatefulSet pod has a unique name and its own persistent storage — ideal for databases or apps needing state.

Jobs

• Run a task to completion (e.g., batch data processing).
• Once done, it doesn’t restart.

apiVersion: batch/v1
kind: Job
metadata:
  name: run-once-job
spec:
  template:
    spec:
      containers:
        - name: hello
          image: busybox
          command: ["echo", "Hello from the job"]
      restartPolicy: Never

Above is a code snippet for Jobs. Jobs are used for one-off tasks, like data migration or sending one-time emails.

CronJobs

• Like Jobs, but run on a schedule (e.g., backups every night).

apiVersion: batch/v1
kind: CronJob
metadata:
  name: daily-task
spec:
  schedule: "0 6 * * *"
  jobTemplate:
    spec:
      template:
        spec:
          containers:
            - name: task
              image: busybox
              command: ["echo", "Good morning!"]
          restartPolicy: OnFailure

Above is a code snippet for CronJobs. CronJobs run on a schedule. This one says: run at 6 AM every day

DaemonSets

• Run one copy of a Pod on every node (e.g., for logging or monitoring agents).

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: log-agent
spec:
  selector:
    matchLabels:
      name: log-agent
  template:
    metadata:
      labels:
        name: log-agent
    spec:
      containers:
        - name: agent
          image: fluentd

The above code snippet is for DaemonSets that ensure one pod runs on every node — great for log collectors, security scanners, etc.

Section 2: Kubernetes Services: Connecting the Dots
The Need for Services — Managing Entry Points
While workloads are doing the work, services make sure they can be found and talked to.

We need to expose pods reliably — sometimes internally, sometimes externally. We also need routing rules, load balancing, and access controls.

Let’s walk through the types of service entry points.

ClusterIP (default)

• Internal-only communication.
• Useful when components within the cluster need to talk to each other.

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  type: ClusterIP  # Internal-only access
  selector:
    app: my-app
  ports:
    - protocol: TCP
      port: 80
      targetPort: 9376  # Port exposed by the container

NodePort

• Exposes a pod on a specific port on each Node’s IP
• Useful for basic external access.

apiVersion: v1
kind: Service
metadata:
  name: nodeport-service
spec:
  type: NodePort
  selector:
    app: frontend
  ports:
    - port: 80
      targetPort: 8080
      nodePort: 30007

LoadBalancer

• Assigns an external IP and distributes incoming traffic.
• Distributing external traffic evenly across pods.
• It creates a cloud provider-manged external load balancer with a public IP.
• Often used in production environments.

apiVersion: v1
kind: Service
metadata:
  name: loadbalancer-service
spec:
  type: LoadBalancer
  selector:
    app: frontend
  ports:
    - port: 80
      targetPort: 8080

Ingress

• Acts as a smart entry point, routing HTTP requests based on the path or host.
• Can be integrated with TLS, rate-limiting, and more.

Routing traffic based on path rules like /customers, /payments, /orders. It consolidates external access through a single smart gateway.

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: app-ingress
spec:
  rules:
    - host: app.example.com
      http:
        paths:
          - path: /payments
            pathType: Prefix
            backend:
              service:
                name: payments-service
                port:
                  number: 80
          - path: /orders
            pathType: Prefix
            backend:
              service:
                name: orders-service
                port:
                  number: 80

Now for the Fun Part: Kubernetes Park
Now that the fundamentals are clear, let’s turn on the lights and enter the park. Let’s take a walk through Kubernetes Park, and meet its quirky residents: the workloads and the service types.

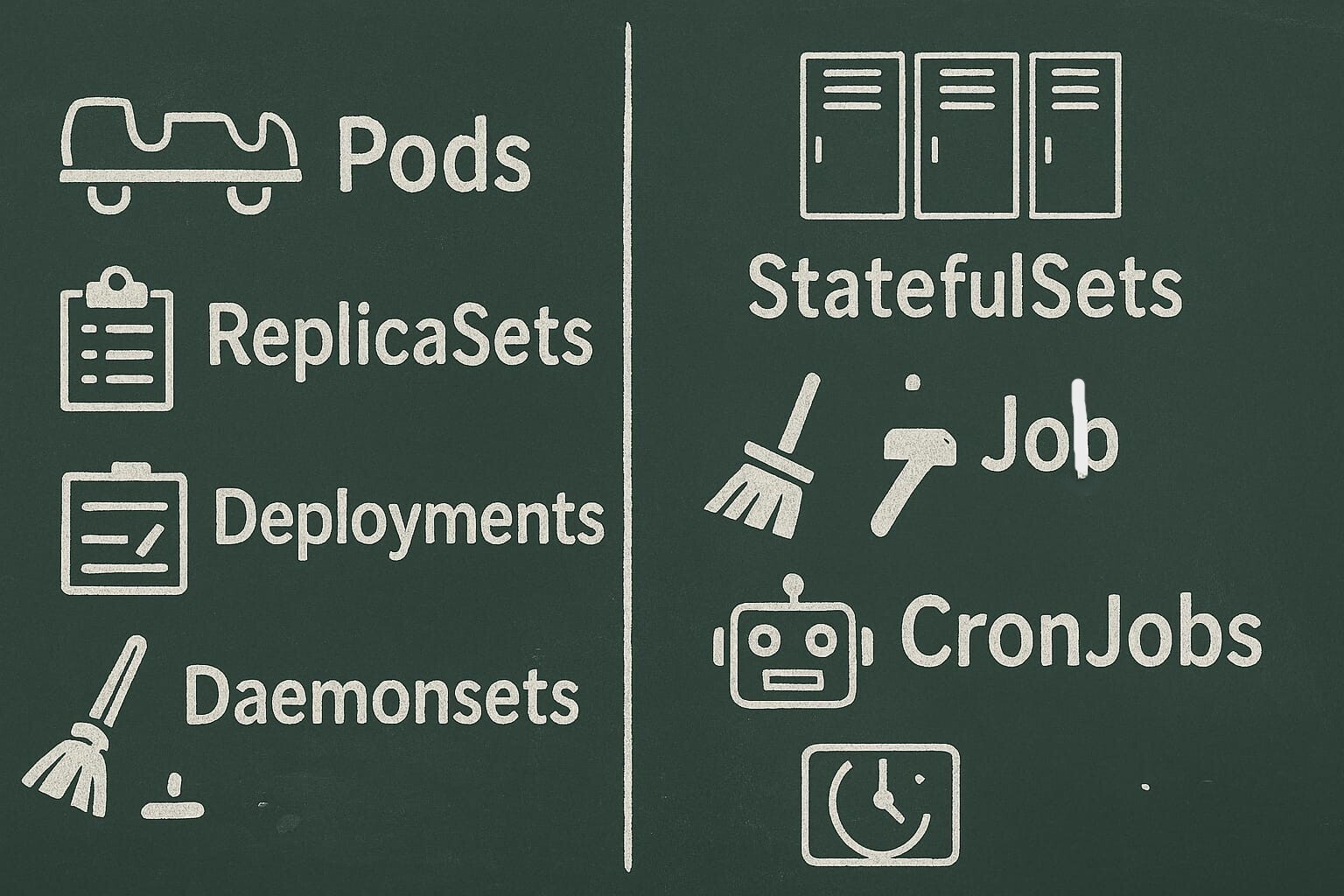

Section 3: Workloads Zone: The Backbone of the Park
Each ride, game, and attraction in the park is a workload — something that does the actual work to keep the park running.

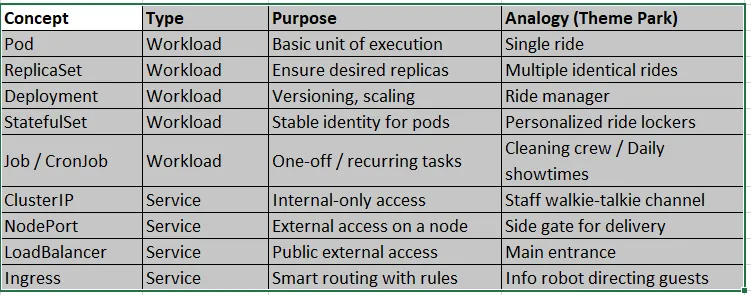

Welcome Map Recap

🎯 Pods — The Basic Ride

• Think of a Pod as a single ride or stall — like a popcorn stand or a bumper car setup.
• It’s the smallest deployable unit in the park. Each one runs a specific task (a container), and when it crashes, it’s just… gone.

Real-world note: Pods aren’t meant to live long. They’re ephemeral and usually managed by something smarter.

♻️ ReplicaSets — Ensuring There Are Enough Rides

• Imagine a supervisor walking around ensuring you always have 3 bumper car rides running, even if one breaks down. That’s a ReplicaSet.
• It ensures the right number of identical pods are always active.

🚀 Deployments — Managers Who Plan the Shows

• These are the smart managers deciding when to roll out a new show, upgrade old rides, or scale the number of rides up or down.
• Deployments use ReplicaSets underneath but add the magic of controlled updates and rollbacks.

🧳 StatefulSets — Personalized, Memory-Heavy Attractions

• Some attractions, like personalized escape rooms, need to remember who visited them. That’s StatefulSets — pods with persistent identities and stable storage.

⏱️ Jobs — One-Time Shows

• Imagine organizing a one-off fireworks show at night — it happens once, and then it’s done. That’s what a Job is — runs once and completes.

🕰️ CronJobs — Scheduled Park Events

• Think of those scheduled magic shows at 6 PM every day — that’s a CronJob in Kubernetes, recurring on a schedule like clockwork.

🌍 DaemonSets — Staff Assigned to Every Zone

• Some team members (like janitors or security) must be present in every zone of the park. That’s what DaemonSets are — one pod per node, always.

Section 4: Services Zone: Navigating the Park

Workloads is nothing but having attractions — Services is to let people find those attractions. Services in Kubernetes act as entry points or guides for traffic.

🛜 ClusterIP — Staff Walkie-Talkie Network

• Only staff can talk to each other internally using their walkie-talkies. That’s what a ClusterIP does — enables internal communication between attractions. Example: The ticket counter wants to talk to the food stalls backend. ClusterIP connects them.

🚪 NodePort — Side Staff-Only Gate

• Imagine a special staff entrance on the side, accessible via a unique pass.
• That’s NodePort — exposes a service on a specific port externally.

🌀 LoadBalancer — Grand Main Entrance

• Your public-facing main entrance, with fancy gates and automatic load balancers routing visitors evenly to different rides. That’s a LoadBalancer service.

🤖 Ingress — Smart Robot Tour Guide

• A futuristic welcome center with a smart robot who asks, “Do you want rides, food, or games?” and routes you to the right section. That’s Ingress, handling path-based routing, SSL, and more.

🎟️ Coming Up Next…The Service Mesh Story 🧩
Even with the park fully operational, new challenges arise:

• Surge in visitors (traffic control)
• Need for observability (who’s going where?)
• Enforcing rules (who’s allowed on what ride?)

This is where **Istio **and the service mesh come in — providing fine-grained control, security, and insights across your microservices.

What did you think of the theme park analogy? Do you have your own creative way of understanding complex systems like Kubernetes?
Let me know your thoughts, analogies, or questions in the comments — I’d love to hear them!
