When it comes to building reliable and flexible embedded systems for industrial and commercial applications, the Rockchip RK3566 stands out as a powerful yet cost-effective SoC. Whether you’re designing a smart display, a human-machine interface (HMI), or an Android control panel, RK3566-based SBCs offer an ideal balance of performance, integration, and customization.

At Rocktech Embedded Solutions, we provide ready-to-deploy RK3566 Single Board Computers and support fully customized solutions — from hardware design to software integration.

Image description
RK3566 Key Features at a Glance
• Quad-core Cortex-A55 CPU @ 1.8GHz
• Mali-G52 GPU for multimedia rendering
• Dual-display support: HDMI + MIPI/DSI
• Built-in AI NPU (0.8 TOPS) for edge inference
• USB 3.0, PCIe, Gigabit Ethernet
• Android 11 / Linux OS supported

These specs make the RK3566 suitable for both media-rich UI applications and industrial-grade reliability.

⸻

Why Use an RK3566 SBC?

The RK3566 SBC is versatile and scalable. Some real-world applications include:
• Smart Home Central Control Panels
• Industrial Automation HMIs
• Elevator or Kiosk Displays
• Face Recognition Terminals
• POS Machines and Multimedia Signage

And the best part? It supports both Android and Linux operating systems out of the box, letting you choose the right stack for your use case.

Explore our full lineup of embedded SBCs

What Makes Rocktech’s RK3566 SBC Stand Out?

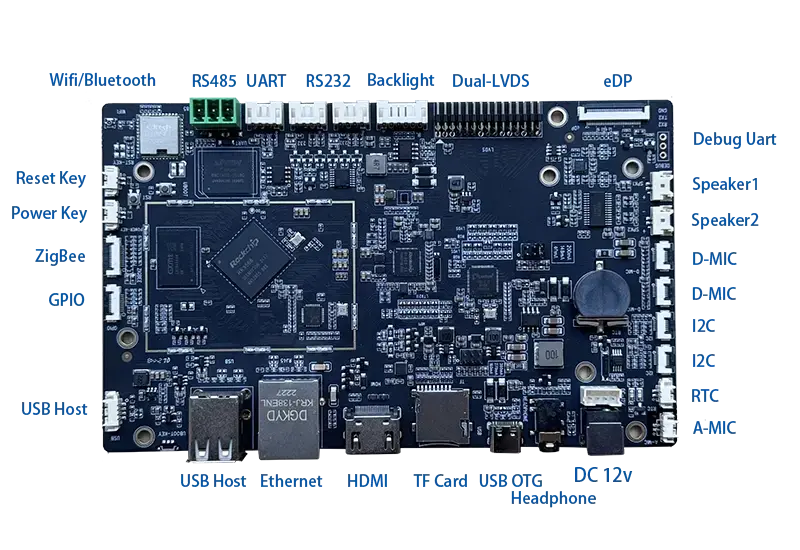

Our standard board — RK-Android-RK3566-02 — offers:
• eDP + HDMI dual display output
• Onboard eMMC + TF-card boot
• Dual Ethernet ports (ideal for internal + external networks)
• Audio, Wi-Fi/BT module support, USB 3.0
• Compact 6-layer PCB for slim enclosures

Need something different? We also provide fully custom RK3566 SBC design, including:
• Special PCB shape for thin ID housing
• Interface extension (RS232/485, CAN, 4G, RFID, etc.)
• GPIO-mapped relay control
• Power options: 5V, 12V, POE
• Speaker, mic array, and sensor integration

💡 Check out our custom SBC solutions here

⸻

Sample Use Case: Smart Home Gateway

We recently designed an RK3566-based board for a wall-mounted Android panel used as a home automation gateway. It controls other smart devices like lights, curtains, and HVAC systems via ZigBee, Wi-Fi, and RS485.

The SBC features:
• 6-inch touch display
• Dual Ethernet (internal + external networks)
• Custom-shaped PCB to match ultra-slim panel housing
• Power input: 110–240V AC → 5V DC module onboard

Conclusion

The RK3566 platform provides developers and OEMs with a robust and future-proof base for building embedded Android/Linux devices. Combined with Rocktech’s custom design and manufacturing services, it’s a go-to solution for smart control systems, HMIs, and interactive terminals.

👉 Learn more about our RK3566 SBC and customization options
