For our weekly WeAreDevelopers Live Show I wanted to have a way to include a time progress bar into the page we show. The problem there was that these are markdown files using GitHub Pages and whilst I do use some scripting in them, I wanted to make sure that I could have this functionality in pure CSS so that it can be used on GitHub without having to create an html template. And here we are.

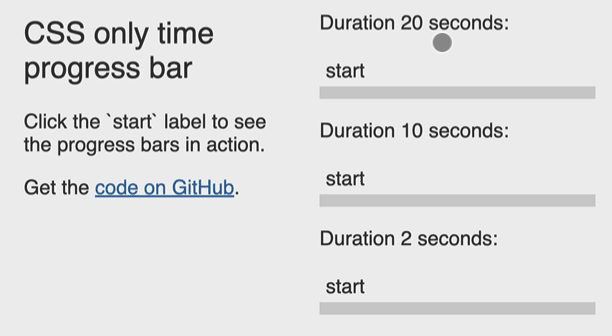

You can check out the demo page to see the effect in action with the liquid source code or play with the few lines of CSS in this codepen. Fork this repo to use it in your pages or just copy the _includes folder.

Using the CSS time progress bar

You can use as many bars as you want to in a single page. The syntax to include a bar is the following:

{​% include cssbar.html duration="2s" id="guesttopic" styleblock="yes" %​}
  • The duration variable defines how long the progress should take
  • The id variable is necessary to and has to be unique to make the functionality work
  • If the styleblock is set, the include will add a style with the necessary css rules so you don't have to add them to the main site styles. You only need to do that in one of the includes.

Using the bar in HTML documents

You can of course also use the bar in pure HTML documents, as shown in the codepen. The syntax is:

class="progressbar" style="--duration: 2s;">
     type="checkbox" id="progress">
     for="progress">start

Don't forget to set a unique id both in the checkbox and the label and define the duration in the inline style.

Drawbacks

  • This is a bit of a hack as it is not accessible to non-visual users and abuses checkboxes to keep it CSS only. It is keyboard accessible though.
  • In a better world, I'd have used an HTML progress element and styled that one…
