How to Get Started Learning FPGA (Step-by-Step Guide)？

Field-Programmable Gate Arrays (FPGAs) are powerful devices used in digital design, signal processing, and high-speed computing. Here’s a structured approach to learning FPGA development from scratch.

1. Understand the Basics
What is an FPGA?

• A reconfigurable chip that implements custom digital circuits using Hardware Description Languages (HDLs) like Verilog or VHDL.
• Unlike microcontrollers (sequential execution), FPGAs run parallel logic (true hardware acceleration).

Key Concepts
✔ Logic Gates & Boolean Algebra (AND, OR, NOT)
✔ Combinational vs Sequential Circuits (Flip-flops, Registers)
✔ Clock Domains & Timing Constraints
✔ HDL vs Software Programming (Hardware mindset required)

📚 Recommended Reading:

"Digital Design and Computer Architecture" (Harris & Harris)

Nandland’s FPGA Guide

2. Choose an FPGA Development Board
Start with a beginner-friendly, affordable FPGA board:

Board FPGA Pros Price
Lattice iCE40UP5K (IceStick) Lattice iCE40 Open-source toolchain, USB-powered ~$50

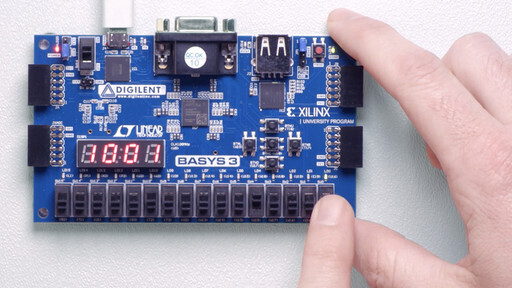

Xilinx Artix-7 (Basys 3) Xilinx Artix-7 Large community, many I/O ~$150
Altera Cyclone IV (DE0-Nano) Intel Cyclone IV Good for beginners ~$80
Xilinx Spartan-7 (Arty S7) Xilinx Spartan-7 Balanced performance ~$130

🔹 Recommendation: Start with Lattice iCE40UP5K (open-source tools) or Basys 3 (Xilinx ecosystem).

3. Learn a Hardware Description Language (HDL)

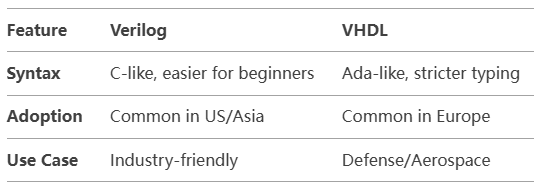

Verilog vs VHDL

📌 Recommendation: Start with Verilog (simpler syntax).

Basic Verilog Example (Blink an LED)

verilog

module blink (
    input wire clk,
    output reg led
);
    reg [31:0] counter = 0;

    always @(posedge clk) begin
        counter <= counter + 1;
        if (counter == 12_000_000) begin  // 0.5s delay @ 24MHz
            led <= ~led;                  // Toggle LED
            counter <= 0;
        end
    end
endmodule

📚 Learning Resources:

HDLBits (Interactive Verilog exercises)

FPGA4Fun (Project-based learning)

4. Install FPGA Toolchains
Xilinx (Vivado)

1. Download Vivado WebPACK (Free) Xilinx Website
2. Follow installation guide for your OS.

Lattice (iCE40)

1. Install Yosys + nextpnr (Open-source):

bash

# Linux (Ubuntu)
sudo apt install yosys nextpnr-ice40

1. Use IceStudio (GUI for beginners).

Intel (Quartus Prime)
Download Quartus Lite Intel Website

5. Run Your First FPGA Project
Step 1: Write HDL Code
Create a simple design (e.g., LED blinker, PWM generator).

Step 2: Simulate (Optional but Recommended)
Use iverilog (Verilog simulator) or ModelSim:

bash

iverilog -o testbench.vvp blink_tb.v blink.v
vvp testbench.vvp
gtkwave dump.vcd  # View waveforms

Step 3: Synthesize & Program the FPGA
For Xilinx (Vivado):

Create project → Add HDL → Generate Bitstream → Program FPGA.

For Lattice (iCE40):

bash

yosys -p "synth_ice40 -blink.json" blink.v
nextpnr-ice40 --hx1k --json blink.json --pcf blink.pcf --asc blink.asc
icepack blink.asc blink.bin
iceprog blink.bin  # Upload to FPGA

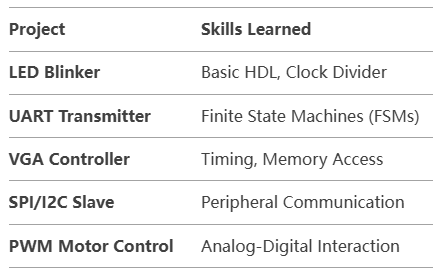

6. Work on Practical Projects

🔹 Advanced:

• Digital Signal Processing (DSP) (FIR filters, FFT).
• RISC-V CPU Implementation (Soft-core processors).

7. Learn Advanced Topics
Timing Constraints

• Define clock frequencies in SDC files (Synopsys Design Constraints).
• Critical for high-speed designs.

FPGA Optimization

• Pipelining (Improve clock speed).
• Resource Sharing (Reduce LUT usage).

System-on-Chip (SoC) FPGAs

• Xilinx Zynq (ARM + FPGA).
• Intel Cyclone V SoC (Dual-core Cortex-A9).

8. Join FPGA Communities
Forums:

• FPGA Subreddit
• Xilinx Community

YouTube Channels:

• nandland
• ZipCPU

9. Career & Next Steps
FPGA Roles:

• Digital Design Engineer
• ASIC/FPGA Verification Engineer
• High-Frequency Trading (HFT) Developer

Certifications:

Xilinx/Intel FPGA training courses.

Final Tips

1. Start small (LEDs → FSMs → CPUs).
2. Simulate before flashing (saves debugging time).
3. Study open-source designs (e.g., Litex).
4. Learn a scripting language (Python/TCL for automation).

🚀 Now, pick a board, write your first Verilog code, and start building!
