Tech Stack

  • Google Cloud Platform (GCP)
  • Terraform (v1.5+)
  • Google Cloud SDK (for authentication)
  • Container-Optimized OS (COS)
  • Docker

Introduction

In today’s cloud-native world, automation is a game-changer. In this tutorial, we'll guide you through the process of deploying a containerized Nginx server on Google Cloud, all with Terraform—the go-to tool for Infrastructure as Code (IaC). This step-by-step guide is perfect for DevOps engineers looking to streamline their cloud infrastructure setup and improve their automation skills.

By the end of this tutorial, you’ll have a fully containerized Nginx server running on GCP, ready for further customization or deployment in production.

Skills You'll Gain in This Tutorial

  • How to provision GCP VM instances using Terraform
  • Deploying a Dockerized Nginx server on GCP
  • Setting up firewall rules for secure access
  • Writing production-grade, reusable Terraform configurations
  • Automating cloud infrastructure from scratch

Complete Walkthrough: Deploying Nginx on GCP

1. 📂 Project Structure

First, create the project folder and the required files:

terraform-gcp-nginx/
├── main.tf
├── variables.tf
├── output.tf

2. ✍️ Define Variables in variables.tf

In variables.tf, specify essential configuration values like your project ID, region, and zone:

variable "project" {
  description = "The GCP project ID"
  type        = string
}

variable "region" {
  description = "The GCP region"
  type        = string
  default     = "us-central1"
}

variable "zone" {
  description = "The GCP zone"
  type        = string
  default     = "us-central1-a"
}

3. ✍️ Create Output File (output.tf)

Add an output to show the public IP of the deployed VM:

output "instance_ip" {
  description = "Public IP of the VM instance"
  value       = google_compute_instance.vm_instance.network_interface[0].access_config[0].nat_ip
}

4. ✍️ Terraform Configuration in main.tf

Your main Terraform configuration should include VM provisioning, firewall setup, and the Nginx container initialization:

terraform {
  required_providers {
    google = {
      source  = "hashicorp/google"
      version = "6.8.0"
    }
  }
}

provider "google" {
  project = var.project
  region  = var.region
  zone    = var.zone
}

resource "google_compute_network" "vpc_network" {
  name = "terraform-network"
}

resource "google_compute_instance" "vm_instance" {
  name         = "terraform-instance"
  machine_type = "f1-micro"  # Free tier eligible

  tags = ["web", "dev"]

  boot_disk {
    initialize_params {
      image = "cos-cloud/cos-stable"  # Container-Optimized OS
    }
  }

  network_interface {
    network = google_compute_network.vpc_network.name
    access_config {}
  }

  metadata = {
    startup-script = "docker run -d -p 80:80 nginx"
  }
}

resource "google_compute_firewall" "default-allow-http" {
  name    = "allow-http"
  network = google_compute_network.vpc_network.name

  allow {
    protocol = "tcp"
    ports    = ["80"]
  }

  direction     = "INGRESS"
  source_ranges = ["0.0.0.0/0"]
  target_tags   = ["web"]
}

resource "google_compute_firewall" "allow-ssh-rdp-iap" {
  name    = "allow-ssh-rdp-iap"
  network = google_compute_network.vpc_network.name

  allow {
    protocol = "tcp"
    ports    = ["22", "3389"]
  }

  direction     = "INGRESS"
  source_ranges = ["35.235.240.0/20"]
  target_tags   = ["web"]
}

5. 🔐 Authenticate to Google Cloud

Before running Terraform, authenticate with Google Cloud:

gcloud auth application-default login

6. ⚙️ Initialize Terraform

In your project directory, run:

terraform init

7. 📋 Review Plan

Generate a plan to preview the infrastructure Terraform will create:

terraform plan

8. 🚀 Apply Terraform Configuration

Provision the infrastructure by applying the configuration:

terraform apply

You’ll be prompted to confirm the changes—type yes to proceed.

9. 🌐 Access Your Nginx Server

Once Terraform finishes applying, it will output the public IP of your VM. Open a browser and navigate to:

http://

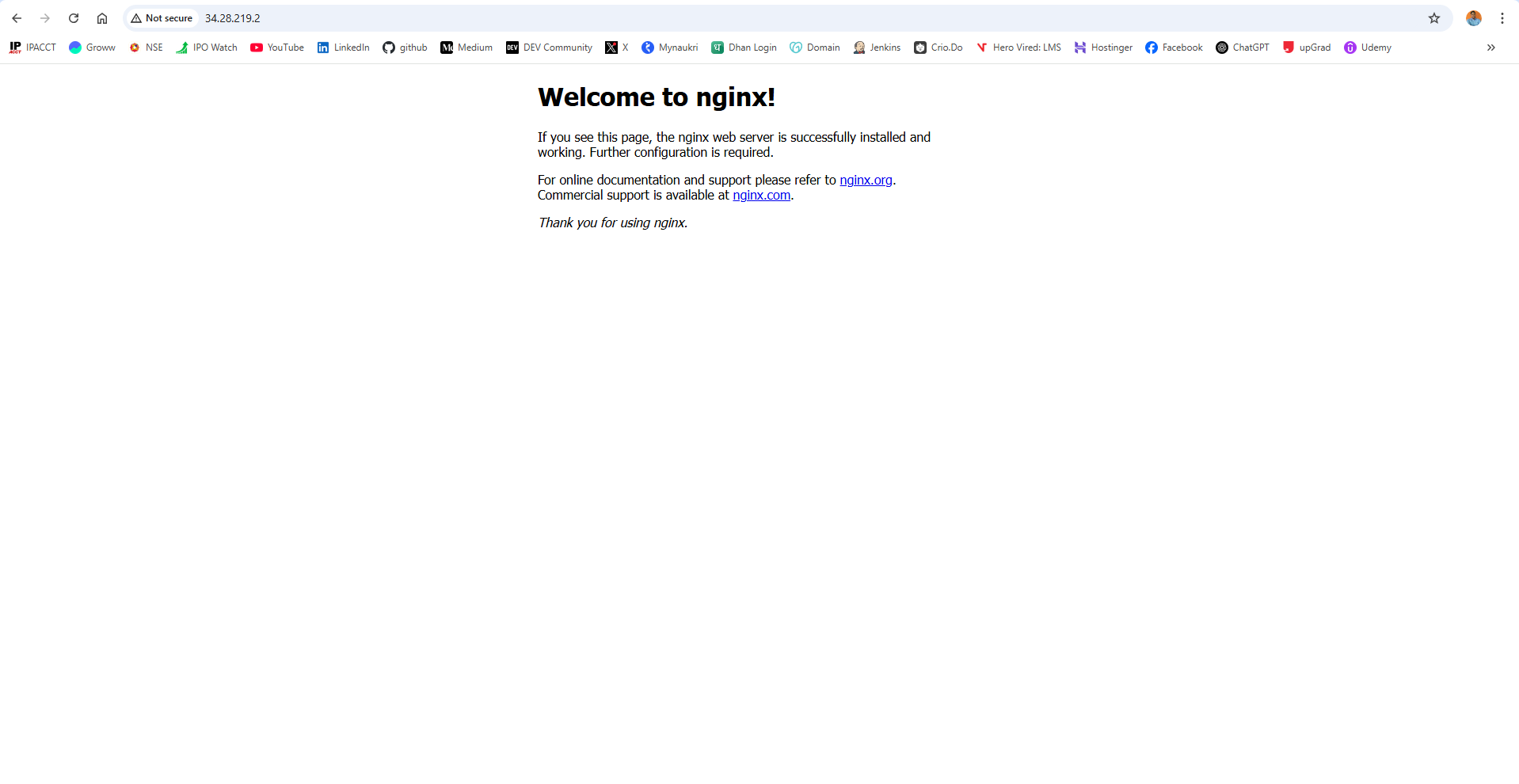

You should see the default Nginx welcome page! 🎉

Output of Nginx server

10. 🌐 Clean Up Resources

When done, tear down the resources to prevent unnecessary costs:

terraform destroy

Review the plan and confirm by typing yes. This will remove the VM, firewall rules, and VPC network.

Conclusion

By following this guide, you’ve successfully deployed a containerized Nginx server on Google Cloud using Terraform. You now know how to:

  • Provision GCP resources with Terraform
  • Set up Docker containers on GCP VMs
  • Manage access with firewall rules
  • Clean up cloud resources efficiently

This approach can easily scale with load balancing and autoscaling features, making it a great starting point for production workloads.

Bonus Tip

To add resilience to your infrastructure, consider:

  • Implementing a Google Cloud Load Balancer in front of your Nginx server
  • Adding auto-scaling policies to ensure high availability and efficient resource usage

Resources Created

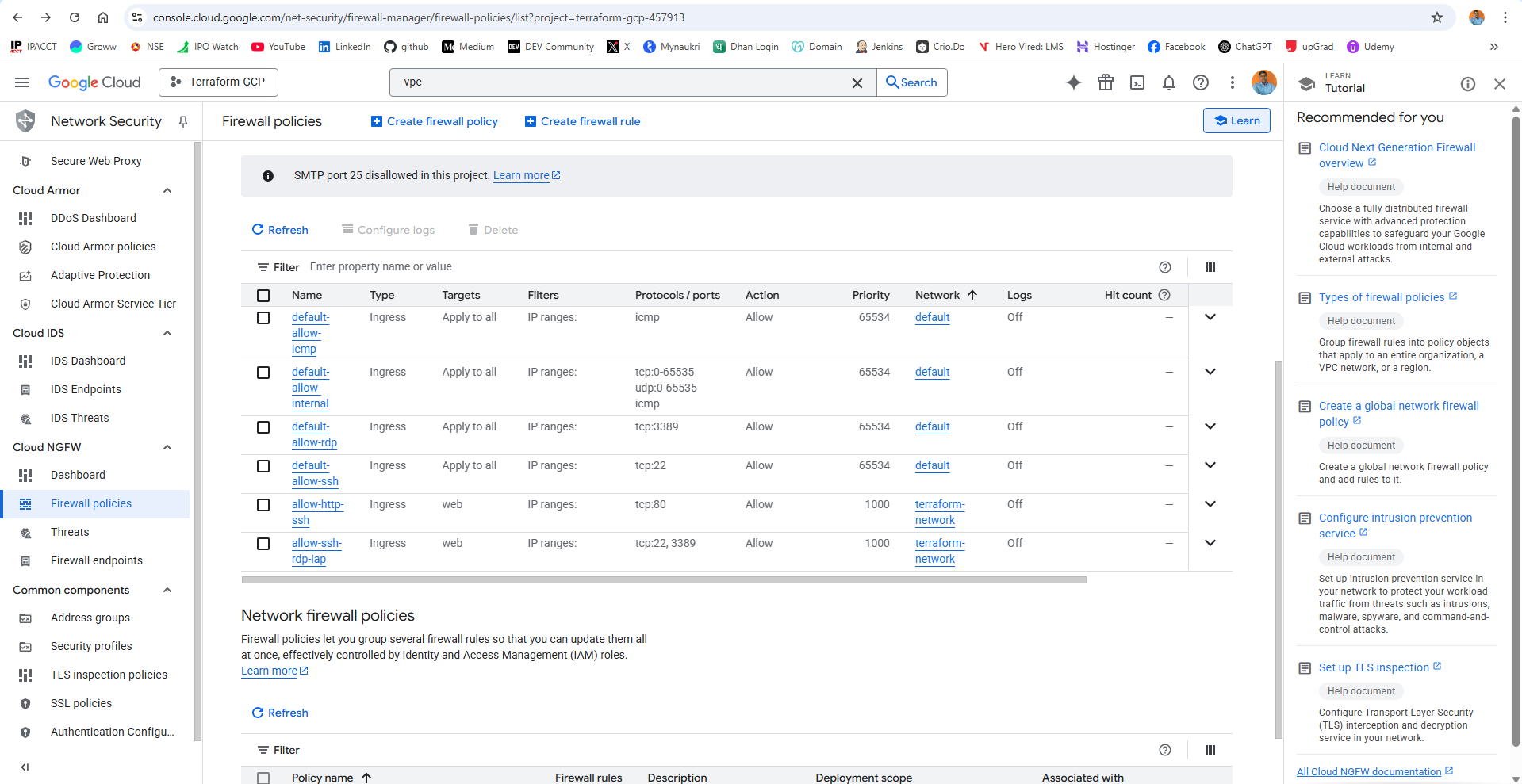

1. Firewall

Firewall Rules

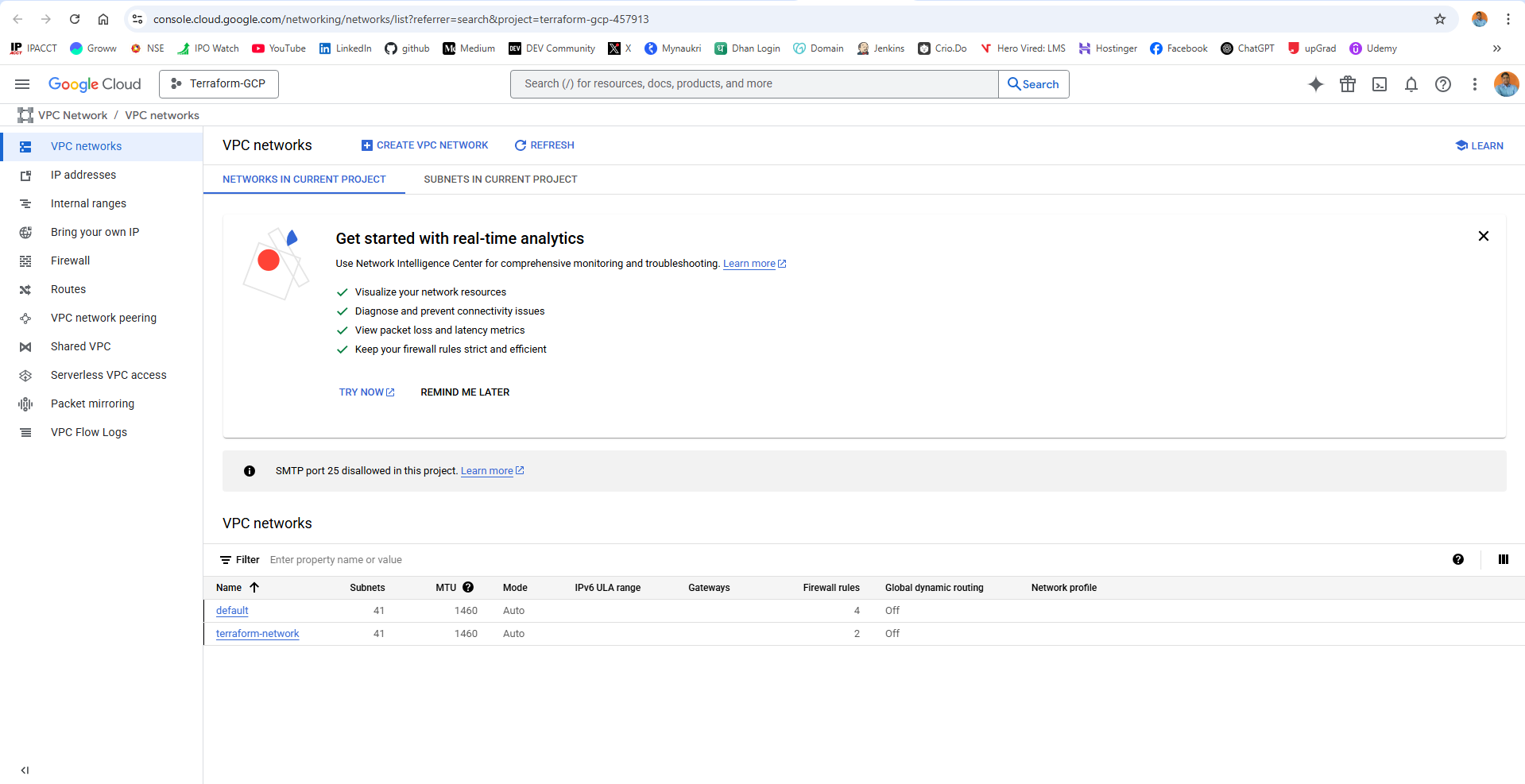

2. VPC Network

VPC Network

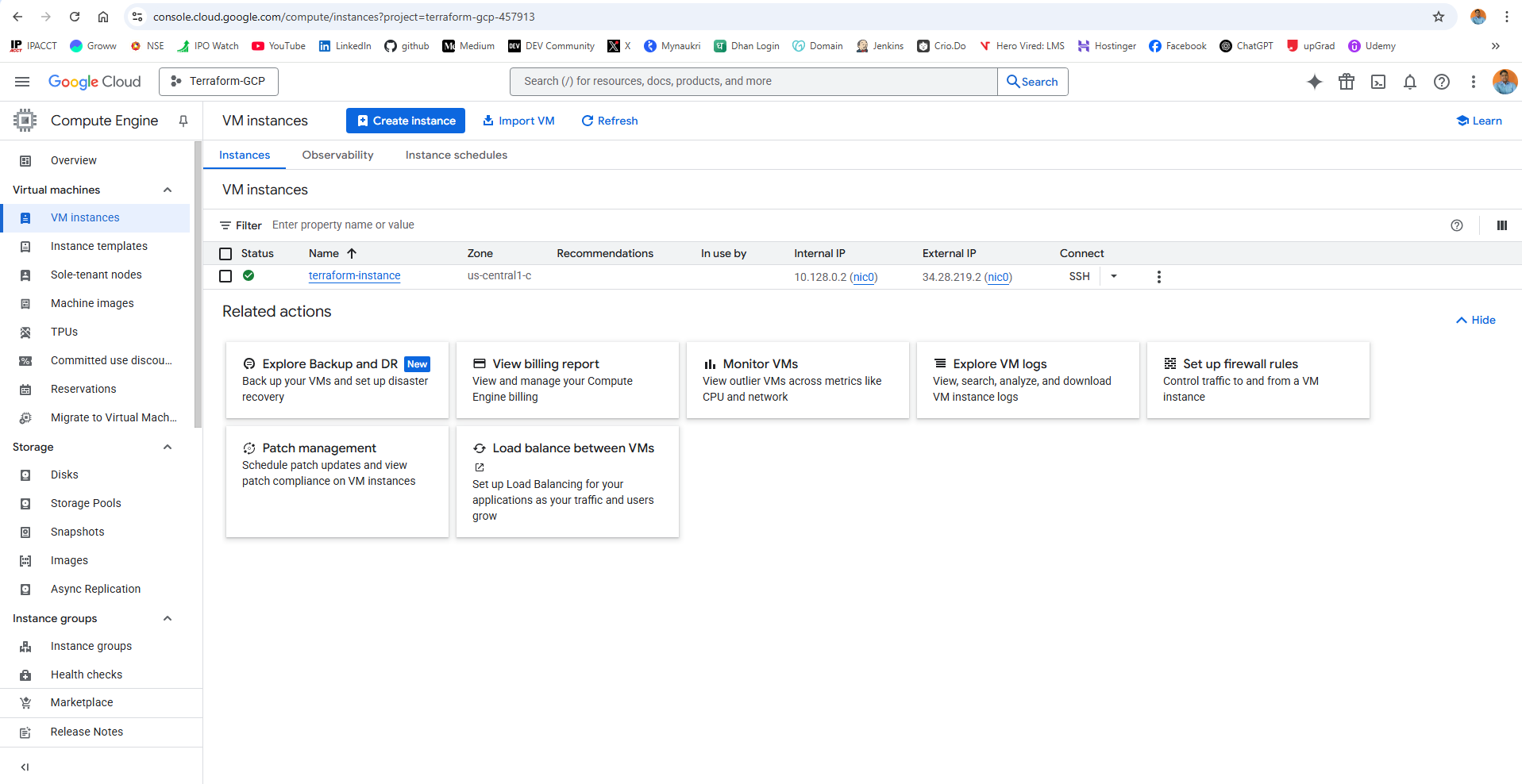

3. VM Compute

GCP VM
