Spark On Kubernetes via helm chart

This article is aimed at introducing the feature of Apache Spark on Kubernetes, which is officially announced as production-ready and Generally Available with the Apache Spark 3.1 release in March 2021.

To gain hands-on experience with the feature, we go through running Apache Spark on a local Kubernetes cluster with Workload Identity to explore the nuance of environment set up and arguments when submitting jobs.

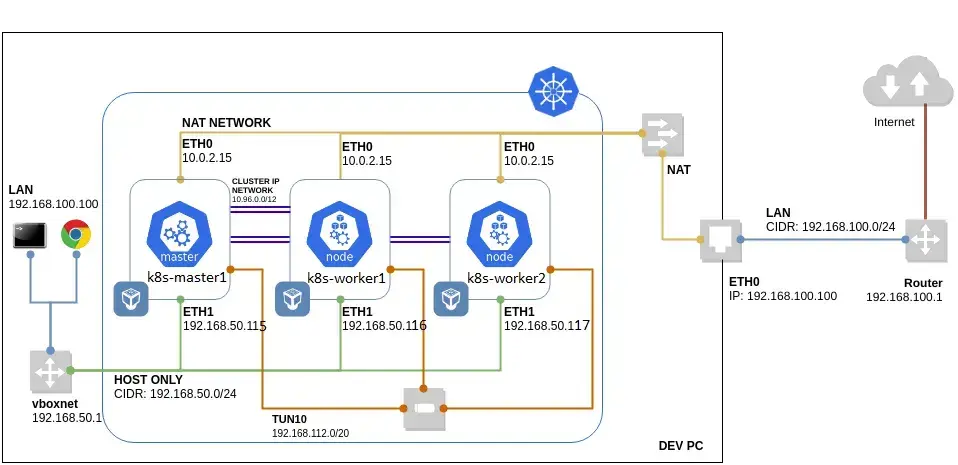

The control-plane & worker nodes addresses are :

192.168.56.115
192.168.56.116
192.168.56.117

Image description
Kubernetes cluster nodes :

Image description
you can install helm via the link helm

Installing Apache Spark

The Steps :

1) Install spark via helm chart (bitnami) :

$ helm repo add bitnami https://charts.bitnami.com/bitnami
$ helm search repo bitnami
$ helm install kayvan-release oci://registry-1.docker.io/bitnamicharts/spark
$ helm upgrade kayvan-release bitnami/spark - set worker.replicaCount=5

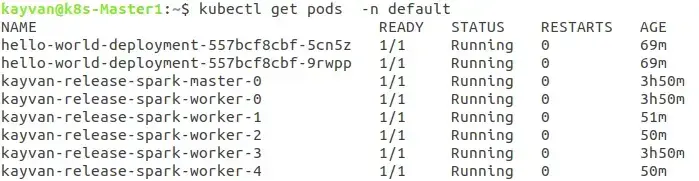

the installed 6 pods :

Image description
and Services (headless for statefull) :

Image description

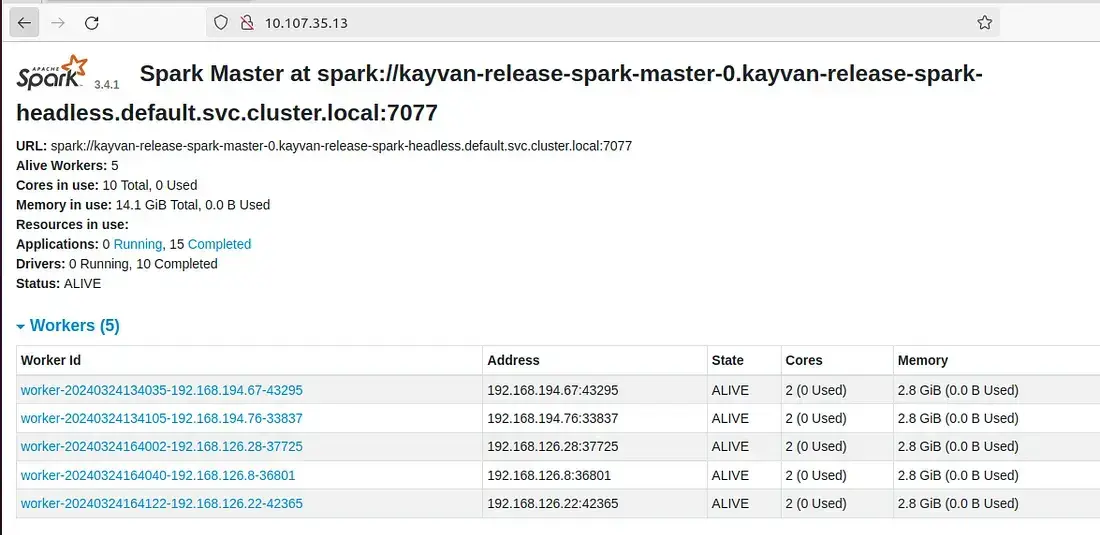

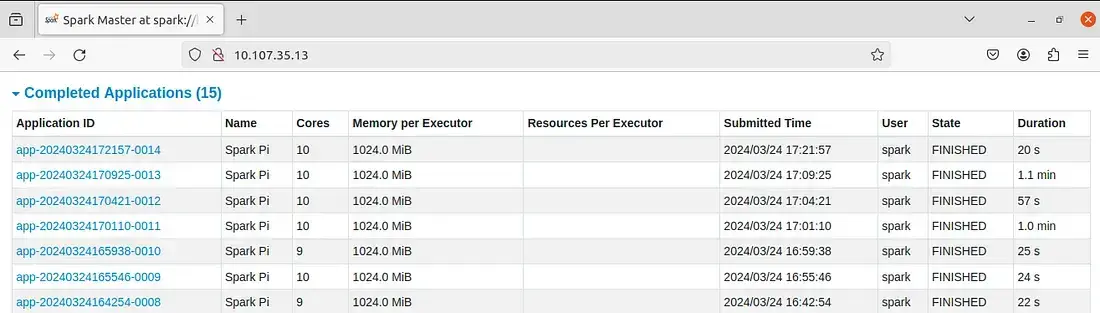

and the spark master ui is :

Image description

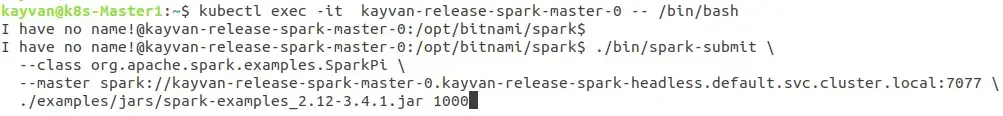

2) type the below commands on kubernetes kube-apiserver :

kubectl exec -it kayvan-release-spark-master-0 -- ./bin/spark-submit \
 --class org.apache.spark.examples.SparkPi \
 --master spark://kayvan-release-spark-master-0.kayvan-release-spark-headless.default.svc.cluster.local:7077 \
 ./examples/jars/spark-examples_2.12–3.4.1.jar 1000

or

kubectl exec -it kayvan-release-spark-master-0 -- /bin/bash


./bin/spark-submit \
 --class org.apache.spark.examples.SparkPi \
 --master spark://kayvan-release-spark-master-0.kayvan-release-spark-headless.default.svc.cluster.local:7077 \
 ./examples/jars/spark-examples_2.12–3.4.1.jar 1000


./bin/spark-submit \
 --class org.apache.spark.examples.SparkPi \
 --master spark://kayvan-release-spark-master-0.kayvan-release-spark-headless.default.svc.cluster.local:7077 \
 ./examples/src/main/python/pi.py 1000


./bin/spark-submit \
 --class org.apache.spark.examples.SparkPi \
 --master spark://kayvan-release-spark-master-0.kayvan-release-spark-headless.default.svc.cluster.local:7077 \
 ./examples/src/main/python/wordcount.py //filepath

Image description

Image description
the exact scala & python code of spark-examples_2.12–3.4.1.jar , pi.py & wordcount.py :

SparkPi.scala

pi.py

wordcount.py

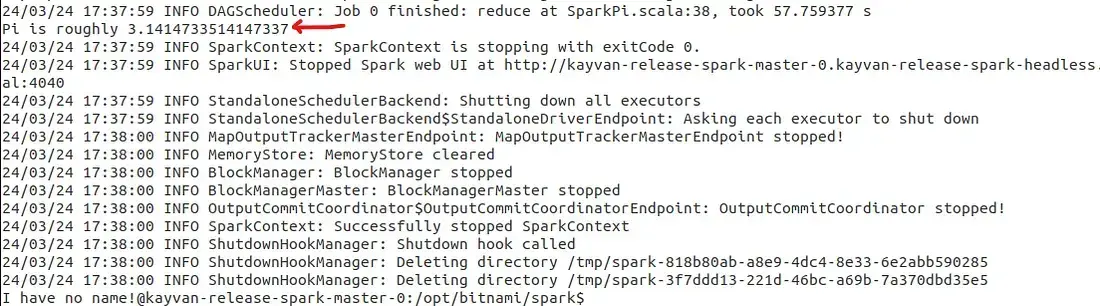

3) The final result is 🍹 :

for scala :

Image description

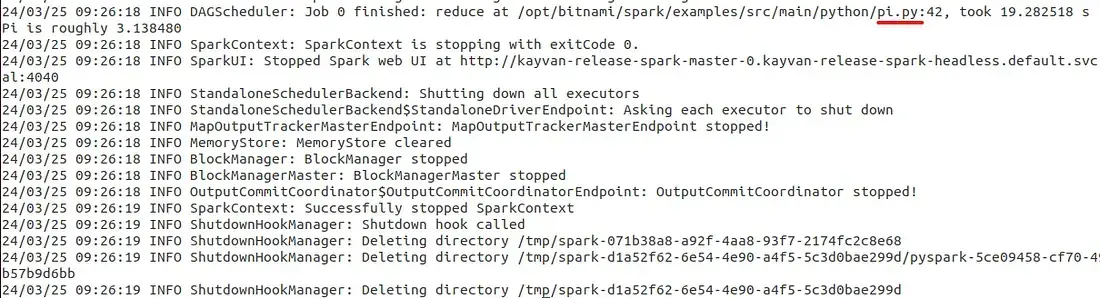

for python :

Image description

Image description

The other python Programm :

1) Copy People.csv (large file) inside spark worker pods :

Image description

kubectl cp people.csv kayvan-release-spark-worker-{x}:/opt/bitnami/spark

Notes:

  • you can download the file from link
  • you can also use a nfs share folder for read large csv file from it instead of copying it inside pods.

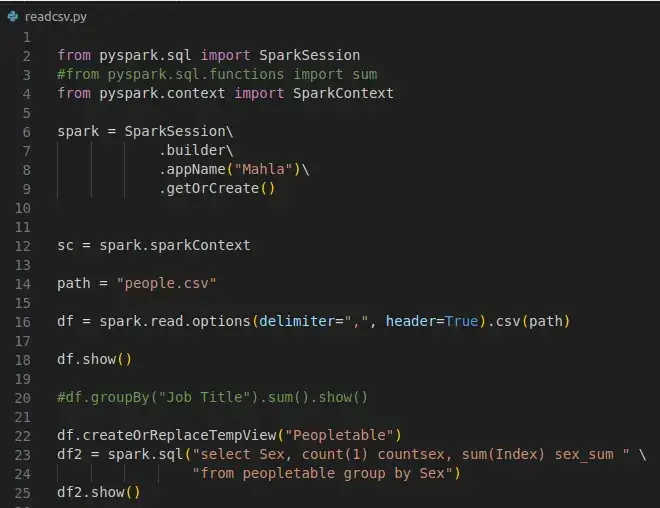

2) Write some python codes inside readcsv.py please :

from pyspark.sql import SparkSession
#from pyspark.sql.functions import sum
from pyspark.context import SparkContext

spark = SparkSession\
 .builder\
 .appName("Mahla")\
 .getOrCreate()


sc = spark.sparkContext

path = "people.csv"

df = spark.read.options(delimiter=",", header=True).csv(path)

df.show()

#df.groupBy("Job Title").sum().show()

df.createOrReplaceTempView("Peopletable")
df2 = spark.sql("select Sex, count(1) countsex, sum(Index) sex_sum " \
                     "from peopletable group by Sex")

df2.show()

#df.select(sum(df.Index)).show()

Image description
3) copy readcsv.py file inside spark master pod :

kubectl cp readcsv.py kayvan-release-spark-master-0:/opt/bitnami/spark

4) run the code :

kubectl exec -it kayvan-release-spark-master-0 -- ./bin/spark-submit
   --class org.apache.spark.examples.SparkPi
   --master spark://kayvan-release-spark-master-0.kayvan-release-spark-headless.default.svc.cluster.local:7077
       readcsv.py

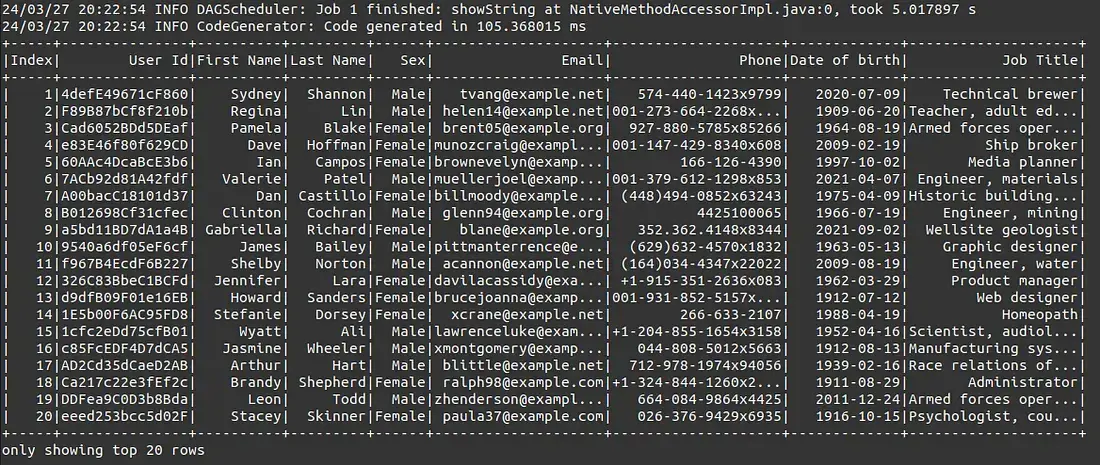

5) showing some data :

Image description

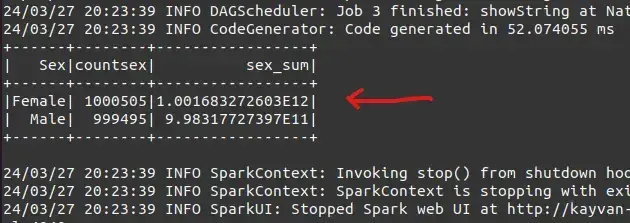

6) the next result data:

Image description

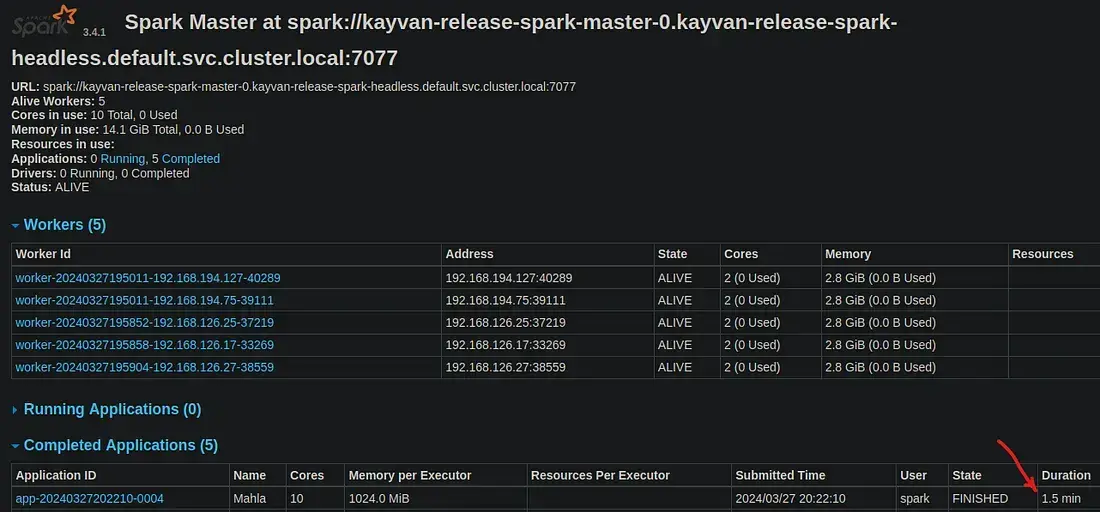

7) the time consuming for processing :

Image description

The other python program on Docker Desktop :

docker-compose.yml :

version: '3.6'

services:

  spark:
    container_name: spark
    image: bitnami/spark:latest
    environment:
      - SPARK_MODE=master
      - SPARK_RPC_AUTHENTICATION_ENABLED=no
      - SPARK_RPC_ENCRYPTION_ENABLED=no
      - SPARK_LOCAL_STORAGE_ENCRYPTION_ENABLED=no
      - SPARK_SSL_ENABLED=no
      - SPARK_USER=root
      - PYSPARK_PYTHON=/opt/bitnami/python/bin/python3
    ports:
      - 127.0.0.1:8081:8080

  spark-worker:
    image: bitnami/spark:latest
    environment:
      - SPARK_MODE=worker
      - SPARK_MASTER_URL=spark://spark:7077
      - SPARK_WORKER_MEMORY=2G
      - SPARK_WORKER_CORES=2
      - SPARK_RPC_AUTHENTICATION_ENABLED=no
      - SPARK_RPC_ENCRYPTION_ENABLED=no
      - SPARK_LOCAL_STORAGE_ENCRYPTION_ENABLED=no
      - SPARK_SSL_ENABLED=no
      - SPARK_USER=root
      - PYSPARK_PYTHON=/opt/bitnami/python/bin/python3

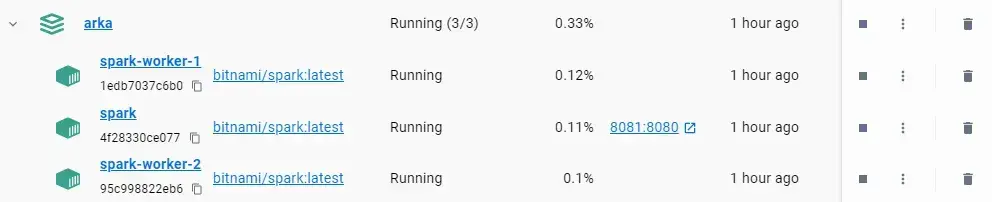

docker-compose up --scale spark-worker=2

Image description
copy required files to containers :

for e.g.

docker cp file.csv spark-worker-1:/opt/bitnami/spark

python code on master :

from pyspark.sql import SparkSession

spark = SparkSession.builder.appName("Writingjson").getOrCreate()

df = spark.read.option("header", True).csv("csv/file.csv").coalesce(2)

df.show()

df.write.partitionBy('name').mode('overwrite').format('json').save('file_name.json')

run the code on spark master docker container :

./bin/spark-submit --master spark://4f28330ce077:7077 csv/ctp.py

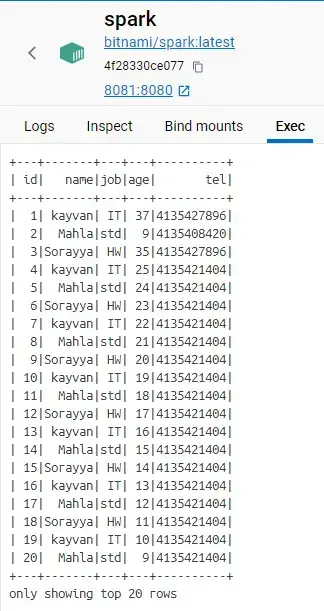

showing some data on master :

Image description

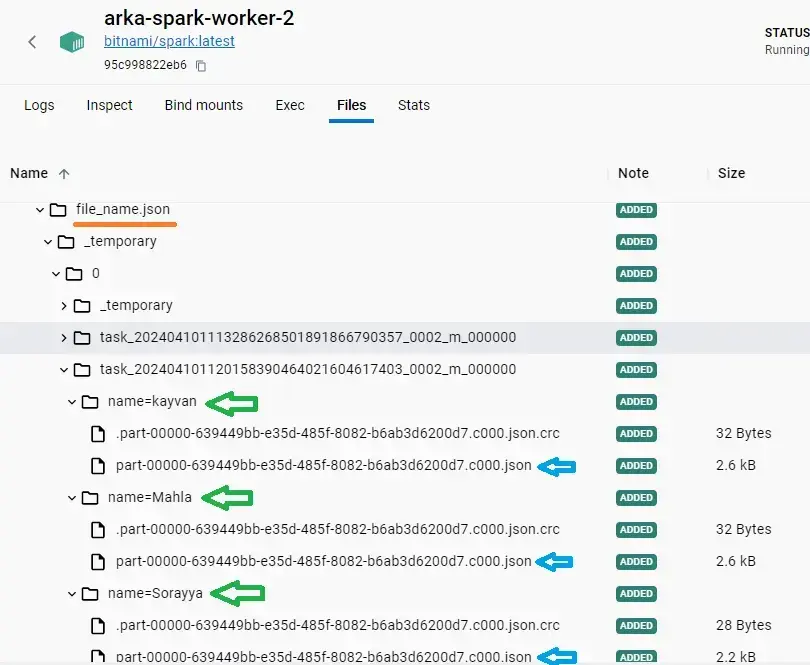

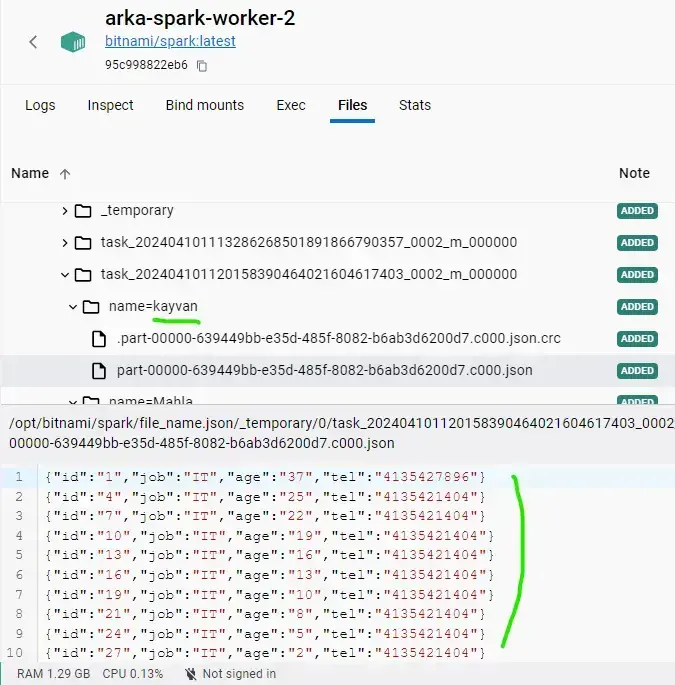

and the seperated json files based on name partitioning on worker 2 :

Image description
data for name=kayvan :

Image description
Congratulation 🍹
