Parallelizing Cypress Tests in CI/CD with Jenkins, Docker, and K8s

TL;DR

Learn how to run Cypress tests in parallel using Jenkins CI, Docker, and Kubernetes.
There are plenty of guides out there showing how to run Cypress tests in parallel using CI/CD tools like GitHub Actions, GitLab CI, CircleCI, and Jenkins.

But what if I told you that you can take it one step further—and integrate Kubernetes?
Yes, you read that right. You can run your tests across multiple pods to massively speed up execution using K8s.

🔧 Tools Used

• Cypress Dashboard (for parallelization logic).
• Jenkins CI (or any similar CI like GitHub Actions).
• Docker (to pin Node/Chrome versions).
• Kubernetes (to run multiple Cypress pods).

Project structure

│cypress/
│   └── e2e/
│       └── testsuite1.spec.js
│       └── ……
├── cypress.config.js
├── Dockerfile
├── Jenkinsfile
└── k8s/
    └── cypress-job.yaml

Step 1: Cypress setup with parallelization

• Create a basic Cypress project on Cypress Cloud to enable parallelization logic
• Grab your project ID and record key.
• Follow Cypress Dashboard rules to connect your Cypress framework to the Dashboard by explicitly defining project ID in your config file and adding cypress key to your CLI command that run test execution

cypress.config.js

const { defineConfig } = require("cypress");

module.exports = defineConfig({
  // Your projectId from Cypress Dashboard project settings:
  projectId: "xyz123",
  e2e: {
    ……
  },
});

Your CLI command will look something like this

npx cypress run --headless --record --key ${{your-secure-record-key-from-Cypress-Dashboard}} --parallel --group regression --ci-build-id ${{BUILD_NUMBER_GENERATED_BY_CI_PROVIDER}} —-env url=${{test-env-variable}}

I use additional flag —-env url= since I run tests on multiple environments. But you can exclude that.

Step 2: Create a Dockerfile

I normally use original Dockerfile from Cypress itself.

• GitHub link
• Docker image

dockerfile

# Use Cypress included image matching package.json version
FROM cypress/included:14.0.1

# Set working directory to root (where config files reside)
WORKDIR /

# Copy package files and all config files to root
COPY package.json package-lock.json cypress.*.config.js ./

# Install dependencies and ensure Cypress binary is downloaded
RUN npm ci && \
    npx cypress install --force && \
    ls -l /root/.cache/Cypress/14.0.1/Cypress/Cypress || echo "Binary install failed"

# Copy the rest of the project files
COPY . .

# Default environment variables (can be overridden)
ARG ENVIRONMENT=stage
ARG CYPRESS_KEY
ARG TEST_FILE=""

ENV CYPRESS_ENVIRONMENT=$ENVIRONMENT
ENV CYPRESS_RECORD_KEY=$CYPRESS_KEY
ENV TEST_FILE=$TEST_FILE

# Default command (will be overridden in pipeline)
CMD ["npx", "cypress", "run", "--headless", "--record", "--key", "$CYPRESS_RECORD_KEY", "--env", "url=$CYPRESS_ENVIRONMENT"]

Step 3: Create a Jenkinsfile

In my case I re-use common template that has been made for each and every repo CI pipeline on our product, so I just needed to refer to shared lib.
But you follow your own company policies. The Jenkins template would be

groovy

pipeline {
  agent any
  environment {
    CYPRESS_RECORD_KEY = credentials('cypress-key')
    BUILD_ID = "${env.BUILD_NUMBER}"
  }
  stages {
    stage('Install') {
      steps {
        sh 'npm ci'
      }
    }
    stage('Run Cypress Tests in Parallel') {
                steps {
                    script {
                        def environmentToUse = params.ENV_NAME ?: 'stage'
                        def keyToUse = environmentToUse == 'stage' ? cypressKey : cypressKeyDev
                        def configFile = "cypress.${environmentToUse}.config.js"
                        echo "Using Cypress config file: ${configFile} for environment: ${environmentToUse}"

                        def testFiles = sh(script: """#!/bin/sh
                            find cypress/e2e -name '*.spec.js' 2>/dev/null || echo "No test files found"
                        """, returnStdout: true).trim().split('\n').findAll { it && it != "No test files found" }

                        if (!testFiles) {
                            error "No Cypress test files (*.spec.js) found in cypress/e2e directory!"
                        }
                        echo "Found ${testFiles.size()} test files: ${testFiles.join(', ')}"
                        def numContainers = Math.min(testFiles.size(), 8)

                        def parallelTasks = [:]
                        for (int i = 0; i < numContainers; i++) {
                            def startIdx = (i * testFiles.size() / numContainers).toInteger()
                            def endIdx = ((i + 1) * testFiles.size() / numContainers).toInteger()
                            def subset = testFiles[startIdx..

Step 4: Define a Kubernetes Job

The most complicated step I would say.

Cypress test command should remain consistent between your Jenkinsfile and the Kubernetes Deployment or Job YAML file.
You may ask Why? Because Cypress uses the --record, --parallel, and --ci-build-id flags to coordinate and split specs across machines (or pods in our case).

So:

• Jenkins is responsible for triggering the build and setting environment variables.
• Kubernetes is responsible for running the actual test command inside pods.

Step 4a: How to securely pass CI_BUILD_ID and CYPRESS_RECORD_KEY

You should not hard-code sensitive values in YAML files or source control.

Use Kubernetes secrets instead:

bash

kubectl create secret generic cypress-secrets \
  --from-literal=CYPRESS_RECORD_KEY=your-record-key \
  --from-literal=CI_BUILD_ID=your-ci-build-id

Reference them in your YAML file as environment variables
k8s/cypress-job.yaml

yaml

env:
  - name: CYPRESS_RECORD_KEY
    valueFrom:
      secretKeyRef:
        name: cypress-secrets
        key: CYPRESS_RECORD_KEY
  - name: CI_BUILD_ID
    valueFrom:
      secretKeyRef:
        name: cypress-secrets
        key: CI_BUILD_ID

In your test command inside the container, use the same npx cypress run ... as in Jenkins.

apiVersion: batch/v1
kind: Job
metadata:
  name: cypress-parallel-job
spec:
  parallelism: 3
  completions: 3
  template:
    spec:
      containers:
        - name: cypress-runner
          image: cypress/browsers:node-18.12.0-chrome-123.0.6312.86-1
          command: ["/bin/sh", "-c"]
          args:
            - >
              npm ci &&
              npx cypress run \
              --record \
              --key $(CYPRESS_RECORD_KEY) \
              --parallel \
              --group "regression" \
              --ci-build-id $(CI_BUILD_ID) \
              --browser chrome
          env:
            - name: CYPRESS_RECORD_KEY
              valueFrom:
                secretKeyRef:
                  name: cypress-secrets
                  key: CYPRESS_RECORD_KEY
            - name: CI_BUILD_ID
              valueFrom:
                secretKeyRef:
                  name: cypress-secrets
                  key: CI_BUILD_ID
      restartPolicy: Never

parallelism: 3 - Defines how many pods run in parallel
completions: 3 - Defines how many successful completions are required for the job to be considered complete. Each successful pod counts as one completion.

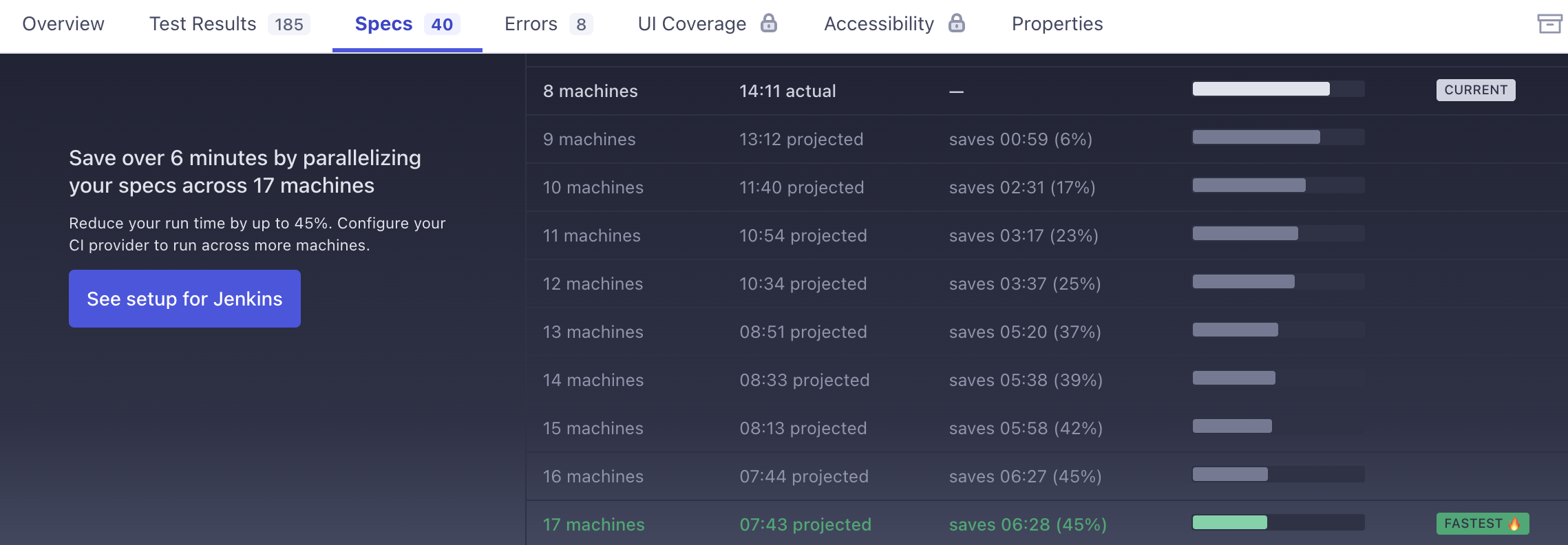

Normally, Cypress Dashboard will show you how many machines are needed for the fastest execution

IMPORTANT: Each pod in this setup runs the same command, so to avoid duplicating test effort, you need Cypress’s --parallel and --ci-build-id logic to coordinate test distribution across those pods. They have to use same command and same secrets

Step 4b: 🚀 How Kubernetes runs multiple pods for parallel tests

When using --parallel in Cypress and deploying tests via Kubernetes, each pod acts as one parallelized "machine" for Cypress Dashboard to split test specs.

You can use a Kubernetes Job or Deployment with a replicaCount or control pod spawning using a custom script:

Option A: Static replicas (simpler)

spec:
  replicas: 4 # Number of parallel test runners

Option B: Dynamic pods based on spec count (advanced)

You can write a pre-step script (in Jenkins or elsewhere) that:

• Counts the number of Cypress spec files.
• Decides how many pods are needed.
• Adjusts the Job YAML using envsubst or sed, or a Helm chart.
• Applies the modified YAML via kubectl apply -f.

Step 5: Managing memory & resource allocation

Use resources in YAML to allocate CPU and memory for each pod:

yaml

resources:
  requests:
    memory: "512Mi"
    cpu: "250m"
  limits:
    memory: "1Gi"
    cpu: "500m"

If Cypress tests are heavy:

• Start with 1Gi per pod and adjust based on OOM kills or slowness.
• Use Node Autoscaler to spin up new nodes if cluster can't handle the load.
• Or use Cluster Autoscaler on AWS EKS / GCP GKE / Azure AKS.

🛠️ Bonus: Auto-Scaling with a custom script

Use a script (Node.js, Bash, or Python) to:

This lets you scale parallel runs dynamically without hardcoding pod counts.

• Detect the number of .spec.js files.
• Set a max pod count per node.
• Patch a YAML template using envsubst or a Helm chart.
• Apply it to the cluster with kubectl.

Final Thoughts

Running Cypress tests in parallel isn’t just an optimization - it’s a game changer when it comes to test execution time and CI/CD scalability.

By combining:

1. Cypress Cloud’s built-in parallelization logic
2. Jenkins for CI orchestration
3. Docker to lock down your test environment
4. Kubernetes to scale execution across multiple pods

you get a powerful, maintainable, and cloud-native testing setup.

🔐 Secure parameter passing with Kubernetes Secrets
⚡ Dynamically spin up multiple pods for faster test runs
💡 Keep Cypress logic consistent across local, CI, and K8s

Whether you're scaling out your test suite, trying to reduce feedback loops, or modernizing your dev pipeline—this approach gives you the tools to move fast without breaking things.
